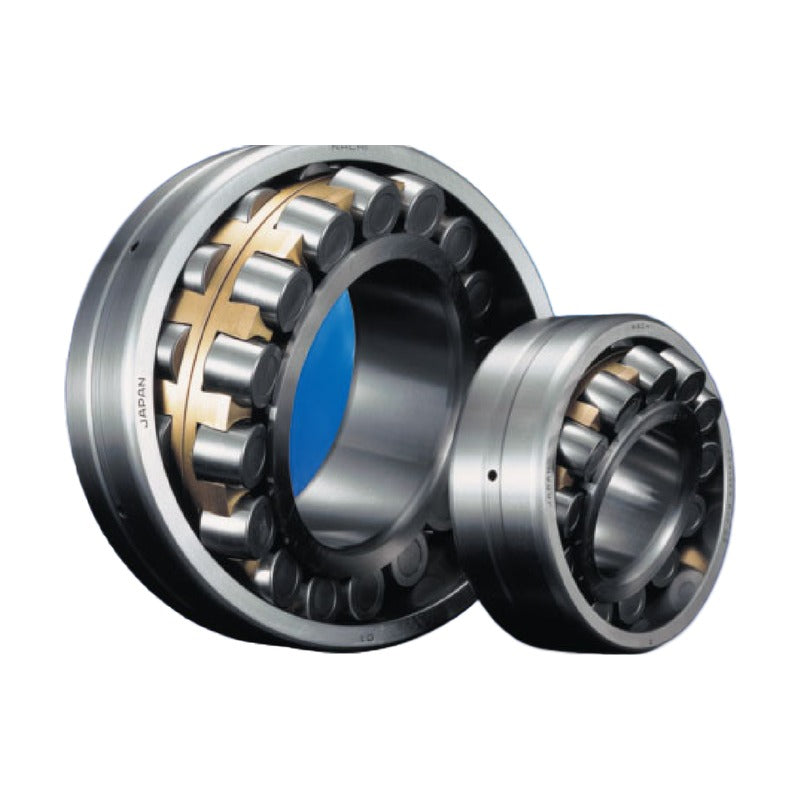

NACHI 240 Series Spherical Roller Bearings (Cylindrical, K Bore)

NACHI 240 Series Spherical Roller Bearings (Cylindrical, K Bore)

NACHI 240 series double-row spherical roller bearings, bore 120 to 800 mm, with cylindrical bore or tapered bore (suffix K = 1:12 taper, K30 = 1:30 taper).

Key features

  • Self-aligning design for applications where misalignment can arise from mounting errors or shaft deflection
  • Maximum permissible misalignment of about 2 degrees under general service conditions
  • High radial load capacity with axial load capacity in both directions
  • Outer rings are often made with lubrication holes and groove (W33) for feeding lubricant
  • Each size listed with cylindrical bore and tapered bore designation (K or K30)

Specifications

Brand NACHI
Series 240
Bearing type Double-row spherical roller bearing
Bore range 120 - 800 mm
Bore Cylindrical or tapered (K 1:12, K30 1:30)
Mass Reference mass of cylindrical-bore bearing
Load ratings Basic dynamic Cr / static C0r
Source NACHI Spherical Roller Bearings and Spherical Roller Thrust Bearings (B1032E-5), p. 14-27
24024EX1 d: 120 mm | D: 180 mm | B: 60 mm | Cr: 540 kN | C0r: 683 kN | Mass: 5.36 kg
24024EX1K30 d: 120 mm | D: 180 mm | B: 60 mm | Cr: 540 kN | C0r: 683 kN | Mass: 5.36 kg
24024AX d: 120 mm | D: 180 mm | B: 60 mm | Cr: 540 kN | C0r: 627 kN | Mass: 5.26 kg
24024AXK30 d: 120 mm | D: 180 mm | B: 60 mm | Cr: 540 kN | C0r: 627 kN | Mass: 5.26 kg
24026EX1 d: 130 mm | D: 200 mm | B: 69 mm | Cr: 710 kN | C0r: 900 kN | Mass: 7.93 kg
24026EX1K30 d: 130 mm | D: 200 mm | B: 69 mm | Cr: 710 kN | C0r: 900 kN | Mass: 7.93 kg
24026AX d: 130 mm | D: 200 mm | B: 69 mm | Cr: 680 kN | C0r: 803 kN | Mass: 7.77 kg
24026AXK30 d: 130 mm | D: 200 mm | B: 69 mm | Cr: 680 kN | C0r: 803 kN | Mass: 7.77 kg
24028EX1 d: 140 mm | D: 210 mm | B: 69 mm | Cr: 720 kN | C0r: 920 kN | Mass: 8.40 kg
24028EX1K30 d: 140 mm | D: 210 mm | B: 69 mm | Cr: 720 kN | C0r: 920 kN | Mass: 8.40 kg
24028AX d: 140 mm | D: 210 mm | B: 69 mm | Cr: 720 kN | C0r: 819 kN | Mass: 8.22 kg
24028AXK30 d: 140 mm | D: 210 mm | B: 69 mm | Cr: 720 kN | C0r: 819 kN | Mass: 8.22 kg
24030EX1 d: 150 mm | D: 225 mm | B: 72 mm | Cr: 815 kN | C0r: 1060 kN | Mass: 10.5 kg
24030EX1K30 d: 150 mm | D: 225 mm | B: 72 mm | Cr: 815 kN | C0r: 1060 kN | Mass: 10.5 kg
24030AX d: 150 mm | D: 225 mm | B: 75 mm | Cr: 815 kN | C0r: 924 kN | Mass: 10.4 kg
24030AXK30 d: 150 mm | D: 225 mm | B: 75 mm | Cr: 815 kN | C0r: 924 kN | Mass: 10.4 kg
24032EX1 d: 160 mm | D: 240 mm | B: 80 mm | Cr: 950 kN | C0r: 1280 kN | Mass: 12.7 kg
24032EX1K30 d: 160 mm | D: 240 mm | B: 80 mm | Cr: 950 kN | C0r: 1280 kN | Mass: 12.7 kg
24032AX d: 160 mm | D: 240 mm | B: 80 mm | Cr: 915 kN | C0r: 1110 kN | Mass: 12.4 kg
24032AXK30 d: 160 mm | D: 240 mm | B: 80 mm | Cr: 915 kN | C0r: 1110 kN | Mass: 12.4 kg
24034EX1 d: 170 mm | D: 260 mm | B: 90 mm | Cr: 1120 kN | C0r: 1480 kN | Mass: 17.3 kg
24034EX1K d: 170 mm | D: 260 mm | B: 90 mm | Cr: 1120 kN | C0r: 1480 kN | Mass: 17.3 kg
24034AX d: 170 mm | D: 260 mm | B: 90 mm | Cr: 1030 kN | C0r: 1320 kN | Mass: 17.0 kg
24034AXK30 d: 170 mm | D: 260 mm | B: 90 mm | Cr: 1030 kN | C0r: 1320 kN | Mass: 17.0 kg
24036EX1 d: 180 mm | D: 280 mm | B: 100 mm | Cr: 1330 kN | C0r: 1760 kN | Mass: 22.7 kg
24036EX1K d: 180 mm | D: 280 mm | B: 100 mm | Cr: 1330 kN | C0r: 1760 kN | Mass: 22.7 kg
24036AX d: 180 mm | D: 280 mm | B: 100 mm | Cr: 1230 kN | C0r: 1580 kN | Mass: 22.5 kg
24036AXK30 d: 180 mm | D: 280 mm | B: 100 mm | Cr: 1230 kN | C0r: 1580 kN | Mass: 22.5 kg
24038E d: 190 mm | D: 290 mm | B: 100 mm | Cr: 1420 kN | C0r: 1920 kN | Mass: 24.6 kg
24038EK30 d: 190 mm | D: 290 mm | B: 100 mm | Cr: 1420 kN | C0r: 1920 kN | Mass: 24.6 kg
24040E d: 200 mm | D: 310 mm | B: 109 mm | Cr: 1640 kN | C0r: 2230 kN | Mass: 31.2 kg
24040EK30 d: 200 mm | D: 310 mm | B: 109 mm | Cr: 1640 kN | C0r: 2230 kN | Mass: 31.2 kg
24044E d: 220 mm | D: 340 mm | B: 118 mm | Cr: 1950 kN | C0r: 2670 kN | Mass: 40.3 kg
24044EK30 d: 220 mm | D: 340 mm | B: 118 mm | Cr: 1950 kN | C0r: 2670 kN | Mass: 40.3 kg
24048E d: 240 mm | D: 360 mm | B: 118 mm | Cr: 1990 kN | C0r: 2800 kN | Mass: 43.3 kg
24048EK30 d: 240 mm | D: 360 mm | B: 118 mm | Cr: 1990 kN | C0r: 2800 kN | Mass: 43.3 kg
24052E d: 260 mm | D: 400 mm | B: 140 mm | Cr: 2630 kN | C0r: 3700 kN | Mass: 65.7 kg
24052EK30 d: 260 mm | D: 400 mm | B: 140 mm | Cr: 2630 kN | C0r: 3700 kN | Mass: 65.7 kg
24056E d: 280 mm | D: 420 mm | B: 140 mm | Cr: 2680 kN | C0r: 3900 kN | Mass: 69.6 kg
24056EK30 d: 280 mm | D: 420 mm | B: 140 mm | Cr: 2680 kN | C0r: 3900 kN | Mass: 69.6 kg
24060E d: 300 mm | D: 460 mm | B: 160 mm | Cr: 3350 kN | C0r: 4850 kN | Mass: 98.7 kg
24060EK30 d: 300 mm | D: 460 mm | B: 160 mm | Cr: 3350 kN | C0r: 4850 kN | Mass: 98.7 kg
24064E d: 320 mm | D: 480 mm | B: 160 mm | Cr: 3400 kN | C0r: 5100 kN | Mass: 104 kg
24064EK30 d: 320 mm | D: 480 mm | B: 160 mm | Cr: 3400 kN | C0r: 5100 kN | Mass: 104 kg
24068E d: 340 mm | D: 520 mm | B: 180 mm | Cr: 4100 kN | C0r: 6050 kN | Mass: 141 kg
24068EK30 d: 340 mm | D: 520 mm | B: 180 mm | Cr: 4100 kN | C0r: 6050 kN | Mass: 141 kg
24072E d: 360 mm | D: 540 mm | B: 180 mm | Cr: 4250 kN | C0r: 6350 kN | Mass: 148 kg
24072EK30 d: 360 mm | D: 540 mm | B: 180 mm | Cr: 4250 kN | C0r: 6350 kN | Mass: 148 kg
24076E d: 380 mm | D: 560 mm | B: 180 mm | Cr: 4300 kN | C0r: 6650 kN | Mass: 154 kg
24076EK30 d: 380 mm | D: 560 mm | B: 180 mm | Cr: 4300 kN | C0r: 6650 kN | Mass: 154 kg
24080E d: 400 mm | D: 600 mm | B: 200 mm | Cr: 5000 kN | C0r: 7650 kN | Mass: 204 kg
24080EK30 d: 400 mm | D: 600 mm | B: 200 mm | Cr: 5000 kN | C0r: 7650 kN | Mass: 204 kg
24084E d: 420 mm | D: 620 mm | B: 200 mm | Cr: 5150 kN | C0r: 8000 kN | Mass: 212 kg
24084EK30 d: 420 mm | D: 620 mm | B: 200 mm | Cr: 5150 kN | C0r: 8000 kN | Mass: 212 kg
24088E d: 440 mm | D: 650 mm | B: 212 mm | Cr: 5750 kN | C0r: 9000 kN | Mass: 247 kg
24088EK30 d: 440 mm | D: 650 mm | B: 212 mm | Cr: 5750 kN | C0r: 9000 kN | Mass: 247 kg
24092E d: 460 mm | D: 680 mm | B: 218 mm | Cr: 6100 kN | C0r: 9650 kN | Mass: 279 kg
24092EK30 d: 460 mm | D: 680 mm | B: 218 mm | Cr: 6100 kN | C0r: 9650 kN | Mass: 279 kg
24096E d: 480 mm | D: 700 mm | B: 218 mm | Cr: 6300 kN | C0r: 10100 kN | Mass: 290 kg
24096EK30 d: 480 mm | D: 700 mm | B: 218 mm | Cr: 6300 kN | C0r: 10100 kN | Mass: 290 kg
240/500E d: 500 mm | D: 720 mm | B: 218 mm | Cr: 6450 kN | C0r: 10500 kN | Mass: 300 kg
240/500EK30 d: 500 mm | D: 720 mm | B: 218 mm | Cr: 6450 kN | C0r: 10500 kN | Mass: 300 kg
240/530E d: 530 mm | D: 780 mm | B: 250 mm | Cr: 7800 kN | C0r: 12500 kN | Mass: 417 kg
240/530EK30 d: 530 mm | D: 780 mm | B: 250 mm | Cr: 7800 kN | C0r: 12500 kN | Mass: 417 kg
240/560E d: 560 mm | D: 820 mm | B: 258 mm | Cr: 8350 kN | C0r: 13500 kN | Mass: 468 kg
240/560EK30 d: 560 mm | D: 820 mm | B: 258 mm | Cr: 8350 kN | C0r: 13500 kN | Mass: 468 kg
240/600E d: 600 mm | D: 870 mm | B: 272 mm | Cr: 9050 kN | C0r: 14900 kN | Mass: 551 kg
240/600EK30 d: 600 mm | D: 870 mm | B: 272 mm | Cr: 9050 kN | C0r: 14900 kN | Mass: 551 kg
240/670E d: 670 mm | D: 980 mm | B: 308 mm | Cr: 12000 kN | C0r: 19800 kN | Mass: 801 kg
240/670EK30 d: 670 mm | D: 980 mm | B: 308 mm | Cr: 12000 kN | C0r: 19800 kN | Mass: 801 kg
240/800E d: 800 mm | D: 1150 mm | B: 345 mm | Cr: 15400 kN | C0r: 27200 kN | Mass: 1200 kg
240/800EK30 d: 800 mm | D: 1150 mm | B: 345 mm | Cr: 15400 kN | C0r: 27200 kN | Mass: 1200 kg
Spherical Roller BearingsNACHI
72 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI 240 Series Spherical Roller Bearings (Cylindrical, K Bore)

Brand NACHI·Spherical Roller Bearings

Available part numbers (72)

24024EX1, 24024EX1K30, 24024AX, 24024AXK30, 24026EX1, 24026EX1K30, 24026AX, 24026AXK30, 24028EX1, 24028EX1K30 + 62 more — see full table ↓
