NACHI Excel 60 Series Deep Groove Ball Bearings (2NSE, 2NKE, ZZE)

NACHI Excel 60 Series Deep Groove Ball Bearings (2NSE, 2NKE, ZZE)

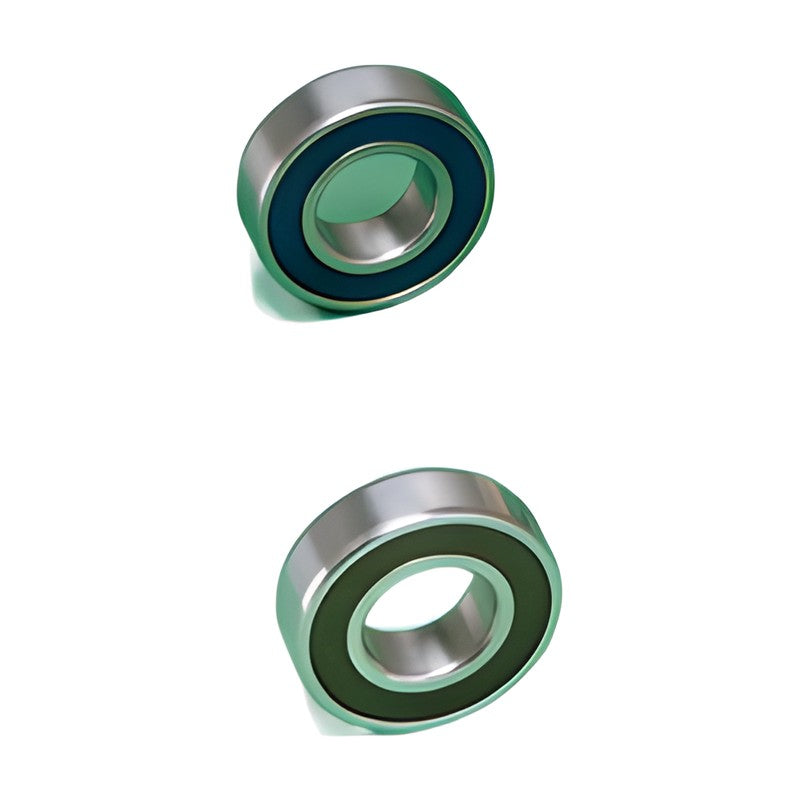

NACHI Excel series 60 type single-row radial ball bearings, bore 10 to 75 mm, supplied with contact seals (2NSE), labyrinth seals (2NKE) or shields (ZZE).

Key features

  • Excel series design with special triple-lip seals: contact type (2NSE) and labyrinth/non-contact type (2NKE), plus shielded type (ZZE)
  • Low starting and running torque from a revised internal design with diminished axial play
  • Improved accuracy of rolling elements for reduced running noise and enhanced sound quality
  • Pre-lubricated with long-life grease; high-performance seals keep out dust
  • Replaces the previous 2NSL, 2NK and ZZ closures (e.g. 6203-2NSE replaces 6203-2NSL)

Specifications

Brand NACHI
Series Excel 60 type
Bearing type Single-row deep groove (radial) ball bearing
Bore range 10 - 75 mm
Closures 2NSE contact seals, 2NKE labyrinth seals, ZZE shields
Dimensions mm
Source NACHI Excel Series Radial Ball Bearings (B4031E-2), p. 1-2
6000-2NSE d: 10 mm | D: 26 mm | B: 8 mm | r min: 0.3 mm
6000-2NKE d: 10 mm | D: 26 mm | B: 8 mm | r min: 0.3 mm
6001-2NSE d: 12 mm | D: 28 mm | B: 8 mm | r min: 0.3 mm
6001-2NKE d: 12 mm | D: 28 mm | B: 8 mm | r min: 0.3 mm
6002-2NSE d: 15 mm | D: 32 mm | B: 9 mm | r min: 0.3 mm
6002-2NKE d: 15 mm | D: 32 mm | B: 9 mm | r min: 0.3 mm
6003-2NSE d: 17 mm | D: 35 mm | B: 10 mm | r min: 0.3 mm
6003-2NKE d: 17 mm | D: 35 mm | B: 10 mm | r min: 0.3 mm
6004-2NSE d: 20 mm | D: 42 mm | B: 12 mm | r min: 0.6 mm
6004-2NKE d: 20 mm | D: 42 mm | B: 12 mm | r min: 0.6 mm
6005-2NSE d: 25 mm | D: 47 mm | B: 12 mm | r min: 0.6 mm
6005-2NKE d: 25 mm | D: 47 mm | B: 12 mm | r min: 0.6 mm
6006-2NSE d: 30 mm | D: 55 mm | B: 13 mm | r min: 1 mm
6006-2NKE d: 30 mm | D: 55 mm | B: 13 mm | r min: 1 mm
6007-2NSE d: 35 mm | D: 62 mm | B: 14 mm | r min: 1 mm
6007-2NKE d: 35 mm | D: 62 mm | B: 14 mm | r min: 1 mm
6008-2NSE d: 40 mm | D: 68 mm | B: 15 mm | r min: 1 mm
6008-2NKE d: 40 mm | D: 68 mm | B: 15 mm | r min: 1 mm
6009-2NSE d: 45 mm | D: 75 mm | B: 16 mm | r min: 1 mm
6009-2NKE d: 45 mm | D: 75 mm | B: 16 mm | r min: 1 mm
6010-2NSE d: 50 mm | D: 80 mm | B: 16 mm | r min: 1 mm
6010-2NKE d: 50 mm | D: 80 mm | B: 16 mm | r min: 1 mm
6011-2NSE d: 55 mm | D: 90 mm | B: 18 mm | r min: 1.1 mm
6011-2NKE d: 55 mm | D: 90 mm | B: 18 mm | r min: 1.1 mm
6011ZZE d: 55 mm | D: 90 mm | B: 18 mm | r min: 1.1 mm
6012-2NSE d: 60 mm | D: 95 mm | B: 18 mm | r min: 1.1 mm
6012-2NKE d: 60 mm | D: 95 mm | B: 18 mm | r min: 1.1 mm
6012ZZE d: 60 mm | D: 95 mm | B: 18 mm | r min: 1.1 mm
6013-2NSE d: 65 mm | D: 100 mm | B: 18 mm | r min: 1.1 mm
6013-2NKE d: 65 mm | D: 100 mm | B: 18 mm | r min: 1.1 mm
6013ZZE d: 65 mm | D: 100 mm | B: 18 mm | r min: 1.1 mm
6014-2NSE d: 70 mm | D: 110 mm | B: 20 mm | r min: 1.1 mm
6014-2NKE d: 70 mm | D: 110 mm | B: 20 mm | r min: 1.1 mm
6014ZZE d: 70 mm | D: 110 mm | B: 20 mm | r min: 1.1 mm
6015-2NSE d: 75 mm | D: 115 mm | B: 20 mm | r min: 1.1 mm
6015-2NKE d: 75 mm | D: 115 mm | B: 20 mm | r min: 1.1 mm
6015ZZE d: 75 mm | D: 115 mm | B: 20 mm | r min: 1.1 mm
Deep Groove Ball BearingsNACHI
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI Excel 60 Series Deep Groove Ball Bearings (2NSE, 2NKE, ZZE)

Brand NACHI·Deep Groove Ball Bearings

Available part numbers (37)

6000-2NSE, 6000-2NKE, 6001-2NSE, 6001-2NKE, 6002-2NSE, 6002-2NKE, 6003-2NSE, 6003-2NKE, 6004-2NSE, 6004-2NKE + 27 more — see full table ↓

How to order

Send the NACHI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
