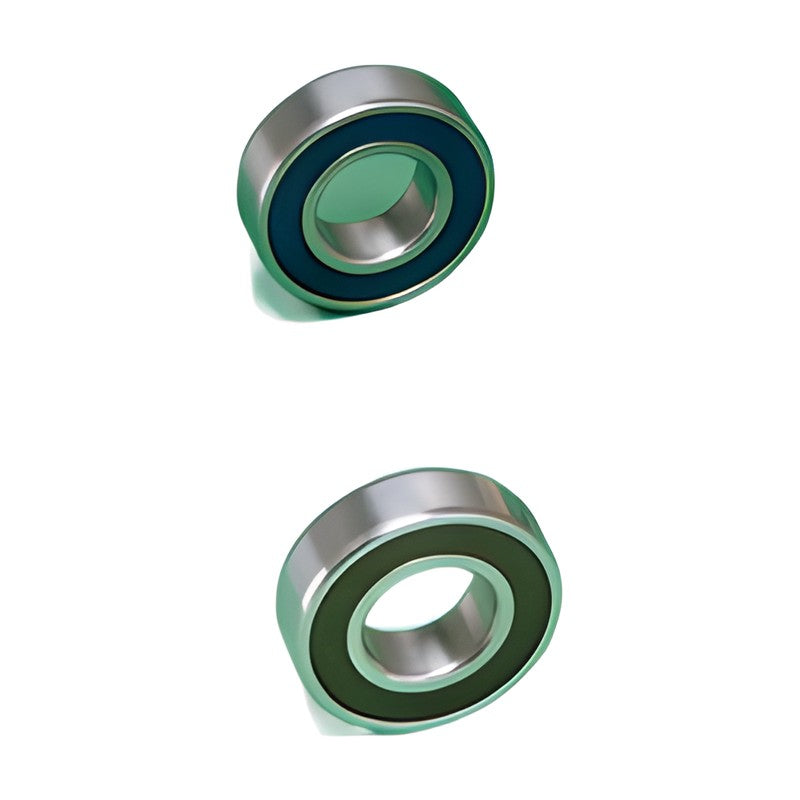

NACHI Excel 62 Series Deep Groove Ball Bearings (2NSE, 2NKE, ZZE)

NACHI Excel 62 Series Deep Groove Ball Bearings (2NSE, 2NKE, ZZE)

NACHI Excel series 62 type single-row radial ball bearings, bore 10 to 75 mm, supplied with contact seals (2NSE), labyrinth seals (2NKE) or shields (ZZE).

Key features

  • Excel series design with special triple-lip seals: contact type (2NSE) and labyrinth/non-contact type (2NKE), plus shielded type (ZZE)
  • Low starting and running torque from a revised internal design with diminished axial play
  • Improved accuracy of rolling elements for reduced running noise and enhanced sound quality
  • Pre-lubricated with long-life grease; high-performance seals keep out dust
  • Replaces the previous 2NSL, 2NK and ZZ closures (e.g. 6203-2NSE replaces 6203-2NSL)

Specifications

Brand NACHI
Series Excel 62 type
Bearing type Single-row deep groove (radial) ball bearing
Bore range 10 - 75 mm
Closures 2NSE contact seals, 2NKE labyrinth seals, ZZE shields
Dimensions mm
Source NACHI Excel Series Radial Ball Bearings (B4031E-2), p. 1-2
6200-2NSE d: 10 mm | D: 30 mm | B: 9 mm | r min: 0.6 mm
6200-2NKE d: 10 mm | D: 30 mm | B: 9 mm | r min: 0.6 mm
6201-2NSE d: 12 mm | D: 32 mm | B: 10 mm | r min: 0.6 mm
6201-2NKE d: 12 mm | D: 32 mm | B: 10 mm | r min: 0.6 mm
6202-2NSE d: 15 mm | D: 35 mm | B: 11 mm | r min: 0.6 mm
6202-2NKE d: 15 mm | D: 35 mm | B: 11 mm | r min: 0.6 mm
6203-2NSE d: 17 mm | D: 40 mm | B: 12 mm | r min: 0.6 mm
6203-2NKE d: 17 mm | D: 40 mm | B: 12 mm | r min: 0.6 mm
6204-2NSE d: 20 mm | D: 47 mm | B: 14 mm | r min: 1 mm
6204-2NKE d: 20 mm | D: 47 mm | B: 14 mm | r min: 1 mm
6205-2NSE d: 25 mm | D: 52 mm | B: 15 mm | r min: 1 mm
6205-2NKE d: 25 mm | D: 52 mm | B: 15 mm | r min: 1 mm
6206-2NSE d: 30 mm | D: 62 mm | B: 16 mm | r min: 1 mm
6206-2NKE d: 30 mm | D: 62 mm | B: 16 mm | r min: 1 mm
6207-2NSE d: 35 mm | D: 72 mm | B: 17 mm | r min: 1.1 mm
6207-2NKE d: 35 mm | D: 72 mm | B: 17 mm | r min: 1.1 mm
6208-2NSE d: 40 mm | D: 80 mm | B: 18 mm | r min: 1.1 mm
6208-2NKE d: 40 mm | D: 80 mm | B: 18 mm | r min: 1.1 mm
6209-2NSE d: 45 mm | D: 85 mm | B: 19 mm | r min: 1.1 mm
6209-2NKE d: 45 mm | D: 85 mm | B: 19 mm | r min: 1.1 mm
6210-2NSE d: 50 mm | D: 90 mm | B: 20 mm | r min: 1.1 mm
6210-2NKE d: 50 mm | D: 90 mm | B: 20 mm | r min: 1.1 mm
6211-2NSE d: 55 mm | D: 100 mm | B: 21 mm | r min: 1.5 mm
6211-2NKE d: 55 mm | D: 100 mm | B: 21 mm | r min: 1.5 mm
6211ZZE d: 55 mm | D: 100 mm | B: 21 mm | r min: 1.5 mm
6212-2NSE d: 60 mm | D: 110 mm | B: 22 mm | r min: 1.5 mm
6212-2NKE d: 60 mm | D: 110 mm | B: 22 mm | r min: 1.5 mm
6212ZZE d: 60 mm | D: 110 mm | B: 22 mm | r min: 1.5 mm
6213-2NSE d: 65 mm | D: 120 mm | B: 23 mm | r min: 1.5 mm
6213-2NKE d: 65 mm | D: 120 mm | B: 23 mm | r min: 1.5 mm
6213ZZE d: 65 mm | D: 120 mm | B: 23 mm | r min: 1.5 mm
6214-2NSE d: 70 mm | D: 125 mm | B: 24 mm | r min: 1.5 mm
6214-2NKE d: 70 mm | D: 125 mm | B: 24 mm | r min: 1.5 mm
6214ZZE d: 70 mm | D: 125 mm | B: 24 mm | r min: 1.5 mm
6215-2NSE d: 75 mm | D: 130 mm | B: 25 mm | r min: 1.5 mm
6215-2NKE d: 75 mm | D: 130 mm | B: 25 mm | r min: 1.5 mm
6215ZZE d: 75 mm | D: 130 mm | B: 25 mm | r min: 1.5 mm
Deep Groove Ball BearingsNACHI
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI Excel 62 Series Deep Groove Ball Bearings (2NSE, 2NKE, ZZE)

Brand NACHI·Deep Groove Ball Bearings

Available part numbers (37)

6200-2NSE, 6200-2NKE, 6201-2NSE, 6201-2NKE, 6202-2NSE, 6202-2NKE, 6203-2NSE, 6203-2NKE, 6204-2NSE, 6204-2NKE + 27 more — see full table ↓

How to order

Send the NACHI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6200-2NSEd: 10 mm | D: 30 mm | B: 9 mm | r min: 0.6 mm
6200-2NKEd: 10 mm | D: 30 mm | B: 9 mm | r min: 0.6 mm
6201-2NSEd: 12 mm | D: 32 mm | B: 10 mm | r min: 0.6 mm
6201-2NKEd: 12 mm | D: 32 mm | B: 10 mm | r min: 0.6 mm
6202-2NSEd: 15 mm | D: 35 mm | B: 11 mm | r min: 0.6 mm
6202-2NKEd: 15 mm | D: 35 mm | B: 11 mm | r min: 0.6 mm
6203-2NSEd: 17 mm | D: 40 mm | B: 12 mm | r min: 0.6 mm
6203-2NKEd: 17 mm | D: 40 mm | B: 12 mm | r min: 0.6 mm
6204-2NSEd: 20 mm | D: 47 mm | B: 14 mm | r min: 1 mm
6204-2NKEd: 20 mm | D: 47 mm | B: 14 mm | r min: 1 mm
6205-2NSEd: 25 mm | D: 52 mm | B: 15 mm | r min: 1 mm
6205-2NKEd: 25 mm | D: 52 mm | B: 15 mm | r min: 1 mm
6206-2NSEd: 30 mm | D: 62 mm | B: 16 mm | r min: 1 mm
6206-2NKEd: 30 mm | D: 62 mm | B: 16 mm | r min: 1 mm
6207-2NSEd: 35 mm | D: 72 mm | B: 17 mm | r min: 1.1 mm
6207-2NKEd: 35 mm | D: 72 mm | B: 17 mm | r min: 1.1 mm
6208-2NSEd: 40 mm | D: 80 mm | B: 18 mm | r min: 1.1 mm
6208-2NKEd: 40 mm | D: 80 mm | B: 18 mm | r min: 1.1 mm
6209-2NSEd: 45 mm | D: 85 mm | B: 19 mm | r min: 1.1 mm
6209-2NKEd: 45 mm | D: 85 mm | B: 19 mm | r min: 1.1 mm
6210-2NSEd: 50 mm | D: 90 mm | B: 20 mm | r min: 1.1 mm
6210-2NKEd: 50 mm | D: 90 mm | B: 20 mm | r min: 1.1 mm
6211-2NSEd: 55 mm | D: 100 mm | B: 21 mm | r min: 1.5 mm
6211-2NKEd: 55 mm | D: 100 mm | B: 21 mm | r min: 1.5 mm
6211ZZEd: 55 mm | D: 100 mm | B: 21 mm | r min: 1.5 mm
6212-2NSEd: 60 mm | D: 110 mm | B: 22 mm | r min: 1.5 mm
6212-2NKEd: 60 mm | D: 110 mm | B: 22 mm | r min: 1.5 mm
6212ZZEd: 60 mm | D: 110 mm | B: 22 mm | r min: 1.5 mm
6213-2NSEd: 65 mm | D: 120 mm | B: 23 mm | r min: 1.5 mm
6213-2NKEd: 65 mm | D: 120 mm | B: 23 mm | r min: 1.5 mm
6213ZZEd: 65 mm | D: 120 mm | B: 23 mm | r min: 1.5 mm
6214-2NSEd: 70 mm | D: 125 mm | B: 24 mm | r min: 1.5 mm
6214-2NKEd: 70 mm | D: 125 mm | B: 24 mm | r min: 1.5 mm
6214ZZEd: 70 mm | D: 125 mm | B: 24 mm | r min: 1.5 mm
6215-2NSEd: 75 mm | D: 130 mm | B: 25 mm | r min: 1.5 mm
6215-2NKEd: 75 mm | D: 130 mm | B: 25 mm | r min: 1.5 mm
6215ZZEd: 75 mm | D: 130 mm | B: 25 mm | r min: 1.5 mm
