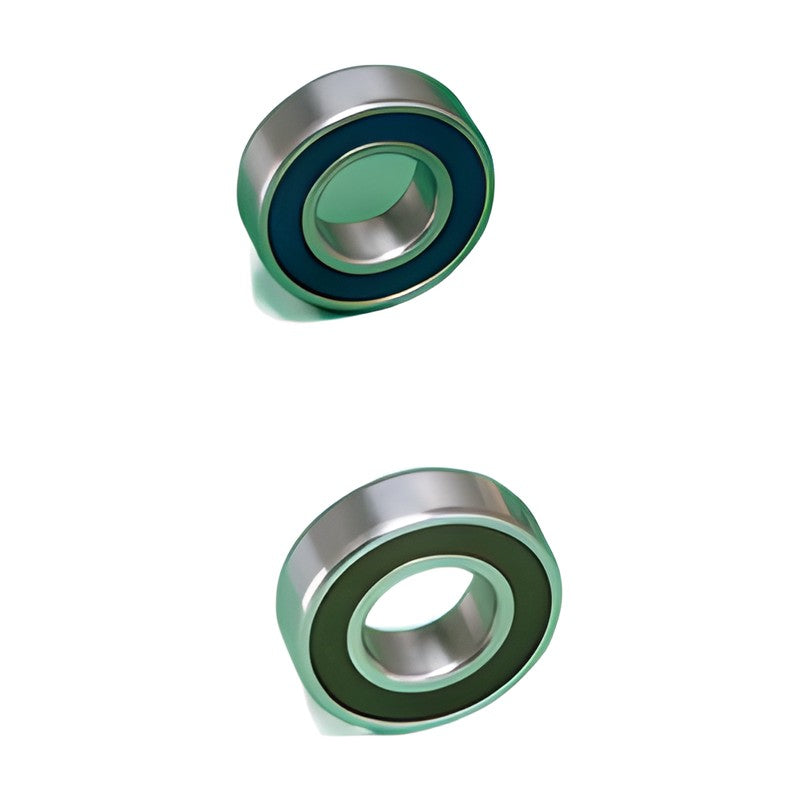

NACHI Excel 63 Series Deep Groove Ball Bearings (2NSE, 2NKE, ZZE)

NACHI Excel 63 Series Deep Groove Ball Bearings (2NSE, 2NKE, ZZE)

NACHI Excel series 63 type single-row radial ball bearings, bore 10 to 75 mm, supplied with contact seals (2NSE), labyrinth seals (2NKE) or shields (ZZE).

Key features

  • Excel series design with special triple-lip seals: contact type (2NSE) and labyrinth/non-contact type (2NKE), plus shielded type (ZZE)
  • Low starting and running torque from a revised internal design with diminished axial play
  • Improved accuracy of rolling elements for reduced running noise and enhanced sound quality
  • Pre-lubricated with long-life grease; high-performance seals keep out dust
  • Replaces the previous 2NSL, 2NK and ZZ closures (e.g. 6203-2NSE replaces 6203-2NSL)

Specifications

Brand NACHI
Series Excel 63 type
Bearing type Single-row deep groove (radial) ball bearing
Bore range 10 - 75 mm
Closures 2NSE contact seals, 2NKE labyrinth seals, ZZE shields
Dimensions mm
Source NACHI Excel Series Radial Ball Bearings (B4031E-2), p. 1-2
6300-2NSE d: 10 mm | D: 35 mm | B: 11 mm | r min: 0.6 mm
6300-2NKE d: 10 mm | D: 35 mm | B: 11 mm | r min: 0.6 mm
6301-2NSE d: 12 mm | D: 37 mm | B: 12 mm | r min: 1 mm
6301-2NKE d: 12 mm | D: 37 mm | B: 12 mm | r min: 1 mm
6302-2NSE d: 15 mm | D: 42 mm | B: 13 mm | r min: 1 mm
6302-2NKE d: 15 mm | D: 42 mm | B: 13 mm | r min: 1 mm
6303-2NSE d: 17 mm | D: 47 mm | B: 14 mm | r min: 1 mm
6303-2NKE d: 17 mm | D: 47 mm | B: 14 mm | r min: 1 mm
6304-2NSE d: 20 mm | D: 52 mm | B: 15 mm | r min: 1.1 mm
6304-2NKE d: 20 mm | D: 52 mm | B: 15 mm | r min: 1.1 mm
6305-2NSE d: 25 mm | D: 62 mm | B: 17 mm | r min: 1.1 mm
6305-2NKE d: 25 mm | D: 62 mm | B: 17 mm | r min: 1.1 mm
6306-2NSE d: 30 mm | D: 72 mm | B: 19 mm | r min: 1.1 mm
6306-2NKE d: 30 mm | D: 72 mm | B: 19 mm | r min: 1.1 mm
6307-2NSE d: 35 mm | D: 80 mm | B: 21 mm | r min: 1.5 mm
6307-2NKE d: 35 mm | D: 80 mm | B: 21 mm | r min: 1.5 mm
6308-2NSE d: 40 mm | D: 90 mm | B: 23 mm | r min: 1.5 mm
6308-2NKE d: 40 mm | D: 90 mm | B: 23 mm | r min: 1.5 mm
6309-2NSE d: 45 mm | D: 100 mm | B: 25 mm | r min: 1.5 mm
6309-2NKE d: 45 mm | D: 100 mm | B: 25 mm | r min: 1.5 mm
6310-2NSE d: 50 mm | D: 110 mm | B: 27 mm | r min: 2 mm
6310-2NKE d: 50 mm | D: 110 mm | B: 27 mm | r min: 2 mm
6311-2NSE d: 55 mm | D: 120 mm | B: 29 mm | r min: 2 mm
6311-2NKE d: 55 mm | D: 120 mm | B: 29 mm | r min: 2 mm
6311ZZE d: 55 mm | D: 120 mm | B: 29 mm | r min: 2 mm
6312-2NSE d: 60 mm | D: 130 mm | B: 31 mm | r min: 2.1 mm
6312-2NKE d: 60 mm | D: 130 mm | B: 31 mm | r min: 2.1 mm
6312ZZE d: 60 mm | D: 130 mm | B: 31 mm | r min: 2.1 mm
6313-2NSE d: 65 mm | D: 140 mm | B: 33 mm | r min: 2.1 mm
6313-2NKE d: 65 mm | D: 140 mm | B: 33 mm | r min: 2.1 mm
6313ZZE d: 65 mm | D: 140 mm | B: 33 mm | r min: 2.1 mm
6314-2NSE d: 70 mm | D: 150 mm | B: 35 mm | r min: 2.1 mm
6314-2NKE d: 70 mm | D: 150 mm | B: 35 mm | r min: 2.1 mm
6314ZZE d: 70 mm | D: 150 mm | B: 35 mm | r min: 2.1 mm
6315-2NSE d: 75 mm | D: 160 mm | B: 37 mm | r min: 2.1 mm
6315-2NKE d: 75 mm | D: 160 mm | B: 37 mm | r min: 2.1 mm
6315ZZE d: 75 mm | D: 160 mm | B: 37 mm | r min: 2.1 mm
Deep Groove Ball BearingsNACHI
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI Excel 63 Series Deep Groove Ball Bearings (2NSE, 2NKE, ZZE)

Brand NACHI·Deep Groove Ball Bearings

Available part numbers (37)

6300-2NSE, 6300-2NKE, 6301-2NSE, 6301-2NKE, 6302-2NSE, 6302-2NKE, 6303-2NSE, 6303-2NKE, 6304-2NSE, 6304-2NKE + 27 more — see full table ↓

How to order

Send the NACHI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6300-2NSEd: 10 mm | D: 35 mm | B: 11 mm | r min: 0.6 mm
6300-2NKEd: 10 mm | D: 35 mm | B: 11 mm | r min: 0.6 mm
6301-2NSEd: 12 mm | D: 37 mm | B: 12 mm | r min: 1 mm
6301-2NKEd: 12 mm | D: 37 mm | B: 12 mm | r min: 1 mm
6302-2NSEd: 15 mm | D: 42 mm | B: 13 mm | r min: 1 mm
6302-2NKEd: 15 mm | D: 42 mm | B: 13 mm | r min: 1 mm
6303-2NSEd: 17 mm | D: 47 mm | B: 14 mm | r min: 1 mm
6303-2NKEd: 17 mm | D: 47 mm | B: 14 mm | r min: 1 mm
6304-2NSEd: 20 mm | D: 52 mm | B: 15 mm | r min: 1.1 mm
6304-2NKEd: 20 mm | D: 52 mm | B: 15 mm | r min: 1.1 mm
6305-2NSEd: 25 mm | D: 62 mm | B: 17 mm | r min: 1.1 mm
6305-2NKEd: 25 mm | D: 62 mm | B: 17 mm | r min: 1.1 mm
6306-2NSEd: 30 mm | D: 72 mm | B: 19 mm | r min: 1.1 mm
6306-2NKEd: 30 mm | D: 72 mm | B: 19 mm | r min: 1.1 mm
6307-2NSEd: 35 mm | D: 80 mm | B: 21 mm | r min: 1.5 mm
6307-2NKEd: 35 mm | D: 80 mm | B: 21 mm | r min: 1.5 mm
6308-2NSEd: 40 mm | D: 90 mm | B: 23 mm | r min: 1.5 mm
6308-2NKEd: 40 mm | D: 90 mm | B: 23 mm | r min: 1.5 mm
6309-2NSEd: 45 mm | D: 100 mm | B: 25 mm | r min: 1.5 mm
6309-2NKEd: 45 mm | D: 100 mm | B: 25 mm | r min: 1.5 mm
6310-2NSEd: 50 mm | D: 110 mm | B: 27 mm | r min: 2 mm
6310-2NKEd: 50 mm | D: 110 mm | B: 27 mm | r min: 2 mm
6311-2NSEd: 55 mm | D: 120 mm | B: 29 mm | r min: 2 mm
6311-2NKEd: 55 mm | D: 120 mm | B: 29 mm | r min: 2 mm
6311ZZEd: 55 mm | D: 120 mm | B: 29 mm | r min: 2 mm
6312-2NSEd: 60 mm | D: 130 mm | B: 31 mm | r min: 2.1 mm
6312-2NKEd: 60 mm | D: 130 mm | B: 31 mm | r min: 2.1 mm
6312ZZEd: 60 mm | D: 130 mm | B: 31 mm | r min: 2.1 mm
6313-2NSEd: 65 mm | D: 140 mm | B: 33 mm | r min: 2.1 mm
6313-2NKEd: 65 mm | D: 140 mm | B: 33 mm | r min: 2.1 mm
6313ZZEd: 65 mm | D: 140 mm | B: 33 mm | r min: 2.1 mm
6314-2NSEd: 70 mm | D: 150 mm | B: 35 mm | r min: 2.1 mm
6314-2NKEd: 70 mm | D: 150 mm | B: 35 mm | r min: 2.1 mm
6314ZZEd: 70 mm | D: 150 mm | B: 35 mm | r min: 2.1 mm
6315-2NSEd: 75 mm | D: 160 mm | B: 37 mm | r min: 2.1 mm
6315-2NKEd: 75 mm | D: 160 mm | B: 37 mm | r min: 2.1 mm
6315ZZEd: 75 mm | D: 160 mm | B: 37 mm | r min: 2.1 mm
