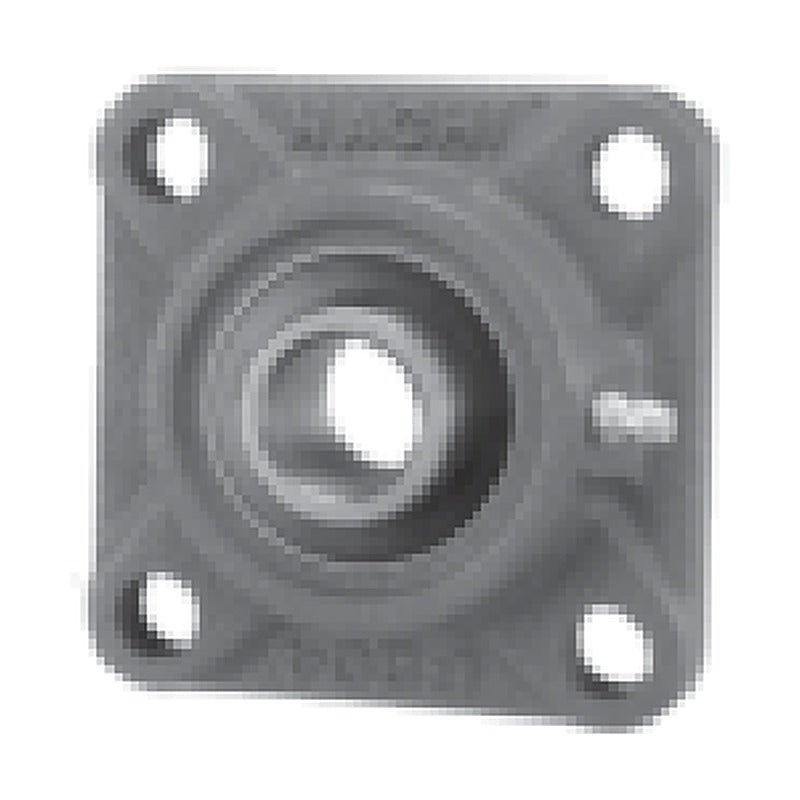

NACHI UGF 200 Square Flange Units (Eccentric Collar)

NACHI UGF 200 Square Flange Units (Eccentric Collar)

NACHI UGF 200 four-bolt square flange units with UG..+ER eccentric-collar bearing, shaft diameters 20-50 mm, 3/4 in to 1-7/8 in.

Key features

  • Pre-assembled unit of insert ball bearing and square flange housing
  • Spherical outer ring seat lets the bearing self-align in the housing
  • Shaft locking by eccentric locking collar
  • Metric and inch shaft sizes where listed; bearing and housing numbers given for replacement parts
  • Most NACHI bearing units are dimensionally interchangeable with units of other makers

Specifications

Brand NACHI
Series UGF 200
Unit type Square flange, cast iron
Shaft locking Eccentric locking collar
Shaft range 20-50 mm, 3/4 in to 1-7/8 in
Source NACHI Ball Bearing Units catalogue, p. 25
UGF204 Shaft: 20 mm | Bearing: UG204+ER | Housing: F204
UGF205 Shaft: 25 mm | Bearing: UG205+ER | Housing: F205
UGF206 Shaft: 30 mm | Bearing: UG206+ER | Housing: F206
UGF207 Shaft: 35 mm | Bearing: UG207+ER | Housing: F207
UGF208 Shaft: 40 mm | Bearing: UG208+ER | Housing: F208
UGF209 Shaft: 45 mm | Bearing: UG209+ER | Housing: F209
UGF210 Shaft: 50 mm | Bearing: UG210+ER | Housing: F210
UGF204-12 Shaft: 3/4 in | Bearing: UG204-12+ER | Housing: F204
UGF205-14 Shaft: 7/8 in | Bearing: UG205-14+ER | Housing: F205
UGF205-16 Shaft: 1 in | Bearing: UG205-16+ER | Housing: F205
UGF206-18 Shaft: 1-1/8 in | Bearing: UG206-18+ER | Housing: F206
UGF207-20 Shaft: 1-1/4 in | Bearing: UG207-20+ER | Housing: F207
UGF207-22 Shaft: 1-3/8 in | Bearing: UG207-22+ER | Housing: F207
UGF208-24 Shaft: 1-1/2 in | Bearing: UG208-24+ER | Housing: F208
UGF209-26 Shaft: 1-5/8 in | Bearing: UG209-26+ER | Housing: F209
UGF209-28 Shaft: 1-3/4 in | Bearing: UG209-28+ER | Housing: F209
UGF210-30 Shaft: 1-7/8 in | Bearing: UG210-30+ER | Housing: F210
Mounted Bearing UnitsNACHI
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI UGF 200 Square Flange Units (Eccentric Collar)

Brand NACHI·Mounted Bearing Units

Available part numbers (17)

UGF204, UGF205, UGF206, UGF207, UGF208, UGF209, UGF210, UGF204-12, UGF205-14, UGF205-16 + 7 more — see full table ↓

How to order

Send the NACHI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UGF204Shaft: 20 mm | Bearing: UG204+ER | Housing: F204
UGF205Shaft: 25 mm | Bearing: UG205+ER | Housing: F205
UGF206Shaft: 30 mm | Bearing: UG206+ER | Housing: F206
UGF207Shaft: 35 mm | Bearing: UG207+ER | Housing: F207
UGF208Shaft: 40 mm | Bearing: UG208+ER | Housing: F208
UGF209Shaft: 45 mm | Bearing: UG209+ER | Housing: F209
UGF210Shaft: 50 mm | Bearing: UG210+ER | Housing: F210
UGF204-12Shaft: 3/4 in | Bearing: UG204-12+ER | Housing: F204
UGF205-14Shaft: 7/8 in | Bearing: UG205-14+ER | Housing: F205
UGF205-16Shaft: 1 in | Bearing: UG205-16+ER | Housing: F205
UGF206-18Shaft: 1-1/8 in | Bearing: UG206-18+ER | Housing: F206
UGF207-20Shaft: 1-1/4 in | Bearing: UG207-20+ER | Housing: F207
UGF207-22Shaft: 1-3/8 in | Bearing: UG207-22+ER | Housing: F207
UGF208-24Shaft: 1-1/2 in | Bearing: UG208-24+ER | Housing: F208
UGF209-26Shaft: 1-5/8 in | Bearing: UG209-26+ER | Housing: F209
UGF209-28Shaft: 1-3/4 in | Bearing: UG209-28+ER | Housing: F209
UGF210-30Shaft: 1-7/8 in | Bearing: UG210-30+ER | Housing: F210
