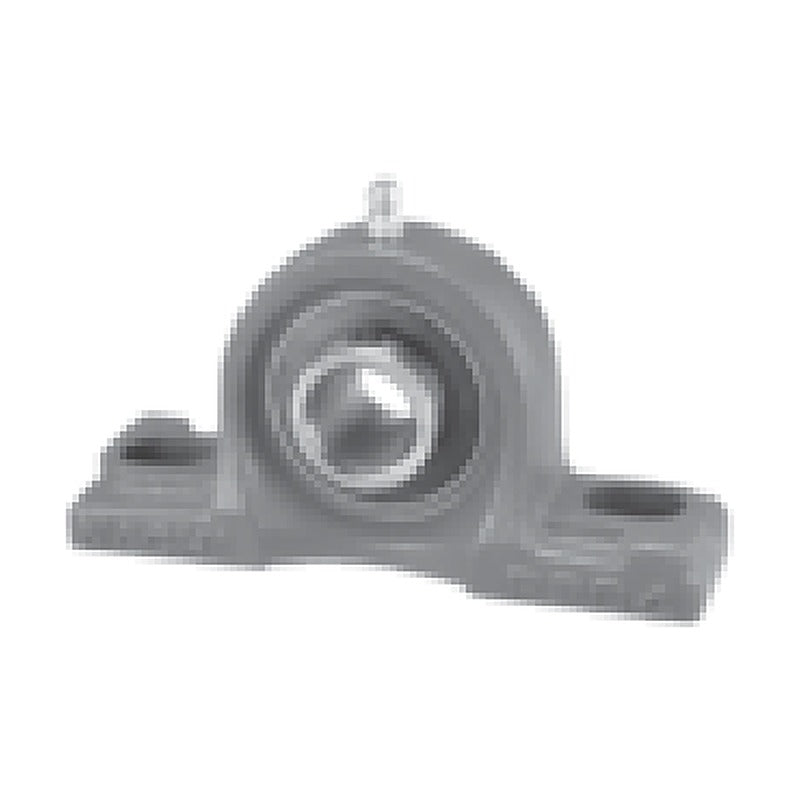

NACHI UGP 200 Pillow Block Units (Eccentric Collar)

NACHI UGP 200 Pillow Block Units (Eccentric Collar)

NACHI UGP 200 pillow block units with UG..+ER eccentric-collar bearing, shaft diameters 20-60 mm, 3/4 in to 2-3/8 in.

Key features

  • Pre-assembled unit of insert ball bearing and pillow block housing
  • Spherical outer ring seat lets the bearing self-align in the housing
  • Shaft locking by eccentric locking collar
  • Metric and inch shaft sizes where listed; bearing and housing numbers given for replacement parts
  • Most NACHI bearing units are dimensionally interchangeable with units of other makers

Specifications

Brand NACHI
Series UGP 200
Unit type Pillow block, cast iron
Shaft locking Eccentric locking collar
Shaft range 20-60 mm, 3/4 in to 2-3/8 in
Source NACHI Ball Bearing Units catalogue, p. 17
UGP204 Shaft: 20 mm | Bearing: UG204+ER | Housing: P204
UGP205 Shaft: 25 mm | Bearing: UG205+ER | Housing: P205
UGP206 Shaft: 30 mm | Bearing: UG206+ER | Housing: P206
UGP207 Shaft: 35 mm | Bearing: UG207+ER | Housing: P207
UGP208 Shaft: 40 mm | Bearing: UG208+ER | Housing: P208
UGP209 Shaft: 45 mm | Bearing: UG209+ER | Housing: P209
UGP210 Shaft: 50 mm | Bearing: UG210+ER | Housing: P210
UGP211 Shaft: 55 mm | Bearing: UG211+ER | Housing: P211
UGP212 Shaft: 60 mm | Bearing: UG212+ER | Housing: P212
UGP204-12 Shaft: 3/4 in | Bearing: UG204-12+ER | Housing: P204
UGP205-14 Shaft: 7/8 in | Bearing: UG205-14+ER | Housing: P205
UGP205-16 Shaft: 1 in | Bearing: UG205-16+ER | Housing: P205
UGP206-18 Shaft: 1-1/8 in | Bearing: UG206-18+ER | Housing: P206
UGP207-20 Shaft: 1-1/4 in | Bearing: UG207-20+ER | Housing: P207
UGP207-22 Shaft: 1-3/8 in | Bearing: UG207-22+ER | Housing: P207
UGP208-24 Shaft: 1-1/2 in | Bearing: UG208-24+ER | Housing: P208
UGP209-26 Shaft: 1-5/8 in | Bearing: UG209-26+ER | Housing: P209
UGP209-28 Shaft: 1-3/4 in | Bearing: UG209-28+ER | Housing: P209
UGP210-30 Shaft: 1-7/8 in | Bearing: UG210-30+ER | Housing: P210
UGP211-32 Shaft: 2 in | Bearing: UG211-32+ER | Housing: P211
UGP211-34 Shaft: 2-1/8 in | Bearing: UG211-34+ER | Housing: P211
UGP212-36 Shaft: 2-1/4 in | Bearing: UG212-36+ER | Housing: P212
UGP212-38 Shaft: 2-3/8 in | Bearing: UG212-38+ER | Housing: P212
