NACHI UKFX+H Square Flange Units (Adapter Sleeve)

NACHI UKFX+H Square Flange Units (Adapter Sleeve)

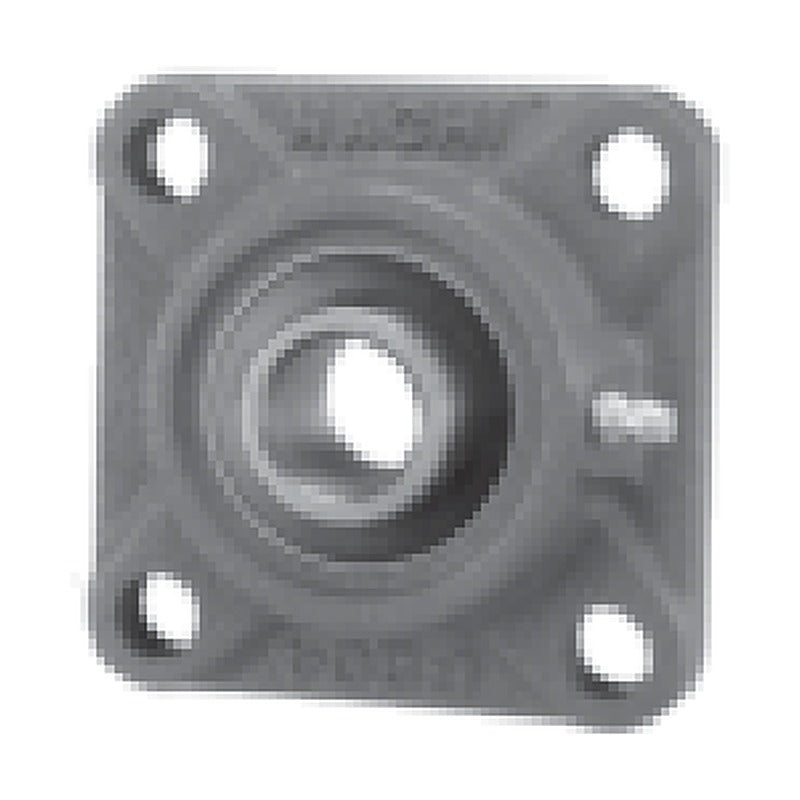

NACHI UKFX+H four-bolt square flange units with adapter-sleeve bearing (diameter series X), shaft diameters 20-90 mm, 3/4 in to 3-1/2 in.

Key features

  • Pre-assembled unit of tapered-bore insert bearing with adapter sleeve and square flange (fx housing) housing
  • Spherical outer ring seat lets the bearing self-align in the housing
  • Shaft locking by adapter sleeve
  • Metric and inch shaft sizes where listed; bearing and housing numbers given for replacement parts
  • Most NACHI bearing units are dimensionally interchangeable with units of other makers

Specifications

Brand NACHI
Series UKFX+H
Unit type Square flange (FX housing), cast iron
Shaft locking Adapter sleeve
Shaft range 20-90 mm, 3/4 in to 3-1/2 in
Source NACHI Ball Bearing Units catalogue, p. 23
UKFX05+H2305 Shaft: 20 mm | Bearing: UKX05+H2305 | Housing: FX05
UKFX06+H2306 Shaft: 25 mm | Bearing: UKX06+H2306 | Housing: FX06
UKFX07+H2307 Shaft: 30 mm | Bearing: UKX07+H2307 | Housing: FX07
UKFX08+H2308 Shaft: 35 mm | Bearing: UKX08+H2308 | Housing: FX08
UKFX09+H2309 Shaft: 40 mm | Bearing: UKX09+H2309 | Housing: FX09
UKFX10+H2310 Shaft: 45 mm | Bearing: UKX10+H2310 | Housing: FX10
UKFX11+H2311 Shaft: 50 mm | Bearing: UKX11+H2311 | Housing: FX11
UKFX12+H2312 Shaft: 55 mm | Bearing: UKX12+H2312 | Housing: FX12
UKFX13+H2313 Shaft: 60 mm | Bearing: UKX13+H2313 | Housing: FX13
UKFX15+H2315 Shaft: 65 mm | Bearing: UKX15+H2315 | Housing: FX15
UKFX16+H2316 Shaft: 70 mm | Bearing: UKX16+H2316 | Housing: FX16
UKFX17+H2317 Shaft: 75 mm | Bearing: UKX17+H2317 | Housing: FX17
UKFX18+H2318 Shaft: 80 mm | Bearing: UKX18+H2318 | Housing: FX18
UKFX20+H2320 Shaft: 90 mm | Bearing: UKX20+H2320 | Housing: FX20
UKFX05+HE2305 Shaft: 3/4 in | Bearing: UKX05+HE2305 | Housing: FX05
UKFX05+HA2305 Shaft: 13/16 in | Bearing: UKX05+HA2305 | Housing: FX05
UKFX06+HS2306 Shaft: 7/8 in | Bearing: UKX06+HS2306 | Housing: FX06
UKFX06+HA2306 Shaft: 15/16 in | Bearing: UKX06+HA2306 | Housing: FX06
UKFX06+HE2306 Shaft: 1 in | Bearing: UKX06+HE2306 | Housing: FX06
UKFX07+HS2307 Shaft: 1-1/8 in | Bearing: UKX07+HS2307 | Housing: FX07
UKFX07+HA2307 Shaft: 1-3/16 in | Bearing: UKX07+HA2307 | Housing: FX07
UKFX08+HE2308 Shaft: 1-1/4 in | Bearing: UKX08+HE2308 | Housing: FX08
UKFX08+HA2308 Shaft: 1-5/16 in | Bearing: UKX08+HA2308 | Housing: FX08
UKFX08+HS2308 Shaft: 1-3/8 in | Bearing: UKX08+HS2308 | Housing: FX08
UKFX09+HA2309 Shaft: 1-7/16 in | Bearing: UKX09+HA2309 | Housing: FX09
UKFX09+HE2309 Shaft: 1-1/2 in | Bearing: UKX09+HE2309 | Housing: FX09
UKFX09+HS2309 Shaft: 1-5/8 in | Bearing: UKX09+HS2309 | Housing: FX09
UKFX10+HA2310 Shaft: 1-11/16 in | Bearing: UKX10+HA2310 | Housing: FX10
UKFX10+HE2310 Shaft: 1-3/4 in | Bearing: UKX10+HE2310 | Housing: FX10
UKFX11+HS2311 Shaft: 1-7/8 in | Bearing: UKX11+HS2311 | Housing: FX11
UKFX11+HA2311 Shaft: 1-15/16 in | Bearing: UKX11+HA2311 | Housing: FX11
UKFX11+HE2311 Shaft: 2 in | Bearing: UKX11+HE2311 | Housing: FX11
UKFX12+HA2312 Shaft: 2-1/16 in | Bearing: UKX12+HA2312 | Housing: FX12
UKFX12+HS2312 Shaft: 2-1/8 in | Bearing: UKX12+HS2312 | Housing: FX12
UKFX13+HA2313 Shaft: 2-3/16 in | Bearing: UKX13+HA2313 | Housing: FX13
UKFX13+HE2313 Shaft: 2-1/4 in | Bearing: UKX13+HE2313 | Housing: FX13
UKFX13+HS2313 Shaft: 2-3/8 in | Bearing: UKX13+HS2313 | Housing: FX13
UKFX15+HE2315 Shaft: 2-1/2 in | Bearing: UKX15+HE2315 | Housing: FX15
UKFX16+HE2316 Shaft: 2-3/4 in | Bearing: UKX16+HE2316 | Housing: FX16
UKFX17+HE2317 Shaft: 3 in | Bearing: UKX17+HE2317 | Housing: FX17
UKFX18+HS2318 Shaft: 3-1/8 in | Bearing: UKX18+HS2318 | Housing: FX18
UKFX20+HE2320 Shaft: 3-1/2 in | Bearing: UKX20+HE2320 | Housing: FX20
Mounted Bearing UnitsNACHI
42 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI UKFX+H Square Flange Units (Adapter Sleeve)

Brand NACHI·Mounted Bearing Units

Available part numbers (42)

UKFX05+H2305, UKFX06+H2306, UKFX07+H2307, UKFX08+H2308, UKFX09+H2309, UKFX10+H2310, UKFX11+H2311, UKFX12+H2312, UKFX13+H2313, UKFX15+H2315 + 32 more — see full table ↓

How to order

Send the NACHI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UKFX05+H2305Shaft: 20 mm | Bearing: UKX05+H2305 | Housing: FX05
UKFX06+H2306Shaft: 25 mm | Bearing: UKX06+H2306 | Housing: FX06
UKFX07+H2307Shaft: 30 mm | Bearing: UKX07+H2307 | Housing: FX07
UKFX08+H2308Shaft: 35 mm | Bearing: UKX08+H2308 | Housing: FX08
UKFX09+H2309Shaft: 40 mm | Bearing: UKX09+H2309 | Housing: FX09
UKFX10+H2310Shaft: 45 mm | Bearing: UKX10+H2310 | Housing: FX10
UKFX11+H2311Shaft: 50 mm | Bearing: UKX11+H2311 | Housing: FX11
UKFX12+H2312Shaft: 55 mm | Bearing: UKX12+H2312 | Housing: FX12
UKFX13+H2313Shaft: 60 mm | Bearing: UKX13+H2313 | Housing: FX13
UKFX15+H2315Shaft: 65 mm | Bearing: UKX15+H2315 | Housing: FX15
UKFX16+H2316Shaft: 70 mm | Bearing: UKX16+H2316 | Housing: FX16
UKFX17+H2317Shaft: 75 mm | Bearing: UKX17+H2317 | Housing: FX17
UKFX18+H2318Shaft: 80 mm | Bearing: UKX18+H2318 | Housing: FX18
UKFX20+H2320Shaft: 90 mm | Bearing: UKX20+H2320 | Housing: FX20
UKFX05+HE2305Shaft: 3/4 in | Bearing: UKX05+HE2305 | Housing: FX05
UKFX05+HA2305Shaft: 13/16 in | Bearing: UKX05+HA2305 | Housing: FX05
UKFX06+HS2306Shaft: 7/8 in | Bearing: UKX06+HS2306 | Housing: FX06
UKFX06+HA2306Shaft: 15/16 in | Bearing: UKX06+HA2306 | Housing: FX06
UKFX06+HE2306Shaft: 1 in | Bearing: UKX06+HE2306 | Housing: FX06
UKFX07+HS2307Shaft: 1-1/8 in | Bearing: UKX07+HS2307 | Housing: FX07
UKFX07+HA2307Shaft: 1-3/16 in | Bearing: UKX07+HA2307 | Housing: FX07
UKFX08+HE2308Shaft: 1-1/4 in | Bearing: UKX08+HE2308 | Housing: FX08
UKFX08+HA2308Shaft: 1-5/16 in | Bearing: UKX08+HA2308 | Housing: FX08
UKFX08+HS2308Shaft: 1-3/8 in | Bearing: UKX08+HS2308 | Housing: FX08
UKFX09+HA2309Shaft: 1-7/16 in | Bearing: UKX09+HA2309 | Housing: FX09
UKFX09+HE2309Shaft: 1-1/2 in | Bearing: UKX09+HE2309 | Housing: FX09
UKFX09+HS2309Shaft: 1-5/8 in | Bearing: UKX09+HS2309 | Housing: FX09
UKFX10+HA2310Shaft: 1-11/16 in | Bearing: UKX10+HA2310 | Housing: FX10
UKFX10+HE2310Shaft: 1-3/4 in | Bearing: UKX10+HE2310 | Housing: FX10
UKFX11+HS2311Shaft: 1-7/8 in | Bearing: UKX11+HS2311 | Housing: FX11
UKFX11+HA2311Shaft: 1-15/16 in | Bearing: UKX11+HA2311 | Housing: FX11
UKFX11+HE2311Shaft: 2 in | Bearing: UKX11+HE2311 | Housing: FX11
UKFX12+HA2312Shaft: 2-1/16 in | Bearing: UKX12+HA2312 | Housing: FX12
UKFX12+HS2312Shaft: 2-1/8 in | Bearing: UKX12+HS2312 | Housing: FX12
UKFX13+HA2313Shaft: 2-3/16 in | Bearing: UKX13+HA2313 | Housing: FX13
UKFX13+HE2313Shaft: 2-1/4 in | Bearing: UKX13+HE2313 | Housing: FX13
UKFX13+HS2313Shaft: 2-3/8 in | Bearing: UKX13+HS2313 | Housing: FX13
UKFX15+HE2315Shaft: 2-1/2 in | Bearing: UKX15+HE2315 | Housing: FX15
UKFX16+HE2316Shaft: 2-3/4 in | Bearing: UKX16+HE2316 | Housing: FX16
UKFX17+HE2317Shaft: 3 in | Bearing: UKX17+HE2317 | Housing: FX17
UKFX18+HS2318Shaft: 3-1/8 in | Bearing: UKX18+HS2318 | Housing: FX18
UKFX20+HE2320Shaft: 3-1/2 in | Bearing: UKX20+HE2320 | Housing: FX20
