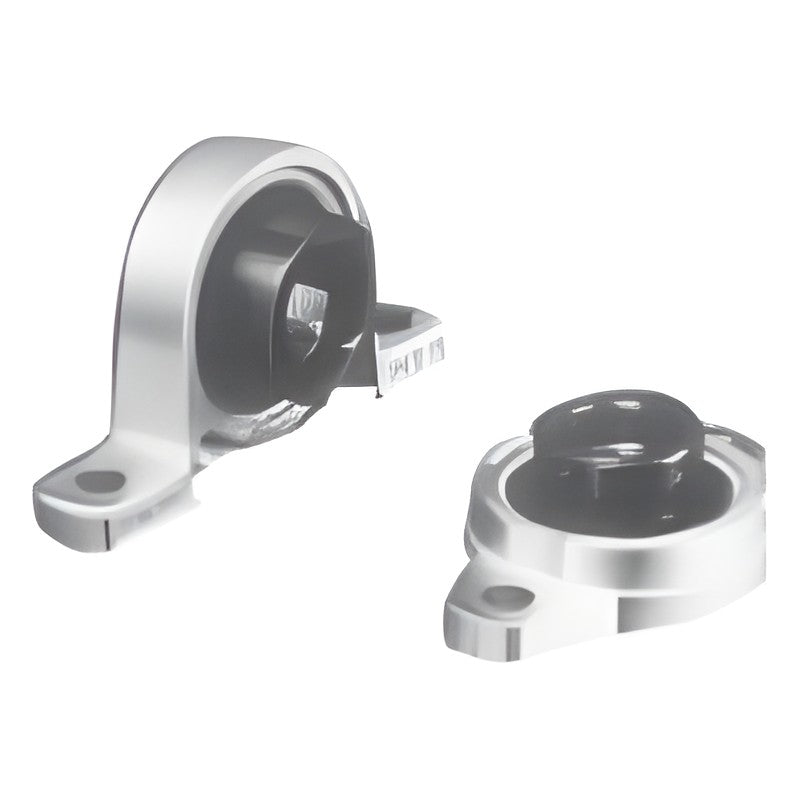

NACHI UP 000 Silver Series Pillow Block Units (Extra Light Duty)

NACHI UP 000 Silver Series Pillow Block Units (Extra Light Duty)

NACHI UP 000 Silver Series extra light duty pillow block units, shaft diameters 10-30 mm.

Key features

  • Pre-assembled unit of insert ball bearing and pillow block housing
  • Spherical outer ring seat lets the bearing self-align in the housing
  • Shaft locking by eccentric locking collar
  • Metric and inch shaft sizes where listed; bearing and housing numbers given for replacement parts
  • Most NACHI bearing units are dimensionally interchangeable with units of other makers

Specifications

Brand NACHI
Series UP 000
Unit type Pillow block
Shaft locking Eccentric locking collar
Shaft range 10-30 mm
Source NACHI Ball Bearing Units catalogue, p. 8
UP000 Shaft: 10 mm | Bearing: U000+ER | Housing: P000
UP001 Shaft: 12 mm | Bearing: U001+ER | Housing: P001
UP002 Shaft: 15 mm | Bearing: U002+ER | Housing: P002
UP003 Shaft: 17 mm | Bearing: U003+ER | Housing: P003
UP004 Shaft: 20 mm | Bearing: U004+ER | Housing: P04-5
UP005 Shaft: 25 mm | Bearing: U005+ER | Housing: P05-6
UP006 Shaft: 30 mm | Bearing: U006+ER | Housing: P06-7
Mounted Bearing UnitsNACHI
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI UP 000 Silver Series Pillow Block Units (Extra Light Duty)

Brand NACHI·Mounted Bearing Units

Available part numbers (7)

UP000, UP001, UP002, UP003, UP004, UP005, UP006

How to order

Send the NACHI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UP000Shaft: 10 mm | Bearing: U000+ER | Housing: P000
UP001Shaft: 12 mm | Bearing: U001+ER | Housing: P001
UP002Shaft: 15 mm | Bearing: U002+ER | Housing: P002
UP003Shaft: 17 mm | Bearing: U003+ER | Housing: P003
UP004Shaft: 20 mm | Bearing: U004+ER | Housing: P04-5
UP005Shaft: 25 mm | Bearing: U005+ER | Housing: P05-6
UP006Shaft: 30 mm | Bearing: U006+ER | Housing: P06-7
