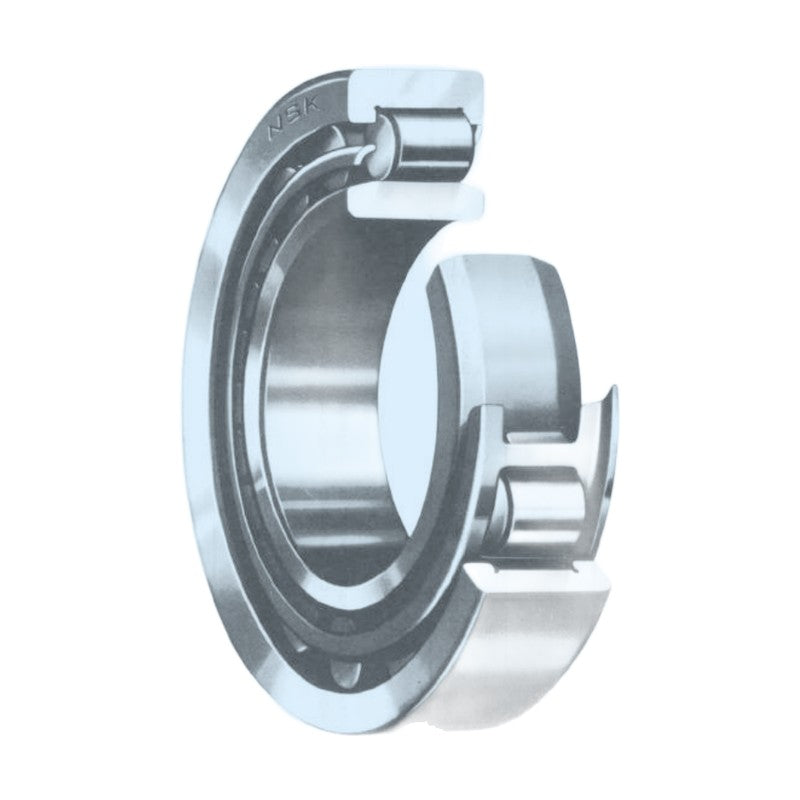

NSK 10 Series Cylindrical Roller Bearings (NU, N)

NSK 10 Series Cylindrical Roller Bearings (NU, N)

NSK single-row cylindrical roller bearings of dimension series 10, bore 25-500 mm, in the rib arrangements (NU, N) listed for each size.

Key features

  • High radial load capacity with line contact between rollers and raceways
  • NU / N: separable, allow axial shaft displacement; NJ: locates in one direction; NUP: locates in both directions
  • ET / EM suffix: high-capacity design with polyamide (T) or machined brass (M) cage
  • Separable rings simplify mounting and dismounting
  • Suitable for high speeds

Specifications

Bearing type Single-row cylindrical roller bearing
Dimension series 10
Bore range 25-500 mm
Configurations NU, N
Load ratings Basic dynamic Cr / static C0r
Speed basis Grease lubrication limit
Source NSK Rolling Bearings Catalogue (Korean ed.), p. B84-B101
NU1005 d: 25 mm | D: 47 mm | B: 12 mm | Cr: 14.2 kN | C0r: 13.1 kN | Grease speed: 15000 rpm
NU1006 d: 30 mm | D: 55 mm | B: 13 mm | Cr: 19.7 kN | C0r: 19.6 kN | Grease speed: 12000 rpm
N1006 d: 30 mm | D: 55 mm | B: 13 mm | Cr: 19.7 kN | C0r: 19.6 kN | Grease speed: 12000 rpm
NU1007 d: 35 mm | D: 62 mm | B: 14 mm | Cr: 22.6 kN | C0r: 23.2 kN | Grease speed: 11000 rpm
N1007 d: 35 mm | D: 62 mm | B: 14 mm | Cr: 22.6 kN | C0r: 23.2 kN | Grease speed: 11000 rpm
NU1008 d: 40 mm | D: 68 mm | B: 15 mm | Cr: 27.3 kN | C0r: 29 kN | Grease speed: 10000 rpm
N1008 d: 40 mm | D: 68 mm | B: 15 mm | Cr: 27.3 kN | C0r: 29 kN | Grease speed: 10000 rpm
NU1009 d: 45 mm | D: 75 mm | B: 16 mm | Cr: 32.6 kN | C0r: 35.5 kN | Grease speed: 9000 rpm
N1009 d: 45 mm | D: 75 mm | B: 16 mm | Cr: 32.6 kN | C0r: 35.5 kN | Grease speed: 9000 rpm
NU1010 d: 50 mm | D: 80 mm | B: 16 mm | Cr: 32 kN | C0r: 36 kN | Grease speed: 8000 rpm
N1010 d: 50 mm | D: 80 mm | B: 16 mm | Cr: 32 kN | C0r: 36 kN | Grease speed: 8000 rpm
NU1011 d: 55 mm | D: 90 mm | B: 18 mm | Cr: 37.5 kN | C0r: 44 kN | Grease speed: 7500 rpm
N1011 d: 55 mm | D: 90 mm | B: 18 mm | Cr: 37.5 kN | C0r: 44 kN | Grease speed: 7500 rpm
NU1012 d: 60 mm | D: 95 mm | B: 18 mm | Cr: 40 kN | C0r: 48.5 kN | Grease speed: 6700 rpm
N1012 d: 60 mm | D: 95 mm | B: 18 mm | Cr: 40 kN | C0r: 48.5 kN | Grease speed: 6700 rpm
NU1013 d: 65 mm | D: 100 mm | B: 18 mm | Cr: 41 kN | C0r: 51 kN | Grease speed: 6300 rpm
N1013 d: 65 mm | D: 100 mm | B: 18 mm | Cr: 41 kN | C0r: 51 kN | Grease speed: 6300 rpm
NU1014 d: 70 mm | D: 110 mm | B: 20 mm | Cr: 58.5 kN | C0r: 70.6 kN | Grease speed: 6000 rpm
N1014 d: 70 mm | D: 110 mm | B: 20 mm | Cr: 58.5 kN | C0r: 70.6 kN | Grease speed: 6000 rpm
NU1015 d: 75 mm | D: 115 mm | B: 20 mm | Cr: 60 kN | C0r: 74.5 kN | Grease speed: 5600 rpm
N1015 d: 75 mm | D: 115 mm | B: 20 mm | Cr: 60 kN | C0r: 74.5 kN | Grease speed: 5600 rpm
NU1016 d: 80 mm | D: 125 mm | B: 22 mm | Cr: 72.5 kN | C0r: 90.5 kN | Grease speed: 5300 rpm
N1016 d: 80 mm | D: 125 mm | B: 22 mm | Cr: 72.5 kN | C0r: 90.5 kN | Grease speed: 5300 rpm
NU1017 d: 85 mm | D: 130 mm | B: 22 mm | Cr: 74.5 kN | C0r: 95.5 kN | Grease speed: 5000 rpm
N1017 d: 85 mm | D: 130 mm | B: 22 mm | Cr: 74.5 kN | C0r: 95.5 kN | Grease speed: 5000 rpm
NU1018 d: 90 mm | D: 140 mm | B: 24 mm | Cr: 88 kN | C0r: 114 kN | Grease speed: 4500 rpm
N1018 d: 90 mm | D: 140 mm | B: 24 mm | Cr: 88 kN | C0r: 114 kN | Grease speed: 4500 rpm
NU1019 d: 95 mm | D: 145 mm | B: 24 mm | Cr: 90.5 kN | C0r: 120 kN | Grease speed: 4300 rpm
N1019 d: 95 mm | D: 145 mm | B: 24 mm | Cr: 90.5 kN | C0r: 120 kN | Grease speed: 4300 rpm
NU1020 d: 100 mm | D: 150 mm | B: 24 mm | Cr: 93 kN | C0r: 126 kN | Grease speed: 4300 rpm
N1020 d: 100 mm | D: 150 mm | B: 24 mm | Cr: 93 kN | C0r: 126 kN | Grease speed: 4300 rpm
NU1021 d: 105 mm | D: 160 mm | B: 26 mm | Cr: 109 kN | C0r: 149 kN | Grease speed: 4000 rpm
N1021 d: 105 mm | D: 160 mm | B: 26 mm | Cr: 109 kN | C0r: 149 kN | Grease speed: 4000 rpm
NU1022 d: 110 mm | D: 170 mm | B: 28 mm | Cr: 131 kN | C0r: 174 kN | Grease speed: 3800 rpm
N1022 d: 110 mm | D: 170 mm | B: 28 mm | Cr: 131 kN | C0r: 174 kN | Grease speed: 3800 rpm
NU1024 d: 120 mm | D: 180 mm | B: 28 mm | Cr: 139 kN | C0r: 191 kN | Grease speed: 3400 rpm
N1024 d: 120 mm | D: 180 mm | B: 28 mm | Cr: 139 kN | C0r: 191 kN | Grease speed: 3400 rpm
NU1026 d: 130 mm | D: 200 mm | B: 33 mm | Cr: 172 kN | C0r: 238 kN | Grease speed: 3200 rpm
N1026 d: 130 mm | D: 200 mm | B: 33 mm | Cr: 172 kN | C0r: 238 kN | Grease speed: 3200 rpm
NU1028 d: 140 mm | D: 210 mm | B: 33 mm | Cr: 176 kN | C0r: 750 kN | Grease speed: 3000 rpm
N1028 d: 140 mm | D: 210 mm | B: 33 mm | Cr: 176 kN | C0r: 750 kN | Grease speed: 3000 rpm
NU1030 d: 150 mm | D: 225 mm | B: 35 mm | Cr: 202 kN | C0r: 294 kN | Grease speed: 2800 rpm
N1030 d: 150 mm | D: 225 mm | B: 35 mm | Cr: 202 kN | C0r: 294 kN | Grease speed: 2800 rpm
NU1032 d: 160 mm | D: 240 mm | B: 38 mm | Cr: 238 kN | C0r: 340 kN | Grease speed: 2600 rpm
N1032 d: 160 mm | D: 240 mm | B: 38 mm | Cr: 238 kN | C0r: 340 kN | Grease speed: 2600 rpm
NU1034 d: 170 mm | D: 260 mm | B: 42 mm | Cr: 287 kN | C0r: 415 kN | Grease speed: 2400 rpm
N1034 d: 170 mm | D: 260 mm | B: 42 mm | Cr: 287 kN | C0r: 415 kN | Grease speed: 2400 rpm
NU1036 d: 180 mm | D: 280 mm | B: 46 mm | Cr: 355 kN | C0r: 610 kN | Grease speed: 2200 rpm
N1036 d: 180 mm | D: 280 mm | B: 46 mm | Cr: 355 kN | C0r: 610 kN | Grease speed: 2200 rpm
NU1038 d: 190 mm | D: 290 mm | B: 46 mm | Cr: 365 kN | C0r: 535 kN | Grease speed: 2000 rpm
N1038 d: 190 mm | D: 290 mm | B: 46 mm | Cr: 365 kN | C0r: 535 kN | Grease speed: 2000 rpm
NU1040 d: 200 mm | D: 310 mm | B: 51 mm | Cr: 390 kN | C0r: 580 kN | Grease speed: 2000 rpm
N1040 d: 200 mm | D: 310 mm | B: 51 mm | Cr: 390 kN | C0r: 580 kN | Grease speed: 2000 rpm
NU1044 d: 220 mm | D: 340 mm | B: 56 mm | Cr: 501 kN | C0r: 750 kN | Grease speed: 1800 rpm
N1044 d: 220 mm | D: 340 mm | B: 56 mm | Cr: 501 kN | C0r: 750 kN | Grease speed: 1800 rpm
NU1048 d: 240 mm | D: 360 mm | B: 56 mm | Cr: 530 kN | C0r: 820 kN | Grease speed: 1600 rpm
N1048 d: 240 mm | D: 360 mm | B: 56 mm | Cr: 530 kN | C0r: 820 kN | Grease speed: 1600 rpm
NU1052 d: 260 mm | D: 400 mm | B: 65 mm | Cr: 645 kN | C0r: 1000 kN | Grease speed: 1500 rpm
N1052 d: 260 mm | D: 400 mm | B: 65 mm | Cr: 645 kN | C0r: 1000 kN | Grease speed: 1500 rpm
NU1056 d: 280 mm | D: 420 mm | B: 65 mm | Cr: 660 kN | C0r: 1060 kN | Grease speed: 1400 rpm
N1056 d: 280 mm | D: 420 mm | B: 65 mm | Cr: 660 kN | C0r: 1060 kN | Grease speed: 1400 rpm
NU1060 d: 300 mm | D: 460 mm | B: 74 mm | Cr: 885 kN | C0r: 1400 kN | Grease speed: 1300 rpm
N1060 d: 300 mm | D: 460 mm | B: 74 mm | Cr: 885 kN | C0r: 1400 kN | Grease speed: 1300 rpm
NU1064 d: 320 mm | D: 480 mm | B: 74 mm | Cr: 905 kN | C0r: 1470 kN | Grease speed: 1200 rpm
N1064 d: 320 mm | D: 480 mm | B: 74 mm | Cr: 905 kN | C0r: 1470 kN | Grease speed: 1200 rpm
NU1068 d: 340 mm | D: 520 mm | B: 82 mm | Cr: 1080 kN | C0r: 1740 kN | Grease speed: 1100 rpm
N1068 d: 340 mm | D: 520 mm | B: 82 mm | Cr: 1080 kN | C0r: 1740 kN | Grease speed: 1100 rpm
NU1072 d: 360 mm | D: 540 mm | B: 82 mm | Cr: 1110 kN | C0r: 1830 kN | Grease speed: 1000 rpm
N1072 d: 360 mm | D: 540 mm | B: 82 mm | Cr: 1110 kN | C0r: 1830 kN | Grease speed: 1000 rpm
NU1076 d: 380 mm | D: 560 mm | B: 82 mm | Cr: 1140 kN | C0r: 1910 kN | Grease speed: 1000 rpm
NU1080 d: 400 mm | D: 600 mm | B: 90 mm | Cr: 1360 kN | C0r: 2280 kN | Grease speed: 900 rpm
NU1084 d: 420 mm | D: 620 mm | B: 90 mm | Cr: 1390 kN | C0r: 2380 kN | Grease speed: 850 rpm
NU1088 d: 440 mm | D: 650 mm | B: 94 mm | Cr: 1470 kN | C0r: 2530 kN | Grease speed: 800 rpm
NU1092 d: 460 mm | D: 680 mm | B: 100 mm | Cr: 1580 kN | C0r: 2740 kN | Grease speed: 750 rpm
NU1096 d: 480 mm | D: 700 mm | B: 100 mm | Cr: 1620 kN | C0r: 2860 kN | Grease speed: 750 rpm
NU10/500 d: 500 mm | D: 720 mm | B: 100 mm | Cr: 1660 kN | C0r: 2970 kN | Grease speed: 710 rpm
Cylindrical Roller BearingsNSK
76 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK 10 Series Cylindrical Roller Bearings (NU, N)

Brand NSK·Cylindrical Roller Bearings

Available part numbers (76)

NU1005, NU1006, N1006, NU1007, N1007, NU1008, N1008, NU1009, N1009, NU1010 + 66 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
