NSK 73 Series Angular Contact Ball Bearings (A/B; DB/DF/DT)

NSK 73 Series Angular Contact Ball Bearings (A/B; DB/DF/DT)

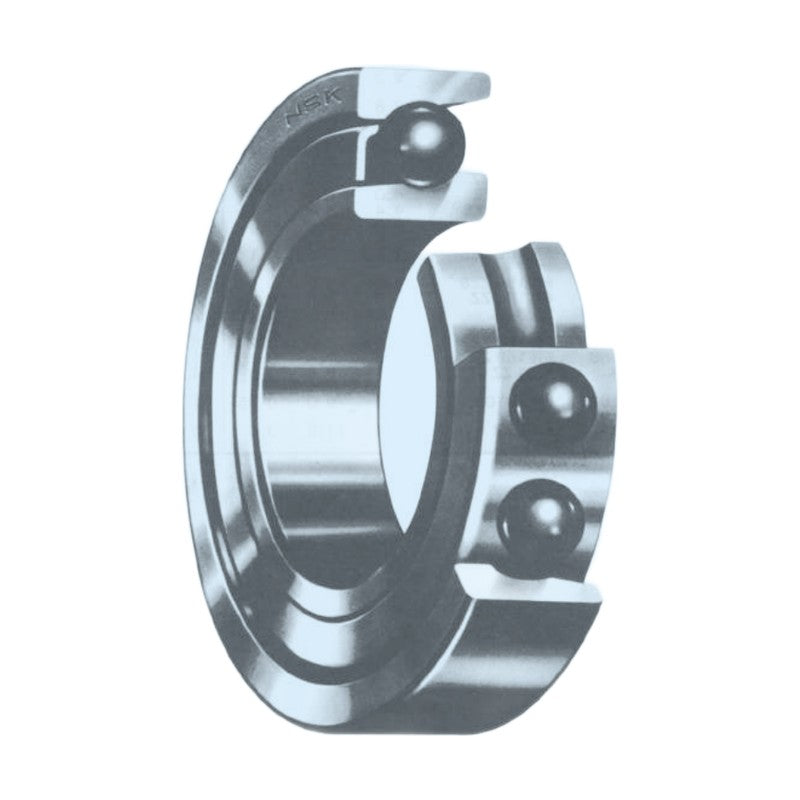

NSK 73 series single-row angular contact ball bearings, bore 10-200 mm, supplied as single bearings and as matched pairs in back-to-back (DB), face-to-face (DF) and tandem (DT) arrangement.

Key features

  • Contact angle codes: A = 30°, B = 40°
  • Carries combined radial and axial loads; axial load in one direction per single bearing
  • DB and DF pairs take axial load in both directions; DT pairs share axial load in one direction
  • Pair rows show the combined width and the paired load ratings and speed
  • Same boundary dimensions as the corresponding deep groove series

Specifications

Bearing type Single-row angular contact ball bearing
Series 73
Bore range 10-200 mm
Arrangements Single, DB, DF, DT
Load ratings Basic dynamic Cr / static C0r
Speed basis Grease lubrication limit
Source NSK Rolling Bearings Catalogue (Korean ed.), p. B50-B65
7300A d: 10 mm | D: 35 mm | Width: 11 mm | Cr: 9.3 kN | C0r: 4.3 kN | Grease speed: 20000 rpm
7300ADB d: 10 mm | D: 35 mm | Width: 22 mm (pair) | Cr: 15.1 kN | C0r: 8.6 kN | Grease speed: 16000 rpm
7300ADF d: 10 mm | D: 35 mm | Width: 22 mm (pair) | Cr: 15.1 kN | C0r: 8.6 kN | Grease speed: 16000 rpm
7300ADT d: 10 mm | D: 35 mm | Width: 22 mm (pair) | Cr: 15.1 kN | C0r: 8.6 kN | Grease speed: 16000 rpm
7300B d: 10 mm | D: 35 mm | Width: 11 mm | Cr: 8.75 kN | C0r: 4.05 kN | Grease speed: 18000 rpm
7300BDB d: 10 mm | D: 35 mm | Width: 22 mm (pair) | Cr: 14.2 kN | C0r: 8.1 kN | Grease speed: 14000 rpm
7300BDF d: 10 mm | D: 35 mm | Width: 22 mm (pair) | Cr: 14.2 kN | C0r: 8.1 kN | Grease speed: 14000 rpm
7300BDT d: 10 mm | D: 35 mm | Width: 22 mm (pair) | Cr: 14.2 kN | C0r: 8.1 kN | Grease speed: 14000 rpm
7301A d: 12 mm | D: 37 mm | Width: 12 mm | Cr: 9.45 kN | C0r: 4.5 kN | Grease speed: 18000 rpm
7301ADB d: 12 mm | D: 37 mm | Width: 24 mm (pair) | Cr: 15.4 kN | C0r: 9 kN | Grease speed: 16000 rpm
7301ADF d: 12 mm | D: 37 mm | Width: 24 mm (pair) | Cr: 15.4 kN | C0r: 9 kN | Grease speed: 16000 rpm
7301ADT d: 12 mm | D: 37 mm | Width: 24 mm (pair) | Cr: 15.4 kN | C0r: 9 kN | Grease speed: 16000 rpm
7301B d: 12 mm | D: 37 mm | Width: 12 mm | Cr: 8.85 kN | C0r: 4.2 kN | Grease speed: 16000 rpm
7301BDB d: 12 mm | D: 37 mm | Width: 24 mm (pair) | Cr: 14.4 kN | C0r: 8.4 kN | Grease speed: 13000 rpm
7301BDF d: 12 mm | D: 37 mm | Width: 24 mm (pair) | Cr: 14.4 kN | C0r: 8.4 kN | Grease speed: 13000 rpm
7301BDT d: 12 mm | D: 37 mm | Width: 24 mm (pair) | Cr: 14.4 kN | C0r: 8.4 kN | Grease speed: 13000 rpm
7302A d: 15 mm | D: 42 mm | Width: 13 mm | Cr: 13.4 kN | C0r: 7.17 kN | Grease speed: 16000 rpm
7302ADB d: 15 mm | D: 42 mm | Width: 26 mm (pair) | Cr: 21.8 kN | C0r: 14.2 kN | Grease speed: 13000 rpm
7302ADF d: 15 mm | D: 42 mm | Width: 26 mm (pair) | Cr: 21.8 kN | C0r: 14.2 kN | Grease speed: 13000 rpm
7302ADT d: 15 mm | D: 42 mm | Width: 26 mm (pair) | Cr: 21.8 kN | C0r: 14.2 kN | Grease speed: 13000 rpm
7302B d: 15 mm | D: 42 mm | Width: 13 mm | Cr: 12.5 kN | C0r: 6.6 kN | Grease speed: 14000 rpm
7302BDB d: 15 mm | D: 42 mm | Width: 26 mm (pair) | Cr: 20.2 kN | C0r: 13.2 kN | Grease speed: 11000 rpm
7302BDF d: 15 mm | D: 42 mm | Width: 26 mm (pair) | Cr: 20.2 kN | C0r: 13.2 kN | Grease speed: 11000 rpm
7302BDT d: 15 mm | D: 42 mm | Width: 26 mm (pair) | Cr: 20.2 kN | C0r: 13.2 kN | Grease speed: 11000 rpm
7303A d: 17 mm | D: 47 mm | Width: 14 mm | Cr: 15.9 kN | C0r: 8.65 kN | Grease speed: 14000 rpm
7303ADB d: 17 mm | D: 47 mm | Width: 28 mm (pair) | Cr: 25.9 kN | C0r: 17.3 kN | Grease speed: 11000 rpm
7303ADF d: 17 mm | D: 47 mm | Width: 28 mm (pair) | Cr: 25.9 kN | C0r: 17.3 kN | Grease speed: 11000 rpm
7303ADT d: 17 mm | D: 47 mm | Width: 28 mm (pair) | Cr: 25.9 kN | C0r: 17.3 kN | Grease speed: 11000 rpm
7303B d: 17 mm | D: 47 mm | Width: 14 mm | Cr: 14.8 kN | C0r: 8 kN | Grease speed: 13000 rpm
7303BDB d: 17 mm | D: 47 mm | Width: 28 mm (pair) | Cr: 24 kN | C0r: 16 kN | Grease speed: 10000 rpm
7303BDF d: 17 mm | D: 47 mm | Width: 28 mm (pair) | Cr: 24 kN | C0r: 16 kN | Grease speed: 10000 rpm
7303BDT d: 17 mm | D: 47 mm | Width: 28 mm (pair) | Cr: 24 kN | C0r: 16 kN | Grease speed: 10000 rpm
7304A d: 20 mm | D: 52 mm | Width: 15 mm | Cr: 18.7 kN | C0r: 10.4 kN | Grease speed: 13000 rpm
7304ADB d: 20 mm | D: 52 mm | Width: 30 mm (pair) | Cr: 30.5 kN | C0r: 20.8 kN | Grease speed: 10000 rpm
7304ADF d: 20 mm | D: 52 mm | Width: 30 mm (pair) | Cr: 30.5 kN | C0r: 20.8 kN | Grease speed: 10000 rpm
7304ADT d: 20 mm | D: 52 mm | Width: 30 mm (pair) | Cr: 30.5 kN | C0r: 20.8 kN | Grease speed: 10000 rpm
7304B d: 20 mm | D: 52 mm | Width: 15 mm | Cr: 17.3 kN | C0r: 9.65 kN | Grease speed: 11000 rpm
7304BDB d: 20 mm | D: 52 mm | Width: 30 mm (pair) | Cr: 28.2 kN | C0r: 19.3 kN | Grease speed: 9000 rpm
7304BDF d: 20 mm | D: 52 mm | Width: 30 mm (pair) | Cr: 28.2 kN | C0r: 19.3 kN | Grease speed: 9000 rpm
7304BDT d: 20 mm | D: 52 mm | Width: 30 mm (pair) | Cr: 28.2 kN | C0r: 19.3 kN | Grease speed: 9000 rpm
7305A d: 25 mm | D: 62 mm | Width: 17 mm | Cr: 26.4 kN | C0r: 15.8 kN | Grease speed: 10000 rpm
7305ADB d: 25 mm | D: 62 mm | Width: 34 mm (pair) | Cr: 43 kN | C0r: 31.5 kN | Grease speed: 8500 rpm
7305ADF d: 25 mm | D: 62 mm | Width: 34 mm (pair) | Cr: 43 kN | C0r: 31.5 kN | Grease speed: 8500 rpm
7305ADT d: 25 mm | D: 62 mm | Width: 34 mm (pair) | Cr: 43 kN | C0r: 31.5 kN | Grease speed: 8500 rpm
7305B d: 25 mm | D: 62 mm | Width: 17 mm | Cr: 24.4 kN | C0r: 14.6 kN | Grease speed: 9000 rpm
7305BDB d: 25 mm | D: 62 mm | Width: 34 mm (pair) | Cr: 39.5 kN | C0r: 29.3 kN | Grease speed: 7600 rpm
7305BDF d: 25 mm | D: 62 mm | Width: 34 mm (pair) | Cr: 39.5 kN | C0r: 29.3 kN | Grease speed: 7600 rpm
7305BDT d: 25 mm | D: 62 mm | Width: 34 mm (pair) | Cr: 39.5 kN | C0r: 29.3 kN | Grease speed: 7600 rpm
7306A d: 30 mm | D: 72 mm | Width: 19 mm | Cr: 33.5 kN | C0r: 20.9 kN | Grease speed: 9000 rpm
7306ADB d: 30 mm | D: 72 mm | Width: 38 mm (pair) | Cr: 54.6 kN | C0r: 41.5 kN | Grease speed: 7100 rpm
7306ADF d: 30 mm | D: 72 mm | Width: 38 mm (pair) | Cr: 54.6 kN | C0r: 41.5 kN | Grease speed: 7100 rpm
7306ADT d: 30 mm | D: 72 mm | Width: 38 mm (pair) | Cr: 54.6 kN | C0r: 41.5 kN | Grease speed: 7100 rpm
7306B d: 30 mm | D: 72 mm | Width: 19 mm | Cr: 31 kN | C0r: 19.3 kN | Grease speed: 8000 rpm
7306BDB d: 30 mm | D: 72 mm | Width: 38 mm (pair) | Cr: 50.5 kN | C0r: 38.5 kN | Grease speed: 6300 rpm
7306BDF d: 30 mm | D: 72 mm | Width: 38 mm (pair) | Cr: 50.5 kN | C0r: 38.5 kN | Grease speed: 6300 rpm
7306BDT d: 30 mm | D: 72 mm | Width: 38 mm (pair) | Cr: 50.5 kN | C0r: 38.5 kN | Grease speed: 6300 rpm
7307A d: 35 mm | D: 80 mm | Width: 21 mm | Cr: 40 kN | C0r: 26.3 kN | Grease speed: 8000 rpm
7307ADB d: 35 mm | D: 80 mm | Width: 42 mm (pair) | Cr: 65 kN | C0r: 52.5 kN | Grease speed: 6300 rpm
7307ADF d: 35 mm | D: 80 mm | Width: 42 mm (pair) | Cr: 65 kN | C0r: 52.5 kN | Grease speed: 6300 rpm
7307ADT d: 35 mm | D: 80 mm | Width: 42 mm (pair) | Cr: 65 kN | C0r: 52.5 kN | Grease speed: 6300 rpm
7307B d: 35 mm | D: 80 mm | Width: 21 mm | Cr: 36.5 kN | C0r: 24.2 kN | Grease speed: 7100 rpm
7307BDB d: 35 mm | D: 80 mm | Width: 42 mm (pair) | Cr: 59.5 kN | C0r: 48.5 kN | Grease speed: 5600 rpm
7307BDF d: 35 mm | D: 80 mm | Width: 42 mm (pair) | Cr: 59.5 kN | C0r: 48.5 kN | Grease speed: 5600 rpm
7307BDT d: 35 mm | D: 80 mm | Width: 42 mm (pair) | Cr: 59.5 kN | C0r: 48.5 kN | Grease speed: 5600 rpm
7308A d: 40 mm | D: 90 mm | Width: 23 mm | Cr: 49 kN | C0r: 33 kN | Grease speed: 7100 rpm
7308ADB d: 40 mm | D: 90 mm | Width: 46 mm (pair) | Cr: 79.5 kN | C0r: 66 kN | Grease speed: 5600 rpm
7308ADF d: 40 mm | D: 90 mm | Width: 46 mm (pair) | Cr: 79.5 kN | C0r: 66 kN | Grease speed: 5600 rpm
7308ADT d: 40 mm | D: 90 mm | Width: 46 mm (pair) | Cr: 79.5 kN | C0r: 66 kN | Grease speed: 5600 rpm
7308B d: 40 mm | D: 90 mm | Width: 23 mm | Cr: 45 kN | C0r: 30.5 kN | Grease speed: 6300 rpm
7308BDB d: 40 mm | D: 90 mm | Width: 46 mm (pair) | Cr: 73 kN | C0r: 60.5 kN | Grease speed: 5000 rpm
7308BDF d: 40 mm | D: 90 mm | Width: 46 mm (pair) | Cr: 73 kN | C0r: 60.5 kN | Grease speed: 5000 rpm
7308BDT d: 40 mm | D: 90 mm | Width: 46 mm (pair) | Cr: 73 kN | C0r: 60.5 kN | Grease speed: 5000 rpm
7309A d: 45 mm | D: 100 mm | Width: 25 mm | Cr: 63.5 kN | C0r: 43.5 kN | Grease speed: 6300 rpm
7309ADB d: 45 mm | D: 100 mm | Width: 50 mm (pair) | Cr: 103 kN | C0r: 87 kN | Grease speed: 5000 rpm
7309ADF d: 45 mm | D: 100 mm | Width: 50 mm (pair) | Cr: 103 kN | C0r: 87 kN | Grease speed: 5000 rpm
7309ADT d: 45 mm | D: 100 mm | Width: 50 mm (pair) | Cr: 103 kN | C0r: 87 kN | Grease speed: 5000 rpm
7309B d: 45 mm | D: 100 mm | Width: 25 mm | Cr: 58.5 kN | C0r: 40 kN | Grease speed: 5600 rpm
7309BDB d: 45 mm | D: 100 mm | Width: 50 mm (pair) | Cr: 95 kN | C0r: 80.5 kN | Grease speed: 4500 rpm
7309BDF d: 45 mm | D: 100 mm | Width: 50 mm (pair) | Cr: 95 kN | C0r: 80.5 kN | Grease speed: 4500 rpm
7309BDT d: 45 mm | D: 100 mm | Width: 50 mm (pair) | Cr: 95 kN | C0r: 80.5 kN | Grease speed: 4500 rpm
7310A d: 50 mm | D: 110 mm | Width: 27 mm | Cr: 74 kN | C0r: 52 kN | Grease speed: 5600 rpm
7310ADB d: 50 mm | D: 110 mm | Width: 54 mm (pair) | Cr: 121 kN | C0r: 104 kN | Grease speed: 4500 rpm
7310ADF d: 50 mm | D: 110 mm | Width: 54 mm (pair) | Cr: 121 kN | C0r: 104 kN | Grease speed: 4500 rpm
7310ADT d: 50 mm | D: 110 mm | Width: 54 mm (pair) | Cr: 121 kN | C0r: 104 kN | Grease speed: 4500 rpm
7310B d: 50 mm | D: 110 mm | Width: 27 mm | Cr: 68 kN | C0r: 48 kN | Grease speed: 5000 rpm
7310BDB d: 50 mm | D: 110 mm | Width: 54 mm (pair) | Cr: 111 kN | C0r: 96 kN | Grease speed: 4000 rpm
7310BDF d: 50 mm | D: 110 mm | Width: 54 mm (pair) | Cr: 111 kN | C0r: 96 kN | Grease speed: 4000 rpm
7310BDT d: 50 mm | D: 110 mm | Width: 54 mm (pair) | Cr: 111 kN | C0r: 96 kN | Grease speed: 4000 rpm
7311A d: 55 mm | D: 120 mm | Width: 29 mm | Cr: 86 kN | C0r: 61.5 kN | Grease speed: 5000 rpm
7311ADB d: 55 mm | D: 120 mm | Width: 58 mm (pair) | Cr: 139 kN | C0r: 123 kN | Grease speed: 4000 rpm
7311ADF d: 55 mm | D: 120 mm | Width: 58 mm (pair) | Cr: 139 kN | C0r: 123 kN | Grease speed: 4000 rpm
7311ADT d: 55 mm | D: 120 mm | Width: 58 mm (pair) | Cr: 139 kN | C0r: 123 kN | Grease speed: 4000 rpm
7311B d: 55 mm | D: 120 mm | Width: 29 mm | Cr: 79 kN | C0r: 56.5 kN | Grease speed: 4500 rpm
7311BDB d: 55 mm | D: 120 mm | Width: 58 mm (pair) | Cr: 128 kN | C0r: 113 kN | Grease speed: 3600 rpm
7311BDF d: 55 mm | D: 120 mm | Width: 58 mm (pair) | Cr: 128 kN | C0r: 113 kN | Grease speed: 3600 rpm
7311BDT d: 55 mm | D: 120 mm | Width: 58 mm (pair) | Cr: 128 kN | C0r: 113 kN | Grease speed: 3600 rpm
7312A d: 60 mm | D: 130 mm | Width: 31 mm | Cr: 98 kN | C0r: 71.6 kN | Grease speed: 4800 rpm
7312ADB d: 60 mm | D: 130 mm | Width: 62 mm (pair) | Cr: 159 kN | C0r: 143 kN | Grease speed: 3800 rpm
7312ADF d: 60 mm | D: 130 mm | Width: 62 mm (pair) | Cr: 159 kN | C0r: 143 kN | Grease speed: 3800 rpm
7312ADT d: 60 mm | D: 130 mm | Width: 62 mm (pair) | Cr: 159 kN | C0r: 143 kN | Grease speed: 3800 rpm
7312B d: 60 mm | D: 130 mm | Width: 31 mm | Cr: 90 kN | C0r: 65.5 kN | Grease speed: 4300 rpm
7312BDB d: 60 mm | D: 130 mm | Width: 62 mm (pair) | Cr: 146 kN | C0r: 131 kN | Grease speed: 3400 rpm
7312BDF d: 60 mm | D: 130 mm | Width: 62 mm (pair) | Cr: 146 kN | C0r: 131 kN | Grease speed: 3400 rpm
7312BDT d: 60 mm | D: 130 mm | Width: 62 mm (pair) | Cr: 146 kN | C0r: 131 kN | Grease speed: 3400 rpm
7313A d: 65 mm | D: 140 mm | Width: 33 mm | Cr: 111 kN | C0r: 82 kN | Grease speed: 4300 rpm
7313ADB d: 65 mm | D: 140 mm | Width: 66 mm (pair) | Cr: 180 kN | C0r: 164 kN | Grease speed: 3600 rpm
7313ADF d: 65 mm | D: 140 mm | Width: 66 mm (pair) | Cr: 180 kN | C0r: 164 kN | Grease speed: 3600 rpm
7313ADT d: 65 mm | D: 140 mm | Width: 66 mm (pair) | Cr: 180 kN | C0r: 164 kN | Grease speed: 3600 rpm
7313B d: 65 mm | D: 140 mm | Width: 33 mm | Cr: 102 kN | C0r: 75.5 kN | Grease speed: 3800 rpm
7313BDB d: 65 mm | D: 140 mm | Width: 66 mm (pair) | Cr: 166 kN | C0r: 151 kN | Grease speed: 3200 rpm
7313BDF d: 65 mm | D: 140 mm | Width: 66 mm (pair) | Cr: 166 kN | C0r: 151 kN | Grease speed: 3200 rpm
7313BDT d: 65 mm | D: 140 mm | Width: 66 mm (pair) | Cr: 166 kN | C0r: 151 kN | Grease speed: 3200 rpm
7314A d: 70 mm | D: 150 mm | Width: 35 mm | Cr: 12.5 kN | C0r: 93.5 kN | Grease speed: 4000 rpm
7314ADB d: 70 mm | D: 150 mm | Width: 70 mm (pair) | Cr: 203 kN | C0r: 187 kN | Grease speed: 3200 rpm
7314ADF d: 70 mm | D: 150 mm | Width: 70 mm (pair) | Cr: 203 kN | C0r: 187 kN | Grease speed: 3200 rpm
7314ADT d: 70 mm | D: 150 mm | Width: 70 mm (pair) | Cr: 203 kN | C0r: 187 kN | Grease speed: 3200 rpm
7314B d: 70 mm | D: 150 mm | Width: 35 mm | Cr: 114 kN | C0r: 86 kN | Grease speed: 3600 rpm
7314BDB d: 70 mm | D: 150 mm | Width: 70 mm (pair) | Cr: 186 kN | C0r: 172 kN | Grease speed: 2800 rpm
7314BDF d: 70 mm | D: 150 mm | Width: 70 mm (pair) | Cr: 186 kN | C0r: 172 kN | Grease speed: 2800 rpm
7314BDT d: 70 mm | D: 150 mm | Width: 70 mm (pair) | Cr: 186 kN | C0r: 172 kN | Grease speed: 2800 rpm
7315A d: 75 mm | D: 160 mm | Width: 37 mm | Cr: 136 kN | C0r: 106 kN | Grease speed: 3800 rpm
7315ADB d: 75 mm | D: 160 mm | Width: 74 mm (pair) | Cr: 221 kN | C0r: 212 kN | Grease speed: 3000 rpm
7315ADF d: 75 mm | D: 160 mm | Width: 74 mm (pair) | Cr: 221 kN | C0r: 212 kN | Grease speed: 3000 rpm
7315ADT d: 75 mm | D: 160 mm | Width: 74 mm (pair) | Cr: 221 kN | C0r: 212 kN | Grease speed: 3000 rpm
7315B d: 75 mm | D: 160 mm | Width: 37 mm | Cr: 125 kN | C0r: 97.5 kN | Grease speed: 3400 rpm
7315BDB d: 75 mm | D: 160 mm | Width: 74 mm (pair) | Cr: 202 kN | C0r: 195 kN | Grease speed: 2800 rpm
7315BDF d: 75 mm | D: 160 mm | Width: 74 mm (pair) | Cr: 202 kN | C0r: 195 kN | Grease speed: 2800 rpm
7315BDT d: 75 mm | D: 160 mm | Width: 74 mm (pair) | Cr: 202 kN | C0r: 195 kN | Grease speed: 2800 rpm
7316A d: 80 mm | D: 170 mm | Width: 39 mm | Cr: 147 kN | C0r: 119 kN | Grease speed: 3600 rpm
7316ADB d: 80 mm | D: 170 mm | Width: 78 mm (pair) | Cr: 239 kN | C0r: 238 kN | Grease speed: 2800 rpm
7316ADF d: 80 mm | D: 170 mm | Width: 78 mm (pair) | Cr: 239 kN | C0r: 238 kN | Grease speed: 2800 rpm
7316ADT d: 80 mm | D: 170 mm | Width: 78 mm (pair) | Cr: 239 kN | C0r: 238 kN | Grease speed: 2800 rpm
7316B d: 80 mm | D: 170 mm | Width: 39 mm | Cr: 135 kN | C0r: 109 kN | Grease speed: 3200 rpm
7316BDB d: 80 mm | D: 170 mm | Width: 78 mm (pair) | Cr: 219 kN | C0r: 218 kN | Grease speed: 2600 rpm
7316BDF d: 80 mm | D: 170 mm | Width: 78 mm (pair) | Cr: 219 kN | C0r: 218 kN | Grease speed: 2600 rpm
7316BDT d: 80 mm | D: 170 mm | Width: 78 mm (pair) | Cr: 219 kN | C0r: 218 kN | Grease speed: 2600 rpm
7317A d: 85 mm | D: 180 mm | Width: 41 mm | Cr: 159 kN | C0r: 133 kN | Grease speed: 3400 rpm
7317ADB d: 85 mm | D: 180 mm | Width: 82 mm (pair) | Cr: 258 kN | C0r: 265 kN | Grease speed: 2600 rpm
7317ADF d: 85 mm | D: 180 mm | Width: 82 mm (pair) | Cr: 258 kN | C0r: 265 kN | Grease speed: 2600 rpm
7317ADT d: 85 mm | D: 180 mm | Width: 82 mm (pair) | Cr: 258 kN | C0r: 265 kN | Grease speed: 2600 rpm
7317B d: 85 mm | D: 180 mm | Width: 41 mm | Cr: 146 kN | C0r: 122 kN | Grease speed: 3000 rpm
7317BDB d: 85 mm | D: 180 mm | Width: 82 mm (pair) | Cr: 236 kN | C0r: 244 kN | Grease speed: 2400 rpm
7317BDF d: 85 mm | D: 180 mm | Width: 82 mm (pair) | Cr: 236 kN | C0r: 244 kN | Grease speed: 2400 rpm
7317BDT d: 85 mm | D: 180 mm | Width: 82 mm (pair) | Cr: 236 kN | C0r: 244 kN | Grease speed: 2400 rpm
7318A d: 90 mm | D: 190 mm | Width: 43 mm | Cr: 171 kN | C0r: 147 kN | Grease speed: 3200 rpm
7318ADB d: 90 mm | D: 190 mm | Width: 86 mm (pair) | Cr: 277 kN | C0r: 294 kN | Grease speed: 2600 rpm
7318ADF d: 90 mm | D: 190 mm | Width: 86 mm (pair) | Cr: 277 kN | C0r: 294 kN | Grease speed: 2600 rpm
7318ADT d: 90 mm | D: 190 mm | Width: 86 mm (pair) | Cr: 277 kN | C0r: 294 kN | Grease speed: 2600 rpm
7318B d: 90 mm | D: 190 mm | Width: 43 mm | Cr: 156 kN | C0r: 135 kN | Grease speed: 2800 rpm
7318BDB d: 90 mm | D: 190 mm | Width: 86 mm (pair) | Cr: 254 kN | C0r: 270 kN | Grease speed: 2200 rpm
7318BDF d: 90 mm | D: 190 mm | Width: 86 mm (pair) | Cr: 254 kN | C0r: 270 kN | Grease speed: 2200 rpm
7318BDT d: 90 mm | D: 190 mm | Width: 86 mm (pair) | Cr: 254 kN | C0r: 270 kN | Grease speed: 2200 rpm
7319A d: 95 mm | D: 200 mm | Width: 45 mm | Cr: 183 kN | C0r: 162 kN | Grease speed: 3000 rpm
7319ADB d: 95 mm | D: 200 mm | Width: 90 mm (pair) | Cr: 297 kN | C0r: 328 kN | Grease speed: 2400 rpm
7319ADF d: 95 mm | D: 200 mm | Width: 90 mm (pair) | Cr: 297 kN | C0r: 328 kN | Grease speed: 2400 rpm
7319ADT d: 95 mm | D: 200 mm | Width: 90 mm (pair) | Cr: 297 kN | C0r: 328 kN | Grease speed: 2400 rpm
7319B d: 95 mm | D: 200 mm | Width: 45 mm | Cr: 167 kN | C0r: 149 kN | Grease speed: 2600 rpm
7319BDB d: 95 mm | D: 200 mm | Width: 90 mm (pair) | Cr: 272 kN | C0r: 298 kN | Grease speed: 2200 rpm
7319BDF d: 95 mm | D: 200 mm | Width: 90 mm (pair) | Cr: 272 kN | C0r: 298 kN | Grease speed: 2200 rpm
7319BDT d: 95 mm | D: 200 mm | Width: 90 mm (pair) | Cr: 272 kN | C0r: 298 kN | Grease speed: 2200 rpm
7320A d: 100 mm | D: 215 mm | Width: 47 mm | Cr: 207 kN | C0r: 193 kN | Grease speed: 2800 rpm
7320ADB d: 100 mm | D: 215 mm | Width: 94 mm (pair) | Cr: 335 kN | C0r: 385 kN | Grease speed: 2200 rpm
7320ADF d: 100 mm | D: 215 mm | Width: 94 mm (pair) | Cr: 335 kN | C0r: 385 kN | Grease speed: 2200 rpm
7320ADT d: 100 mm | D: 215 mm | Width: 94 mm (pair) | Cr: 335 kN | C0r: 385 kN | Grease speed: 2200 rpm
7320B d: 100 mm | D: 215 mm | Width: 47 mm | Cr: 190 kN | C0r: 178 kN | Grease speed: 2400 rpm
7320BDB d: 100 mm | D: 215 mm | Width: 94 mm (pair) | Cr: 310 kN | C0r: 355 kN | Grease speed: 2000 rpm
7320BDF d: 100 mm | D: 215 mm | Width: 94 mm (pair) | Cr: 310 kN | C0r: 355 kN | Grease speed: 2000 rpm
7320BDT d: 100 mm | D: 215 mm | Width: 94 mm (pair) | Cr: 310 kN | C0r: 355 kN | Grease speed: 2000 rpm
7321A d: 105 mm | D: 225 mm | Width: 49 mm | Cr: 20.8 kN | C0r: 193 kN | Grease speed: 2600 rpm
7321ADB d: 105 mm | D: 225 mm | Width: 98 mm (pair) | Cr: 335 kN | C0r: 385 kN | Grease speed: 2200 rpm
7321ADF d: 105 mm | D: 225 mm | Width: 98 mm (pair) | Cr: 335 kN | C0r: 385 kN | Grease speed: 2200 rpm
7321ADT d: 105 mm | D: 225 mm | Width: 98 mm (pair) | Cr: 335 kN | C0r: 385 kN | Grease speed: 2200 rpm
7321B d: 105 mm | D: 225 mm | Width: 49 mm | Cr: 191 kN | C0r: 177 kN | Grease speed: 2400 rpm
7321BDB d: 105 mm | D: 225 mm | Width: 98 mm (pair) | Cr: 310 kN | C0r: 355 kN | Grease speed: 1800 rpm
7321BDF d: 105 mm | D: 225 mm | Width: 98 mm (pair) | Cr: 310 kN | C0r: 355 kN | Grease speed: 1800 rpm
7321BDT d: 105 mm | D: 225 mm | Width: 98 mm (pair) | Cr: 310 kN | C0r: 355 kN | Grease speed: 1800 rpm
7322A d: 110 mm | D: 240 mm | Width: 50 mm | Cr: 220 kN | C0r: 215 kN | Grease speed: 2600 rpm
7322ADB d: 110 mm | D: 240 mm | Width: 100 mm (pair) | Cr: 360 kN | C0r: 430 kN | Grease speed: 2000 rpm
7322ADF d: 110 mm | D: 240 mm | Width: 100 mm (pair) | Cr: 360 kN | C0r: 430 kN | Grease speed: 2000 rpm
7322ADT d: 110 mm | D: 240 mm | Width: 100 mm (pair) | Cr: 360 kN | C0r: 430 kN | Grease speed: 2000 rpm
7322B d: 110 mm | D: 240 mm | Width: 50 mm | Cr: 201 kN | C0r: 197 kN | Grease speed: 2200 rpm
7322BDB d: 110 mm | D: 240 mm | Width: 100 mm (pair) | Cr: 325 kN | C0r: 395 kN | Grease speed: 1800 rpm
7322BDF d: 110 mm | D: 240 mm | Width: 100 mm (pair) | Cr: 325 kN | C0r: 395 kN | Grease speed: 1800 rpm
7322BDT d: 110 mm | D: 240 mm | Width: 100 mm (pair) | Cr: 325 kN | C0r: 395 kN | Grease speed: 1800 rpm
7324A d: 120 mm | D: 260 mm | Width: 55 mm | Cr: 246 kN | C0r: 252 kN | Grease speed: 2200 rpm
7324ADB d: 120 mm | D: 260 mm | Width: 110 mm (pair) | Cr: 400 kN | C0r: 505 kN | Grease speed: 1800 rpm
7324ADF d: 120 mm | D: 260 mm | Width: 110 mm (pair) | Cr: 400 kN | C0r: 505 kN | Grease speed: 1800 rpm
7324ADT d: 120 mm | D: 260 mm | Width: 110 mm (pair) | Cr: 400 kN | C0r: 505 kN | Grease speed: 1800 rpm
7324B d: 120 mm | D: 260 mm | Width: 55 mm | Cr: 225 kN | C0r: 237 kN | Grease speed: 2000 rpm
7324BDB d: 120 mm | D: 260 mm | Width: 110 mm (pair) | Cr: 365 kN | C0r: 460 kN | Grease speed: 1600 rpm
7324BDF d: 120 mm | D: 260 mm | Width: 110 mm (pair) | Cr: 365 kN | C0r: 460 kN | Grease speed: 1600 rpm
7324BDT d: 120 mm | D: 260 mm | Width: 110 mm (pair) | Cr: 365 kN | C0r: 460 kN | Grease speed: 1600 rpm
7326A d: 130 mm | D: 280 mm | Width: 58 mm | Cr: 273 kN | C0r: 293 kN | Grease speed: 2200 rpm
7326ADB d: 130 mm | D: 280 mm | Width: 116 mm (pair) | Cr: 445 kN | C0r: 585 kN | Grease speed: 1700 rpm
7326ADF d: 130 mm | D: 280 mm | Width: 116 mm (pair) | Cr: 445 kN | C0r: 585 kN | Grease speed: 1700 rpm
7326ADT d: 130 mm | D: 280 mm | Width: 116 mm (pair) | Cr: 445 kN | C0r: 585 kN | Grease speed: 1700 rpm
7326B d: 130 mm | D: 280 mm | Width: 58 mm | Cr: 250 kN | C0r: 268 kN | Grease speed: 1900 rpm
7326BDB d: 130 mm | D: 280 mm | Width: 116 mm (pair) | Cr: 405 kN | C0r: 535 kN | Grease speed: 1500 rpm
7326BDF d: 130 mm | D: 280 mm | Width: 116 mm (pair) | Cr: 405 kN | C0r: 535 kN | Grease speed: 1500 rpm
7326BDT d: 130 mm | D: 280 mm | Width: 116 mm (pair) | Cr: 405 kN | C0r: 535 kN | Grease speed: 1500 rpm
7328A d: 140 mm | D: 300 mm | Width: 62 mm | Cr: 300 kN | C0r: 335 kN | Grease speed: 2000 rpm
7328ADB d: 140 mm | D: 300 mm | Width: 124 mm (pair) | Cr: 490 kN | C0r: 670 kN | Grease speed: 1600 rpm
7328ADF d: 140 mm | D: 300 mm | Width: 124 mm (pair) | Cr: 490 kN | C0r: 670 kN | Grease speed: 1600 rpm
7328ADT d: 140 mm | D: 300 mm | Width: 124 mm (pair) | Cr: 490 kN | C0r: 670 kN | Grease speed: 1600 rpm
7328B d: 140 mm | D: 300 mm | Width: 62 mm | Cr: 275 kN | C0r: 310 kN | Grease speed: 1700 rpm
7328BDB d: 140 mm | D: 300 mm | Width: 124 mm (pair) | Cr: 445 kN | C0r: 615 kN | Grease speed: 1400 rpm
7328BDF d: 140 mm | D: 300 mm | Width: 124 mm (pair) | Cr: 445 kN | C0r: 615 kN | Grease speed: 1400 rpm
7328BDT d: 140 mm | D: 300 mm | Width: 124 mm (pair) | Cr: 445 kN | C0r: 615 kN | Grease speed: 1400 rpm
7330A d: 150 mm | D: 320 mm | Width: 65 mm | Cr: 315 kN | C0r: 370 kN | Grease speed: 1800 rpm
7330ADB d: 150 mm | D: 320 mm | Width: 130 mm (pair) | Cr: 516 kN | C0r: 745 kN | Grease speed: 1500 rpm
7330ADF d: 150 mm | D: 320 mm | Width: 130 mm (pair) | Cr: 516 kN | C0r: 745 kN | Grease speed: 1500 rpm
7330ADT d: 150 mm | D: 320 mm | Width: 130 mm (pair) | Cr: 516 kN | C0r: 745 kN | Grease speed: 1500 rpm
7330B d: 150 mm | D: 320 mm | Width: 65 mm | Cr: 289 kN | C0r: 340 kN | Grease speed: 1600 rpm
7330BDB d: 150 mm | D: 320 mm | Width: 130 mm (pair) | Cr: 470 kN | C0r: 680 kN | Grease speed: 1300 rpm
7330BDF d: 150 mm | D: 320 mm | Width: 130 mm (pair) | Cr: 470 kN | C0r: 680 kN | Grease speed: 1300 rpm
7330BDT d: 150 mm | D: 320 mm | Width: 130 mm (pair) | Cr: 470 kN | C0r: 680 kN | Grease speed: 1300 rpm
7332A d: 160 mm | D: 340 mm | Width: 68 mm | Cr: 345 kN | C0r: 420 kN | Grease speed: 1700 rpm
7332ADB d: 160 mm | D: 340 mm | Width: 136 mm (pair) | Cr: 565 kN | C0r: 845 kN | Grease speed: 1400 rpm
7332ADF d: 160 mm | D: 340 mm | Width: 136 mm (pair) | Cr: 565 kN | C0r: 845 kN | Grease speed: 1400 rpm
7332ADT d: 160 mm | D: 340 mm | Width: 136 mm (pair) | Cr: 565 kN | C0r: 845 kN | Grease speed: 1400 rpm
7332B d: 160 mm | D: 340 mm | Width: 68 mm | Cr: 315 kN | C0r: 385 kN | Grease speed: 1500 rpm
7332BDB d: 160 mm | D: 340 mm | Width: 136 mm (pair) | Cr: 515 kN | C0r: 770 kN | Grease speed: 1200 rpm
7332BDF d: 160 mm | D: 340 mm | Width: 136 mm (pair) | Cr: 515 kN | C0r: 770 kN | Grease speed: 1200 rpm
7332BDT d: 160 mm | D: 340 mm | Width: 136 mm (pair) | Cr: 515 kN | C0r: 770 kN | Grease speed: 1200 rpm
7334A d: 170 mm | D: 360 mm | Width: 72 mm | Cr: 390 kN | C0r: 485 kN | Grease speed: 1600 rpm
7334ADB d: 170 mm | D: 360 mm | Width: 144 mm (pair) | Cr: 630 kN | C0r: 970 kN | Grease speed: 1300 rpm
7334ADF d: 170 mm | D: 360 mm | Width: 144 mm (pair) | Cr: 630 kN | C0r: 970 kN | Grease speed: 1300 rpm
7334ADT d: 170 mm | D: 360 mm | Width: 144 mm (pair) | Cr: 630 kN | C0r: 970 kN | Grease speed: 1300 rpm
7334B d: 170 mm | D: 360 mm | Width: 72 mm | Cr: 355 kN | C0r: 445 kN | Grease speed: 1400 rpm
7334BDB d: 170 mm | D: 360 mm | Width: 144 mm (pair) | Cr: 575 kN | C0r: 890 kN | Grease speed: 1100 rpm
7334BDF d: 170 mm | D: 360 mm | Width: 144 mm (pair) | Cr: 575 kN | C0r: 890 kN | Grease speed: 1100 rpm
7334BDT d: 170 mm | D: 360 mm | Width: 144 mm (pair) | Cr: 575 kN | C0r: 890 kN | Grease speed: 1100 rpm
7336A d: 180 mm | D: 380 mm | Width: 75 mm | Cr: 410 kN | C0r: 535 kN | Grease speed: 1500 rpm
7336ADB d: 180 mm | D: 380 mm | Width: 150 mm (pair) | Cr: 665 kN | C0r: 1070 kN | Grease speed: 1200 rpm
7336ADF d: 180 mm | D: 380 mm | Width: 150 mm (pair) | Cr: 665 kN | C0r: 1070 kN | Grease speed: 1200 rpm
7336ADT d: 180 mm | D: 380 mm | Width: 150 mm (pair) | Cr: 665 kN | C0r: 1070 kN | Grease speed: 1200 rpm
7336B d: 180 mm | D: 380 mm | Width: 75 mm | Cr: 375 kN | C0r: 490 kN | Grease speed: 1300 rpm
7336BDB d: 180 mm | D: 380 mm | Width: 150 mm (pair) | Cr: 605 kN | C0r: 975 kN | Grease speed: 1100 rpm
7336BDF d: 180 mm | D: 380 mm | Width: 150 mm (pair) | Cr: 605 kN | C0r: 975 kN | Grease speed: 1100 rpm
7336BDT d: 180 mm | D: 380 mm | Width: 150 mm (pair) | Cr: 605 kN | C0r: 975 kN | Grease speed: 1100 rpm
7338A d: 190 mm | D: 400 mm | Width: 78 mm | Cr: 450 kN | C0r: 600 kN | Grease speed: 1400 rpm
7338ADB d: 190 mm | D: 400 mm | Width: 156 mm (pair) | Cr: 730 kN | C0r: 1200 kN | Grease speed: 1100 rpm
7338ADF d: 190 mm | D: 400 mm | Width: 156 mm (pair) | Cr: 730 kN | C0r: 1200 kN | Grease speed: 1100 rpm
7338ADT d: 190 mm | D: 400 mm | Width: 156 mm (pair) | Cr: 730 kN | C0r: 1200 kN | Grease speed: 1100 rpm
7338B d: 190 mm | D: 400 mm | Width: 78 mm | Cr: 410 kN | C0r: 550 kN | Grease speed: 1300 rpm
7338BDB d: 190 mm | D: 400 mm | Width: 156 mm (pair) | Cr: 670 kN | C0r: 1100 kN | Grease speed: 1000 rpm
7338BDF d: 190 mm | D: 400 mm | Width: 156 mm (pair) | Cr: 670 kN | C0r: 1100 kN | Grease speed: 1000 rpm
7338BDT d: 190 mm | D: 400 mm | Width: 156 mm (pair) | Cr: 670 kN | C0r: 1100 kN | Grease speed: 1000 rpm
7340A d: 200 mm | D: 420 mm | Width: 80 mm | Cr: 475 kN | C0r: 660 kN | Grease speed: 1300 rpm
7340ADB d: 200 mm | D: 420 mm | Width: 160 mm (pair) | Cr: 770 kN | C0r: 1320 kN | Grease speed: 1100 rpm
7340ADF d: 200 mm | D: 420 mm | Width: 160 mm (pair) | Cr: 770 kN | C0r: 1320 kN | Grease speed: 1100 rpm
7340ADT d: 200 mm | D: 420 mm | Width: 160 mm (pair) | Cr: 770 kN | C0r: 1320 kN | Grease speed: 1100 rpm
7340B d: 200 mm | D: 420 mm | Width: 80 mm | Cr: 430 kN | C0r: 600 kN | Grease speed: 1200 rpm
7340BDB d: 200 mm | D: 420 mm | Width: 160 mm (pair) | Cr: 700 kN | C0r: 1200 kN | Grease speed: 950 rpm
7340BDF d: 200 mm | D: 420 mm | Width: 160 mm (pair) | Cr: 700 kN | C0r: 1200 kN | Grease speed: 950 rpm
7340BDT d: 200 mm | D: 420 mm | Width: 160 mm (pair) | Cr: 700 kN | C0r: 1200 kN | Grease speed: 950 rpm
Angular Contact Ball BearingsNSK
256 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK 73 Series Angular Contact Ball Bearings (A/B; DB/DF/DT)

Brand NSK·Angular Contact Ball Bearings

Available part numbers (256)

7300A, 7300ADB, 7300ADF, 7300ADT, 7300B, 7300BDB, 7300BDF, 7300BDT, 7301A, 7301ADB + 246 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
7300Ad: 10 mm | D: 35 mm | Width: 11 mm | Cr: 9.3 kN | C0r: 4.3 kN | Grease speed: 20000 rpm
7300ADBd: 10 mm | D: 35 mm | Width: 22 mm (pair) | Cr: 15.1 kN | C0r: 8.6 kN | Grease speed: 16000 rpm
7300ADFd: 10 mm | D: 35 mm | Width: 22 mm (pair) | Cr: 15.1 kN | C0r: 8.6 kN | Grease speed: 16000 rpm
7300ADTd: 10 mm | D: 35 mm | Width: 22 mm (pair) | Cr: 15.1 kN | C0r: 8.6 kN | Grease speed: 16000 rpm
7300Bd: 10 mm | D: 35 mm | Width: 11 mm | Cr: 8.75 kN | C0r: 4.05 kN | Grease speed: 18000 rpm
7300BDBd: 10 mm | D: 35 mm | Width: 22 mm (pair) | Cr: 14.2 kN | C0r: 8.1 kN | Grease speed: 14000 rpm
7300BDFd: 10 mm | D: 35 mm | Width: 22 mm (pair) | Cr: 14.2 kN | C0r: 8.1 kN | Grease speed: 14000 rpm
7300BDTd: 10 mm | D: 35 mm | Width: 22 mm (pair) | Cr: 14.2 kN | C0r: 8.1 kN | Grease speed: 14000 rpm
7301Ad: 12 mm | D: 37 mm | Width: 12 mm | Cr: 9.45 kN | C0r: 4.5 kN | Grease speed: 18000 rpm
7301ADBd: 12 mm | D: 37 mm | Width: 24 mm (pair) | Cr: 15.4 kN | C0r: 9 kN | Grease speed: 16000 rpm
7301ADFd: 12 mm | D: 37 mm | Width: 24 mm (pair) | Cr: 15.4 kN | C0r: 9 kN | Grease speed: 16000 rpm
7301ADTd: 12 mm | D: 37 mm | Width: 24 mm (pair) | Cr: 15.4 kN | C0r: 9 kN | Grease speed: 16000 rpm
7301Bd: 12 mm | D: 37 mm | Width: 12 mm | Cr: 8.85 kN | C0r: 4.2 kN | Grease speed: 16000 rpm
7301BDBd: 12 mm | D: 37 mm | Width: 24 mm (pair) | Cr: 14.4 kN | C0r: 8.4 kN | Grease speed: 13000 rpm
7301BDFd: 12 mm | D: 37 mm | Width: 24 mm (pair) | Cr: 14.4 kN | C0r: 8.4 kN | Grease speed: 13000 rpm
7301BDTd: 12 mm | D: 37 mm | Width: 24 mm (pair) | Cr: 14.4 kN | C0r: 8.4 kN | Grease speed: 13000 rpm
7302Ad: 15 mm | D: 42 mm | Width: 13 mm | Cr: 13.4 kN | C0r: 7.17 kN | Grease speed: 16000 rpm
7302ADBd: 15 mm | D: 42 mm | Width: 26 mm (pair) | Cr: 21.8 kN | C0r: 14.2 kN | Grease speed: 13000 rpm
7302ADFd: 15 mm | D: 42 mm | Width: 26 mm (pair) | Cr: 21.8 kN | C0r: 14.2 kN | Grease speed: 13000 rpm
7302ADTd: 15 mm | D: 42 mm | Width: 26 mm (pair) | Cr: 21.8 kN | C0r: 14.2 kN | Grease speed: 13000 rpm
7302Bd: 15 mm | D: 42 mm | Width: 13 mm | Cr: 12.5 kN | C0r: 6.6 kN | Grease speed: 14000 rpm
7302BDBd: 15 mm | D: 42 mm | Width: 26 mm (pair) | Cr: 20.2 kN | C0r: 13.2 kN | Grease speed: 11000 rpm
7302BDFd: 15 mm | D: 42 mm | Width: 26 mm (pair) | Cr: 20.2 kN | C0r: 13.2 kN | Grease speed: 11000 rpm
7302BDTd: 15 mm | D: 42 mm | Width: 26 mm (pair) | Cr: 20.2 kN | C0r: 13.2 kN | Grease speed: 11000 rpm
7303Ad: 17 mm | D: 47 mm | Width: 14 mm | Cr: 15.9 kN | C0r: 8.65 kN | Grease speed: 14000 rpm
7303ADBd: 17 mm | D: 47 mm | Width: 28 mm (pair) | Cr: 25.9 kN | C0r: 17.3 kN | Grease speed: 11000 rpm
7303ADFd: 17 mm | D: 47 mm | Width: 28 mm (pair) | Cr: 25.9 kN | C0r: 17.3 kN | Grease speed: 11000 rpm
7303ADTd: 17 mm | D: 47 mm | Width: 28 mm (pair) | Cr: 25.9 kN | C0r: 17.3 kN | Grease speed: 11000 rpm
7303Bd: 17 mm | D: 47 mm | Width: 14 mm | Cr: 14.8 kN | C0r: 8 kN | Grease speed: 13000 rpm
7303BDBd: 17 mm | D: 47 mm | Width: 28 mm (pair) | Cr: 24 kN | C0r: 16 kN | Grease speed: 10000 rpm
7303BDFd: 17 mm | D: 47 mm | Width: 28 mm (pair) | Cr: 24 kN | C0r: 16 kN | Grease speed: 10000 rpm
7303BDTd: 17 mm | D: 47 mm | Width: 28 mm (pair) | Cr: 24 kN | C0r: 16 kN | Grease speed: 10000 rpm
7304Ad: 20 mm | D: 52 mm | Width: 15 mm | Cr: 18.7 kN | C0r: 10.4 kN | Grease speed: 13000 rpm
7304ADBd: 20 mm | D: 52 mm | Width: 30 mm (pair) | Cr: 30.5 kN | C0r: 20.8 kN | Grease speed: 10000 rpm
7304ADFd: 20 mm | D: 52 mm | Width: 30 mm (pair) | Cr: 30.5 kN | C0r: 20.8 kN | Grease speed: 10000 rpm
7304ADTd: 20 mm | D: 52 mm | Width: 30 mm (pair) | Cr: 30.5 kN | C0r: 20.8 kN | Grease speed: 10000 rpm
7304Bd: 20 mm | D: 52 mm | Width: 15 mm | Cr: 17.3 kN | C0r: 9.65 kN | Grease speed: 11000 rpm
7304BDBd: 20 mm | D: 52 mm | Width: 30 mm (pair) | Cr: 28.2 kN | C0r: 19.3 kN | Grease speed: 9000 rpm
7304BDFd: 20 mm | D: 52 mm | Width: 30 mm (pair) | Cr: 28.2 kN | C0r: 19.3 kN | Grease speed: 9000 rpm
7304BDTd: 20 mm | D: 52 mm | Width: 30 mm (pair) | Cr: 28.2 kN | C0r: 19.3 kN | Grease speed: 9000 rpm
7305Ad: 25 mm | D: 62 mm | Width: 17 mm | Cr: 26.4 kN | C0r: 15.8 kN | Grease speed: 10000 rpm
7305ADBd: 25 mm | D: 62 mm | Width: 34 mm (pair) | Cr: 43 kN | C0r: 31.5 kN | Grease speed: 8500 rpm
7305ADFd: 25 mm | D: 62 mm | Width: 34 mm (pair) | Cr: 43 kN | C0r: 31.5 kN | Grease speed: 8500 rpm
7305ADTd: 25 mm | D: 62 mm | Width: 34 mm (pair) | Cr: 43 kN | C0r: 31.5 kN | Grease speed: 8500 rpm
7305Bd: 25 mm | D: 62 mm | Width: 17 mm | Cr: 24.4 kN | C0r: 14.6 kN | Grease speed: 9000 rpm
7305BDBd: 25 mm | D: 62 mm | Width: 34 mm (pair) | Cr: 39.5 kN | C0r: 29.3 kN | Grease speed: 7600 rpm
7305BDFd: 25 mm | D: 62 mm | Width: 34 mm (pair) | Cr: 39.5 kN | C0r: 29.3 kN | Grease speed: 7600 rpm
7305BDTd: 25 mm | D: 62 mm | Width: 34 mm (pair) | Cr: 39.5 kN | C0r: 29.3 kN | Grease speed: 7600 rpm
7306Ad: 30 mm | D: 72 mm | Width: 19 mm | Cr: 33.5 kN | C0r: 20.9 kN | Grease speed: 9000 rpm
7306ADBd: 30 mm | D: 72 mm | Width: 38 mm (pair) | Cr: 54.6 kN | C0r: 41.5 kN | Grease speed: 7100 rpm
7306ADFd: 30 mm | D: 72 mm | Width: 38 mm (pair) | Cr: 54.6 kN | C0r: 41.5 kN | Grease speed: 7100 rpm
7306ADTd: 30 mm | D: 72 mm | Width: 38 mm (pair) | Cr: 54.6 kN | C0r: 41.5 kN | Grease speed: 7100 rpm
7306Bd: 30 mm | D: 72 mm | Width: 19 mm | Cr: 31 kN | C0r: 19.3 kN | Grease speed: 8000 rpm
7306BDBd: 30 mm | D: 72 mm | Width: 38 mm (pair) | Cr: 50.5 kN | C0r: 38.5 kN | Grease speed: 6300 rpm
7306BDFd: 30 mm | D: 72 mm | Width: 38 mm (pair) | Cr: 50.5 kN | C0r: 38.5 kN | Grease speed: 6300 rpm
7306BDTd: 30 mm | D: 72 mm | Width: 38 mm (pair) | Cr: 50.5 kN | C0r: 38.5 kN | Grease speed: 6300 rpm
7307Ad: 35 mm | D: 80 mm | Width: 21 mm | Cr: 40 kN | C0r: 26.3 kN | Grease speed: 8000 rpm
7307ADBd: 35 mm | D: 80 mm | Width: 42 mm (pair) | Cr: 65 kN | C0r: 52.5 kN | Grease speed: 6300 rpm
7307ADFd: 35 mm | D: 80 mm | Width: 42 mm (pair) | Cr: 65 kN | C0r: 52.5 kN | Grease speed: 6300 rpm
7307ADTd: 35 mm | D: 80 mm | Width: 42 mm (pair) | Cr: 65 kN | C0r: 52.5 kN | Grease speed: 6300 rpm
7307Bd: 35 mm | D: 80 mm | Width: 21 mm | Cr: 36.5 kN | C0r: 24.2 kN | Grease speed: 7100 rpm
7307BDBd: 35 mm | D: 80 mm | Width: 42 mm (pair) | Cr: 59.5 kN | C0r: 48.5 kN | Grease speed: 5600 rpm
7307BDFd: 35 mm | D: 80 mm | Width: 42 mm (pair) | Cr: 59.5 kN | C0r: 48.5 kN | Grease speed: 5600 rpm
7307BDTd: 35 mm | D: 80 mm | Width: 42 mm (pair) | Cr: 59.5 kN | C0r: 48.5 kN | Grease speed: 5600 rpm
7308Ad: 40 mm | D: 90 mm | Width: 23 mm | Cr: 49 kN | C0r: 33 kN | Grease speed: 7100 rpm
7308ADBd: 40 mm | D: 90 mm | Width: 46 mm (pair) | Cr: 79.5 kN | C0r: 66 kN | Grease speed: 5600 rpm
7308ADFd: 40 mm | D: 90 mm | Width: 46 mm (pair) | Cr: 79.5 kN | C0r: 66 kN | Grease speed: 5600 rpm
7308ADTd: 40 mm | D: 90 mm | Width: 46 mm (pair) | Cr: 79.5 kN | C0r: 66 kN | Grease speed: 5600 rpm
7308Bd: 40 mm | D: 90 mm | Width: 23 mm | Cr: 45 kN | C0r: 30.5 kN | Grease speed: 6300 rpm
7308BDBd: 40 mm | D: 90 mm | Width: 46 mm (pair) | Cr: 73 kN | C0r: 60.5 kN | Grease speed: 5000 rpm
7308BDFd: 40 mm | D: 90 mm | Width: 46 mm (pair) | Cr: 73 kN | C0r: 60.5 kN | Grease speed: 5000 rpm
7308BDTd: 40 mm | D: 90 mm | Width: 46 mm (pair) | Cr: 73 kN | C0r: 60.5 kN | Grease speed: 5000 rpm
7309Ad: 45 mm | D: 100 mm | Width: 25 mm | Cr: 63.5 kN | C0r: 43.5 kN | Grease speed: 6300 rpm
7309ADBd: 45 mm | D: 100 mm | Width: 50 mm (pair) | Cr: 103 kN | C0r: 87 kN | Grease speed: 5000 rpm
7309ADFd: 45 mm | D: 100 mm | Width: 50 mm (pair) | Cr: 103 kN | C0r: 87 kN | Grease speed: 5000 rpm
7309ADTd: 45 mm | D: 100 mm | Width: 50 mm (pair) | Cr: 103 kN | C0r: 87 kN | Grease speed: 5000 rpm
7309Bd: 45 mm | D: 100 mm | Width: 25 mm | Cr: 58.5 kN | C0r: 40 kN | Grease speed: 5600 rpm
7309BDBd: 45 mm | D: 100 mm | Width: 50 mm (pair) | Cr: 95 kN | C0r: 80.5 kN | Grease speed: 4500 rpm
7309BDFd: 45 mm | D: 100 mm | Width: 50 mm (pair) | Cr: 95 kN | C0r: 80.5 kN | Grease speed: 4500 rpm
7309BDTd: 45 mm | D: 100 mm | Width: 50 mm (pair) | Cr: 95 kN | C0r: 80.5 kN | Grease speed: 4500 rpm
7310Ad: 50 mm | D: 110 mm | Width: 27 mm | Cr: 74 kN | C0r: 52 kN | Grease speed: 5600 rpm
7310ADBd: 50 mm | D: 110 mm | Width: 54 mm (pair) | Cr: 121 kN | C0r: 104 kN | Grease speed: 4500 rpm
7310ADFd: 50 mm | D: 110 mm | Width: 54 mm (pair) | Cr: 121 kN | C0r: 104 kN | Grease speed: 4500 rpm
7310ADTd: 50 mm | D: 110 mm | Width: 54 mm (pair) | Cr: 121 kN | C0r: 104 kN | Grease speed: 4500 rpm
7310Bd: 50 mm | D: 110 mm | Width: 27 mm | Cr: 68 kN | C0r: 48 kN | Grease speed: 5000 rpm
7310BDBd: 50 mm | D: 110 mm | Width: 54 mm (pair) | Cr: 111 kN | C0r: 96 kN | Grease speed: 4000 rpm
7310BDFd: 50 mm | D: 110 mm | Width: 54 mm (pair) | Cr: 111 kN | C0r: 96 kN | Grease speed: 4000 rpm
7310BDTd: 50 mm | D: 110 mm | Width: 54 mm (pair) | Cr: 111 kN | C0r: 96 kN | Grease speed: 4000 rpm
7311Ad: 55 mm | D: 120 mm | Width: 29 mm | Cr: 86 kN | C0r: 61.5 kN | Grease speed: 5000 rpm
7311ADBd: 55 mm | D: 120 mm | Width: 58 mm (pair) | Cr: 139 kN | C0r: 123 kN | Grease speed: 4000 rpm
7311ADFd: 55 mm | D: 120 mm | Width: 58 mm (pair) | Cr: 139 kN | C0r: 123 kN | Grease speed: 4000 rpm
7311ADTd: 55 mm | D: 120 mm | Width: 58 mm (pair) | Cr: 139 kN | C0r: 123 kN | Grease speed: 4000 rpm
7311Bd: 55 mm | D: 120 mm | Width: 29 mm | Cr: 79 kN | C0r: 56.5 kN | Grease speed: 4500 rpm
7311BDBd: 55 mm | D: 120 mm | Width: 58 mm (pair) | Cr: 128 kN | C0r: 113 kN | Grease speed: 3600 rpm
7311BDFd: 55 mm | D: 120 mm | Width: 58 mm (pair) | Cr: 128 kN | C0r: 113 kN | Grease speed: 3600 rpm
7311BDTd: 55 mm | D: 120 mm | Width: 58 mm (pair) | Cr: 128 kN | C0r: 113 kN | Grease speed: 3600 rpm
7312Ad: 60 mm | D: 130 mm | Width: 31 mm | Cr: 98 kN | C0r: 71.6 kN | Grease speed: 4800 rpm
7312ADBd: 60 mm | D: 130 mm | Width: 62 mm (pair) | Cr: 159 kN | C0r: 143 kN | Grease speed: 3800 rpm
7312ADFd: 60 mm | D: 130 mm | Width: 62 mm (pair) | Cr: 159 kN | C0r: 143 kN | Grease speed: 3800 rpm
7312ADTd: 60 mm | D: 130 mm | Width: 62 mm (pair) | Cr: 159 kN | C0r: 143 kN | Grease speed: 3800 rpm
7312Bd: 60 mm | D: 130 mm | Width: 31 mm | Cr: 90 kN | C0r: 65.5 kN | Grease speed: 4300 rpm
7312BDBd: 60 mm | D: 130 mm | Width: 62 mm (pair) | Cr: 146 kN | C0r: 131 kN | Grease speed: 3400 rpm
7312BDFd: 60 mm | D: 130 mm | Width: 62 mm (pair) | Cr: 146 kN | C0r: 131 kN | Grease speed: 3400 rpm
7312BDTd: 60 mm | D: 130 mm | Width: 62 mm (pair) | Cr: 146 kN | C0r: 131 kN | Grease speed: 3400 rpm
7313Ad: 65 mm | D: 140 mm | Width: 33 mm | Cr: 111 kN | C0r: 82 kN | Grease speed: 4300 rpm
7313ADBd: 65 mm | D: 140 mm | Width: 66 mm (pair) | Cr: 180 kN | C0r: 164 kN | Grease speed: 3600 rpm
7313ADFd: 65 mm | D: 140 mm | Width: 66 mm (pair) | Cr: 180 kN | C0r: 164 kN | Grease speed: 3600 rpm
7313ADTd: 65 mm | D: 140 mm | Width: 66 mm (pair) | Cr: 180 kN | C0r: 164 kN | Grease speed: 3600 rpm
7313Bd: 65 mm | D: 140 mm | Width: 33 mm | Cr: 102 kN | C0r: 75.5 kN | Grease speed: 3800 rpm
7313BDBd: 65 mm | D: 140 mm | Width: 66 mm (pair) | Cr: 166 kN | C0r: 151 kN | Grease speed: 3200 rpm
7313BDFd: 65 mm | D: 140 mm | Width: 66 mm (pair) | Cr: 166 kN | C0r: 151 kN | Grease speed: 3200 rpm
7313BDTd: 65 mm | D: 140 mm | Width: 66 mm (pair) | Cr: 166 kN | C0r: 151 kN | Grease speed: 3200 rpm
7314Ad: 70 mm | D: 150 mm | Width: 35 mm | Cr: 12.5 kN | C0r: 93.5 kN | Grease speed: 4000 rpm
7314ADBd: 70 mm | D: 150 mm | Width: 70 mm (pair) | Cr: 203 kN | C0r: 187 kN | Grease speed: 3200 rpm
7314ADFd: 70 mm | D: 150 mm | Width: 70 mm (pair) | Cr: 203 kN | C0r: 187 kN | Grease speed: 3200 rpm
7314ADTd: 70 mm | D: 150 mm | Width: 70 mm (pair) | Cr: 203 kN | C0r: 187 kN | Grease speed: 3200 rpm
7314Bd: 70 mm | D: 150 mm | Width: 35 mm | Cr: 114 kN | C0r: 86 kN | Grease speed: 3600 rpm
7314BDBd: 70 mm | D: 150 mm | Width: 70 mm (pair) | Cr: 186 kN | C0r: 172 kN | Grease speed: 2800 rpm
7314BDFd: 70 mm | D: 150 mm | Width: 70 mm (pair) | Cr: 186 kN | C0r: 172 kN | Grease speed: 2800 rpm
7314BDTd: 70 mm | D: 150 mm | Width: 70 mm (pair) | Cr: 186 kN | C0r: 172 kN | Grease speed: 2800 rpm
7315Ad: 75 mm | D: 160 mm | Width: 37 mm | Cr: 136 kN | C0r: 106 kN | Grease speed: 3800 rpm
7315ADBd: 75 mm | D: 160 mm | Width: 74 mm (pair) | Cr: 221 kN | C0r: 212 kN | Grease speed: 3000 rpm
7315ADFd: 75 mm | D: 160 mm | Width: 74 mm (pair) | Cr: 221 kN | C0r: 212 kN | Grease speed: 3000 rpm
7315ADTd: 75 mm | D: 160 mm | Width: 74 mm (pair) | Cr: 221 kN | C0r: 212 kN | Grease speed: 3000 rpm
7315Bd: 75 mm | D: 160 mm | Width: 37 mm | Cr: 125 kN | C0r: 97.5 kN | Grease speed: 3400 rpm
7315BDBd: 75 mm | D: 160 mm | Width: 74 mm (pair) | Cr: 202 kN | C0r: 195 kN | Grease speed: 2800 rpm
7315BDFd: 75 mm | D: 160 mm | Width: 74 mm (pair) | Cr: 202 kN | C0r: 195 kN | Grease speed: 2800 rpm
7315BDTd: 75 mm | D: 160 mm | Width: 74 mm (pair) | Cr: 202 kN | C0r: 195 kN | Grease speed: 2800 rpm
7316Ad: 80 mm | D: 170 mm | Width: 39 mm | Cr: 147 kN | C0r: 119 kN | Grease speed: 3600 rpm
7316ADBd: 80 mm | D: 170 mm | Width: 78 mm (pair) | Cr: 239 kN | C0r: 238 kN | Grease speed: 2800 rpm
7316ADFd: 80 mm | D: 170 mm | Width: 78 mm (pair) | Cr: 239 kN | C0r: 238 kN | Grease speed: 2800 rpm
7316ADTd: 80 mm | D: 170 mm | Width: 78 mm (pair) | Cr: 239 kN | C0r: 238 kN | Grease speed: 2800 rpm
7316Bd: 80 mm | D: 170 mm | Width: 39 mm | Cr: 135 kN | C0r: 109 kN | Grease speed: 3200 rpm
7316BDBd: 80 mm | D: 170 mm | Width: 78 mm (pair) | Cr: 219 kN | C0r: 218 kN | Grease speed: 2600 rpm
7316BDFd: 80 mm | D: 170 mm | Width: 78 mm (pair) | Cr: 219 kN | C0r: 218 kN | Grease speed: 2600 rpm
7316BDTd: 80 mm | D: 170 mm | Width: 78 mm (pair) | Cr: 219 kN | C0r: 218 kN | Grease speed: 2600 rpm
7317Ad: 85 mm | D: 180 mm | Width: 41 mm | Cr: 159 kN | C0r: 133 kN | Grease speed: 3400 rpm
7317ADBd: 85 mm | D: 180 mm | Width: 82 mm (pair) | Cr: 258 kN | C0r: 265 kN | Grease speed: 2600 rpm
7317ADFd: 85 mm | D: 180 mm | Width: 82 mm (pair) | Cr: 258 kN | C0r: 265 kN | Grease speed: 2600 rpm
7317ADTd: 85 mm | D: 180 mm | Width: 82 mm (pair) | Cr: 258 kN | C0r: 265 kN | Grease speed: 2600 rpm
7317Bd: 85 mm | D: 180 mm | Width: 41 mm | Cr: 146 kN | C0r: 122 kN | Grease speed: 3000 rpm
7317BDBd: 85 mm | D: 180 mm | Width: 82 mm (pair) | Cr: 236 kN | C0r: 244 kN | Grease speed: 2400 rpm
7317BDFd: 85 mm | D: 180 mm | Width: 82 mm (pair) | Cr: 236 kN | C0r: 244 kN | Grease speed: 2400 rpm
7317BDTd: 85 mm | D: 180 mm | Width: 82 mm (pair) | Cr: 236 kN | C0r: 244 kN | Grease speed: 2400 rpm
7318Ad: 90 mm | D: 190 mm | Width: 43 mm | Cr: 171 kN | C0r: 147 kN | Grease speed: 3200 rpm
7318ADBd: 90 mm | D: 190 mm | Width: 86 mm (pair) | Cr: 277 kN | C0r: 294 kN | Grease speed: 2600 rpm
7318ADFd: 90 mm | D: 190 mm | Width: 86 mm (pair) | Cr: 277 kN | C0r: 294 kN | Grease speed: 2600 rpm
7318ADTd: 90 mm | D: 190 mm | Width: 86 mm (pair) | Cr: 277 kN | C0r: 294 kN | Grease speed: 2600 rpm
7318Bd: 90 mm | D: 190 mm | Width: 43 mm | Cr: 156 kN | C0r: 135 kN | Grease speed: 2800 rpm
7318BDBd: 90 mm | D: 190 mm | Width: 86 mm (pair) | Cr: 254 kN | C0r: 270 kN | Grease speed: 2200 rpm
7318BDFd: 90 mm | D: 190 mm | Width: 86 mm (pair) | Cr: 254 kN | C0r: 270 kN | Grease speed: 2200 rpm
7318BDTd: 90 mm | D: 190 mm | Width: 86 mm (pair) | Cr: 254 kN | C0r: 270 kN | Grease speed: 2200 rpm
7319Ad: 95 mm | D: 200 mm | Width: 45 mm | Cr: 183 kN | C0r: 162 kN | Grease speed: 3000 rpm
7319ADBd: 95 mm | D: 200 mm | Width: 90 mm (pair) | Cr: 297 kN | C0r: 328 kN | Grease speed: 2400 rpm
7319ADFd: 95 mm | D: 200 mm | Width: 90 mm (pair) | Cr: 297 kN | C0r: 328 kN | Grease speed: 2400 rpm
7319ADTd: 95 mm | D: 200 mm | Width: 90 mm (pair) | Cr: 297 kN | C0r: 328 kN | Grease speed: 2400 rpm
7319Bd: 95 mm | D: 200 mm | Width: 45 mm | Cr: 167 kN | C0r: 149 kN | Grease speed: 2600 rpm
7319BDBd: 95 mm | D: 200 mm | Width: 90 mm (pair) | Cr: 272 kN | C0r: 298 kN | Grease speed: 2200 rpm
7319BDFd: 95 mm | D: 200 mm | Width: 90 mm (pair) | Cr: 272 kN | C0r: 298 kN | Grease speed: 2200 rpm
7319BDTd: 95 mm | D: 200 mm | Width: 90 mm (pair) | Cr: 272 kN | C0r: 298 kN | Grease speed: 2200 rpm
7320Ad: 100 mm | D: 215 mm | Width: 47 mm | Cr: 207 kN | C0r: 193 kN | Grease speed: 2800 rpm
7320ADBd: 100 mm | D: 215 mm | Width: 94 mm (pair) | Cr: 335 kN | C0r: 385 kN | Grease speed: 2200 rpm
7320ADFd: 100 mm | D: 215 mm | Width: 94 mm (pair) | Cr: 335 kN | C0r: 385 kN | Grease speed: 2200 rpm
7320ADTd: 100 mm | D: 215 mm | Width: 94 mm (pair) | Cr: 335 kN | C0r: 385 kN | Grease speed: 2200 rpm
7320Bd: 100 mm | D: 215 mm | Width: 47 mm | Cr: 190 kN | C0r: 178 kN | Grease speed: 2400 rpm
7320BDBd: 100 mm | D: 215 mm | Width: 94 mm (pair) | Cr: 310 kN | C0r: 355 kN | Grease speed: 2000 rpm
7320BDFd: 100 mm | D: 215 mm | Width: 94 mm (pair) | Cr: 310 kN | C0r: 355 kN | Grease speed: 2000 rpm
7320BDTd: 100 mm | D: 215 mm | Width: 94 mm (pair) | Cr: 310 kN | C0r: 355 kN | Grease speed: 2000 rpm
7321Ad: 105 mm | D: 225 mm | Width: 49 mm | Cr: 20.8 kN | C0r: 193 kN | Grease speed: 2600 rpm
7321ADBd: 105 mm | D: 225 mm | Width: 98 mm (pair) | Cr: 335 kN | C0r: 385 kN | Grease speed: 2200 rpm
7321ADFd: 105 mm | D: 225 mm | Width: 98 mm (pair) | Cr: 335 kN | C0r: 385 kN | Grease speed: 2200 rpm
7321ADTd: 105 mm | D: 225 mm | Width: 98 mm (pair) | Cr: 335 kN | C0r: 385 kN | Grease speed: 2200 rpm
7321Bd: 105 mm | D: 225 mm | Width: 49 mm | Cr: 191 kN | C0r: 177 kN | Grease speed: 2400 rpm
7321BDBd: 105 mm | D: 225 mm | Width: 98 mm (pair) | Cr: 310 kN | C0r: 355 kN | Grease speed: 1800 rpm
7321BDFd: 105 mm | D: 225 mm | Width: 98 mm (pair) | Cr: 310 kN | C0r: 355 kN | Grease speed: 1800 rpm
7321BDTd: 105 mm | D: 225 mm | Width: 98 mm (pair) | Cr: 310 kN | C0r: 355 kN | Grease speed: 1800 rpm
7322Ad: 110 mm | D: 240 mm | Width: 50 mm | Cr: 220 kN | C0r: 215 kN | Grease speed: 2600 rpm
7322ADBd: 110 mm | D: 240 mm | Width: 100 mm (pair) | Cr: 360 kN | C0r: 430 kN | Grease speed: 2000 rpm
7322ADFd: 110 mm | D: 240 mm | Width: 100 mm (pair) | Cr: 360 kN | C0r: 430 kN | Grease speed: 2000 rpm
7322ADTd: 110 mm | D: 240 mm | Width: 100 mm (pair) | Cr: 360 kN | C0r: 430 kN | Grease speed: 2000 rpm
7322Bd: 110 mm | D: 240 mm | Width: 50 mm | Cr: 201 kN | C0r: 197 kN | Grease speed: 2200 rpm
7322BDBd: 110 mm | D: 240 mm | Width: 100 mm (pair) | Cr: 325 kN | C0r: 395 kN | Grease speed: 1800 rpm
7322BDFd: 110 mm | D: 240 mm | Width: 100 mm (pair) | Cr: 325 kN | C0r: 395 kN | Grease speed: 1800 rpm
7322BDTd: 110 mm | D: 240 mm | Width: 100 mm (pair) | Cr: 325 kN | C0r: 395 kN | Grease speed: 1800 rpm
7324Ad: 120 mm | D: 260 mm | Width: 55 mm | Cr: 246 kN | C0r: 252 kN | Grease speed: 2200 rpm
7324ADBd: 120 mm | D: 260 mm | Width: 110 mm (pair) | Cr: 400 kN | C0r: 505 kN | Grease speed: 1800 rpm
7324ADFd: 120 mm | D: 260 mm | Width: 110 mm (pair) | Cr: 400 kN | C0r: 505 kN | Grease speed: 1800 rpm
7324ADTd: 120 mm | D: 260 mm | Width: 110 mm (pair) | Cr: 400 kN | C0r: 505 kN | Grease speed: 1800 rpm
7324Bd: 120 mm | D: 260 mm | Width: 55 mm | Cr: 225 kN | C0r: 237 kN | Grease speed: 2000 rpm
7324BDBd: 120 mm | D: 260 mm | Width: 110 mm (pair) | Cr: 365 kN | C0r: 460 kN | Grease speed: 1600 rpm
7324BDFd: 120 mm | D: 260 mm | Width: 110 mm (pair) | Cr: 365 kN | C0r: 460 kN | Grease speed: 1600 rpm
7324BDTd: 120 mm | D: 260 mm | Width: 110 mm (pair) | Cr: 365 kN | C0r: 460 kN | Grease speed: 1600 rpm
7326Ad: 130 mm | D: 280 mm | Width: 58 mm | Cr: 273 kN | C0r: 293 kN | Grease speed: 2200 rpm
7326ADBd: 130 mm | D: 280 mm | Width: 116 mm (pair) | Cr: 445 kN | C0r: 585 kN | Grease speed: 1700 rpm
7326ADFd: 130 mm | D: 280 mm | Width: 116 mm (pair) | Cr: 445 kN | C0r: 585 kN | Grease speed: 1700 rpm
7326ADTd: 130 mm | D: 280 mm | Width: 116 mm (pair) | Cr: 445 kN | C0r: 585 kN | Grease speed: 1700 rpm
7326Bd: 130 mm | D: 280 mm | Width: 58 mm | Cr: 250 kN | C0r: 268 kN | Grease speed: 1900 rpm
7326BDBd: 130 mm | D: 280 mm | Width: 116 mm (pair) | Cr: 405 kN | C0r: 535 kN | Grease speed: 1500 rpm
7326BDFd: 130 mm | D: 280 mm | Width: 116 mm (pair) | Cr: 405 kN | C0r: 535 kN | Grease speed: 1500 rpm
7326BDTd: 130 mm | D: 280 mm | Width: 116 mm (pair) | Cr: 405 kN | C0r: 535 kN | Grease speed: 1500 rpm
7328Ad: 140 mm | D: 300 mm | Width: 62 mm | Cr: 300 kN | C0r: 335 kN | Grease speed: 2000 rpm
7328ADBd: 140 mm | D: 300 mm | Width: 124 mm (pair) | Cr: 490 kN | C0r: 670 kN | Grease speed: 1600 rpm
7328ADFd: 140 mm | D: 300 mm | Width: 124 mm (pair) | Cr: 490 kN | C0r: 670 kN | Grease speed: 1600 rpm
7328ADTd: 140 mm | D: 300 mm | Width: 124 mm (pair) | Cr: 490 kN | C0r: 670 kN | Grease speed: 1600 rpm
7328Bd: 140 mm | D: 300 mm | Width: 62 mm | Cr: 275 kN | C0r: 310 kN | Grease speed: 1700 rpm
7328BDBd: 140 mm | D: 300 mm | Width: 124 mm (pair) | Cr: 445 kN | C0r: 615 kN | Grease speed: 1400 rpm
7328BDFd: 140 mm | D: 300 mm | Width: 124 mm (pair) | Cr: 445 kN | C0r: 615 kN | Grease speed: 1400 rpm
7328BDTd: 140 mm | D: 300 mm | Width: 124 mm (pair) | Cr: 445 kN | C0r: 615 kN | Grease speed: 1400 rpm
7330Ad: 150 mm | D: 320 mm | Width: 65 mm | Cr: 315 kN | C0r: 370 kN | Grease speed: 1800 rpm
7330ADBd: 150 mm | D: 320 mm | Width: 130 mm (pair) | Cr: 516 kN | C0r: 745 kN | Grease speed: 1500 rpm
7330ADFd: 150 mm | D: 320 mm | Width: 130 mm (pair) | Cr: 516 kN | C0r: 745 kN | Grease speed: 1500 rpm
7330ADTd: 150 mm | D: 320 mm | Width: 130 mm (pair) | Cr: 516 kN | C0r: 745 kN | Grease speed: 1500 rpm
7330Bd: 150 mm | D: 320 mm | Width: 65 mm | Cr: 289 kN | C0r: 340 kN | Grease speed: 1600 rpm
7330BDBd: 150 mm | D: 320 mm | Width: 130 mm (pair) | Cr: 470 kN | C0r: 680 kN | Grease speed: 1300 rpm
7330BDFd: 150 mm | D: 320 mm | Width: 130 mm (pair) | Cr: 470 kN | C0r: 680 kN | Grease speed: 1300 rpm
7330BDTd: 150 mm | D: 320 mm | Width: 130 mm (pair) | Cr: 470 kN | C0r: 680 kN | Grease speed: 1300 rpm
7332Ad: 160 mm | D: 340 mm | Width: 68 mm | Cr: 345 kN | C0r: 420 kN | Grease speed: 1700 rpm
7332ADBd: 160 mm | D: 340 mm | Width: 136 mm (pair) | Cr: 565 kN | C0r: 845 kN | Grease speed: 1400 rpm
7332ADFd: 160 mm | D: 340 mm | Width: 136 mm (pair) | Cr: 565 kN | C0r: 845 kN | Grease speed: 1400 rpm
7332ADTd: 160 mm | D: 340 mm | Width: 136 mm (pair) | Cr: 565 kN | C0r: 845 kN | Grease speed: 1400 rpm
7332Bd: 160 mm | D: 340 mm | Width: 68 mm | Cr: 315 kN | C0r: 385 kN | Grease speed: 1500 rpm
7332BDBd: 160 mm | D: 340 mm | Width: 136 mm (pair) | Cr: 515 kN | C0r: 770 kN | Grease speed: 1200 rpm
7332BDFd: 160 mm | D: 340 mm | Width: 136 mm (pair) | Cr: 515 kN | C0r: 770 kN | Grease speed: 1200 rpm
7332BDTd: 160 mm | D: 340 mm | Width: 136 mm (pair) | Cr: 515 kN | C0r: 770 kN | Grease speed: 1200 rpm
7334Ad: 170 mm | D: 360 mm | Width: 72 mm | Cr: 390 kN | C0r: 485 kN | Grease speed: 1600 rpm
7334ADBd: 170 mm | D: 360 mm | Width: 144 mm (pair) | Cr: 630 kN | C0r: 970 kN | Grease speed: 1300 rpm
7334ADFd: 170 mm | D: 360 mm | Width: 144 mm (pair) | Cr: 630 kN | C0r: 970 kN | Grease speed: 1300 rpm
7334ADTd: 170 mm | D: 360 mm | Width: 144 mm (pair) | Cr: 630 kN | C0r: 970 kN | Grease speed: 1300 rpm
7334Bd: 170 mm | D: 360 mm | Width: 72 mm | Cr: 355 kN | C0r: 445 kN | Grease speed: 1400 rpm
7334BDBd: 170 mm | D: 360 mm | Width: 144 mm (pair) | Cr: 575 kN | C0r: 890 kN | Grease speed: 1100 rpm
7334BDFd: 170 mm | D: 360 mm | Width: 144 mm (pair) | Cr: 575 kN | C0r: 890 kN | Grease speed: 1100 rpm
7334BDTd: 170 mm | D: 360 mm | Width: 144 mm (pair) | Cr: 575 kN | C0r: 890 kN | Grease speed: 1100 rpm
7336Ad: 180 mm | D: 380 mm | Width: 75 mm | Cr: 410 kN | C0r: 535 kN | Grease speed: 1500 rpm
7336ADBd: 180 mm | D: 380 mm | Width: 150 mm (pair) | Cr: 665 kN | C0r: 1070 kN | Grease speed: 1200 rpm
7336ADFd: 180 mm | D: 380 mm | Width: 150 mm (pair) | Cr: 665 kN | C0r: 1070 kN | Grease speed: 1200 rpm
7336ADTd: 180 mm | D: 380 mm | Width: 150 mm (pair) | Cr: 665 kN | C0r: 1070 kN | Grease speed: 1200 rpm
7336Bd: 180 mm | D: 380 mm | Width: 75 mm | Cr: 375 kN | C0r: 490 kN | Grease speed: 1300 rpm
7336BDBd: 180 mm | D: 380 mm | Width: 150 mm (pair) | Cr: 605 kN | C0r: 975 kN | Grease speed: 1100 rpm
7336BDFd: 180 mm | D: 380 mm | Width: 150 mm (pair) | Cr: 605 kN | C0r: 975 kN | Grease speed: 1100 rpm
7336BDTd: 180 mm | D: 380 mm | Width: 150 mm (pair) | Cr: 605 kN | C0r: 975 kN | Grease speed: 1100 rpm
7338Ad: 190 mm | D: 400 mm | Width: 78 mm | Cr: 450 kN | C0r: 600 kN | Grease speed: 1400 rpm
7338ADBd: 190 mm | D: 400 mm | Width: 156 mm (pair) | Cr: 730 kN | C0r: 1200 kN | Grease speed: 1100 rpm
7338ADFd: 190 mm | D: 400 mm | Width: 156 mm (pair) | Cr: 730 kN | C0r: 1200 kN | Grease speed: 1100 rpm
7338ADTd: 190 mm | D: 400 mm | Width: 156 mm (pair) | Cr: 730 kN | C0r: 1200 kN | Grease speed: 1100 rpm
7338Bd: 190 mm | D: 400 mm | Width: 78 mm | Cr: 410 kN | C0r: 550 kN | Grease speed: 1300 rpm
7338BDBd: 190 mm | D: 400 mm | Width: 156 mm (pair) | Cr: 670 kN | C0r: 1100 kN | Grease speed: 1000 rpm
7338BDFd: 190 mm | D: 400 mm | Width: 156 mm (pair) | Cr: 670 kN | C0r: 1100 kN | Grease speed: 1000 rpm
7338BDTd: 190 mm | D: 400 mm | Width: 156 mm (pair) | Cr: 670 kN | C0r: 1100 kN | Grease speed: 1000 rpm
7340Ad: 200 mm | D: 420 mm | Width: 80 mm | Cr: 475 kN | C0r: 660 kN | Grease speed: 1300 rpm
7340ADBd: 200 mm | D: 420 mm | Width: 160 mm (pair) | Cr: 770 kN | C0r: 1320 kN | Grease speed: 1100 rpm
7340ADFd: 200 mm | D: 420 mm | Width: 160 mm (pair) | Cr: 770 kN | C0r: 1320 kN | Grease speed: 1100 rpm
7340ADTd: 200 mm | D: 420 mm | Width: 160 mm (pair) | Cr: 770 kN | C0r: 1320 kN | Grease speed: 1100 rpm
7340Bd: 200 mm | D: 420 mm | Width: 80 mm | Cr: 430 kN | C0r: 600 kN | Grease speed: 1200 rpm
7340BDBd: 200 mm | D: 420 mm | Width: 160 mm (pair) | Cr: 700 kN | C0r: 1200 kN | Grease speed: 950 rpm
7340BDFd: 200 mm | D: 420 mm | Width: 160 mm (pair) | Cr: 700 kN | C0r: 1200 kN | Grease speed: 950 rpm
7340BDTd: 200 mm | D: 420 mm | Width: 160 mm (pair) | Cr: 700 kN | C0r: 1200 kN | Grease speed: 950 rpm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
