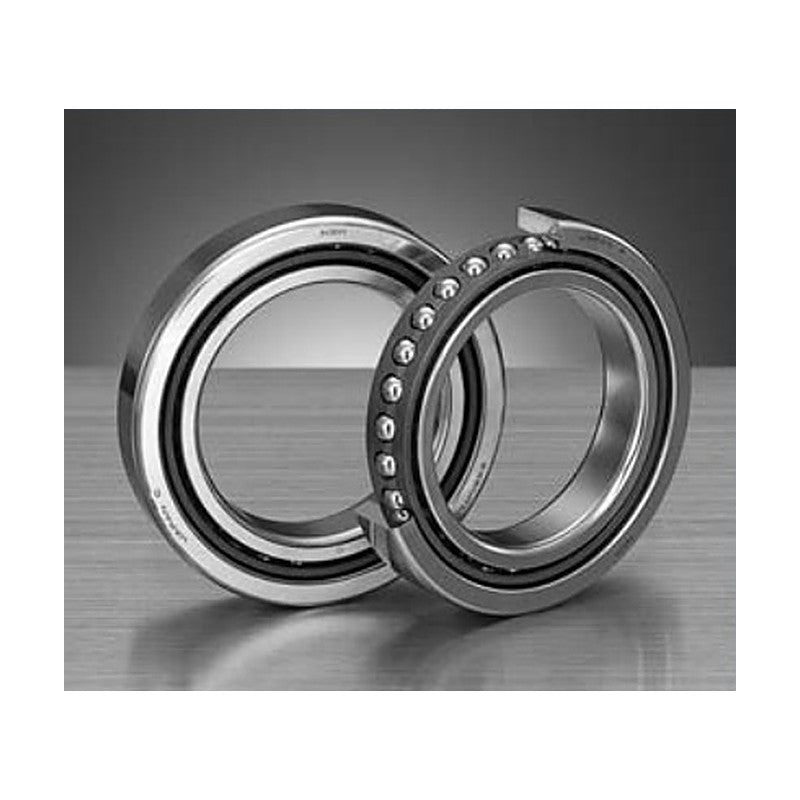

NSK BNR19 / BER19 ROBUST High-Speed Angular Contact Bearings (S, H, X)

NSK BNR19 / BER19 ROBUST High-Speed Angular Contact Bearings (S, H, X)

NSK ROBUST BNR19 (18°) and BER19 (25°) ultra high-speed angular contact ball bearings in 19 dimension series, bore 25 to 150 mm, with steel (S), ceramic-ball (H) or SHX/ceramic (X) types.

Key features

  • Ultra high-speed angular contact bearing (ROBUST series) for spindles
  • Type S: bearing steel rings and balls
  • Type H: bearing steel rings with ceramic (Si3N4) balls
  • Type X: SHX heat-resistant steel rings with ceramic balls
  • BNR 18° and BER 25° nominal contact angles

Specifications

Series BNR19 / BER19
Contact angle BNR 18°, BER 25°
Bore range 25 - 150 mm
Types S, H, X (X up to 120 mm bore)
Speed basis Grease lubrication
Source NSK Super Precision Bearings, p. 64-67
25BNR19S d: 25 mm | D: 42 mm | B: 9 mm | Cr: 5.95 kN | C0r: 3.50 kN | Speed (grease): 41,800 min-1
25BNR19H d: 25 mm | D: 42 mm | B: 9 mm | Cr: 5.95 kN | C0r: 3.50 kN | Speed (grease): 53,800 min-1
25BNR19X d: 25 mm | D: 42 mm | B: 9 mm | Cr: 5.95 kN | C0r: 3.50 kN | Speed (grease): 62,700 min-1
25BER19S d: 25 mm | D: 42 mm | B: 9 mm | Cr: 5.70 kN | C0r: 3.40 kN | Speed (grease): 35,900 min-1
25BER19H d: 25 mm | D: 42 mm | B: 9 mm | Cr: 5.70 kN | C0r: 3.40 kN | Speed (grease): 47,800 min-1
25BER19X d: 25 mm | D: 42 mm | B: 9 mm | Cr: 5.70 kN | C0r: 3.40 kN | Speed (grease): 56,800 min-1
30BNR19S d: 30 mm | D: 47 mm | B: 9 mm | Cr: 6.30 kN | C0r: 4.05 kN | Speed (grease): 36,400 min-1
30BNR19H d: 30 mm | D: 47 mm | B: 9 mm | Cr: 6.30 kN | C0r: 4.05 kN | Speed (grease): 46,800 min-1
30BNR19X d: 30 mm | D: 47 mm | B: 9 mm | Cr: 6.30 kN | C0r: 4.05 kN | Speed (grease): 54,600 min-1
30BER19S d: 30 mm | D: 47 mm | B: 9 mm | Cr: 6.00 kN | C0r: 3.90 kN | Speed (grease): 31,200 min-1
30BER19H d: 30 mm | D: 47 mm | B: 9 mm | Cr: 6.00 kN | C0r: 3.90 kN | Speed (grease): 41,600 min-1
30BER19X d: 30 mm | D: 47 mm | B: 9 mm | Cr: 6.00 kN | C0r: 3.90 kN | Speed (grease): 49,400 min-1
35BNR19S d: 35 mm | D: 55 mm | B: 10 mm | Cr: 9.20 kN | C0r: 6.00 kN | Speed (grease): 31,200 min-1
35BNR19H d: 35 mm | D: 55 mm | B: 10 mm | Cr: 9.20 kN | C0r: 6.00 kN | Speed (grease): 40,000 min-1
35BNR19X d: 35 mm | D: 55 mm | B: 10 mm | Cr: 9.20 kN | C0r: 6.00 kN | Speed (grease): 46,700 min-1
35BER19S d: 35 mm | D: 55 mm | B: 10 mm | Cr: 8.80 kN | C0r: 5.75 kN | Speed (grease): 26,700 min-1
35BER19H d: 35 mm | D: 55 mm | B: 10 mm | Cr: 8.80 kN | C0r: 5.75 kN | Speed (grease): 35,600 min-1
35BER19X d: 35 mm | D: 55 mm | B: 10 mm | Cr: 8.80 kN | C0r: 5.75 kN | Speed (grease): 42,300 min-1
40BNR19S d: 40 mm | D: 62 mm | B: 12 mm | Cr: 11.5 kN | C0r: 7.65 kN | Speed (grease): 27,500 min-1
40BNR19H d: 40 mm | D: 62 mm | B: 12 mm | Cr: 11.5 kN | C0r: 7.65 kN | Speed (grease): 35,300 min-1
40BNR19X d: 40 mm | D: 62 mm | B: 12 mm | Cr: 11.5 kN | C0r: 7.65 kN | Speed (grease): 41,200 min-1
40BER19S d: 40 mm | D: 62 mm | B: 12 mm | Cr: 11.0 kN | C0r: 7.35 kN | Speed (grease): 23,600 min-1
40BER19H d: 40 mm | D: 62 mm | B: 12 mm | Cr: 11.0 kN | C0r: 7.35 kN | Speed (grease): 31,400 min-1
40BER19X d: 40 mm | D: 62 mm | B: 12 mm | Cr: 11.0 kN | C0r: 7.35 kN | Speed (grease): 37,300 min-1
45BNR19S d: 45 mm | D: 68 mm | B: 12 mm | Cr: 12.1 kN | C0r: 8.70 kN | Speed (grease): 24,800 min-1
45BNR19H d: 45 mm | D: 68 mm | B: 12 mm | Cr: 12.1 kN | C0r: 8.70 kN | Speed (grease): 31,900 min-1
45BNR19X d: 45 mm | D: 68 mm | B: 12 mm | Cr: 12.1 kN | C0r: 8.70 kN | Speed (grease): 37,200 min-1
45BER19S d: 45 mm | D: 68 mm | B: 12 mm | Cr: 11.6 kN | C0r: 8.35 kN | Speed (grease): 21,300 min-1
45BER19H d: 45 mm | D: 68 mm | B: 12 mm | Cr: 11.6 kN | C0r: 8.35 kN | Speed (grease): 28,400 min-1
45BER19X d: 45 mm | D: 68 mm | B: 12 mm | Cr: 11.6 kN | C0r: 8.35 kN | Speed (grease): 33,700 min-1
50BNR19S d: 50 mm | D: 72 mm | B: 12 mm | Cr: 12.8 kN | C0r: 9.75 kN | Speed (grease): 23,000 min-1
50BNR19H d: 50 mm | D: 72 mm | B: 12 mm | Cr: 12.8 kN | C0r: 9.75 kN | Speed (grease): 29,600 min-1
50BNR19X d: 50 mm | D: 72 mm | B: 12 mm | Cr: 12.8 kN | C0r: 9.75 kN | Speed (grease): 34,500 min-1
50BER19S d: 50 mm | D: 72 mm | B: 12 mm | Cr: 12.3 kN | C0r: 9.35 kN | Speed (grease): 19,700 min-1
50BER19H d: 50 mm | D: 72 mm | B: 12 mm | Cr: 12.3 kN | C0r: 9.35 kN | Speed (grease): 26,300 min-1
50BER19X d: 50 mm | D: 72 mm | B: 12 mm | Cr: 12.3 kN | C0r: 9.35 kN | Speed (grease): 31,200 min-1
55BNR19S d: 55 mm | D: 80 mm | B: 13 mm | Cr: 14.4 kN | C0r: 11.4 kN | Speed (grease): 20,800 min-1
55BNR19H d: 55 mm | D: 80 mm | B: 13 mm | Cr: 14.4 kN | C0r: 11.4 kN | Speed (grease): 26,700 min-1
55BNR19X d: 55 mm | D: 80 mm | B: 13 mm | Cr: 14.4 kN | C0r: 11.4 kN | Speed (grease): 31,200 min-1
55BER19S d: 55 mm | D: 80 mm | B: 13 mm | Cr: 13.8 kN | C0r: 10.9 kN | Speed (grease): 17,800 min-1
55BER19H d: 55 mm | D: 80 mm | B: 13 mm | Cr: 13.8 kN | C0r: 10.9 kN | Speed (grease): 23,800 min-1
55BER19X d: 55 mm | D: 80 mm | B: 13 mm | Cr: 13.8 kN | C0r: 10.9 kN | Speed (grease): 28,200 min-1
60BNR19S d: 60 mm | D: 85 mm | B: 13 mm | Cr: 14.6 kN | C0r: 12.0 kN | Speed (grease): 19,400 min-1
60BNR19H d: 60 mm | D: 85 mm | B: 13 mm | Cr: 14.6 kN | C0r: 12.0 kN | Speed (grease): 24,900 min-1
60BNR19X d: 60 mm | D: 85 mm | B: 13 mm | Cr: 14.6 kN | C0r: 12.0 kN | Speed (grease): 29,000 min-1
60BER19S d: 60 mm | D: 85 mm | B: 13 mm | Cr: 14.0 kN | C0r: 11.5 kN | Speed (grease): 16,600 min-1
60BER19H d: 60 mm | D: 85 mm | B: 13 mm | Cr: 14.0 kN | C0r: 11.5 kN | Speed (grease): 22,100 min-1
60BER19X d: 60 mm | D: 85 mm | B: 13 mm | Cr: 14.0 kN | C0r: 11.5 kN | Speed (grease): 26,300 min-1
65BNR19S d: 65 mm | D: 90 mm | B: 13 mm | Cr: 15.2 kN | C0r: 13.2 kN | Speed (grease): 18,100 min-1
65BNR19H d: 65 mm | D: 90 mm | B: 13 mm | Cr: 15.2 kN | C0r: 13.2 kN | Speed (grease): 23,300 min-1
65BNR19X d: 65 mm | D: 90 mm | B: 13 mm | Cr: 15.2 kN | C0r: 13.2 kN | Speed (grease): 27,100 min-1
65BER19S d: 65 mm | D: 90 mm | B: 13 mm | Cr: 14.5 kN | C0r: 12.6 kN | Speed (grease): 15,500 min-1
65BER19H d: 65 mm | D: 90 mm | B: 13 mm | Cr: 14.5 kN | C0r: 12.6 kN | Speed (grease): 20,700 min-1
65BER19X d: 65 mm | D: 90 mm | B: 13 mm | Cr: 14.5 kN | C0r: 12.6 kN | Speed (grease): 24,600 min-1
70BNR19S d: 70 mm | D: 100 mm | B: 16 mm | Cr: 21.3 kN | C0r: 18.1 kN | Speed (grease): 16,500 min-1
70BNR19H d: 70 mm | D: 100 mm | B: 16 mm | Cr: 21.3 kN | C0r: 18.1 kN | Speed (grease): 21,200 min-1
70BNR19X d: 70 mm | D: 100 mm | B: 16 mm | Cr: 21.3 kN | C0r: 18.1 kN | Speed (grease): 24,800 min-1
70BER19S d: 70 mm | D: 100 mm | B: 16 mm | Cr: 20.4 kN | C0r: 17.3 kN | Speed (grease): 14,200 min-1
70BER19H d: 70 mm | D: 100 mm | B: 16 mm | Cr: 20.4 kN | C0r: 17.3 kN | Speed (grease): 18,900 min-1
70BER19X d: 70 mm | D: 100 mm | B: 16 mm | Cr: 20.4 kN | C0r: 17.3 kN | Speed (grease): 22,400 min-1
75BNR19S d: 75 mm | D: 105 mm | B: 16 mm | Cr: 21.6 kN | C0r: 19.0 kN | Speed (grease): 15,600 min-1
75BNR19H d: 75 mm | D: 105 mm | B: 16 mm | Cr: 21.6 kN | C0r: 19.0 kN | Speed (grease): 20,000 min-1
75BNR19X d: 75 mm | D: 105 mm | B: 16 mm | Cr: 21.6 kN | C0r: 19.0 kN | Speed (grease): 23,400 min-1
75BER19S d: 75 mm | D: 105 mm | B: 16 mm | Cr: 20.7 kN | C0r: 18.2 kN | Speed (grease): 13,400 min-1
75BER19H d: 75 mm | D: 105 mm | B: 16 mm | Cr: 20.7 kN | C0r: 18.2 kN | Speed (grease): 17,800 min-1
75BER19X d: 75 mm | D: 105 mm | B: 16 mm | Cr: 20.7 kN | C0r: 18.2 kN | Speed (grease): 21,200 min-1
80BNR19S d: 80 mm | D: 110 mm | B: 16 mm | Cr: 22.0 kN | C0r: 19.9 kN | Speed (grease): 14,800 min-1
80BNR19H d: 80 mm | D: 110 mm | B: 16 mm | Cr: 22.0 kN | C0r: 19.9 kN | Speed (grease): 19,000 min-1
80BNR19X d: 80 mm | D: 110 mm | B: 16 mm | Cr: 22.0 kN | C0r: 19.9 kN | Speed (grease): 22,200 min-1
80BER19S d: 80 mm | D: 110 mm | B: 16 mm | Cr: 21.0 kN | C0r: 19.1 kN | Speed (grease): 12,700 min-1
80BER19H d: 80 mm | D: 110 mm | B: 16 mm | Cr: 21.0 kN | C0r: 19.1 kN | Speed (grease): 16,900 min-1
80BER19X d: 80 mm | D: 110 mm | B: 16 mm | Cr: 21.0 kN | C0r: 19.1 kN | Speed (grease): 20,000 min-1
85BNR19S d: 85 mm | D: 120 mm | B: 18 mm | Cr: 29.4 kN | C0r: 26.3 kN | Speed (grease): 13,700 min-1
85BNR19H d: 85 mm | D: 120 mm | B: 18 mm | Cr: 29.4 kN | C0r: 26.3 kN | Speed (grease): 17,600 min-1
85BNR19X d: 85 mm | D: 120 mm | B: 18 mm | Cr: 29.4 kN | C0r: 26.3 kN | Speed (grease): 20,500 min-1
85BER19S d: 85 mm | D: 120 mm | B: 18 mm | Cr: 28.1 kN | C0r: 25.2 kN | Speed (grease): 11,800 min-1
85BER19H d: 85 mm | D: 120 mm | B: 18 mm | Cr: 28.1 kN | C0r: 25.2 kN | Speed (grease): 15,700 min-1
85BER19X d: 85 mm | D: 120 mm | B: 18 mm | Cr: 28.1 kN | C0r: 25.2 kN | Speed (grease): 18,600 min-1
90BNR19S d: 90 mm | D: 125 mm | B: 18 mm | Cr: 31.5 kN | C0r: 29.7 kN | Speed (grease): 13,100 min-1
90BNR19H d: 90 mm | D: 125 mm | B: 18 mm | Cr: 31.5 kN | C0r: 29.7 kN | Speed (grease): 16,800 min-1
90BNR19X d: 90 mm | D: 125 mm | B: 18 mm | Cr: 31.5 kN | C0r: 29.7 kN | Speed (grease): 19,600 min-1
90BER19S d: 90 mm | D: 125 mm | B: 18 mm | Cr: 30.0 kN | C0r: 28.5 kN | Speed (grease): 11,200 min-1
90BER19H d: 90 mm | D: 125 mm | B: 18 mm | Cr: 30.0 kN | C0r: 28.5 kN | Speed (grease): 14,900 min-1
90BER19X d: 90 mm | D: 125 mm | B: 18 mm | Cr: 30.0 kN | C0r: 28.5 kN | Speed (grease): 17,700 min-1
95BNR19S d: 95 mm | D: 130 mm | B: 18 mm | Cr: 32.0 kN | C0r: 31.0 kN | Speed (grease): 12,500 min-1
95BNR19H d: 95 mm | D: 130 mm | B: 18 mm | Cr: 32.0 kN | C0r: 31.0 kN | Speed (grease): 16,000 min-1
95BNR19X d: 95 mm | D: 130 mm | B: 18 mm | Cr: 32.0 kN | C0r: 31.0 kN | Speed (grease): 18,700 min-1
95BER19S d: 95 mm | D: 130 mm | B: 18 mm | Cr: 30.5 kN | C0r: 29.7 kN | Speed (grease): 10,700 min-1
95BER19H d: 95 mm | D: 130 mm | B: 18 mm | Cr: 30.5 kN | C0r: 29.7 kN | Speed (grease): 14,300 min-1
95BER19X d: 95 mm | D: 130 mm | B: 18 mm | Cr: 30.5 kN | C0r: 29.7 kN | Speed (grease): 16,900 min-1
100BNR19S d: 100 mm | D: 140 mm | B: 20 mm | Cr: 38.0 kN | C0r: 35.0 kN | Speed (grease): 11,700 min-1
100BNR19H d: 100 mm | D: 140 mm | B: 20 mm | Cr: 38.0 kN | C0r: 35.0 kN | Speed (grease): 15,000 min-1
100BNR19X d: 100 mm | D: 140 mm | B: 20 mm | Cr: 38.0 kN | C0r: 35.0 kN | Speed (grease): 17,500 min-1
100BER19S d: 100 mm | D: 140 mm | B: 20 mm | Cr: 36.0 kN | C0r: 33.5 kN | Speed (grease): 10,000 min-1
100BER19H d: 100 mm | D: 140 mm | B: 20 mm | Cr: 36.0 kN | C0r: 33.5 kN | Speed (grease): 13,400 min-1
100BER19X d: 100 mm | D: 140 mm | B: 20 mm | Cr: 36.0 kN | C0r: 33.5 kN | Speed (grease): 15,900 min-1
105BNR19S d: 105 mm | D: 145 mm | B: 20 mm | Cr: 38.5 kN | C0r: 36.5 kN | Speed (grease): 11,200 min-1
105BNR19H d: 105 mm | D: 145 mm | B: 20 mm | Cr: 38.5 kN | C0r: 36.5 kN | Speed (grease): 14,400 min-1
105BNR19X d: 105 mm | D: 145 mm | B: 20 mm | Cr: 38.5 kN | C0r: 36.5 kN | Speed (grease): 16,800 min-1
105BER19S d: 105 mm | D: 145 mm | B: 20 mm | Cr: 37.0 kN | C0r: 35.0 kN | Speed (grease): 9,600 min-1
105BER19H d: 105 mm | D: 145 mm | B: 20 mm | Cr: 37.0 kN | C0r: 35.0 kN | Speed (grease): 12,800 min-1
105BER19X d: 105 mm | D: 145 mm | B: 20 mm | Cr: 37.0 kN | C0r: 35.0 kN | Speed (grease): 15,200 min-1
110BNR19S d: 110 mm | D: 150 mm | B: 20 mm | Cr: 39.0 kN | C0r: 38.0 kN | Speed (grease): 10,800 min-1
110BNR19H d: 110 mm | D: 150 mm | B: 20 mm | Cr: 39.0 kN | C0r: 38.0 kN | Speed (grease): 13,900 min-1
110BNR19X d: 110 mm | D: 150 mm | B: 20 mm | Cr: 39.0 kN | C0r: 38.0 kN | Speed (grease): 16,200 min-1
110BER19S d: 110 mm | D: 150 mm | B: 20 mm | Cr: 37.5 kN | C0r: 36.5 kN | Speed (grease): 9,300 min-1
110BER19H d: 110 mm | D: 150 mm | B: 20 mm | Cr: 37.5 kN | C0r: 36.5 kN | Speed (grease): 12,400 min-1
110BER19X d: 110 mm | D: 150 mm | B: 20 mm | Cr: 37.5 kN | C0r: 36.5 kN | Speed (grease): 14,700 min-1
120BNR19S d: 120 mm | D: 165 mm | B: 22 mm | Cr: 54.0 kN | C0r: 52.0 kN | Speed (grease): 9,900 min-1
120BNR19H d: 120 mm | D: 165 mm | B: 22 mm | Cr: 54.0 kN | C0r: 52.0 kN | Speed (grease): 12,700 min-1
120BNR19X d: 120 mm | D: 165 mm | B: 22 mm | Cr: 54.0 kN | C0r: 52.0 kN | Speed (grease): 14,800 min-1
120BER19S d: 120 mm | D: 165 mm | B: 22 mm | Cr: 51.5 kN | C0r: 50.0 kN | Speed (grease): 8,500 min-1
120BER19H d: 120 mm | D: 165 mm | B: 22 mm | Cr: 51.5 kN | C0r: 50.0 kN | Speed (grease): 11,300 min-1
120BER19X d: 120 mm | D: 165 mm | B: 22 mm | Cr: 51.5 kN | C0r: 50.0 kN | Speed (grease): 13,400 min-1
130BNR19S d: 130 mm | D: 180 mm | B: 24 mm | Cr: 59.5 kN | C0r: 58.5 kN | Speed (grease): 9,100 min-1
130BNR19H d: 130 mm | D: 180 mm | B: 24 mm | Cr: 59.5 kN | C0r: 58.5 kN | Speed (grease): 11,700 min-1
130BER19S d: 130 mm | D: 180 mm | B: 24 mm | Cr: 57.0 kN | C0r: 56.5 kN | Speed (grease): 7,800 min-1
130BER19H d: 130 mm | D: 180 mm | B: 24 mm | Cr: 57.0 kN | C0r: 56.5 kN | Speed (grease): 10,400 min-1
140BNR19S d: 140 mm | D: 190 mm | B: 24 mm | Cr: 60.0 kN | C0r: 61.5 kN | Speed (grease): 8,500 min-1
140BNR19H d: 140 mm | D: 190 mm | B: 24 mm | Cr: 60.0 kN | C0r: 61.5 kN | Speed (grease): 11,000 min-1
140BER19S d: 140 mm | D: 190 mm | B: 24 mm | Cr: 57.5 kN | C0r: 59.0 kN | Speed (grease): 7,300 min-1
140BER19H d: 140 mm | D: 190 mm | B: 24 mm | Cr: 57.5 kN | C0r: 59.0 kN | Speed (grease): 9,700 min-1
150BNR19S d: 150 mm | D: 210 mm | B: 28 mm | Cr: 77.0 kN | C0r: 78.5 kN | Speed (grease): 7,800 min-1
150BNR19H d: 150 mm | D: 210 mm | B: 28 mm | Cr: 77.0 kN | C0r: 78.5 kN | Speed (grease): 10,000 min-1
150BER19S d: 150 mm | D: 210 mm | B: 28 mm | Cr: 73.5 kN | C0r: 75.5 kN | Speed (grease): 6,700 min-1
150BER19H d: 150 mm | D: 210 mm | B: 28 mm | Cr: 73.5 kN | C0r: 75.5 kN | Speed (grease): 8,900 min-1
Angular Contact Ball BearingsNSK
126 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK BNR19 / BER19 ROBUST High-Speed Angular Contact Bearings (S, H, X)

Brand NSK·Angular Contact Ball Bearings

Available part numbers (126)

25BNR19S, 25BNR19H, 25BNR19X, 25BER19S, 25BER19H, 25BER19X, 30BNR19S, 30BNR19H, 30BNR19X, 30BER19S + 116 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
25BNR19Sd: 25 mm | D: 42 mm | B: 9 mm | Cr: 5.95 kN | C0r: 3.50 kN | Speed (grease): 41,800 min-1
25BNR19Hd: 25 mm | D: 42 mm | B: 9 mm | Cr: 5.95 kN | C0r: 3.50 kN | Speed (grease): 53,800 min-1
25BNR19Xd: 25 mm | D: 42 mm | B: 9 mm | Cr: 5.95 kN | C0r: 3.50 kN | Speed (grease): 62,700 min-1
25BER19Sd: 25 mm | D: 42 mm | B: 9 mm | Cr: 5.70 kN | C0r: 3.40 kN | Speed (grease): 35,900 min-1
25BER19Hd: 25 mm | D: 42 mm | B: 9 mm | Cr: 5.70 kN | C0r: 3.40 kN | Speed (grease): 47,800 min-1
25BER19Xd: 25 mm | D: 42 mm | B: 9 mm | Cr: 5.70 kN | C0r: 3.40 kN | Speed (grease): 56,800 min-1
30BNR19Sd: 30 mm | D: 47 mm | B: 9 mm | Cr: 6.30 kN | C0r: 4.05 kN | Speed (grease): 36,400 min-1
30BNR19Hd: 30 mm | D: 47 mm | B: 9 mm | Cr: 6.30 kN | C0r: 4.05 kN | Speed (grease): 46,800 min-1
30BNR19Xd: 30 mm | D: 47 mm | B: 9 mm | Cr: 6.30 kN | C0r: 4.05 kN | Speed (grease): 54,600 min-1
30BER19Sd: 30 mm | D: 47 mm | B: 9 mm | Cr: 6.00 kN | C0r: 3.90 kN | Speed (grease): 31,200 min-1
30BER19Hd: 30 mm | D: 47 mm | B: 9 mm | Cr: 6.00 kN | C0r: 3.90 kN | Speed (grease): 41,600 min-1
30BER19Xd: 30 mm | D: 47 mm | B: 9 mm | Cr: 6.00 kN | C0r: 3.90 kN | Speed (grease): 49,400 min-1
35BNR19Sd: 35 mm | D: 55 mm | B: 10 mm | Cr: 9.20 kN | C0r: 6.00 kN | Speed (grease): 31,200 min-1
35BNR19Hd: 35 mm | D: 55 mm | B: 10 mm | Cr: 9.20 kN | C0r: 6.00 kN | Speed (grease): 40,000 min-1
35BNR19Xd: 35 mm | D: 55 mm | B: 10 mm | Cr: 9.20 kN | C0r: 6.00 kN | Speed (grease): 46,700 min-1
35BER19Sd: 35 mm | D: 55 mm | B: 10 mm | Cr: 8.80 kN | C0r: 5.75 kN | Speed (grease): 26,700 min-1
35BER19Hd: 35 mm | D: 55 mm | B: 10 mm | Cr: 8.80 kN | C0r: 5.75 kN | Speed (grease): 35,600 min-1
35BER19Xd: 35 mm | D: 55 mm | B: 10 mm | Cr: 8.80 kN | C0r: 5.75 kN | Speed (grease): 42,300 min-1
40BNR19Sd: 40 mm | D: 62 mm | B: 12 mm | Cr: 11.5 kN | C0r: 7.65 kN | Speed (grease): 27,500 min-1
40BNR19Hd: 40 mm | D: 62 mm | B: 12 mm | Cr: 11.5 kN | C0r: 7.65 kN | Speed (grease): 35,300 min-1
40BNR19Xd: 40 mm | D: 62 mm | B: 12 mm | Cr: 11.5 kN | C0r: 7.65 kN | Speed (grease): 41,200 min-1
40BER19Sd: 40 mm | D: 62 mm | B: 12 mm | Cr: 11.0 kN | C0r: 7.35 kN | Speed (grease): 23,600 min-1
40BER19Hd: 40 mm | D: 62 mm | B: 12 mm | Cr: 11.0 kN | C0r: 7.35 kN | Speed (grease): 31,400 min-1
40BER19Xd: 40 mm | D: 62 mm | B: 12 mm | Cr: 11.0 kN | C0r: 7.35 kN | Speed (grease): 37,300 min-1
45BNR19Sd: 45 mm | D: 68 mm | B: 12 mm | Cr: 12.1 kN | C0r: 8.70 kN | Speed (grease): 24,800 min-1
45BNR19Hd: 45 mm | D: 68 mm | B: 12 mm | Cr: 12.1 kN | C0r: 8.70 kN | Speed (grease): 31,900 min-1
45BNR19Xd: 45 mm | D: 68 mm | B: 12 mm | Cr: 12.1 kN | C0r: 8.70 kN | Speed (grease): 37,200 min-1
45BER19Sd: 45 mm | D: 68 mm | B: 12 mm | Cr: 11.6 kN | C0r: 8.35 kN | Speed (grease): 21,300 min-1
45BER19Hd: 45 mm | D: 68 mm | B: 12 mm | Cr: 11.6 kN | C0r: 8.35 kN | Speed (grease): 28,400 min-1
45BER19Xd: 45 mm | D: 68 mm | B: 12 mm | Cr: 11.6 kN | C0r: 8.35 kN | Speed (grease): 33,700 min-1
50BNR19Sd: 50 mm | D: 72 mm | B: 12 mm | Cr: 12.8 kN | C0r: 9.75 kN | Speed (grease): 23,000 min-1
50BNR19Hd: 50 mm | D: 72 mm | B: 12 mm | Cr: 12.8 kN | C0r: 9.75 kN | Speed (grease): 29,600 min-1
50BNR19Xd: 50 mm | D: 72 mm | B: 12 mm | Cr: 12.8 kN | C0r: 9.75 kN | Speed (grease): 34,500 min-1
50BER19Sd: 50 mm | D: 72 mm | B: 12 mm | Cr: 12.3 kN | C0r: 9.35 kN | Speed (grease): 19,700 min-1
50BER19Hd: 50 mm | D: 72 mm | B: 12 mm | Cr: 12.3 kN | C0r: 9.35 kN | Speed (grease): 26,300 min-1
50BER19Xd: 50 mm | D: 72 mm | B: 12 mm | Cr: 12.3 kN | C0r: 9.35 kN | Speed (grease): 31,200 min-1
55BNR19Sd: 55 mm | D: 80 mm | B: 13 mm | Cr: 14.4 kN | C0r: 11.4 kN | Speed (grease): 20,800 min-1
55BNR19Hd: 55 mm | D: 80 mm | B: 13 mm | Cr: 14.4 kN | C0r: 11.4 kN | Speed (grease): 26,700 min-1
55BNR19Xd: 55 mm | D: 80 mm | B: 13 mm | Cr: 14.4 kN | C0r: 11.4 kN | Speed (grease): 31,200 min-1
55BER19Sd: 55 mm | D: 80 mm | B: 13 mm | Cr: 13.8 kN | C0r: 10.9 kN | Speed (grease): 17,800 min-1
55BER19Hd: 55 mm | D: 80 mm | B: 13 mm | Cr: 13.8 kN | C0r: 10.9 kN | Speed (grease): 23,800 min-1
55BER19Xd: 55 mm | D: 80 mm | B: 13 mm | Cr: 13.8 kN | C0r: 10.9 kN | Speed (grease): 28,200 min-1
60BNR19Sd: 60 mm | D: 85 mm | B: 13 mm | Cr: 14.6 kN | C0r: 12.0 kN | Speed (grease): 19,400 min-1
60BNR19Hd: 60 mm | D: 85 mm | B: 13 mm | Cr: 14.6 kN | C0r: 12.0 kN | Speed (grease): 24,900 min-1
60BNR19Xd: 60 mm | D: 85 mm | B: 13 mm | Cr: 14.6 kN | C0r: 12.0 kN | Speed (grease): 29,000 min-1
60BER19Sd: 60 mm | D: 85 mm | B: 13 mm | Cr: 14.0 kN | C0r: 11.5 kN | Speed (grease): 16,600 min-1
60BER19Hd: 60 mm | D: 85 mm | B: 13 mm | Cr: 14.0 kN | C0r: 11.5 kN | Speed (grease): 22,100 min-1
60BER19Xd: 60 mm | D: 85 mm | B: 13 mm | Cr: 14.0 kN | C0r: 11.5 kN | Speed (grease): 26,300 min-1
65BNR19Sd: 65 mm | D: 90 mm | B: 13 mm | Cr: 15.2 kN | C0r: 13.2 kN | Speed (grease): 18,100 min-1
65BNR19Hd: 65 mm | D: 90 mm | B: 13 mm | Cr: 15.2 kN | C0r: 13.2 kN | Speed (grease): 23,300 min-1
65BNR19Xd: 65 mm | D: 90 mm | B: 13 mm | Cr: 15.2 kN | C0r: 13.2 kN | Speed (grease): 27,100 min-1
65BER19Sd: 65 mm | D: 90 mm | B: 13 mm | Cr: 14.5 kN | C0r: 12.6 kN | Speed (grease): 15,500 min-1
65BER19Hd: 65 mm | D: 90 mm | B: 13 mm | Cr: 14.5 kN | C0r: 12.6 kN | Speed (grease): 20,700 min-1
65BER19Xd: 65 mm | D: 90 mm | B: 13 mm | Cr: 14.5 kN | C0r: 12.6 kN | Speed (grease): 24,600 min-1
70BNR19Sd: 70 mm | D: 100 mm | B: 16 mm | Cr: 21.3 kN | C0r: 18.1 kN | Speed (grease): 16,500 min-1
70BNR19Hd: 70 mm | D: 100 mm | B: 16 mm | Cr: 21.3 kN | C0r: 18.1 kN | Speed (grease): 21,200 min-1
70BNR19Xd: 70 mm | D: 100 mm | B: 16 mm | Cr: 21.3 kN | C0r: 18.1 kN | Speed (grease): 24,800 min-1
70BER19Sd: 70 mm | D: 100 mm | B: 16 mm | Cr: 20.4 kN | C0r: 17.3 kN | Speed (grease): 14,200 min-1
70BER19Hd: 70 mm | D: 100 mm | B: 16 mm | Cr: 20.4 kN | C0r: 17.3 kN | Speed (grease): 18,900 min-1
70BER19Xd: 70 mm | D: 100 mm | B: 16 mm | Cr: 20.4 kN | C0r: 17.3 kN | Speed (grease): 22,400 min-1
75BNR19Sd: 75 mm | D: 105 mm | B: 16 mm | Cr: 21.6 kN | C0r: 19.0 kN | Speed (grease): 15,600 min-1
75BNR19Hd: 75 mm | D: 105 mm | B: 16 mm | Cr: 21.6 kN | C0r: 19.0 kN | Speed (grease): 20,000 min-1
75BNR19Xd: 75 mm | D: 105 mm | B: 16 mm | Cr: 21.6 kN | C0r: 19.0 kN | Speed (grease): 23,400 min-1
75BER19Sd: 75 mm | D: 105 mm | B: 16 mm | Cr: 20.7 kN | C0r: 18.2 kN | Speed (grease): 13,400 min-1
75BER19Hd: 75 mm | D: 105 mm | B: 16 mm | Cr: 20.7 kN | C0r: 18.2 kN | Speed (grease): 17,800 min-1
75BER19Xd: 75 mm | D: 105 mm | B: 16 mm | Cr: 20.7 kN | C0r: 18.2 kN | Speed (grease): 21,200 min-1
80BNR19Sd: 80 mm | D: 110 mm | B: 16 mm | Cr: 22.0 kN | C0r: 19.9 kN | Speed (grease): 14,800 min-1
80BNR19Hd: 80 mm | D: 110 mm | B: 16 mm | Cr: 22.0 kN | C0r: 19.9 kN | Speed (grease): 19,000 min-1
80BNR19Xd: 80 mm | D: 110 mm | B: 16 mm | Cr: 22.0 kN | C0r: 19.9 kN | Speed (grease): 22,200 min-1
80BER19Sd: 80 mm | D: 110 mm | B: 16 mm | Cr: 21.0 kN | C0r: 19.1 kN | Speed (grease): 12,700 min-1
80BER19Hd: 80 mm | D: 110 mm | B: 16 mm | Cr: 21.0 kN | C0r: 19.1 kN | Speed (grease): 16,900 min-1
80BER19Xd: 80 mm | D: 110 mm | B: 16 mm | Cr: 21.0 kN | C0r: 19.1 kN | Speed (grease): 20,000 min-1
85BNR19Sd: 85 mm | D: 120 mm | B: 18 mm | Cr: 29.4 kN | C0r: 26.3 kN | Speed (grease): 13,700 min-1
85BNR19Hd: 85 mm | D: 120 mm | B: 18 mm | Cr: 29.4 kN | C0r: 26.3 kN | Speed (grease): 17,600 min-1
85BNR19Xd: 85 mm | D: 120 mm | B: 18 mm | Cr: 29.4 kN | C0r: 26.3 kN | Speed (grease): 20,500 min-1
85BER19Sd: 85 mm | D: 120 mm | B: 18 mm | Cr: 28.1 kN | C0r: 25.2 kN | Speed (grease): 11,800 min-1
85BER19Hd: 85 mm | D: 120 mm | B: 18 mm | Cr: 28.1 kN | C0r: 25.2 kN | Speed (grease): 15,700 min-1
85BER19Xd: 85 mm | D: 120 mm | B: 18 mm | Cr: 28.1 kN | C0r: 25.2 kN | Speed (grease): 18,600 min-1
90BNR19Sd: 90 mm | D: 125 mm | B: 18 mm | Cr: 31.5 kN | C0r: 29.7 kN | Speed (grease): 13,100 min-1
90BNR19Hd: 90 mm | D: 125 mm | B: 18 mm | Cr: 31.5 kN | C0r: 29.7 kN | Speed (grease): 16,800 min-1
90BNR19Xd: 90 mm | D: 125 mm | B: 18 mm | Cr: 31.5 kN | C0r: 29.7 kN | Speed (grease): 19,600 min-1
90BER19Sd: 90 mm | D: 125 mm | B: 18 mm | Cr: 30.0 kN | C0r: 28.5 kN | Speed (grease): 11,200 min-1
90BER19Hd: 90 mm | D: 125 mm | B: 18 mm | Cr: 30.0 kN | C0r: 28.5 kN | Speed (grease): 14,900 min-1
90BER19Xd: 90 mm | D: 125 mm | B: 18 mm | Cr: 30.0 kN | C0r: 28.5 kN | Speed (grease): 17,700 min-1
95BNR19Sd: 95 mm | D: 130 mm | B: 18 mm | Cr: 32.0 kN | C0r: 31.0 kN | Speed (grease): 12,500 min-1
95BNR19Hd: 95 mm | D: 130 mm | B: 18 mm | Cr: 32.0 kN | C0r: 31.0 kN | Speed (grease): 16,000 min-1
95BNR19Xd: 95 mm | D: 130 mm | B: 18 mm | Cr: 32.0 kN | C0r: 31.0 kN | Speed (grease): 18,700 min-1
95BER19Sd: 95 mm | D: 130 mm | B: 18 mm | Cr: 30.5 kN | C0r: 29.7 kN | Speed (grease): 10,700 min-1
95BER19Hd: 95 mm | D: 130 mm | B: 18 mm | Cr: 30.5 kN | C0r: 29.7 kN | Speed (grease): 14,300 min-1
95BER19Xd: 95 mm | D: 130 mm | B: 18 mm | Cr: 30.5 kN | C0r: 29.7 kN | Speed (grease): 16,900 min-1
100BNR19Sd: 100 mm | D: 140 mm | B: 20 mm | Cr: 38.0 kN | C0r: 35.0 kN | Speed (grease): 11,700 min-1
100BNR19Hd: 100 mm | D: 140 mm | B: 20 mm | Cr: 38.0 kN | C0r: 35.0 kN | Speed (grease): 15,000 min-1
100BNR19Xd: 100 mm | D: 140 mm | B: 20 mm | Cr: 38.0 kN | C0r: 35.0 kN | Speed (grease): 17,500 min-1
100BER19Sd: 100 mm | D: 140 mm | B: 20 mm | Cr: 36.0 kN | C0r: 33.5 kN | Speed (grease): 10,000 min-1
100BER19Hd: 100 mm | D: 140 mm | B: 20 mm | Cr: 36.0 kN | C0r: 33.5 kN | Speed (grease): 13,400 min-1
100BER19Xd: 100 mm | D: 140 mm | B: 20 mm | Cr: 36.0 kN | C0r: 33.5 kN | Speed (grease): 15,900 min-1
105BNR19Sd: 105 mm | D: 145 mm | B: 20 mm | Cr: 38.5 kN | C0r: 36.5 kN | Speed (grease): 11,200 min-1
105BNR19Hd: 105 mm | D: 145 mm | B: 20 mm | Cr: 38.5 kN | C0r: 36.5 kN | Speed (grease): 14,400 min-1
105BNR19Xd: 105 mm | D: 145 mm | B: 20 mm | Cr: 38.5 kN | C0r: 36.5 kN | Speed (grease): 16,800 min-1
105BER19Sd: 105 mm | D: 145 mm | B: 20 mm | Cr: 37.0 kN | C0r: 35.0 kN | Speed (grease): 9,600 min-1
105BER19Hd: 105 mm | D: 145 mm | B: 20 mm | Cr: 37.0 kN | C0r: 35.0 kN | Speed (grease): 12,800 min-1
105BER19Xd: 105 mm | D: 145 mm | B: 20 mm | Cr: 37.0 kN | C0r: 35.0 kN | Speed (grease): 15,200 min-1
110BNR19Sd: 110 mm | D: 150 mm | B: 20 mm | Cr: 39.0 kN | C0r: 38.0 kN | Speed (grease): 10,800 min-1
110BNR19Hd: 110 mm | D: 150 mm | B: 20 mm | Cr: 39.0 kN | C0r: 38.0 kN | Speed (grease): 13,900 min-1
110BNR19Xd: 110 mm | D: 150 mm | B: 20 mm | Cr: 39.0 kN | C0r: 38.0 kN | Speed (grease): 16,200 min-1
110BER19Sd: 110 mm | D: 150 mm | B: 20 mm | Cr: 37.5 kN | C0r: 36.5 kN | Speed (grease): 9,300 min-1
110BER19Hd: 110 mm | D: 150 mm | B: 20 mm | Cr: 37.5 kN | C0r: 36.5 kN | Speed (grease): 12,400 min-1
110BER19Xd: 110 mm | D: 150 mm | B: 20 mm | Cr: 37.5 kN | C0r: 36.5 kN | Speed (grease): 14,700 min-1
120BNR19Sd: 120 mm | D: 165 mm | B: 22 mm | Cr: 54.0 kN | C0r: 52.0 kN | Speed (grease): 9,900 min-1
120BNR19Hd: 120 mm | D: 165 mm | B: 22 mm | Cr: 54.0 kN | C0r: 52.0 kN | Speed (grease): 12,700 min-1
120BNR19Xd: 120 mm | D: 165 mm | B: 22 mm | Cr: 54.0 kN | C0r: 52.0 kN | Speed (grease): 14,800 min-1
120BER19Sd: 120 mm | D: 165 mm | B: 22 mm | Cr: 51.5 kN | C0r: 50.0 kN | Speed (grease): 8,500 min-1
120BER19Hd: 120 mm | D: 165 mm | B: 22 mm | Cr: 51.5 kN | C0r: 50.0 kN | Speed (grease): 11,300 min-1
120BER19Xd: 120 mm | D: 165 mm | B: 22 mm | Cr: 51.5 kN | C0r: 50.0 kN | Speed (grease): 13,400 min-1
130BNR19Sd: 130 mm | D: 180 mm | B: 24 mm | Cr: 59.5 kN | C0r: 58.5 kN | Speed (grease): 9,100 min-1
130BNR19Hd: 130 mm | D: 180 mm | B: 24 mm | Cr: 59.5 kN | C0r: 58.5 kN | Speed (grease): 11,700 min-1
130BER19Sd: 130 mm | D: 180 mm | B: 24 mm | Cr: 57.0 kN | C0r: 56.5 kN | Speed (grease): 7,800 min-1
130BER19Hd: 130 mm | D: 180 mm | B: 24 mm | Cr: 57.0 kN | C0r: 56.5 kN | Speed (grease): 10,400 min-1
140BNR19Sd: 140 mm | D: 190 mm | B: 24 mm | Cr: 60.0 kN | C0r: 61.5 kN | Speed (grease): 8,500 min-1
140BNR19Hd: 140 mm | D: 190 mm | B: 24 mm | Cr: 60.0 kN | C0r: 61.5 kN | Speed (grease): 11,000 min-1
140BER19Sd: 140 mm | D: 190 mm | B: 24 mm | Cr: 57.5 kN | C0r: 59.0 kN | Speed (grease): 7,300 min-1
140BER19Hd: 140 mm | D: 190 mm | B: 24 mm | Cr: 57.5 kN | C0r: 59.0 kN | Speed (grease): 9,700 min-1
150BNR19Sd: 150 mm | D: 210 mm | B: 28 mm | Cr: 77.0 kN | C0r: 78.5 kN | Speed (grease): 7,800 min-1
150BNR19Hd: 150 mm | D: 210 mm | B: 28 mm | Cr: 77.0 kN | C0r: 78.5 kN | Speed (grease): 10,000 min-1
150BER19Sd: 150 mm | D: 210 mm | B: 28 mm | Cr: 73.5 kN | C0r: 75.5 kN | Speed (grease): 6,700 min-1
150BER19Hd: 150 mm | D: 210 mm | B: 28 mm | Cr: 73.5 kN | C0r: 75.5 kN | Speed (grease): 8,900 min-1

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
