NSK FNTA Thrust Needle Roller and Cage Assemblies (Bore 10-100 mm)

NSK FNTA Thrust Needle Roller and Cage Assemblies (Bore 10-100 mm)

NSK FNTA thrust needle roller and cage assemblies for axial loads, bore diameters 10 to 100 mm, used with FTR thrust washers or directly on hardened faces.

Key features

  • Very thin axial section height
  • High axial load capacity
  • Used with FTRA-FTRE washers or on hardened, ground mating faces

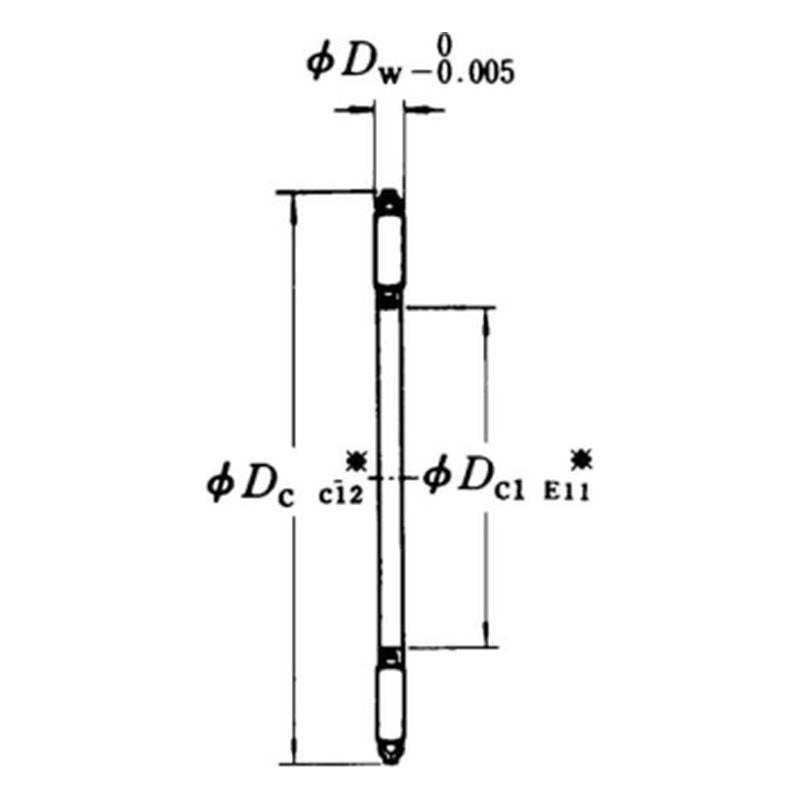

  • Bore tolerance class C12, outer diameter E11

Specifications

Product Thrust needle roller and cage assembly
Bore Dc1 10-100 mm
Roller diameter Dw 2-4 mm
Washers FTRA, FTRB, FTRC, FTRD, FTRE
Load direction Axial, one direction
Source NSK Rolling Bearings Catalogue (Part 3), p. 270-271
FNTA-1024 Bore Dc1: 10 mm | OD Dc: 24 mm | Roller Dw: 2 mm | Ca: 7.75 kN | C0a: 23 kN
FNTA-1226 Bore Dc1: 12 mm | OD Dc: 26 mm | Roller Dw: 2 mm | Ca: 8.35 kN | C0a: 26.3 kN
FNTA-1528 Bore Dc1: 15 mm | OD Dc: 28 mm | Roller Dw: 2 mm | Ca: 7.95 kN | C0a: 25.8 kN
FNTA-1629 Bore Dc1: 16 mm | OD Dc: 29 mm | Roller Dw: 2 mm | Ca: 8.2 kN | C0a: 27.1 kN
FNTA-1730 Bore Dc1: 17 mm | OD Dc: 30 mm | Roller Dw: 2 mm | Ca: 8.4 kN | C0a: 28.4 kN
FNTA-1831 Bore Dc1: 18 mm | OD Dc: 31 mm | Roller Dw: 2 mm | Ca: 8.6 kN | C0a: 29.7 kN
FNTA-2035 Bore Dc1: 20 mm | OD Dc: 35 mm | Roller Dw: 2 mm | Ca: 11.9 kN | C0a: 47 kN
FNTA-2542 Bore Dc1: 25 mm | OD Dc: 42 mm | Roller Dw: 2 mm | Ca: 14.8 kN | C0a: 66 kN
FNTA-3047 Bore Dc1: 30 mm | OD Dc: 47 mm | Roller Dw: 2 mm | Ca: 16.5 kN | C0a: 79 kN
FNTA-3552 Bore Dc1: 35 mm | OD Dc: 52 mm | Roller Dw: 2 mm | Ca: 17.3 kN | C0a: 88 kN
FNTA-4060 Bore Dc1: 40 mm | OD Dc: 60 mm | Roller Dw: 3 mm | Ca: 26.9 kN | C0a: 122 kN
FNTA-4565 Bore Dc1: 45 mm | OD Dc: 65 mm | Roller Dw: 3 mm | Ca: 28.7 kN | C0a: 137 kN
FNTA-5070 Bore Dc1: 50 mm | OD Dc: 70 mm | Roller Dw: 3 mm | Ca: 30.5 kN | C0a: 152 kN
FNTA-5578 Bore Dc1: 55 mm | OD Dc: 78 mm | Roller Dw: 3 mm | Ca: 37 kN | C0a: 201 kN
FNTA-6085 Bore Dc1: 60 mm | OD Dc: 85 mm | Roller Dw: 3 mm | Ca: 43 kN | C0a: 252 kN
FNTA-6590 Bore Dc1: 65 mm | OD Dc: 90 mm | Roller Dw: 3 mm | Ca: 45.5 kN | C0a: 274 kN
FNTA-7095 Bore Dc1: 70 mm | OD Dc: 95 mm | Roller Dw: 4 mm | Ca: 59 kN | C0a: 320 kN
FNTA-75100 Bore Dc1: 75 mm | OD Dc: 100 mm | Roller Dw: 4 mm | Ca: 60 kN | C0a: 335 kN
FNTA-80105 Bore Dc1: 80 mm | OD Dc: 105 mm | Roller Dw: 4 mm | Ca: 63 kN | C0a: 365 kN
FNTA-85110 Bore Dc1: 85 mm | OD Dc: 110 mm | Roller Dw: 4 mm | Ca: 64.5 kN | C0a: 380 kN
FNTA-90120 Bore Dc1: 90 mm | OD Dc: 120 mm | Roller Dw: 4 mm | Ca: 80 kN | C0a: 515 kN
FNTA-100135 Bore Dc1: 100 mm | OD Dc: 135 mm | Roller Dw: 4 mm | Ca: 98.5 kN | C0a: 695 kN
Thrust BearingsNSK
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK FNTA Thrust Needle Roller and Cage Assemblies (Bore 10-100 mm)

Brand NSK·Thrust Bearings

Available part numbers (22)

FNTA-1024, FNTA-1226, FNTA-1528, FNTA-1629, FNTA-1730, FNTA-1831, FNTA-2035, FNTA-2542, FNTA-3047, FNTA-3552 + 12 more — see full table ↓
