NSK H Adapter Sleeves (Shaft 17-470 mm)

NSK H Adapter Sleeves (Shaft 17-470 mm)

NSK H adapter sleeve assemblies (sleeve, lock nut and washer) for mounting tapered-bore (K) self-aligning ball and spherical roller bearings on cylindrical shafts, shaft diameters 17 to 470 mm.

Key features

  • Mounts tapered-bore bearings on plain cylindrical shafts
  • Assembly with slotted sleeve, AN / HN lock nut and lock washer
  • X suffix: narrow-slot sleeve design
  • H 2, H 3, H 23, H 30, H 31, H 32, H 39 series

Specifications

Product Adapter sleeve assembly
Taper 1:12
Shaft d1 17-470 mm
Contents Sleeve, nut, washer
Suffix X Narrow slot sleeve
Source NSK Rolling Bearings Catalogue (Part 4), p. 376-383

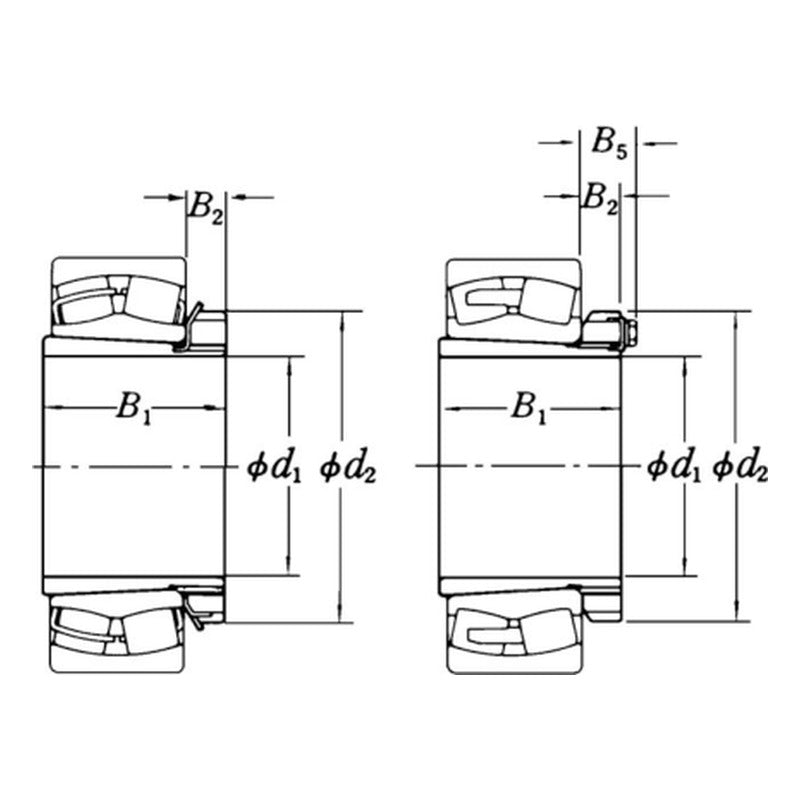

H 204X Shaft d1: 17 mm | Bearing bore d: 20 mm | B1: 24 mm | d2: 32 mm
H 304X Shaft d1: 17 mm | Bearing bore d: 20 mm | B1: 28 mm | d2: 32 mm
H 2304X Shaft d1: 17 mm | Bearing bore d: 20 mm | B1: 31 mm | d2: 32 mm
H 205X Shaft d1: 20 mm | Bearing bore d: 25 mm | B1: 26 mm | d2: 38 mm
H 305X Shaft d1: 20 mm | Bearing bore d: 25 mm | B1: 29 mm | d2: 38 mm
H 2305X Shaft d1: 20 mm | Bearing bore d: 25 mm | B1: 35 mm | d2: 38 mm
H 206X Shaft d1: 25 mm | Bearing bore d: 30 mm | B1: 27 mm | d2: 45 mm
H 306X Shaft d1: 25 mm | Bearing bore d: 30 mm | B1: 31 mm | d2: 45 mm
H 2306X Shaft d1: 25 mm | Bearing bore d: 30 mm | B1: 38 mm | d2: 45 mm
H 207X Shaft d1: 30 mm | Bearing bore d: 35 mm | B1: 29 mm | d2: 52 mm
H 307X Shaft d1: 30 mm | Bearing bore d: 35 mm | B1: 35 mm | d2: 52 mm
H 2307X Shaft d1: 30 mm | Bearing bore d: 35 mm | B1: 43 mm | d2: 52 mm
H 208X Shaft d1: 35 mm | Bearing bore d: 40 mm | B1: 31 mm | d2: 58 mm
H 308X Shaft d1: 35 mm | Bearing bore d: 40 mm | B1: 36 mm | d2: 58 mm
H 2308X Shaft d1: 35 mm | Bearing bore d: 40 mm | B1: 46 mm | d2: 58 mm
H 209X Shaft d1: 40 mm | Bearing bore d: 45 mm | B1: 33 mm | d2: 65 mm
H 309X Shaft d1: 40 mm | Bearing bore d: 45 mm | B1: 39 mm | d2: 65 mm
H 2309X Shaft d1: 40 mm | Bearing bore d: 45 mm | B1: 50 mm | d2: 65 mm
H 210X Shaft d1: 45 mm | Bearing bore d: 50 mm | B1: 35 mm | d2: 70 mm
H 310X Shaft d1: 45 mm | Bearing bore d: 50 mm | B1: 42 mm | d2: 70 mm
H 2310X Shaft d1: 45 mm | Bearing bore d: 50 mm | B1: 55 mm | d2: 70 mm
H 211X Shaft d1: 50 mm | Bearing bore d: 55 mm | B1: 37 mm | d2: 75 mm
H 311X Shaft d1: 50 mm | Bearing bore d: 55 mm | B1: 45 mm | d2: 75 mm
H 2311X Shaft d1: 50 mm | Bearing bore d: 55 mm | B1: 59 mm | d2: 75 mm
H 212X Shaft d1: 55 mm | Bearing bore d: 60 mm | B1: 38 mm | d2: 80 mm
H 312X Shaft d1: 55 mm | Bearing bore d: 60 mm | B1: 47 mm | d2: 80 mm
H 2312X Shaft d1: 55 mm | Bearing bore d: 60 mm | B1: 62 mm | d2: 80 mm
H 213X Shaft d1: 60 mm | Bearing bore d: 65 mm | B1: 40 mm | d2: 85 mm
H 313X Shaft d1: 60 mm | Bearing bore d: 65 mm | B1: 50 mm | d2: 85 mm
H 2313X Shaft d1: 60 mm | Bearing bore d: 65 mm | B1: 65 mm | d2: 85 mm
H 314X Shaft d1: 60 mm | Bearing bore d: 70 mm | B1: 52 mm | d2: 92 mm
H 2314X Shaft d1: 60 mm | Bearing bore d: 70 mm | B1: 68 mm | d2: 92 mm
H 215X Shaft d1: 65 mm | Bearing bore d: 75 mm | B1: 43 mm | d2: 98 mm
H 315X Shaft d1: 65 mm | Bearing bore d: 75 mm | B1: 55 mm | d2: 98 mm
H 2315X Shaft d1: 65 mm | Bearing bore d: 75 mm | B1: 73 mm | d2: 98 mm
H 216X Shaft d1: 70 mm | Bearing bore d: 80 mm | B1: 46 mm | d2: 105 mm
H 316X Shaft d1: 70 mm | Bearing bore d: 80 mm | B1: 59 mm | d2: 105 mm
H 2316X Shaft d1: 70 mm | Bearing bore d: 80 mm | B1: 78 mm | d2: 105 mm
H 217X Shaft d1: 75 mm | Bearing bore d: 85 mm | B1: 50 mm | d2: 110 mm
H 317X Shaft d1: 75 mm | Bearing bore d: 85 mm | B1: 63 mm | d2: 110 mm
H 2317X Shaft d1: 75 mm | Bearing bore d: 85 mm | B1: 82 mm | d2: 110 mm
H 218X Shaft d1: 80 mm | Bearing bore d: 90 mm | B1: 52 mm | d2: 120 mm
H 318X Shaft d1: 80 mm | Bearing bore d: 90 mm | B1: 65 mm | d2: 120 mm
H 2318X Shaft d1: 80 mm | Bearing bore d: 90 mm | B1: 86 mm | d2: 120 mm
H 219X Shaft d1: 85 mm | Bearing bore d: 95 mm | B1: 55 mm | d2: 125 mm
H 319X Shaft d1: 85 mm | Bearing bore d: 95 mm | B1: 68 mm | d2: 125 mm
H 2319X Shaft d1: 85 mm | Bearing bore d: 95 mm | B1: 90 mm | d2: 125 mm
H 220X Shaft d1: 90 mm | Bearing bore d: 100 mm | B1: 58 mm | d2: 130 mm
H 320X Shaft d1: 90 mm | Bearing bore d: 100 mm | B1: 71 mm | d2: 130 mm
H 2320X Shaft d1: 90 mm | Bearing bore d: 100 mm | B1: 97 mm | d2: 130 mm
H 3122X Shaft d1: 100 mm | Bearing bore d: 110 mm | B1: 81 mm | d2: 145 mm
H 222X Shaft d1: 100 mm | Bearing bore d: 110 mm | B1: 63 mm | d2: 145 mm
H 322X Shaft d1: 100 mm | Bearing bore d: 110 mm | B1: 77 mm | d2: 145 mm
H 2322X Shaft d1: 100 mm | Bearing bore d: 110 mm | B1: 105 mm | d2: 145 mm
H 3024 Shaft d1: 110 mm | Bearing bore d: 120 mm | B1: 72 mm | d2: 145 mm
H 3124 Shaft d1: 110 mm | Bearing bore d: 120 mm | B1: 88 mm | d2: 155 mm
H 2324 Shaft d1: 110 mm | Bearing bore d: 120 mm | B1: 112 mm | d2: 155 mm
H 3026 Shaft d1: 115 mm | Bearing bore d: 130 mm | B1: 80 mm | d2: 155 mm
H 3126 Shaft d1: 115 mm | Bearing bore d: 130 mm | B1: 92 mm | d2: 165 mm
H 2326 Shaft d1: 115 mm | Bearing bore d: 130 mm | B1: 121 mm | d2: 165 mm
H 3028 Shaft d1: 125 mm | Bearing bore d: 140 mm | B1: 82 mm | d2: 165 mm
H 3128 Shaft d1: 125 mm | Bearing bore d: 140 mm | B1: 97 mm | d2: 180 mm
H 2328 Shaft d1: 125 mm | Bearing bore d: 140 mm | B1: 131 mm | d2: 180 mm
H 3030 Shaft d1: 135 mm | Bearing bore d: 150 mm | B1: 87 mm | d2: 180 mm
H 3130 Shaft d1: 135 mm | Bearing bore d: 150 mm | B1: 111 mm | d2: 195 mm
H 2330 Shaft d1: 135 mm | Bearing bore d: 150 mm | B1: 139 mm | d2: 195 mm
H 3932 Shaft d1: 140 mm | Bearing bore d: 160 mm | B1: 78 mm | d2: 190 mm
H 3032 Shaft d1: 140 mm | Bearing bore d: 160 mm | B1: 93 mm | d2: 190 mm
H 3132 Shaft d1: 140 mm | Bearing bore d: 160 mm | B1: 119 mm | d2: 210 mm
H 2332 Shaft d1: 140 mm | Bearing bore d: 160 mm | B1: 147 mm | d2: 210 mm
H 3934 Shaft d1: 140 mm | Bearing bore d: 170 mm | B1: 79 mm | d2: 200 mm
H 3034 Shaft d1: 140 mm | Bearing bore d: 170 mm | B1: 101 mm | d2: 200 mm
H 3134 Shaft d1: 140 mm | Bearing bore d: 170 mm | B1: 122 mm | d2: 220 mm
H 2334 Shaft d1: 140 mm | Bearing bore d: 170 mm | B1: 154 mm | d2: 220 mm
H 3936 Shaft d1: 160 mm | Bearing bore d: 180 mm | B1: 87 mm | d2: 210 mm
H 3036 Shaft d1: 160 mm | Bearing bore d: 180 mm | B1: 109 mm | d2: 210 mm
H 3136 Shaft d1: 160 mm | Bearing bore d: 180 mm | B1: 131 mm | d2: 230 mm
H 2336 Shaft d1: 160 mm | Bearing bore d: 180 mm | B1: 161 mm | d2: 230 mm
H 3938 Shaft d1: 170 mm | Bearing bore d: 190 mm | B1: 89 mm | d2: 220 mm
H 3038 Shaft d1: 170 mm | Bearing bore d: 190 mm | B1: 112 mm | d2: 220 mm
H 3138 Shaft d1: 170 mm | Bearing bore d: 190 mm | B1: 141 mm | d2: 240 mm
H 2338 Shaft d1: 170 mm | Bearing bore d: 190 mm | B1: 169 mm | d2: 240 mm
H 3960 Shaft d1: 280 mm | Bearing bore d: 300 mm | B1: 140 mm | d2: 360 mm
H 3060 Shaft d1: 280 mm | Bearing bore d: 300 mm | B1: 168 mm | d2: 360 mm
H 3160 Shaft d1: 280 mm | Bearing bore d: 300 mm | B1: 208 mm | d2: 380 mm
H 3260 Shaft d1: 280 mm | Bearing bore d: 300 mm | B1: 240 mm | d2: 380 mm
H 3964 Shaft d1: 300 mm | Bearing bore d: 320 mm | B1: 140 mm | d2: 380 mm
H 3064 Shaft d1: 300 mm | Bearing bore d: 320 mm | B1: 171 mm | d2: 380 mm
H 3164 Shaft d1: 300 mm | Bearing bore d: 320 mm | B1: 226 mm | d2: 400 mm
H 3264 Shaft d1: 300 mm | Bearing bore d: 320 mm | B1: 258 mm | d2: 400 mm
H 3968 Shaft d1: 320 mm | Bearing bore d: 340 mm | B1: 144 mm | d2: 400 mm
H 3068 Shaft d1: 320 mm | Bearing bore d: 340 mm | B1: 187 mm | d2: 400 mm
H 3168 Shaft d1: 320 mm | Bearing bore d: 340 mm | B1: 254 mm | d2: 440 mm
H 3268 Shaft d1: 320 mm | Bearing bore d: 340 mm | B1: 288 mm | d2: 440 mm
H 3972 Shaft d1: 320 mm | Bearing bore d: 360 mm | B1: 144 mm | d2: 420 mm
H 3072 Shaft d1: 320 mm | Bearing bore d: 360 mm | B1: 188 mm | d2: 420 mm
H 3172 Shaft d1: 320 mm | Bearing bore d: 360 mm | B1: 259 mm | d2: 460 mm
H 3272 Shaft d1: 320 mm | Bearing bore d: 360 mm | B1: 299 mm | d2: 460 mm
H 3976 Shaft d1: 360 mm | Bearing bore d: 380 mm | B1: 164 mm | d2: 450 mm
H 3076 Shaft d1: 360 mm | Bearing bore d: 380 mm | B1: 193 mm | d2: 450 mm
H 3176 Shaft d1: 360 mm | Bearing bore d: 380 mm | B1: 264 mm | d2: 490 mm
H 3276 Shaft d1: 360 mm | Bearing bore d: 380 mm | B1: 310 mm | d2: 490 mm
H 3980 Shaft d1: 380 mm | Bearing bore d: 400 mm | B1: 168 mm | d2: 470 mm
H 3080 Shaft d1: 380 mm | Bearing bore d: 400 mm | B1: 210 mm | d2: 470 mm
H 3180 Shaft d1: 380 mm | Bearing bore d: 400 mm | B1: 272 mm | d2: 520 mm
H 3280 Shaft d1: 380 mm | Bearing bore d: 400 mm | B1: 328 mm | d2: 520 mm
H 3984 Shaft d1: 400 mm | Bearing bore d: 420 mm | B1: 168 mm | d2: 490 mm
H 3084 Shaft d1: 400 mm | Bearing bore d: 420 mm | B1: 212 mm | d2: 490 mm
H 3184 Shaft d1: 400 mm | Bearing bore d: 420 mm | B1: 304 mm | d2: 540 mm
H 3284 Shaft d1: 400 mm | Bearing bore d: 420 mm | B1: 352 mm | d2: 540 mm
H 3988 Shaft d1: 410 mm | Bearing bore d: 440 mm | B1: 189 mm | d2: 520 mm
H 3088 Shaft d1: 410 mm | Bearing bore d: 440 mm | B1: 228 mm | d2: 520 mm
H 3188 Shaft d1: 410 mm | Bearing bore d: 440 mm | B1: 307 mm | d2: 560 mm
H 3288 Shaft d1: 410 mm | Bearing bore d: 440 mm | B1: 361 mm | d2: 560 mm
H 3992 Shaft d1: 430 mm | Bearing bore d: 460 mm | B1: 189 mm | d2: 540 mm
H 3092 Shaft d1: 430 mm | Bearing bore d: 460 mm | B1: 234 mm | d2: 540 mm
H 3192 Shaft d1: 430 mm | Bearing bore d: 460 mm | B1: 326 mm | d2: 580 mm
H 3292 Shaft d1: 430 mm | Bearing bore d: 460 mm | B1: 382 mm | d2: 580 mm
H 3996 Shaft d1: 450 mm | Bearing bore d: 480 mm | B1: 200 mm | d2: 560 mm
H 3096 Shaft d1: 450 mm | Bearing bore d: 480 mm | B1: 237 mm | d2: 560 mm
H 3196 Shaft d1: 450 mm | Bearing bore d: 480 mm | B1: 335 mm | d2: 620 mm
H 3296 Shaft d1: 450 mm | Bearing bore d: 480 mm | B1: 397 mm | d2: 620 mm
H 39/500 Shaft d1: 470 mm | Bearing bore d: 500 mm | B1: 208 mm | d2: 580 mm
H 30/500 Shaft d1: 470 mm | Bearing bore d: 500 mm | B1: 247 mm | d2: 580 mm
H 31/500 Shaft d1: 470 mm | Bearing bore d: 500 mm | B1: 356 mm | d2: 630 mm
H 32/500 Shaft d1: 470 mm | Bearing bore d: 500 mm | B1: 428 mm | d2: 630 mm
Bearing AccessoriesNSK
126 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK H Adapter Sleeves (Shaft 17-470 mm)

Brand NSK·Bearing Accessories

Available part numbers (126)

H 204X, H 304X, H 2304X, H 205X, H 305X, H 2305X, H 206X, H 306X, H 2306X, H 207X + 116 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
H 204XShaft d1: 17 mm | Bearing bore d: 20 mm | B1: 24 mm | d2: 32 mm
H 304XShaft d1: 17 mm | Bearing bore d: 20 mm | B1: 28 mm | d2: 32 mm
H 2304XShaft d1: 17 mm | Bearing bore d: 20 mm | B1: 31 mm | d2: 32 mm
H 205XShaft d1: 20 mm | Bearing bore d: 25 mm | B1: 26 mm | d2: 38 mm
H 305XShaft d1: 20 mm | Bearing bore d: 25 mm | B1: 29 mm | d2: 38 mm
H 2305XShaft d1: 20 mm | Bearing bore d: 25 mm | B1: 35 mm | d2: 38 mm
H 206XShaft d1: 25 mm | Bearing bore d: 30 mm | B1: 27 mm | d2: 45 mm
H 306XShaft d1: 25 mm | Bearing bore d: 30 mm | B1: 31 mm | d2: 45 mm
H 2306XShaft d1: 25 mm | Bearing bore d: 30 mm | B1: 38 mm | d2: 45 mm
H 207XShaft d1: 30 mm | Bearing bore d: 35 mm | B1: 29 mm | d2: 52 mm
H 307XShaft d1: 30 mm | Bearing bore d: 35 mm | B1: 35 mm | d2: 52 mm
H 2307XShaft d1: 30 mm | Bearing bore d: 35 mm | B1: 43 mm | d2: 52 mm
H 208XShaft d1: 35 mm | Bearing bore d: 40 mm | B1: 31 mm | d2: 58 mm
H 308XShaft d1: 35 mm | Bearing bore d: 40 mm | B1: 36 mm | d2: 58 mm
H 2308XShaft d1: 35 mm | Bearing bore d: 40 mm | B1: 46 mm | d2: 58 mm
H 209XShaft d1: 40 mm | Bearing bore d: 45 mm | B1: 33 mm | d2: 65 mm
H 309XShaft d1: 40 mm | Bearing bore d: 45 mm | B1: 39 mm | d2: 65 mm
H 2309XShaft d1: 40 mm | Bearing bore d: 45 mm | B1: 50 mm | d2: 65 mm
H 210XShaft d1: 45 mm | Bearing bore d: 50 mm | B1: 35 mm | d2: 70 mm
H 310XShaft d1: 45 mm | Bearing bore d: 50 mm | B1: 42 mm | d2: 70 mm
H 2310XShaft d1: 45 mm | Bearing bore d: 50 mm | B1: 55 mm | d2: 70 mm
H 211XShaft d1: 50 mm | Bearing bore d: 55 mm | B1: 37 mm | d2: 75 mm
H 311XShaft d1: 50 mm | Bearing bore d: 55 mm | B1: 45 mm | d2: 75 mm
H 2311XShaft d1: 50 mm | Bearing bore d: 55 mm | B1: 59 mm | d2: 75 mm
H 212XShaft d1: 55 mm | Bearing bore d: 60 mm | B1: 38 mm | d2: 80 mm
H 312XShaft d1: 55 mm | Bearing bore d: 60 mm | B1: 47 mm | d2: 80 mm
H 2312XShaft d1: 55 mm | Bearing bore d: 60 mm | B1: 62 mm | d2: 80 mm
H 213XShaft d1: 60 mm | Bearing bore d: 65 mm | B1: 40 mm | d2: 85 mm
H 313XShaft d1: 60 mm | Bearing bore d: 65 mm | B1: 50 mm | d2: 85 mm
H 2313XShaft d1: 60 mm | Bearing bore d: 65 mm | B1: 65 mm | d2: 85 mm
H 314XShaft d1: 60 mm | Bearing bore d: 70 mm | B1: 52 mm | d2: 92 mm
H 2314XShaft d1: 60 mm | Bearing bore d: 70 mm | B1: 68 mm | d2: 92 mm
H 215XShaft d1: 65 mm | Bearing bore d: 75 mm | B1: 43 mm | d2: 98 mm
H 315XShaft d1: 65 mm | Bearing bore d: 75 mm | B1: 55 mm | d2: 98 mm
H 2315XShaft d1: 65 mm | Bearing bore d: 75 mm | B1: 73 mm | d2: 98 mm
H 216XShaft d1: 70 mm | Bearing bore d: 80 mm | B1: 46 mm | d2: 105 mm
H 316XShaft d1: 70 mm | Bearing bore d: 80 mm | B1: 59 mm | d2: 105 mm
H 2316XShaft d1: 70 mm | Bearing bore d: 80 mm | B1: 78 mm | d2: 105 mm
H 217XShaft d1: 75 mm | Bearing bore d: 85 mm | B1: 50 mm | d2: 110 mm
H 317XShaft d1: 75 mm | Bearing bore d: 85 mm | B1: 63 mm | d2: 110 mm
H 2317XShaft d1: 75 mm | Bearing bore d: 85 mm | B1: 82 mm | d2: 110 mm
H 218XShaft d1: 80 mm | Bearing bore d: 90 mm | B1: 52 mm | d2: 120 mm
H 318XShaft d1: 80 mm | Bearing bore d: 90 mm | B1: 65 mm | d2: 120 mm
H 2318XShaft d1: 80 mm | Bearing bore d: 90 mm | B1: 86 mm | d2: 120 mm
H 219XShaft d1: 85 mm | Bearing bore d: 95 mm | B1: 55 mm | d2: 125 mm
H 319XShaft d1: 85 mm | Bearing bore d: 95 mm | B1: 68 mm | d2: 125 mm
H 2319XShaft d1: 85 mm | Bearing bore d: 95 mm | B1: 90 mm | d2: 125 mm
H 220XShaft d1: 90 mm | Bearing bore d: 100 mm | B1: 58 mm | d2: 130 mm
H 320XShaft d1: 90 mm | Bearing bore d: 100 mm | B1: 71 mm | d2: 130 mm
H 2320XShaft d1: 90 mm | Bearing bore d: 100 mm | B1: 97 mm | d2: 130 mm
H 3122XShaft d1: 100 mm | Bearing bore d: 110 mm | B1: 81 mm | d2: 145 mm
H 222XShaft d1: 100 mm | Bearing bore d: 110 mm | B1: 63 mm | d2: 145 mm
H 322XShaft d1: 100 mm | Bearing bore d: 110 mm | B1: 77 mm | d2: 145 mm
H 2322XShaft d1: 100 mm | Bearing bore d: 110 mm | B1: 105 mm | d2: 145 mm
H 3024Shaft d1: 110 mm | Bearing bore d: 120 mm | B1: 72 mm | d2: 145 mm
H 3124Shaft d1: 110 mm | Bearing bore d: 120 mm | B1: 88 mm | d2: 155 mm
H 2324Shaft d1: 110 mm | Bearing bore d: 120 mm | B1: 112 mm | d2: 155 mm
H 3026Shaft d1: 115 mm | Bearing bore d: 130 mm | B1: 80 mm | d2: 155 mm
H 3126Shaft d1: 115 mm | Bearing bore d: 130 mm | B1: 92 mm | d2: 165 mm
H 2326Shaft d1: 115 mm | Bearing bore d: 130 mm | B1: 121 mm | d2: 165 mm
H 3028Shaft d1: 125 mm | Bearing bore d: 140 mm | B1: 82 mm | d2: 165 mm
H 3128Shaft d1: 125 mm | Bearing bore d: 140 mm | B1: 97 mm | d2: 180 mm
H 2328Shaft d1: 125 mm | Bearing bore d: 140 mm | B1: 131 mm | d2: 180 mm
H 3030Shaft d1: 135 mm | Bearing bore d: 150 mm | B1: 87 mm | d2: 180 mm
H 3130Shaft d1: 135 mm | Bearing bore d: 150 mm | B1: 111 mm | d2: 195 mm
H 2330Shaft d1: 135 mm | Bearing bore d: 150 mm | B1: 139 mm | d2: 195 mm
H 3932Shaft d1: 140 mm | Bearing bore d: 160 mm | B1: 78 mm | d2: 190 mm
H 3032Shaft d1: 140 mm | Bearing bore d: 160 mm | B1: 93 mm | d2: 190 mm
H 3132Shaft d1: 140 mm | Bearing bore d: 160 mm | B1: 119 mm | d2: 210 mm
H 2332Shaft d1: 140 mm | Bearing bore d: 160 mm | B1: 147 mm | d2: 210 mm
H 3934Shaft d1: 140 mm | Bearing bore d: 170 mm | B1: 79 mm | d2: 200 mm
H 3034Shaft d1: 140 mm | Bearing bore d: 170 mm | B1: 101 mm | d2: 200 mm
H 3134Shaft d1: 140 mm | Bearing bore d: 170 mm | B1: 122 mm | d2: 220 mm
H 2334Shaft d1: 140 mm | Bearing bore d: 170 mm | B1: 154 mm | d2: 220 mm
H 3936Shaft d1: 160 mm | Bearing bore d: 180 mm | B1: 87 mm | d2: 210 mm
H 3036Shaft d1: 160 mm | Bearing bore d: 180 mm | B1: 109 mm | d2: 210 mm
H 3136Shaft d1: 160 mm | Bearing bore d: 180 mm | B1: 131 mm | d2: 230 mm
H 2336Shaft d1: 160 mm | Bearing bore d: 180 mm | B1: 161 mm | d2: 230 mm
H 3938Shaft d1: 170 mm | Bearing bore d: 190 mm | B1: 89 mm | d2: 220 mm
H 3038Shaft d1: 170 mm | Bearing bore d: 190 mm | B1: 112 mm | d2: 220 mm
H 3138Shaft d1: 170 mm | Bearing bore d: 190 mm | B1: 141 mm | d2: 240 mm
H 2338Shaft d1: 170 mm | Bearing bore d: 190 mm | B1: 169 mm | d2: 240 mm
H 3960Shaft d1: 280 mm | Bearing bore d: 300 mm | B1: 140 mm | d2: 360 mm
H 3060Shaft d1: 280 mm | Bearing bore d: 300 mm | B1: 168 mm | d2: 360 mm
H 3160Shaft d1: 280 mm | Bearing bore d: 300 mm | B1: 208 mm | d2: 380 mm
H 3260Shaft d1: 280 mm | Bearing bore d: 300 mm | B1: 240 mm | d2: 380 mm
H 3964Shaft d1: 300 mm | Bearing bore d: 320 mm | B1: 140 mm | d2: 380 mm
H 3064Shaft d1: 300 mm | Bearing bore d: 320 mm | B1: 171 mm | d2: 380 mm
H 3164Shaft d1: 300 mm | Bearing bore d: 320 mm | B1: 226 mm | d2: 400 mm
H 3264Shaft d1: 300 mm | Bearing bore d: 320 mm | B1: 258 mm | d2: 400 mm
H 3968Shaft d1: 320 mm | Bearing bore d: 340 mm | B1: 144 mm | d2: 400 mm
H 3068Shaft d1: 320 mm | Bearing bore d: 340 mm | B1: 187 mm | d2: 400 mm
H 3168Shaft d1: 320 mm | Bearing bore d: 340 mm | B1: 254 mm | d2: 440 mm
H 3268Shaft d1: 320 mm | Bearing bore d: 340 mm | B1: 288 mm | d2: 440 mm
H 3972Shaft d1: 320 mm | Bearing bore d: 360 mm | B1: 144 mm | d2: 420 mm
H 3072Shaft d1: 320 mm | Bearing bore d: 360 mm | B1: 188 mm | d2: 420 mm
H 3172Shaft d1: 320 mm | Bearing bore d: 360 mm | B1: 259 mm | d2: 460 mm
H 3272Shaft d1: 320 mm | Bearing bore d: 360 mm | B1: 299 mm | d2: 460 mm
H 3976Shaft d1: 360 mm | Bearing bore d: 380 mm | B1: 164 mm | d2: 450 mm
H 3076Shaft d1: 360 mm | Bearing bore d: 380 mm | B1: 193 mm | d2: 450 mm
H 3176Shaft d1: 360 mm | Bearing bore d: 380 mm | B1: 264 mm | d2: 490 mm
H 3276Shaft d1: 360 mm | Bearing bore d: 380 mm | B1: 310 mm | d2: 490 mm
H 3980Shaft d1: 380 mm | Bearing bore d: 400 mm | B1: 168 mm | d2: 470 mm
H 3080Shaft d1: 380 mm | Bearing bore d: 400 mm | B1: 210 mm | d2: 470 mm
H 3180Shaft d1: 380 mm | Bearing bore d: 400 mm | B1: 272 mm | d2: 520 mm
H 3280Shaft d1: 380 mm | Bearing bore d: 400 mm | B1: 328 mm | d2: 520 mm
H 3984Shaft d1: 400 mm | Bearing bore d: 420 mm | B1: 168 mm | d2: 490 mm
H 3084Shaft d1: 400 mm | Bearing bore d: 420 mm | B1: 212 mm | d2: 490 mm
H 3184Shaft d1: 400 mm | Bearing bore d: 420 mm | B1: 304 mm | d2: 540 mm
H 3284Shaft d1: 400 mm | Bearing bore d: 420 mm | B1: 352 mm | d2: 540 mm
H 3988Shaft d1: 410 mm | Bearing bore d: 440 mm | B1: 189 mm | d2: 520 mm
H 3088Shaft d1: 410 mm | Bearing bore d: 440 mm | B1: 228 mm | d2: 520 mm
H 3188Shaft d1: 410 mm | Bearing bore d: 440 mm | B1: 307 mm | d2: 560 mm
H 3288Shaft d1: 410 mm | Bearing bore d: 440 mm | B1: 361 mm | d2: 560 mm
H 3992Shaft d1: 430 mm | Bearing bore d: 460 mm | B1: 189 mm | d2: 540 mm
H 3092Shaft d1: 430 mm | Bearing bore d: 460 mm | B1: 234 mm | d2: 540 mm
H 3192Shaft d1: 430 mm | Bearing bore d: 460 mm | B1: 326 mm | d2: 580 mm
H 3292Shaft d1: 430 mm | Bearing bore d: 460 mm | B1: 382 mm | d2: 580 mm
H 3996Shaft d1: 450 mm | Bearing bore d: 480 mm | B1: 200 mm | d2: 560 mm
H 3096Shaft d1: 450 mm | Bearing bore d: 480 mm | B1: 237 mm | d2: 560 mm
H 3196Shaft d1: 450 mm | Bearing bore d: 480 mm | B1: 335 mm | d2: 620 mm
H 3296Shaft d1: 450 mm | Bearing bore d: 480 mm | B1: 397 mm | d2: 620 mm
H 39/500Shaft d1: 470 mm | Bearing bore d: 500 mm | B1: 208 mm | d2: 580 mm
H 30/500Shaft d1: 470 mm | Bearing bore d: 500 mm | B1: 247 mm | d2: 580 mm
H 31/500Shaft d1: 470 mm | Bearing bore d: 500 mm | B1: 356 mm | d2: 630 mm
H 32/500Shaft d1: 470 mm | Bearing bore d: 500 mm | B1: 428 mm | d2: 630 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
