NSK JAW Bellows for LW Series Linear Guides

NSK JAW Bellows for LW Series Linear Guides

NSK JAW bellows cover the rail of LW Series linear guides to protect the rolling surfaces from chips and dust. The full reference number adds the number of folds (BL), e.g. JAW17N08.

Key features

  • Covers the complete linear guide rail
  • High type (N) and low type (L) to suit slide height codes
  • Bellows for the ends (A) and middle bellows (B)
  • Fold number BL selected to suit stroke; one BL = 6 folds

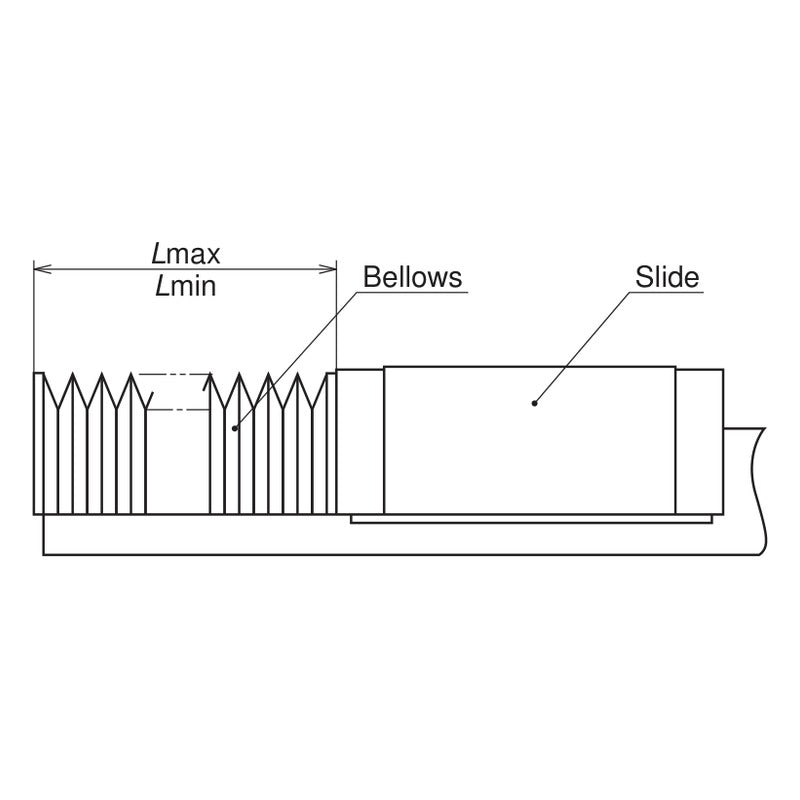

  • Stroke = Lmax - Lmin

Specifications

Applicable series LW
Reference number JAW + size + N/L + number of BL (e.g. 08)
BL range in table 2 to 20 (odd BL by interpolation)
Max stroke column Stroke at 20 BL
Brand NSK
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. A238
JAW17N Type: High type (N) | Height H: 25.5 mm | Width W: 68 mm | Max stroke (20 BL): 1760 mm
JAW21N Type: High type (N) | Height H: 29 mm | Width W: 75 mm | Max stroke (20 BL): 2040 mm
JAW27N Type: High type (N) | Height H: 37 mm | Width W: 85 mm | Max stroke (20 BL): 2460 mm
JAW35L Type: Low type (L) | Height H: 34 mm | Width W: 100 mm | Max stroke (20 BL): 1620 mm
JAW35N Type: High type (N) | Height H: 41 mm | Width W: 115 mm | Max stroke (20 BL): 2180 mm
JAW50L Type: Low type (L) | Height H: 46.5 mm | Width W: 135 mm | Max stroke (20 BL): 2460 mm
JAW50N Type: High type (N) | Height H: 56.5 mm | Width W: 160 mm | Max stroke (20 BL): 3860 mm
Bearing AccessoriesNSK
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK JAW Bellows for LW Series Linear Guides

Brand NSK·Bearing Accessories

Available part numbers (7)

JAW17N, JAW21N, JAW27N, JAW35L, JAW35N, JAW50L, JAW50N

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JAW17NType: High type (N) | Height H: 25.5 mm | Width W: 68 mm | Max stroke (20 BL): 1760 mm
JAW21NType: High type (N) | Height H: 29 mm | Width W: 75 mm | Max stroke (20 BL): 2040 mm
JAW27NType: High type (N) | Height H: 37 mm | Width W: 85 mm | Max stroke (20 BL): 2460 mm
JAW35LType: Low type (L) | Height H: 34 mm | Width W: 100 mm | Max stroke (20 BL): 1620 mm
JAW35NType: High type (N) | Height H: 41 mm | Width W: 115 mm | Max stroke (20 BL): 2180 mm
JAW50LType: Low type (L) | Height H: 46.5 mm | Width W: 135 mm | Max stroke (20 BL): 2460 mm
JAW50NType: High type (N) | Height H: 56.5 mm | Width W: 160 mm | Max stroke (20 BL): 3860 mm
