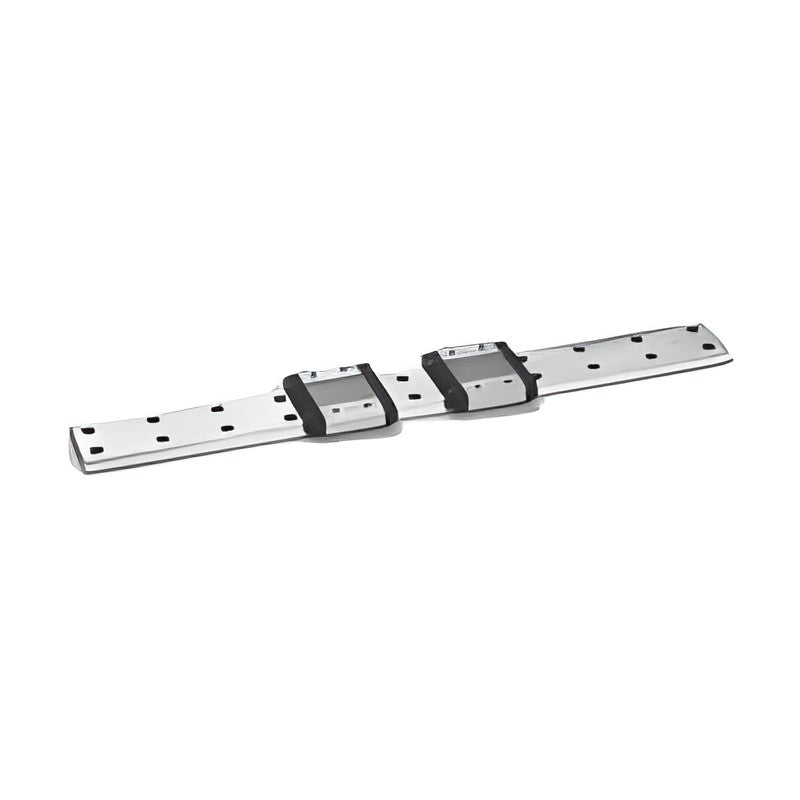

NSK LE Series miniature wide-rail linear guides offer high moment capacity for compact single-rail designs. Sizes 05 to 15.

Key features

  • Wide miniature rail for high rolling-moment capacity
  • Stainless steel construction
  • Standard, long and short ball slide lengths
  • Versions with ball retainer (AR) available
  • NSK K1 lubrication unit available

Specifications

Series LE
Application LCD and semiconductor equipment
Sizes 05, 07, 09, 12, 15
Slide shape codes AL, AR, BL, CL, SL, TL, TR, UL
Load rating basis C for 50 km rated life
Reference number Series+size+rail length+shape+material+slides/rail-serial+accuracy+preload
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. A321-A334
LE05AL Rail width W1: 10 mm | Height H: 6.5 mm | Width W: 17 mm | Length L: 24 mm | C: 0.725 kN | C0: 1.11 kN
LE05CL Rail width W1: 10 mm | Height H: 6.5 mm | Width W: 17 mm | Length L: 20 mm | C: 0.595 kN | C0: 0.835 kN
LE07TL Rail width W1: 14 mm | Height H: 9 mm | Width W: 25 mm | Length L: 31 mm | C: 1.58 kN | C0: 2.35 kN
LE07UL Rail width W1: 14 mm | Height H: 9 mm | Width W: 25 mm | Length L: 42 mm | C: 2.18 kN | C0: 3.7 kN
LE07SL Rail width W1: 14 mm | Height H: 9 mm | Width W: 25 mm | Length L: 22.4 mm | C: 0.98 kN | C0: 1.17 kN
LE09AR Rail width W1: 18 mm | Height H: 12 mm | Width W: 30 mm | Length L: 39.8 mm | C: 3 kN | C0: 4.5 kN
LE09TL Rail width W1: 18 mm | Height H: 12 mm | Width W: 30 mm | Length L: 39 mm | C: 3 kN | C0: 4.5 kN
LE09TR Rail width W1: 18 mm | Height H: 12 mm | Width W: 30 mm | Length L: 39.8 mm | C: 3 kN | C0: 4.5 kN
LE09BL Rail width W1: 18 mm | Height H: 12 mm | Width W: 30 mm | Length L: 50.4 mm | C: 4 kN | C0: 6.7 kN
LE09UL Rail width W1: 18 mm | Height H: 12 mm | Width W: 30 mm | Length L: 50.4 mm | C: 4 kN | C0: 6.7 kN
LE09CL Rail width W1: 18 mm | Height H: 12 mm | Width W: 30 mm | Length L: 26.4 mm | C: 1.86 kN | C0: 2.24 kN
LE09SL Rail width W1: 18 mm | Height H: 12 mm | Width W: 30 mm | Length L: 26.4 mm | C: 1.86 kN | C0: 2.24 kN
LE12AL Rail width W1: 24 mm | Height H: 14 mm | Width W: 40 mm | Length L: 44 mm | C: 4.35 kN | C0: 6.35 kN
LE12AR Rail width W1: 24 mm | Height H: 14 mm | Width W: 40 mm | Length L: 45 mm | C: 4.35 kN | C0: 6.35 kN
LE12BL Rail width W1: 24 mm | Height H: 14 mm | Width W: 40 mm | Length L: 59 mm | C: 5.8 kN | C0: 9.55 kN
LE12CL Rail width W1: 24 mm | Height H: 14 mm | Width W: 40 mm | Length L: 30.5 mm | C: 2.7 kN | C0: 3.15 kN
LE15AR Rail width W1: 42 mm | Height H: 16 mm | Width W: 60 mm | Length L: 56.6 mm | C: 7.6 kN | C0: 10.4 kN
LE15BL Rail width W1: 42 mm | Height H: 16 mm | Width W: 60 mm | Length L: 74.4 mm | C: 10.3 kN | C0: 16 kN
LE15CL Rail width W1: 42 mm | Height H: 16 mm | Width W: 60 mm | Length L: 41.4 mm | C: 5 kN | C0: 5.65 kN
Linear GuidesNSK
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK LE Series Miniature Wide Linear Guides (LCD/semiconductor)

Brand NSK·Linear Guides

Available part numbers (19)

LE05AL, LE05CL, LE07TL, LE07UL, LE07SL, LE09AR, LE09TL, LE09TR, LE09BL, LE09UL + 9 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LE05ALRail width W1: 10 mm | Height H: 6.5 mm | Width W: 17 mm | Length L: 24 mm | C: 0.725 kN | C0: 1.11 kN
LE05CLRail width W1: 10 mm | Height H: 6.5 mm | Width W: 17 mm | Length L: 20 mm | C: 0.595 kN | C0: 0.835 kN
LE07TLRail width W1: 14 mm | Height H: 9 mm | Width W: 25 mm | Length L: 31 mm | C: 1.58 kN | C0: 2.35 kN
LE07ULRail width W1: 14 mm | Height H: 9 mm | Width W: 25 mm | Length L: 42 mm | C: 2.18 kN | C0: 3.7 kN
LE07SLRail width W1: 14 mm | Height H: 9 mm | Width W: 25 mm | Length L: 22.4 mm | C: 0.98 kN | C0: 1.17 kN
LE09ARRail width W1: 18 mm | Height H: 12 mm | Width W: 30 mm | Length L: 39.8 mm | C: 3 kN | C0: 4.5 kN
LE09TLRail width W1: 18 mm | Height H: 12 mm | Width W: 30 mm | Length L: 39 mm | C: 3 kN | C0: 4.5 kN
LE09TRRail width W1: 18 mm | Height H: 12 mm | Width W: 30 mm | Length L: 39.8 mm | C: 3 kN | C0: 4.5 kN
LE09BLRail width W1: 18 mm | Height H: 12 mm | Width W: 30 mm | Length L: 50.4 mm | C: 4 kN | C0: 6.7 kN
LE09ULRail width W1: 18 mm | Height H: 12 mm | Width W: 30 mm | Length L: 50.4 mm | C: 4 kN | C0: 6.7 kN
LE09CLRail width W1: 18 mm | Height H: 12 mm | Width W: 30 mm | Length L: 26.4 mm | C: 1.86 kN | C0: 2.24 kN
LE09SLRail width W1: 18 mm | Height H: 12 mm | Width W: 30 mm | Length L: 26.4 mm | C: 1.86 kN | C0: 2.24 kN
LE12ALRail width W1: 24 mm | Height H: 14 mm | Width W: 40 mm | Length L: 44 mm | C: 4.35 kN | C0: 6.35 kN
LE12ARRail width W1: 24 mm | Height H: 14 mm | Width W: 40 mm | Length L: 45 mm | C: 4.35 kN | C0: 6.35 kN
LE12BLRail width W1: 24 mm | Height H: 14 mm | Width W: 40 mm | Length L: 59 mm | C: 5.8 kN | C0: 9.55 kN
LE12CLRail width W1: 24 mm | Height H: 14 mm | Width W: 40 mm | Length L: 30.5 mm | C: 2.7 kN | C0: 3.15 kN
LE15ARRail width W1: 42 mm | Height H: 16 mm | Width W: 60 mm | Length L: 56.6 mm | C: 7.6 kN | C0: 10.4 kN
LE15BLRail width W1: 42 mm | Height H: 16 mm | Width W: 60 mm | Length L: 74.4 mm | C: 10.3 kN | C0: 16 kN
LE15CLRail width W1: 42 mm | Height H: 16 mm | Width W: 60 mm | Length L: 41.4 mm | C: 5 kN | C0: 5.65 kN
