NSK LG-CAP Rail Mounting Bolt Hole Caps (M3-M16)

NSK LG-CAP Rail Mounting Bolt Hole Caps (M3-M16)

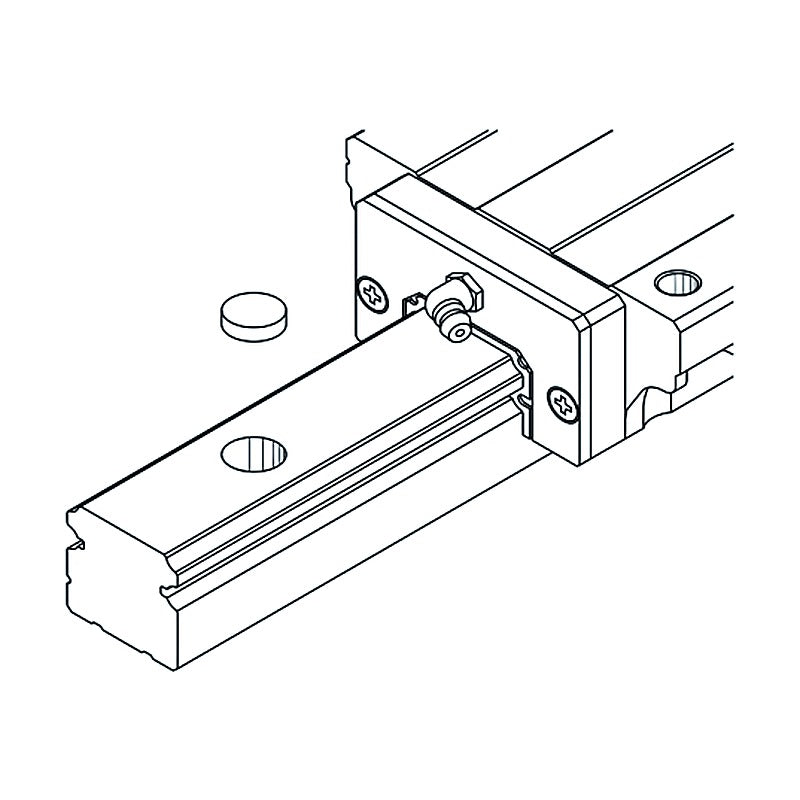

Synthetic resin caps that close the counterbored rail mounting bolt holes of NSK linear guide rails, preventing chips and dust from collecting in the holes and entering the slide.

Key features

  • Made of synthetic resin with good oil and wear resistance
  • Pressed in flush with the rail top using a flat tool
  • Sized by rail mounting bolt from M3 to M16
  • Supplied 20 pieces per case
  • Common to SH, SS, LH, LS, VH, LW, TS, RA, LA, HA and HS Series

Specifications

Material Synthetic resin
Packing 20 pcs per case
Bolt sizes M3, M4, M5, M6, M8, M12, M14, M16
Brand NSK
Product type Bearing Accessories
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. A54, A124, A148, A170, A194, A216, A260
LG-CAP/M3 Rail bolt: M3 | Qty per case: 20 | Fits e.g.: HS15, LH10, LH12, LS15, SS15
LG-CAP/M4 Rail bolt: M4 | Qty per case: 20 | Fits e.g.: HS15, LH15, LS15, LW17, LW21
LG-CAP/M5 Rail bolt: M5 | Qty per case: 20 | Fits e.g.: HS20, LH20, LS20, RA20, SH20
LG-CAP/M6 Rail bolt: M6 | Qty per case: 20 | Fits e.g.: HA25, HS25, HS30, LA25, LH25
LG-CAP/M8 Rail bolt: M8 | Qty per case: 20 | Fits e.g.: HA30, HA35, HS35, LA30, LA35
LG-CAP/M12 Rail bolt: M12 | Qty per case: 20 | Fits e.g.: HA45, LA45, LH45, RA45, SH45
LG-CAP/M14 Rail bolt: M14 | Qty per case: 20 | Fits e.g.: HA55, LA55, LH55, RA55, SH55
LG-CAP/M16 Rail bolt: M16 | Qty per case: 20 | Fits e.g.: LA65, LH65, RA65
Bearing AccessoriesNSK
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK LG-CAP Rail Mounting Bolt Hole Caps (M3-M16)

Brand NSK·Bearing Accessories

Available part numbers (8)

LG-CAP/M3, LG-CAP/M4, LG-CAP/M5, LG-CAP/M6, LG-CAP/M8, LG-CAP/M12, LG-CAP/M14, LG-CAP/M16

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LG-CAP/M3Rail bolt: M3 | Qty per case: 20 | Fits e.g.: HS15, LH10, LH12, LS15, SS15
LG-CAP/M4Rail bolt: M4 | Qty per case: 20 | Fits e.g.: HS15, LH15, LS15, LW17, LW21
LG-CAP/M5Rail bolt: M5 | Qty per case: 20 | Fits e.g.: HS20, LH20, LS20, RA20, SH20
LG-CAP/M6Rail bolt: M6 | Qty per case: 20 | Fits e.g.: HA25, HS25, HS30, LA25, LH25
LG-CAP/M8Rail bolt: M8 | Qty per case: 20 | Fits e.g.: HA30, HA35, HS35, LA30, LA35
LG-CAP/M12Rail bolt: M12 | Qty per case: 20 | Fits e.g.: HA45, LA45, LH45, RA45, SH45
LG-CAP/M14Rail bolt: M14 | Qty per case: 20 | Fits e.g.: HA55, LA55, LH55, RA55, SH55
LG-CAP/M16Rail bolt: M16 | Qty per case: 20 | Fits e.g.: LA65, LH65, RA65
