• NSK MA Type Miniature Ball Screws, Finished Shaft End (Fine Lead)
1 1

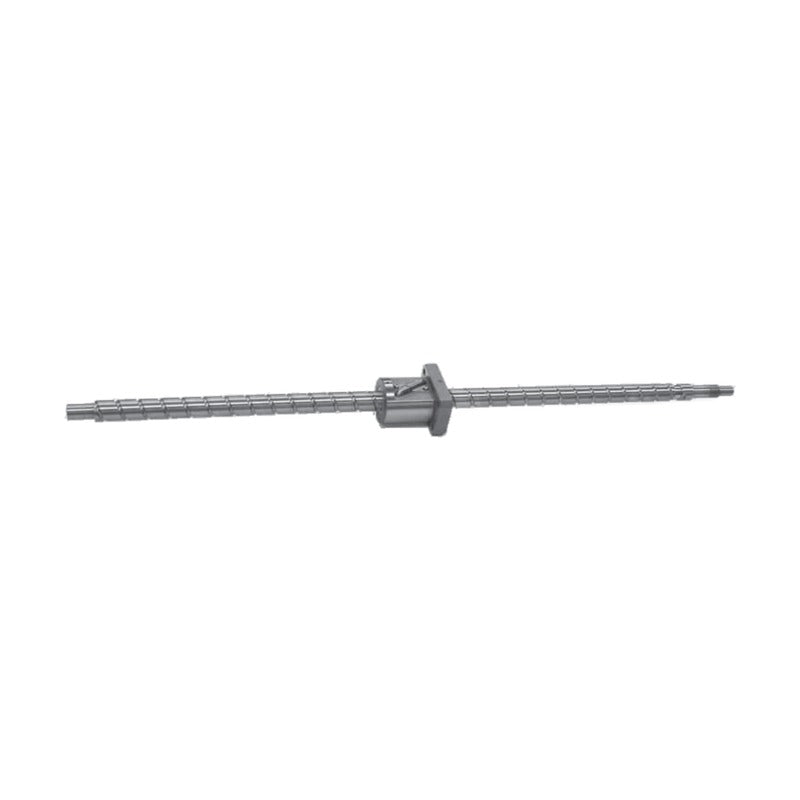

NSK MA Type Miniature Ball Screws, Finished Shaft End (Fine Lead)

NSK MA Type Miniature Ball Screws, Finished Shaft End (Fine Lead)

NSK MA type standard ball screws are miniature, fine-lead ball screws with finished shaft ends and MPFD/MSFD deflector nuts.

Key features

  • Miniature shaft diameters 4 to 16 mm
  • Fine leads 1 to 2.5 mm
  • Preloaded (MPFD) and precise-clearance (MSFD) nuts
  • Accuracy grade C3
  • Finished shaft ends for NSK support units

Specifications

Type MA (finished shaft end)
Nut models MPFD (preloaded), MSFD (clearance)
Accuracy grade C3
Brand NSK
Product type Ball Screws
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. B241-B264
W0400MA-1PY-C3Z1 Shaft x lead: 4 x 1 mm | Stroke: 20 mm | Accuracy: C3 | Axial play: Z | Ca: 0.315 kN | C0a: 0.37 kN
W0400MA-2Y-C3T1 Shaft x lead: 4 x 1 mm | Stroke: 20 mm | Accuracy: C3 | Axial play: T | Ca: 0.315 kN | C0a: 0.37 kN
W0400MA-3PY-C3Z1 Shaft x lead: 4 x 1 mm | Stroke: 40 mm | Accuracy: C3 | Axial play: Z | Ca: 0.315 kN | C0a: 0.37 kN
W0400MA-4Y-C3T1 Shaft x lead: 4 x 1 mm | Stroke: 40 mm | Accuracy: C3 | Axial play: T | Ca: 0.315 kN | C0a: 0.37 kN
W0401MA-1PY-C3Z1 Shaft x lead: 4 x 1 mm | Stroke: 70 mm | Accuracy: C3 | Axial play: Z | Ca: 0.315 kN | C0a: 0.37 kN
W0401MA-2Y-C3T1 Shaft x lead: 4 x 1 mm | Stroke: 70 mm | Accuracy: C3 | Axial play: T | Ca: 0.315 kN | C0a: 0.37 kN
W0600MA-1PY-C3Z1 Shaft x lead: 6 x 1 mm | Stroke: 40 mm | Accuracy: C3 | Axial play: Z | Ca: 0.575 kN | C0a: 0.925 kN
W0600MA-2Y-C3T1 Shaft x lead: 6 x 1 mm | Stroke: 40 mm | Accuracy: C3 | Axial play: T | Ca: 0.575 kN | C0a: 0.925 kN
W0601MA-1PY-C3Z1 Shaft x lead: 6 x 1 mm | Stroke: 70 mm | Accuracy: C3 | Axial play: Z | Ca: 0.575 kN | C0a: 0.925 kN
W0601MA-2Y-C3T1 Shaft x lead: 6 x 1 mm | Stroke: 70 mm | Accuracy: C3 | Axial play: T | Ca: 0.575 kN | C0a: 0.925 kN
W0601MA-3PY-C3Z1 Shaft x lead: 6 x 1 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 0.575 kN | C0a: 0.925 kN
W0601MA-4Y-C3T1 Shaft x lead: 6 x 1 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: T | Ca: 0.575 kN | C0a: 0.925 kN
W0800MA-1PY-C3Z1 Shaft x lead: 8 x 1 mm | Stroke: 40 mm | Accuracy: C3 | Axial play: Z | Ca: 0.67 kN | C0a: 1.29 kN
W0800MA-2Y-C3T1 Shaft x lead: 8 x 1 mm | Stroke: 40 mm | Accuracy: C3 | Axial play: T | Ca: 0.67 kN | C0a: 1.29 kN
W0801MA-1PY-C3Z1 Shaft x lead: 8 x 1 mm | Stroke: 70 mm | Accuracy: C3 | Axial play: Z | Ca: 0.67 kN | C0a: 1.29 kN
W0801MA-2Y-C3T1 Shaft x lead: 8 x 1 mm | Stroke: 70 mm | Accuracy: C3 | Axial play: T | Ca: 0.67 kN | C0a: 1.29 kN
W0801MA-3PY-C3Z1 Shaft x lead: 8 x 1 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 0.67 kN | C0a: 1.29 kN
W0801MA-4Y-C3T1 Shaft x lead: 8 x 1 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: T | Ca: 0.67 kN | C0a: 1.29 kN
W0802MA-1PY-C3Z1 Shaft x lead: 8 x 1 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: Z | Ca: 0.67 kN | C0a: 1.29 kN
W0802MA-2Y-C3T1 Shaft x lead: 8 x 1 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: T | Ca: 0.67 kN | C0a: 1.29 kN
W0800MA-3PY-C3Z1.5 Shaft x lead: 8 x 1.5 mm | Stroke: 40 mm | Accuracy: C3 | Axial play: Z | Ca: 1.08 kN | C0a: 1.98 kN
W0800MA-4Y-C3T1.5 Shaft x lead: 8 x 1.5 mm | Stroke: 40 mm | Accuracy: C3 | Axial play: T | Ca: 1.08 kN | C0a: 1.98 kN
W0801MA-5PY-C3Z1.5 Shaft x lead: 8 x 1.5 mm | Stroke: 70 mm | Accuracy: C3 | Axial play: Z | Ca: 1.08 kN | C0a: 1.98 kN
W0801MA-6Y-C3T1.5 Shaft x lead: 8 x 1.5 mm | Stroke: 70 mm | Accuracy: C3 | Axial play: T | Ca: 1.08 kN | C0a: 1.98 kN
W0801MA-7PY-C3Z1.5 Shaft x lead: 8 x 1.5 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 1.08 kN | C0a: 1.98 kN
W0801MA-8Y-C3T1.5 Shaft x lead: 8 x 1.5 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: T | Ca: 1.08 kN | C0a: 1.98 kN
W0802MA-3PY-C3Z1.5 Shaft x lead: 8 x 1.5 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: Z | Ca: 1.08 kN | C0a: 1.98 kN
W0802MA-4Y-C3T1.5 Shaft x lead: 8 x 1.5 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: T | Ca: 1.08 kN | C0a: 1.98 kN
W0800MA-5PY-C3Z2 Shaft x lead: 8 x 2 mm | Stroke: 40 mm | Accuracy: C3 | Axial play: Z | Ca: 1.32 kN | C0a: 2.21 kN
W0800MA-6Y-C3T2 Shaft x lead: 8 x 2 mm | Stroke: 40 mm | Accuracy: C3 | Axial play: T | Ca: 1.32 kN | C0a: 2.21 kN
W0801MA-9PY-C3Z2 Shaft x lead: 8 x 2 mm | Stroke: 70 mm | Accuracy: C3 | Axial play: Z | Ca: 1.32 kN | C0a: 2.21 kN
W0801MA-10Y-C3T2 Shaft x lead: 8 x 2 mm | Stroke: 70 mm | Accuracy: C3 | Axial play: T | Ca: 1.32 kN | C0a: 2.21 kN
W0801MA-11PY-C3Z2 Shaft x lead: 8 x 2 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 1.32 kN | C0a: 2.21 kN
W0801MA-12Y-C3T2 Shaft x lead: 8 x 2 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: T | Ca: 1.32 kN | C0a: 2.21 kN
W0802MA-5PY-C3Z2 Shaft x lead: 8 x 2 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: Z | Ca: 1.32 kN | C0a: 2.21 kN
W0802MA-6Y-C3T2 Shaft x lead: 8 x 2 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: T | Ca: 1.32 kN | C0a: 2.21 kN
W1001MA-1PY-C3Z2 Shaft x lead: 10 x 2 mm | Stroke: 50 mm | Accuracy: C3 | Axial play: Z | Ca: 1.49 kN | C0a: 2.85 kN
W1001MA-2Y-C3T2 Shaft x lead: 10 x 2 mm | Stroke: 50 mm | Accuracy: C3 | Axial play: T | Ca: 1.49 kN | C0a: 2.85 kN
W1001MA-3PY-C3Z2 Shaft x lead: 10 x 2 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 1.49 kN | C0a: 2.85 kN
W1001MA-4Y-C3T2 Shaft x lead: 10 x 2 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: T | Ca: 1.49 kN | C0a: 2.85 kN
W1002MA-1PY-C3Z2 Shaft x lead: 10 x 2 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: Z | Ca: 1.49 kN | C0a: 2.85 kN
W1002MA-2Y-C3T2 Shaft x lead: 10 x 2 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: T | Ca: 1.49 kN | C0a: 2.85 kN
W1002MA-3PY-C3Z2 Shaft x lead: 10 x 2 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: Z | Ca: 1.49 kN | C0a: 2.85 kN
W1002MA-4Y-C3T2 Shaft x lead: 10 x 2 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: T | Ca: 1.49 kN | C0a: 2.85 kN
W1001MA-5PY-C3Z2.5 Shaft x lead: 10 x 2.5 mm | Stroke: 50 mm | Accuracy: C3 | Axial play: Z | Ca: 2.13 kN | C0a: 3.64 kN
W1001MA-6Y-C3T2.5 Shaft x lead: 10 x 2.5 mm | Stroke: 50 mm | Accuracy: C3 | Axial play: T | Ca: 2.13 kN | C0a: 3.64 kN
W1001MA-7PY-C3Z2.5 Shaft x lead: 10 x 2.5 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 2.13 kN | C0a: 3.64 kN
W1001MA-8Y-C3T2.5 Shaft x lead: 10 x 2.5 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: T | Ca: 2.13 kN | C0a: 3.64 kN
W1002MA-5PY-C3Z2.5 Shaft x lead: 10 x 2.5 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: Z | Ca: 2.13 kN | C0a: 3.64 kN
W1002MA-6Y-C3T2.5 Shaft x lead: 10 x 2.5 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: T | Ca: 2.13 kN | C0a: 3.64 kN
W1002MA-7PY-C3Z2.5 Shaft x lead: 10 x 2.5 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: Z | Ca: 2.13 kN | C0a: 3.64 kN
W1002MA-8Y-C3T2.5 Shaft x lead: 10 x 2.5 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: T | Ca: 2.13 kN | C0a: 3.64 kN
W1201MA-1PY-C3Z2 Shaft x lead: 12 x 2 mm | Stroke: 50 mm | Accuracy: C3 | Axial play: Z | Ca: 1.66 kN | C0a: 3.62 kN
W1201MA-2Y-C3T2 Shaft x lead: 12 x 2 mm | Stroke: 50 mm | Accuracy: C3 | Axial play: T | Ca: 1.66 kN | C0a: 3.62 kN
W1201MA-3PY-C3Z2 Shaft x lead: 12 x 2 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 1.66 kN | C0a: 3.62 kN
W1201MA-4Y-C3T2 Shaft x lead: 12 x 2 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: T | Ca: 1.66 kN | C0a: 3.62 kN
W1202MA-1PY-C3Z2 Shaft x lead: 12 x 2 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: Z | Ca: 1.66 kN | C0a: 3.62 kN
W1202MA-2Y-C3T2 Shaft x lead: 12 x 2 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: T | Ca: 1.66 kN | C0a: 3.62 kN
W1202MA-3PY-C3Z2 Shaft x lead: 12 x 2 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: Z | Ca: 1.66 kN | C0a: 3.62 kN
W1202MA-4Y-C3T2 Shaft x lead: 12 x 2 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: T | Ca: 1.66 kN | C0a: 3.62 kN
W1203MA-1PY-C3Z2 Shaft x lead: 12 x 2 mm | Stroke: 250 mm | Accuracy: C3 | Axial play: Z | Ca: 1.66 kN | C0a: 3.62 kN
W1203MA-2Y-C3T2 Shaft x lead: 12 x 2 mm | Stroke: 250 mm | Accuracy: C3 | Axial play: T | Ca: 1.66 kN | C0a: 3.62 kN
W1201MA-5PY-C3Z2.5 Shaft x lead: 12 x 2.5 mm | Stroke: 50 mm | Accuracy: C3 | Axial play: Z | Ca: 2.36 kN | C0a: 4.54 kN
W1201MA-6Y-C3T2.5 Shaft x lead: 12 x 2.5 mm | Stroke: 50 mm | Accuracy: C3 | Axial play: T | Ca: 2.36 kN | C0a: 4.54 kN
W1201MA-7PY-C3Z2.5 Shaft x lead: 12 x 2.5 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 2.36 kN | C0a: 4.54 kN
W1201MA-8Y-C3T2.5 Shaft x lead: 12 x 2.5 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: T | Ca: 2.36 kN | C0a: 4.54 kN
W1202MA-5PY-C3Z2.5 Shaft x lead: 12 x 2.5 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: Z | Ca: 2.36 kN | C0a: 4.54 kN
W1202MA-6Y-C3T2.5 Shaft x lead: 12 x 2.5 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: T | Ca: 2.36 kN | C0a: 4.54 kN
W1202MA-7PY-C3Z2.5 Shaft x lead: 12 x 2.5 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: Z | Ca: 2.36 kN | C0a: 4.54 kN
W1202MA-8Y-C3T2.5 Shaft x lead: 12 x 2.5 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: T | Ca: 2.36 kN | C0a: 4.54 kN
W1203MA-3PY-C3Z2.5 Shaft x lead: 12 x 2.5 mm | Stroke: 250 mm | Accuracy: C3 | Axial play: Z | Ca: 2.36 kN | C0a: 4.54 kN
W1203MA-4Y-C3T2.5 Shaft x lead: 12 x 2.5 mm | Stroke: 250 mm | Accuracy: C3 | Axial play: T | Ca: 2.36 kN | C0a: 4.54 kN
W1601MA-1PY-C3Z2 Shaft x lead: 16 x 2 mm | Stroke: 50 mm | Accuracy: C3 | Axial play: Z | Ca: 3.51 kN | C0a: 8.45 kN
W1601MA-2Y-C3T2 Shaft x lead: 16 x 2 mm | Stroke: 50 mm | Accuracy: C3 | Axial play: T | Ca: 3.51 kN | C0a: 8.45 kN
W1601MA-3PY-C3Z2 Shaft x lead: 16 x 2 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 3.51 kN | C0a: 8.45 kN
W1601MA-4Y-C3T2 Shaft x lead: 16 x 2 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: T | Ca: 3.51 kN | C0a: 8.45 kN
W1602MA-1PY-C3Z2 Shaft x lead: 16 x 2 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: Z | Ca: 3.51 kN | C0a: 8.45 kN
W1602MA-2Y-C3T2 Shaft x lead: 16 x 2 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: T | Ca: 3.51 kN | C0a: 8.45 kN
W1602MA-3PY-C3Z2 Shaft x lead: 16 x 2 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: Z | Ca: 3.51 kN | C0a: 8.45 kN
W1602MA-4Y-C3T2 Shaft x lead: 16 x 2 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: T | Ca: 3.51 kN | C0a: 8.45 kN
W1603MA-1PY-C3Z2 Shaft x lead: 16 x 2 mm | Stroke: 300 mm | Accuracy: C3 | Axial play: Z | Ca: 3.51 kN | C0a: 8.45 kN
W1603MA-2Y-C3T2 Shaft x lead: 16 x 2 mm | Stroke: 300 mm | Accuracy: C3 | Axial play: T | Ca: 3.51 kN | C0a: 8.45 kN
W1601MA-5PY-C3Z2.5 Shaft x lead: 16 x 2.5 mm | Stroke: 50 mm | Accuracy: C3 | Axial play: Z | Ca: 3.51 kN | C0a: 8.45 kN
W1601MA-6Y-C3T2.5 Shaft x lead: 16 x 2.5 mm | Stroke: 50 mm | Accuracy: C3 | Axial play: T | Ca: 3.51 kN | C0a: 8.45 kN
W1601MA-7PY-C3Z2.5 Shaft x lead: 16 x 2.5 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 3.51 kN | C0a: 8.45 kN
W1601MA-8Y-C3T2.5 Shaft x lead: 16 x 2.5 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: T | Ca: 3.51 kN | C0a: 8.45 kN
W1602MA-5PY-C3Z2.5 Shaft x lead: 16 x 2.5 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: Z | Ca: 3.51 kN | C0a: 8.45 kN
W1602MA-6Y-C3T2.5 Shaft x lead: 16 x 2.5 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: T | Ca: 3.51 kN | C0a: 8.45 kN
W1602MA-7PY-C3Z2.5 Shaft x lead: 16 x 2.5 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: Z | Ca: 3.51 kN | C0a: 8.45 kN
W1602MA-8Y-C3T2.5 Shaft x lead: 16 x 2.5 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: T | Ca: 3.51 kN | C0a: 8.45 kN
W1603MA-3PY-C3Z2.5 Shaft x lead: 16 x 2.5 mm | Stroke: 300 mm | Accuracy: C3 | Axial play: Z | Ca: 3.51 kN | C0a: 8.45 kN
W1603MA-4Y-C3T2.5 Shaft x lead: 16 x 2.5 mm | Stroke: 300 mm | Accuracy: C3 | Axial play: T | Ca: 3.51 kN | C0a: 8.45 kN
Ball ScrewsNSK
92 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK MA Type Miniature Ball Screws, Finished Shaft End (Fine Lead)

Brand NSK·Ball Screws

Available part numbers (92)

W0400MA-1PY-C3Z1, W0400MA-2Y-C3T1, W0400MA-3PY-C3Z1, W0400MA-4Y-C3T1, W0401MA-1PY-C3Z1, W0401MA-2Y-C3T1, W0600MA-1PY-C3Z1, W0600MA-2Y-C3T1, W0601MA-1PY-C3Z1, W0601MA-2Y-C3T1 + 82 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
