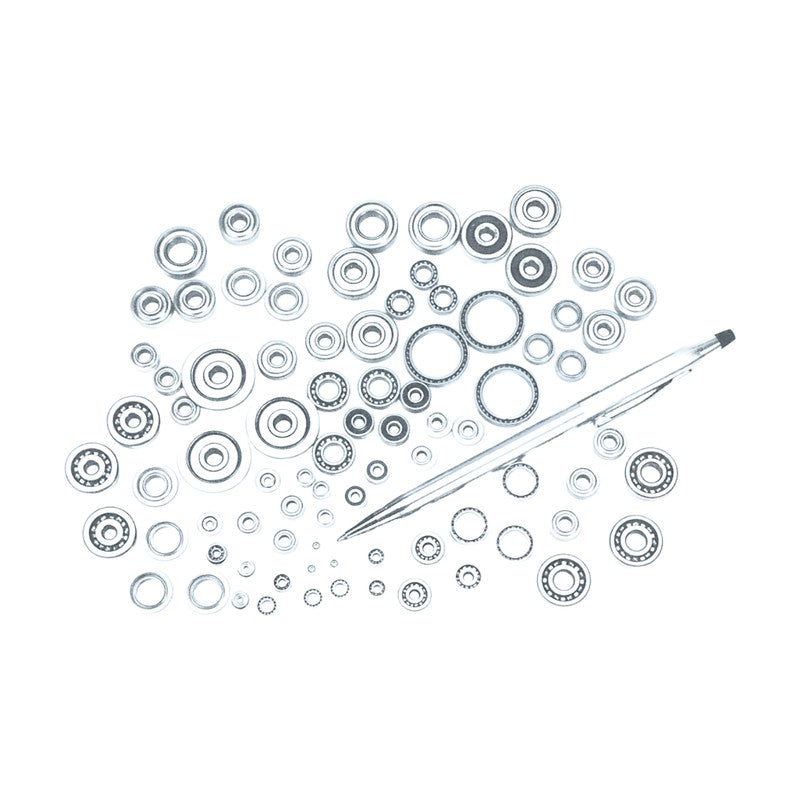

NSK Metric Miniature & Small Ball Bearings (Open, ZZ, VV, DD)

NSK Metric Miniature & Small Ball Bearings (Open, ZZ, VV, DD)

NSK metric miniature and small-diameter deep groove ball bearings, bore 1-9 mm, in open, shielded (ZZ, ZZ1, ZZS) and sealed (VV, DD) versions as listed per size.

Key features

  • Single-row deep groove design for small motors, instruments and office equipment
  • ZZ / ZZ1 / ZZS steel shields; VV non-contact seals; DD contact seals
  • Width shown per row (shielded/sealed types can be wider than open types)
  • MR and 6xx designations including X-dimension variants

Specifications

Bearing type Miniature / small deep groove ball bearing
Bore range 1-9 mm
Dimension system Metric
Load ratings Basic dynamic Cr / static C0r
Speed basis Grease lubrication limit
Source NSK Rolling Bearings Catalogue (Korean ed.), p. B34-B37
681 d: 1 mm | D: 3 mm | B: 1 mm | Cr: 0.08 kN | C0r: 0.023 kN | Grease speed: 130000 rpm
MR31 d: 1 mm | D: 3 mm | B: 1.5 mm | Cr: 0.08 kN | C0r: 0.023 kN | Grease speed: 130000 rpm
691 d: 1 mm | D: 4 mm | B: 1.6 mm | Cr: 0.14 kN | C0r: 0.036 kN | Grease speed: 100000 rpm
MR41X d: 1.2 mm | D: 4 mm | B: 1.8 mm | Cr: 0.138 kN | C0r: 0.035 kN | Grease speed: 110000 rpm
MR41XZZ d: 1.2 mm | D: 4 mm | B: 2.5 mm | Cr: 0.138 kN | C0r: 0.035 kN | Grease speed: 110000 rpm
681X d: 1.5 mm | D: 4 mm | B: 1.2 mm | Cr: 0.112 kN | C0r: 0.033 kN | Grease speed: 100000 rpm
681XZZ d: 1.5 mm | D: 4 mm | B: 2 mm | Cr: 0.112 kN | C0r: 0.033 kN | Grease speed: 100000 rpm
691X d: 1.5 mm | D: 5 mm | B: 2 mm | Cr: 0.237 kN | C0r: 0.069 kN | Grease speed: 85000 rpm
691XZZ d: 1.5 mm | D: 5 mm | B: 2.6 mm | Cr: 0.237 kN | C0r: 0.069 kN | Grease speed: 85000 rpm
601X d: 1.5 mm | D: 6 mm | B: 2.5 mm | Cr: 0.33 kN | C0r: 0.098 kN | Grease speed: 75000 rpm
601XZZS d: 1.5 mm | D: 6 mm | B: 3 mm | Cr: 0.33 kN | C0r: 0.098 kN | Grease speed: 75000 rpm
682 d: 2 mm | D: 5 mm | B: mm | Cr: 0.169 kN | C0r: 0.05 kN | Grease speed: 85000 rpm
682ZZ d: 2 mm | D: 5 mm | B: 2.3 mm | Cr: 0.169 kN | C0r: 0.05 kN | Grease speed: 85000 rpm
MR52B d: 2 mm | D: 5 mm | B: 2 mm | Cr: 0.187 kN | C0r: 0.058 kN | Grease speed: 85000 rpm
MR52BZZ d: 2 mm | D: 5 mm | B: 2.5 mm | Cr: 0.187 kN | C0r: 0.058 kN | Grease speed: 85000 rpm
692 d: 2 mm | D: 6 mm | B: 2.3 mm | Cr: 0.33 kN | C0r: 0.098 kN | Grease speed: 75000 rpm
692ZZ d: 2 mm | D: 6 mm | B: 3 mm | Cr: 0.33 kN | C0r: 0.098 kN | Grease speed: 75000 rpm
MR62 d: 2 mm | D: 6 mm | B: 2.5 mm | Cr: 0.33 kN | C0r: 0.098 kN | Grease speed: 75000 rpm
MR62ZZ d: 2 mm | D: 6 mm | B: 2.5 mm | Cr: 0.33 kN | C0r: 0.098 kN | Grease speed: 75000 rpm
MR72 d: 2 mm | D: 7 mm | B: 2.5 mm | Cr: 0.385 kN | C0r: 0.127 kN | Grease speed: 63000 rpm
MR72ZZ d: 2 mm | D: 7 mm | B: 3 mm | Cr: 0.385 kN | C0r: 0.127 kN | Grease speed: 63000 rpm
602 d: 2 mm | D: 7 mm | B: 2.8 mm | Cr: 0.385 kN | C0r: 0.127 kN | Grease speed: 63000 rpm
602ZZ d: 2 mm | D: 7 mm | B: 3.5 mm | Cr: 0.385 kN | C0r: 0.127 kN | Grease speed: 63000 rpm
682X d: 2.5 mm | D: 6 mm | B: 1.8 mm | Cr: 0.208 kN | C0r: 0.074 kN | Grease speed: 71000 rpm
682XZZS d: 2.5 mm | D: 6 mm | B: 2.6 mm | Cr: 0.208 kN | C0r: 0.074 kN | Grease speed: 71000 rpm
692X d: 2.5 mm | D: 7 mm | B: 2.5 mm | Cr: 0.385 kN | C0r: 0.027 kN | Grease speed: 63000 rpm
692XZZ d: 2.5 mm | D: 7 mm | B: 3.5 mm | Cr: 0.385 kN | C0r: 0.027 kN | Grease speed: 63000 rpm
MR82X d: 2.5 mm | D: 8 mm | B: 2.5 mm | Cr: 0.56 kN | C0r: 0.179 kN | Grease speed: 60000 rpm
602X d: 2.5 mm | D: 8 mm | B: 2.8 mm | Cr: 0.55 kN | C0r: 0.175 kN | Grease speed: 60000 rpm
602XZZ d: 2.5 mm | D: 8 mm | B: 4 mm | Cr: 0.55 kN | C0r: 0.175 kN | Grease speed: 60000 rpm
MR63 d: 3 mm | D: 6 mm | B: 2 mm | Cr: 0.208 kN | C0r: 0.074 kN | Grease speed: 71000 rpm
MR63ZZ d: 3 mm | D: 6 mm | B: 2.5 mm | Cr: 0.208 kN | C0r: 0.074 kN | Grease speed: 71000 rpm
683 d: 3 mm | D: 7 mm | B: 2 mm | Cr: 0.31 kN | C0r: 0.111 kN | Grease speed: 63000 rpm
683ZZ d: 3 mm | D: 7 mm | B: 3 mm | Cr: 0.31 kN | C0r: 0.111 kN | Grease speed: 63000 rpm
MR83 d: 3 mm | D: 8 mm | B: 2.5 mm | Cr: 0.56 kN | C0r: 0.179 kN | Grease speed: 60000 rpm
693 d: 3 mm | D: 8 mm | B: 3 mm | Cr: 0.56 kN | C0r: 0.179 kN | Grease speed: 60000 rpm
693ZZ d: 3 mm | D: 8 mm | B: 4 mm | Cr: 0.56 kN | C0r: 0.179 kN | Grease speed: 60000 rpm
MR93 d: 3 mm | D: 9 mm | B: 2.5 mm | Cr: 0.57 kN | C0r: 0.187 kN | Grease speed: 56000 rpm
MR93ZZ d: 3 mm | D: 9 mm | B: 4 mm | Cr: 0.57 kN | C0r: 0.187 kN | Grease speed: 56000 rpm
603 d: 3 mm | D: 9 mm | B: 3 mm | Cr: 0.57 kN | C0r: 0.187 kN | Grease speed: 56000 rpm
623 d: 3 mm | D: 10 mm | B: 4 mm | Cr: 0.63 kN | C0r: 0.218 kN | Grease speed: 50000 rpm
623ZZ d: 3 mm | D: 10 mm | B: 4 mm | Cr: 0.63 kN | C0r: 0.218 kN | Grease speed: 50000 rpm
633 d: 3 mm | D: 13 mm | B: 5 mm | Cr: 1.3 kN | C0r: 0.485 kN | Grease speed: 40000 rpm
633ZZ d: 3 mm | D: 13 mm | B: 5 mm | Cr: 1.3 kN | C0r: 0.485 kN | Grease speed: 40000 rpm
MR74 d: 4 mm | D: 7 mm | B: 2 mm | Cr: 0.31 kN | C0r: 0.115 kN | Grease speed: 60000 rpm
MR74ZZ d: 4 mm | D: 7 mm | B: 2.5 mm | Cr: 0.31 kN | C0r: 0.115 kN | Grease speed: 60000 rpm
MR84 d: 4 mm | D: 8 mm | B: 2 mm | Cr: 0.395 kN | C0r: 0.139 kN | Grease speed: 56000 rpm
MR84ZZ d: 4 mm | D: 8 mm | B: 3 mm | Cr: 0.395 kN | C0r: 0.139 kN | Grease speed: 56000 rpm
684 d: 4 mm | D: 9 mm | B: 2.5 mm | Cr: 0.64 kN | C0r: 0.225 kN | Grease speed: 53000 rpm
684ZZ d: 4 mm | D: 9 mm | B: 4 mm | Cr: 0.64 kN | C0r: 0.225 kN | Grease speed: 53000 rpm
MR104B d: 4 mm | D: 10 mm | B: 3 mm | Cr: 0.71 kN | C0r: 0.27 kN | Grease speed: 50000 rpm
MR104BZZ d: 4 mm | D: 10 mm | B: 4 mm | Cr: 0.71 kN | C0r: 0.27 kN | Grease speed: 50000 rpm
694 d: 4 mm | D: 11 mm | B: 4 mm | Cr: 0.96 kN | C0r: 0.345 kN | Grease speed: 48000 rpm
694ZZ d: 4 mm | D: 11 mm | B: 4 mm | Cr: 0.96 kN | C0r: 0.345 kN | Grease speed: 48000 rpm
604 d: 4 mm | D: 12 mm | B: 4 mm | Cr: 0.96 kN | C0r: 0.345 kN | Grease speed: 48000 rpm
604ZZ d: 4 mm | D: 12 mm | B: 4 mm | Cr: 0.96 kN | C0r: 0.345 kN | Grease speed: 48000 rpm
624 d: 4 mm | D: 13 mm | B: 5 mm | Cr: 1.3 kN | C0r: 0.485 kN | Grease speed: 40000 rpm
624ZZ d: 4 mm | D: 13 mm | B: 5 mm | Cr: 1.3 kN | C0r: 0.485 kN | Grease speed: 40000 rpm
634 d: 4 mm | D: 16 mm | B: 5 mm | Cr: 1.73 kN | C0r: 0.67 kN | Grease speed: 36000 rpm
634ZZ1 d: 4 mm | D: 16 mm | B: 5 mm | Cr: 1.73 kN | C0r: 0.67 kN | Grease speed: 36000 rpm
MR85 d: 5 mm | D: 8 mm | B: 2 mm | Cr: 0.31 kN | C0r: 0.12 kN | Grease speed: 53000 rpm
MR85ZZ d: 5 mm | D: 8 mm | B: 2.5 mm | Cr: 0.31 kN | C0r: 0.12 kN | Grease speed: 53000 rpm
MR95 d: 5 mm | D: 9 mm | B: 2.5 mm | Cr: 0.43 kN | C0r: 0.168 kN | Grease speed: 50000 rpm
MR95ZZ1 d: 5 mm | D: 9 mm | B: 3 mm | Cr: 0.43 kN | C0r: 0.168 kN | Grease speed: 50000 rpm
MR105 d: 5 mm | D: 10 mm | B: 3 mm | Cr: 0.43 kN | C0r: 0.168 kN | Grease speed: 50000 rpm
MR105ZZ d: 5 mm | D: 10 mm | B: 4 mm | Cr: 0.43 kN | C0r: 0.168 kN | Grease speed: 50000 rpm
MR115ZZ d: 5 mm | D: 11 mm | B: 4 mm | Cr: 0.715 kN | C0r: 0.276 kN | Grease speed: 48000 rpm
MR115VV d: 5 mm | D: 11 mm | B: 4 mm | Cr: 0.715 kN | C0r: 0.276 kN | Grease speed: 48000 rpm
685 d: 5 mm | D: 11 mm | B: 3 mm | Cr: 0.715 kN | C0r: 0.281 kN | Grease speed: 45000 rpm
685ZZ d: 5 mm | D: 11 mm | B: 5 mm | Cr: 0.715 kN | C0r: 0.281 kN | Grease speed: 45000 rpm
695 d: 5 mm | D: 13 mm | B: 4 mm | Cr: 1.08 kN | C0r: 0.43 kN | Grease speed: 43000 rpm
695ZZ d: 5 mm | D: 13 mm | B: 4 mm | Cr: 1.08 kN | C0r: 0.43 kN | Grease speed: 43000 rpm
695VV d: 5 mm | D: 13 mm | B: 4 mm | Cr: 1.08 kN | C0r: 0.43 kN | Grease speed: 43000 rpm
695DD d: 5 mm | D: 13 mm | B: 4 mm | Cr: 1.08 kN | C0r: 0.43 kN | Grease speed: 40000 rpm
605 d: 5 mm | D: 14 mm | B: 5 mm | Cr: 1.33 kN | C0r: 0.505 kN | Grease speed: 40000 rpm
605ZZ d: 5 mm | D: 14 mm | B: 5 mm | Cr: 1.33 kN | C0r: 0.505 kN | Grease speed: 40000 rpm
605DD d: 5 mm | D: 14 mm | B: 5 mm | Cr: 1.33 kN | C0r: 0.505 kN | Grease speed: 38000 rpm
625 d: 5 mm | D: 16 mm | B: 5 mm | Cr: 1.73 kN | C0r: 0.67 kN | Grease speed: 36000 rpm
625ZZ1 d: 5 mm | D: 16 mm | B: 5 mm | Cr: 1.73 kN | C0r: 0.67 kN | Grease speed: 36000 rpm
625VV d: 5 mm | D: 16 mm | B: 5 mm | Cr: 1.73 kN | C0r: 0.67 kN | Grease speed: 36000 rpm
625DD d: 5 mm | D: 16 mm | B: 5 mm | Cr: 1.73 kN | C0r: 0.67 kN | Grease speed: 32000 rpm
635 d: 5 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 32000 rpm
635ZZ1 d: 5 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 32000 rpm
635VV d: 5 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 32000 rpm
635DD d: 5 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 30000 rpm
MR106 d: 6 mm | D: 10 mm | B: 2.5 mm | Cr: 0.495 kN | C0r: 0.218 kN | Grease speed: 45000 rpm
MR106ZZ1 d: 6 mm | D: 10 mm | B: 3 mm | Cr: 0.495 kN | C0r: 0.218 kN | Grease speed: 45000 rpm
MR126 d: 6 mm | D: 12 mm | B: 3 mm | Cr: 0.715 kN | C0r: 0.292 kN | Grease speed: 43000 rpm
MR126ZZ d: 6 mm | D: 12 mm | B: 4 mm | Cr: 0.715 kN | C0r: 0.292 kN | Grease speed: 43000 rpm
686A d: 6 mm | D: 13 mm | B: 3.5 mm | Cr: 1.08 kN | C0r: 0.44 kN | Grease speed: 40000 rpm
686AZZ d: 6 mm | D: 13 mm | B: 5 mm | Cr: 1.08 kN | C0r: 0.44 kN | Grease speed: 40000 rpm
686AVV d: 6 mm | D: 13 mm | B: 5 mm | Cr: 1.08 kN | C0r: 0.44 kN | Grease speed: 40000 rpm
686ADD d: 6 mm | D: 13 mm | B: 5 mm | Cr: 1.08 kN | C0r: 0.44 kN | Grease speed: 38000 rpm
696 d: 6 mm | D: 15 mm | B: 5 mm | Cr: 1.73 kN | C0r: 0.67 kN | Grease speed: 40000 rpm
696ZZ1 d: 6 mm | D: 15 mm | B: 5 mm | Cr: 1.73 kN | C0r: 0.67 kN | Grease speed: 40000 rpm
696VV d: 6 mm | D: 15 mm | B: 5 mm | Cr: 1.73 kN | C0r: 0.67 kN | Grease speed: 40000 rpm
696DD d: 6 mm | D: 15 mm | B: 5 mm | Cr: 1.73 kN | C0r: 0.67 kN | Grease speed: 36000 rpm
606 d: 6 mm | D: 17 mm | B: 6 mm | Cr: 2.26 kN | C0r: 0.835 kN | Grease speed: 38000 rpm
606ZZ d: 6 mm | D: 17 mm | B: 6 mm | Cr: 2.26 kN | C0r: 0.835 kN | Grease speed: 38000 rpm
606VV d: 6 mm | D: 17 mm | B: 6 mm | Cr: 2.26 kN | C0r: 0.835 kN | Grease speed: 38000 rpm
606DD d: 6 mm | D: 17 mm | B: 6 mm | Cr: 2.26 kN | C0r: 0.835 kN | Grease speed: 34000 rpm
626 d: 6 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 32000 rpm
626ZZ1 d: 6 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 32000 rpm
626VV d: 6 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 32000 rpm
626DD d: 6 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 30000 rpm
636 d: 6 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 30000 rpm
636ZZ d: 6 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 30000 rpm
636VV d: 6 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 30000 rpm
636DD d: 6 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 28000 rpm
MR117 d: 7 mm | D: 11 mm | B: 2.5 mm | Cr: 0.455 kN | C0r: 0.201 kN | Grease speed: 43000 rpm
MR117ZZS d: 7 mm | D: 11 mm | B: 3 mm | Cr: 0.455 kN | C0r: 0.201 kN | Grease speed: 43000 rpm
MR137 d: 7 mm | D: 13 mm | B: 3 mm | Cr: 0.54 kN | C0r: 0.276 kN | Grease speed: 40000 rpm
MR137ZZ d: 7 mm | D: 13 mm | B: 4 mm | Cr: 0.54 kN | C0r: 0.276 kN | Grease speed: 40000 rpm
687 d: 7 mm | D: 14 mm | B: 3.5 mm | Cr: 1.17 kN | C0r: 0.51 kN | Grease speed: 40000 rpm
687ZZ1 d: 7 mm | D: 14 mm | B: 5 mm | Cr: 1.17 kN | C0r: 0.51 kN | Grease speed: 40000 rpm
687VV d: 7 mm | D: 14 mm | B: 5 mm | Cr: 1.17 kN | C0r: 0.51 kN | Grease speed: 40000 rpm
687DD d: 7 mm | D: 14 mm | B: 5 mm | Cr: 1.17 kN | C0r: 0.51 kN | Grease speed: 34000 rpm
697 d: 7 mm | D: 17 mm | B: 5 mm | Cr: 1.61 kN | C0r: 0.71 kN | Grease speed: 36000 rpm
697ZZ1 d: 7 mm | D: 17 mm | B: 5 mm | Cr: 1.61 kN | C0r: 0.71 kN | Grease speed: 36000 rpm
697VV d: 7 mm | D: 17 mm | B: 5 mm | Cr: 1.61 kN | C0r: 0.71 kN | Grease speed: 36000 rpm
697DD d: 7 mm | D: 17 mm | B: 5 mm | Cr: 1.61 kN | C0r: 0.71 kN | Grease speed: 28000 rpm
607 d: 7 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 36000 rpm
607ZZ1 d: 7 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 36000 rpm
607VV d: 7 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 36000 rpm
607DD d: 7 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 32000 rpm
627 d: 7 mm | D: 22 mm | B: mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 30000 rpm
627ZZ d: 7 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 30000 rpm
627VV d: 7 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 30000 rpm
627DD d: 7 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 8000 rpm
637 d: 7 mm | D: 26 mm | B: 9 mm | Cr: 4.05 kN | C0r: 1.62 kN | Grease speed: 28000 rpm
637ZZ d: 7 mm | D: 26 mm | B: 9 mm | Cr: 4.05 kN | C0r: 1.62 kN | Grease speed: 28000 rpm
637VV d: 7 mm | D: 26 mm | B: 9 mm | Cr: 4.05 kN | C0r: 1.62 kN | Grease speed: 28000 rpm
MR128 d: 8 mm | D: 12 mm | B: 2.5 mm | Cr: 0.545 kN | C0r: 0.275 kN | Grease speed: 40000 rpm
MR128ZZ1 d: 8 mm | D: 12 mm | B: 3.5 mm | Cr: 0.545 kN | C0r: 0.275 kN | Grease speed: 40000 rpm
MR148 d: 8 mm | D: 14 mm | B: 35 mm | Cr: 0.82 kN | C0r: 0.385 kN | Grease speed: 38000 rpm
MR148ZZ d: 8 mm | D: 14 mm | B: 4 mm | Cr: 0.82 kN | C0r: 0.385 kN | Grease speed: 38000 rpm
MR148DD d: 8 mm | D: 14 mm | B: 4 mm | Cr: 0.82 kN | C0r: 0.385 kN | Grease speed: 32000 rpm
688A d: 8 mm | D: 16 mm | B: 4 mm | Cr: 1.61 kN | C0r: 0.71 kN | Grease speed: 36000 rpm
688AZZ1 d: 8 mm | D: 16 mm | B: 5 mm | Cr: 1.61 kN | C0r: 0.71 kN | Grease speed: 36000 rpm
688AVV d: 8 mm | D: 16 mm | B: 5 mm | Cr: 1.61 kN | C0r: 0.71 kN | Grease speed: 36000 rpm
688ADD d: 8 mm | D: 16 mm | B: 5 mm | Cr: 1.61 kN | C0r: 0.71 kN | Grease speed: 8000 rpm
698 d: 8 mm | D: 19 mm | B: 6 mm | Cr: 2.24 kN | C0r: 0.91 kN | Grease speed: 36000 rpm
698ZZ d: 8 mm | D: 19 mm | B: 6 mm | Cr: 2.24 kN | C0r: 0.91 kN | Grease speed: 36000 rpm
698VV d: 8 mm | D: 19 mm | B: 6 mm | Cr: 2.24 kN | C0r: 0.91 kN | Grease speed: 36000 rpm
698DD d: 8 mm | D: 19 mm | B: 6 mm | Cr: 2.24 kN | C0r: 0.91 kN | Grease speed: 18000 rpm
608 d: 8 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 34000 rpm
608ZZ d: 8 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 34000 rpm
608VV d: 8 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 34000 rpm
608DD d: 8 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 18000 rpm
628 d: 8 mm | D: 24 mm | B: 8 mm | Cr: 3.35 kN | C0r: 1.43 kN | Grease speed: 28000 rpm
628ZZ d: 8 mm | D: 24 mm | B: 8 mm | Cr: 3.35 kN | C0r: 1.43 kN | Grease speed: 28000 rpm
628VV d: 8 mm | D: 24 mm | B: 8 mm | Cr: 3.35 kN | C0r: 1.43 kN | Grease speed: 28000 rpm
628DD d: 8 mm | D: 24 mm | B: 8 mm | Cr: 3.35 kN | C0r: 1.43 kN | Grease speed: 14000 rpm
638 d: 8 mm | D: 28 mm | B: mm | Cr: 4.55 kN | C0r: 1.97 kN | Grease speed: 28000 rpm
638ZZ d: 8 mm | D: 28 mm | B: 9 mm | Cr: 4.55 kN | C0r: 1.97 kN | Grease speed: 28000 rpm
638VV d: 8 mm | D: 28 mm | B: 9 mm | Cr: 4.55 kN | C0r: 1.97 kN | Grease speed: 28000 rpm
638DD d: 8 mm | D: 28 mm | B: 9 mm | Cr: 4.55 kN | C0r: 1.97 kN | Grease speed: 12000 rpm
689 d: 9 mm | D: 17 mm | B: 4 mm | Cr: 1.33 kN | C0r: 0.665 kN | Grease speed: 36000 rpm
689ZZ1 d: 9 mm | D: 17 mm | B: 5 mm | Cr: 1.33 kN | C0r: 0.665 kN | Grease speed: 36000 rpm
689VV d: 9 mm | D: 17 mm | B: 5 mm | Cr: 1.33 kN | C0r: 0.665 kN | Grease speed: 36000 rpm
689DD d: 9 mm | D: 17 mm | B: 5 mm | Cr: 1.33 kN | C0r: 0.665 kN | Grease speed: 14000 rpm
699 d: 9 mm | D: 20 mm | B: 6 mm | Cr: 1.72 kN | C0r: 0.84 kN | Grease speed: 34000 rpm
699ZZ1 d: 9 mm | D: 20 mm | B: 6 mm | Cr: 1.72 kN | C0r: 0.84 kN | Grease speed: 34000 rpm
699DD d: 9 mm | D: 20 mm | B: 6 mm | Cr: 1.72 kN | C0r: 0.84 kN | Grease speed: 14000 rpm
609 d: 9 mm | D: 24 mm | B: 7 mm | Cr: 3.35 kN | C0r: 1.43 kN | Grease speed: 32000 rpm
609ZZ d: 9 mm | D: 24 mm | B: 7 mm | Cr: 3.35 kN | C0r: 1.43 kN | Grease speed: 32000 rpm
609VV d: 9 mm | D: 24 mm | B: 7 mm | Cr: 3.35 kN | C0r: 1.43 kN | Grease speed: 32000 rpm
609DD d: 9 mm | D: 24 mm | B: 7 mm | Cr: 3.35 kN | C0r: 1.43 kN | Grease speed: 4000 rpm
629 d: 9 mm | D: 26 mm | B: 8 mm | Cr: 4.55 kN | C0r: 1.97 kN | Grease speed: 28000 rpm
629ZZ d: 9 mm | D: 26 mm | B: 8 mm | Cr: 4.55 kN | C0r: 1.97 kN | Grease speed: 28000 rpm
629VV d: 9 mm | D: 26 mm | B: 8 mm | Cr: 4.55 kN | C0r: 1.97 kN | Grease speed: 28000 rpm
629DD d: 9 mm | D: 26 mm | B: 8 mm | Cr: 4.55 kN | C0r: 1.97 kN | Grease speed: 12000 rpm
639 d: 9 mm | D: 30 mm | B: 10 mm | Cr: 5.1 kN | C0r: 2.39 kN | Grease speed: 24000 rpm
639ZZ d: 9 mm | D: 30 mm | B: 10 mm | Cr: 5.1 kN | C0r: 2.39 kN | Grease speed: 24000 rpm
639VV d: 9 mm | D: 30 mm | B: 10 mm | Cr: 5.1 kN | C0r: 2.39 kN | Grease speed: 24000 rpm
Miniature BearingsNSK
175 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK Metric Miniature & Small Ball Bearings (Open, ZZ, VV, DD)

Brand NSK·Miniature Bearings

Available part numbers (175)

681, MR31, 691, MR41X, MR41XZZ, 681X, 681XZZ, 691X, 691XZZ, 601X + 165 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
681d: 1 mm | D: 3 mm | B: 1 mm | Cr: 0.08 kN | C0r: 0.023 kN | Grease speed: 130000 rpm
MR31d: 1 mm | D: 3 mm | B: 1.5 mm | Cr: 0.08 kN | C0r: 0.023 kN | Grease speed: 130000 rpm
691d: 1 mm | D: 4 mm | B: 1.6 mm | Cr: 0.14 kN | C0r: 0.036 kN | Grease speed: 100000 rpm
MR41Xd: 1.2 mm | D: 4 mm | B: 1.8 mm | Cr: 0.138 kN | C0r: 0.035 kN | Grease speed: 110000 rpm
MR41XZZd: 1.2 mm | D: 4 mm | B: 2.5 mm | Cr: 0.138 kN | C0r: 0.035 kN | Grease speed: 110000 rpm
681Xd: 1.5 mm | D: 4 mm | B: 1.2 mm | Cr: 0.112 kN | C0r: 0.033 kN | Grease speed: 100000 rpm
681XZZd: 1.5 mm | D: 4 mm | B: 2 mm | Cr: 0.112 kN | C0r: 0.033 kN | Grease speed: 100000 rpm
691Xd: 1.5 mm | D: 5 mm | B: 2 mm | Cr: 0.237 kN | C0r: 0.069 kN | Grease speed: 85000 rpm
691XZZd: 1.5 mm | D: 5 mm | B: 2.6 mm | Cr: 0.237 kN | C0r: 0.069 kN | Grease speed: 85000 rpm
601Xd: 1.5 mm | D: 6 mm | B: 2.5 mm | Cr: 0.33 kN | C0r: 0.098 kN | Grease speed: 75000 rpm
601XZZSd: 1.5 mm | D: 6 mm | B: 3 mm | Cr: 0.33 kN | C0r: 0.098 kN | Grease speed: 75000 rpm
682d: 2 mm | D: 5 mm | B: mm | Cr: 0.169 kN | C0r: 0.05 kN | Grease speed: 85000 rpm
682ZZd: 2 mm | D: 5 mm | B: 2.3 mm | Cr: 0.169 kN | C0r: 0.05 kN | Grease speed: 85000 rpm
MR52Bd: 2 mm | D: 5 mm | B: 2 mm | Cr: 0.187 kN | C0r: 0.058 kN | Grease speed: 85000 rpm
MR52BZZd: 2 mm | D: 5 mm | B: 2.5 mm | Cr: 0.187 kN | C0r: 0.058 kN | Grease speed: 85000 rpm
692d: 2 mm | D: 6 mm | B: 2.3 mm | Cr: 0.33 kN | C0r: 0.098 kN | Grease speed: 75000 rpm
692ZZd: 2 mm | D: 6 mm | B: 3 mm | Cr: 0.33 kN | C0r: 0.098 kN | Grease speed: 75000 rpm
MR62d: 2 mm | D: 6 mm | B: 2.5 mm | Cr: 0.33 kN | C0r: 0.098 kN | Grease speed: 75000 rpm
MR62ZZd: 2 mm | D: 6 mm | B: 2.5 mm | Cr: 0.33 kN | C0r: 0.098 kN | Grease speed: 75000 rpm
MR72d: 2 mm | D: 7 mm | B: 2.5 mm | Cr: 0.385 kN | C0r: 0.127 kN | Grease speed: 63000 rpm
MR72ZZd: 2 mm | D: 7 mm | B: 3 mm | Cr: 0.385 kN | C0r: 0.127 kN | Grease speed: 63000 rpm
602d: 2 mm | D: 7 mm | B: 2.8 mm | Cr: 0.385 kN | C0r: 0.127 kN | Grease speed: 63000 rpm
602ZZd: 2 mm | D: 7 mm | B: 3.5 mm | Cr: 0.385 kN | C0r: 0.127 kN | Grease speed: 63000 rpm
682Xd: 2.5 mm | D: 6 mm | B: 1.8 mm | Cr: 0.208 kN | C0r: 0.074 kN | Grease speed: 71000 rpm
682XZZSd: 2.5 mm | D: 6 mm | B: 2.6 mm | Cr: 0.208 kN | C0r: 0.074 kN | Grease speed: 71000 rpm
692Xd: 2.5 mm | D: 7 mm | B: 2.5 mm | Cr: 0.385 kN | C0r: 0.027 kN | Grease speed: 63000 rpm
692XZZd: 2.5 mm | D: 7 mm | B: 3.5 mm | Cr: 0.385 kN | C0r: 0.027 kN | Grease speed: 63000 rpm
MR82Xd: 2.5 mm | D: 8 mm | B: 2.5 mm | Cr: 0.56 kN | C0r: 0.179 kN | Grease speed: 60000 rpm
602Xd: 2.5 mm | D: 8 mm | B: 2.8 mm | Cr: 0.55 kN | C0r: 0.175 kN | Grease speed: 60000 rpm
602XZZd: 2.5 mm | D: 8 mm | B: 4 mm | Cr: 0.55 kN | C0r: 0.175 kN | Grease speed: 60000 rpm
MR63d: 3 mm | D: 6 mm | B: 2 mm | Cr: 0.208 kN | C0r: 0.074 kN | Grease speed: 71000 rpm
MR63ZZd: 3 mm | D: 6 mm | B: 2.5 mm | Cr: 0.208 kN | C0r: 0.074 kN | Grease speed: 71000 rpm
683d: 3 mm | D: 7 mm | B: 2 mm | Cr: 0.31 kN | C0r: 0.111 kN | Grease speed: 63000 rpm
683ZZd: 3 mm | D: 7 mm | B: 3 mm | Cr: 0.31 kN | C0r: 0.111 kN | Grease speed: 63000 rpm
MR83d: 3 mm | D: 8 mm | B: 2.5 mm | Cr: 0.56 kN | C0r: 0.179 kN | Grease speed: 60000 rpm
693d: 3 mm | D: 8 mm | B: 3 mm | Cr: 0.56 kN | C0r: 0.179 kN | Grease speed: 60000 rpm
693ZZd: 3 mm | D: 8 mm | B: 4 mm | Cr: 0.56 kN | C0r: 0.179 kN | Grease speed: 60000 rpm
MR93d: 3 mm | D: 9 mm | B: 2.5 mm | Cr: 0.57 kN | C0r: 0.187 kN | Grease speed: 56000 rpm
MR93ZZd: 3 mm | D: 9 mm | B: 4 mm | Cr: 0.57 kN | C0r: 0.187 kN | Grease speed: 56000 rpm
603d: 3 mm | D: 9 mm | B: 3 mm | Cr: 0.57 kN | C0r: 0.187 kN | Grease speed: 56000 rpm
623d: 3 mm | D: 10 mm | B: 4 mm | Cr: 0.63 kN | C0r: 0.218 kN | Grease speed: 50000 rpm
623ZZd: 3 mm | D: 10 mm | B: 4 mm | Cr: 0.63 kN | C0r: 0.218 kN | Grease speed: 50000 rpm
633d: 3 mm | D: 13 mm | B: 5 mm | Cr: 1.3 kN | C0r: 0.485 kN | Grease speed: 40000 rpm
633ZZd: 3 mm | D: 13 mm | B: 5 mm | Cr: 1.3 kN | C0r: 0.485 kN | Grease speed: 40000 rpm
MR74d: 4 mm | D: 7 mm | B: 2 mm | Cr: 0.31 kN | C0r: 0.115 kN | Grease speed: 60000 rpm
MR74ZZd: 4 mm | D: 7 mm | B: 2.5 mm | Cr: 0.31 kN | C0r: 0.115 kN | Grease speed: 60000 rpm
MR84d: 4 mm | D: 8 mm | B: 2 mm | Cr: 0.395 kN | C0r: 0.139 kN | Grease speed: 56000 rpm
MR84ZZd: 4 mm | D: 8 mm | B: 3 mm | Cr: 0.395 kN | C0r: 0.139 kN | Grease speed: 56000 rpm
684d: 4 mm | D: 9 mm | B: 2.5 mm | Cr: 0.64 kN | C0r: 0.225 kN | Grease speed: 53000 rpm
684ZZd: 4 mm | D: 9 mm | B: 4 mm | Cr: 0.64 kN | C0r: 0.225 kN | Grease speed: 53000 rpm
MR104Bd: 4 mm | D: 10 mm | B: 3 mm | Cr: 0.71 kN | C0r: 0.27 kN | Grease speed: 50000 rpm
MR104BZZd: 4 mm | D: 10 mm | B: 4 mm | Cr: 0.71 kN | C0r: 0.27 kN | Grease speed: 50000 rpm
694d: 4 mm | D: 11 mm | B: 4 mm | Cr: 0.96 kN | C0r: 0.345 kN | Grease speed: 48000 rpm
694ZZd: 4 mm | D: 11 mm | B: 4 mm | Cr: 0.96 kN | C0r: 0.345 kN | Grease speed: 48000 rpm
604d: 4 mm | D: 12 mm | B: 4 mm | Cr: 0.96 kN | C0r: 0.345 kN | Grease speed: 48000 rpm
604ZZd: 4 mm | D: 12 mm | B: 4 mm | Cr: 0.96 kN | C0r: 0.345 kN | Grease speed: 48000 rpm
624d: 4 mm | D: 13 mm | B: 5 mm | Cr: 1.3 kN | C0r: 0.485 kN | Grease speed: 40000 rpm
624ZZd: 4 mm | D: 13 mm | B: 5 mm | Cr: 1.3 kN | C0r: 0.485 kN | Grease speed: 40000 rpm
634d: 4 mm | D: 16 mm | B: 5 mm | Cr: 1.73 kN | C0r: 0.67 kN | Grease speed: 36000 rpm
634ZZ1d: 4 mm | D: 16 mm | B: 5 mm | Cr: 1.73 kN | C0r: 0.67 kN | Grease speed: 36000 rpm
MR85d: 5 mm | D: 8 mm | B: 2 mm | Cr: 0.31 kN | C0r: 0.12 kN | Grease speed: 53000 rpm
MR85ZZd: 5 mm | D: 8 mm | B: 2.5 mm | Cr: 0.31 kN | C0r: 0.12 kN | Grease speed: 53000 rpm
MR95d: 5 mm | D: 9 mm | B: 2.5 mm | Cr: 0.43 kN | C0r: 0.168 kN | Grease speed: 50000 rpm
MR95ZZ1d: 5 mm | D: 9 mm | B: 3 mm | Cr: 0.43 kN | C0r: 0.168 kN | Grease speed: 50000 rpm
MR105d: 5 mm | D: 10 mm | B: 3 mm | Cr: 0.43 kN | C0r: 0.168 kN | Grease speed: 50000 rpm
MR105ZZd: 5 mm | D: 10 mm | B: 4 mm | Cr: 0.43 kN | C0r: 0.168 kN | Grease speed: 50000 rpm
MR115ZZd: 5 mm | D: 11 mm | B: 4 mm | Cr: 0.715 kN | C0r: 0.276 kN | Grease speed: 48000 rpm
MR115VVd: 5 mm | D: 11 mm | B: 4 mm | Cr: 0.715 kN | C0r: 0.276 kN | Grease speed: 48000 rpm
685d: 5 mm | D: 11 mm | B: 3 mm | Cr: 0.715 kN | C0r: 0.281 kN | Grease speed: 45000 rpm
685ZZd: 5 mm | D: 11 mm | B: 5 mm | Cr: 0.715 kN | C0r: 0.281 kN | Grease speed: 45000 rpm
695d: 5 mm | D: 13 mm | B: 4 mm | Cr: 1.08 kN | C0r: 0.43 kN | Grease speed: 43000 rpm
695ZZd: 5 mm | D: 13 mm | B: 4 mm | Cr: 1.08 kN | C0r: 0.43 kN | Grease speed: 43000 rpm
695VVd: 5 mm | D: 13 mm | B: 4 mm | Cr: 1.08 kN | C0r: 0.43 kN | Grease speed: 43000 rpm
695DDd: 5 mm | D: 13 mm | B: 4 mm | Cr: 1.08 kN | C0r: 0.43 kN | Grease speed: 40000 rpm
605d: 5 mm | D: 14 mm | B: 5 mm | Cr: 1.33 kN | C0r: 0.505 kN | Grease speed: 40000 rpm
605ZZd: 5 mm | D: 14 mm | B: 5 mm | Cr: 1.33 kN | C0r: 0.505 kN | Grease speed: 40000 rpm
605DDd: 5 mm | D: 14 mm | B: 5 mm | Cr: 1.33 kN | C0r: 0.505 kN | Grease speed: 38000 rpm
625d: 5 mm | D: 16 mm | B: 5 mm | Cr: 1.73 kN | C0r: 0.67 kN | Grease speed: 36000 rpm
625ZZ1d: 5 mm | D: 16 mm | B: 5 mm | Cr: 1.73 kN | C0r: 0.67 kN | Grease speed: 36000 rpm
625VVd: 5 mm | D: 16 mm | B: 5 mm | Cr: 1.73 kN | C0r: 0.67 kN | Grease speed: 36000 rpm
625DDd: 5 mm | D: 16 mm | B: 5 mm | Cr: 1.73 kN | C0r: 0.67 kN | Grease speed: 32000 rpm
635d: 5 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 32000 rpm
635ZZ1d: 5 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 32000 rpm
635VVd: 5 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 32000 rpm
635DDd: 5 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 30000 rpm
MR106d: 6 mm | D: 10 mm | B: 2.5 mm | Cr: 0.495 kN | C0r: 0.218 kN | Grease speed: 45000 rpm
MR106ZZ1d: 6 mm | D: 10 mm | B: 3 mm | Cr: 0.495 kN | C0r: 0.218 kN | Grease speed: 45000 rpm
MR126d: 6 mm | D: 12 mm | B: 3 mm | Cr: 0.715 kN | C0r: 0.292 kN | Grease speed: 43000 rpm
MR126ZZd: 6 mm | D: 12 mm | B: 4 mm | Cr: 0.715 kN | C0r: 0.292 kN | Grease speed: 43000 rpm
686Ad: 6 mm | D: 13 mm | B: 3.5 mm | Cr: 1.08 kN | C0r: 0.44 kN | Grease speed: 40000 rpm
686AZZd: 6 mm | D: 13 mm | B: 5 mm | Cr: 1.08 kN | C0r: 0.44 kN | Grease speed: 40000 rpm
686AVVd: 6 mm | D: 13 mm | B: 5 mm | Cr: 1.08 kN | C0r: 0.44 kN | Grease speed: 40000 rpm
686ADDd: 6 mm | D: 13 mm | B: 5 mm | Cr: 1.08 kN | C0r: 0.44 kN | Grease speed: 38000 rpm
696d: 6 mm | D: 15 mm | B: 5 mm | Cr: 1.73 kN | C0r: 0.67 kN | Grease speed: 40000 rpm
696ZZ1d: 6 mm | D: 15 mm | B: 5 mm | Cr: 1.73 kN | C0r: 0.67 kN | Grease speed: 40000 rpm
696VVd: 6 mm | D: 15 mm | B: 5 mm | Cr: 1.73 kN | C0r: 0.67 kN | Grease speed: 40000 rpm
696DDd: 6 mm | D: 15 mm | B: 5 mm | Cr: 1.73 kN | C0r: 0.67 kN | Grease speed: 36000 rpm
606d: 6 mm | D: 17 mm | B: 6 mm | Cr: 2.26 kN | C0r: 0.835 kN | Grease speed: 38000 rpm
606ZZd: 6 mm | D: 17 mm | B: 6 mm | Cr: 2.26 kN | C0r: 0.835 kN | Grease speed: 38000 rpm
606VVd: 6 mm | D: 17 mm | B: 6 mm | Cr: 2.26 kN | C0r: 0.835 kN | Grease speed: 38000 rpm
606DDd: 6 mm | D: 17 mm | B: 6 mm | Cr: 2.26 kN | C0r: 0.835 kN | Grease speed: 34000 rpm
626d: 6 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 32000 rpm
626ZZ1d: 6 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 32000 rpm
626VVd: 6 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 32000 rpm
626DDd: 6 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 30000 rpm
636d: 6 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 30000 rpm
636ZZd: 6 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 30000 rpm
636VVd: 6 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 30000 rpm
636DDd: 6 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 28000 rpm
MR117d: 7 mm | D: 11 mm | B: 2.5 mm | Cr: 0.455 kN | C0r: 0.201 kN | Grease speed: 43000 rpm
MR117ZZSd: 7 mm | D: 11 mm | B: 3 mm | Cr: 0.455 kN | C0r: 0.201 kN | Grease speed: 43000 rpm
MR137d: 7 mm | D: 13 mm | B: 3 mm | Cr: 0.54 kN | C0r: 0.276 kN | Grease speed: 40000 rpm
MR137ZZd: 7 mm | D: 13 mm | B: 4 mm | Cr: 0.54 kN | C0r: 0.276 kN | Grease speed: 40000 rpm
687d: 7 mm | D: 14 mm | B: 3.5 mm | Cr: 1.17 kN | C0r: 0.51 kN | Grease speed: 40000 rpm
687ZZ1d: 7 mm | D: 14 mm | B: 5 mm | Cr: 1.17 kN | C0r: 0.51 kN | Grease speed: 40000 rpm
687VVd: 7 mm | D: 14 mm | B: 5 mm | Cr: 1.17 kN | C0r: 0.51 kN | Grease speed: 40000 rpm
687DDd: 7 mm | D: 14 mm | B: 5 mm | Cr: 1.17 kN | C0r: 0.51 kN | Grease speed: 34000 rpm
697d: 7 mm | D: 17 mm | B: 5 mm | Cr: 1.61 kN | C0r: 0.71 kN | Grease speed: 36000 rpm
697ZZ1d: 7 mm | D: 17 mm | B: 5 mm | Cr: 1.61 kN | C0r: 0.71 kN | Grease speed: 36000 rpm
697VVd: 7 mm | D: 17 mm | B: 5 mm | Cr: 1.61 kN | C0r: 0.71 kN | Grease speed: 36000 rpm
697DDd: 7 mm | D: 17 mm | B: 5 mm | Cr: 1.61 kN | C0r: 0.71 kN | Grease speed: 28000 rpm
607d: 7 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 36000 rpm
607ZZ1d: 7 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 36000 rpm
607VVd: 7 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 36000 rpm
607DDd: 7 mm | D: 19 mm | B: 6 mm | Cr: 2.34 kN | C0r: 0.885 kN | Grease speed: 32000 rpm
627d: 7 mm | D: 22 mm | B: mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 30000 rpm
627ZZd: 7 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 30000 rpm
627VVd: 7 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 30000 rpm
627DDd: 7 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 8000 rpm
637d: 7 mm | D: 26 mm | B: 9 mm | Cr: 4.05 kN | C0r: 1.62 kN | Grease speed: 28000 rpm
637ZZd: 7 mm | D: 26 mm | B: 9 mm | Cr: 4.05 kN | C0r: 1.62 kN | Grease speed: 28000 rpm
637VVd: 7 mm | D: 26 mm | B: 9 mm | Cr: 4.05 kN | C0r: 1.62 kN | Grease speed: 28000 rpm
MR128d: 8 mm | D: 12 mm | B: 2.5 mm | Cr: 0.545 kN | C0r: 0.275 kN | Grease speed: 40000 rpm
MR128ZZ1d: 8 mm | D: 12 mm | B: 3.5 mm | Cr: 0.545 kN | C0r: 0.275 kN | Grease speed: 40000 rpm
MR148d: 8 mm | D: 14 mm | B: 35 mm | Cr: 0.82 kN | C0r: 0.385 kN | Grease speed: 38000 rpm
MR148ZZd: 8 mm | D: 14 mm | B: 4 mm | Cr: 0.82 kN | C0r: 0.385 kN | Grease speed: 38000 rpm
MR148DDd: 8 mm | D: 14 mm | B: 4 mm | Cr: 0.82 kN | C0r: 0.385 kN | Grease speed: 32000 rpm
688Ad: 8 mm | D: 16 mm | B: 4 mm | Cr: 1.61 kN | C0r: 0.71 kN | Grease speed: 36000 rpm
688AZZ1d: 8 mm | D: 16 mm | B: 5 mm | Cr: 1.61 kN | C0r: 0.71 kN | Grease speed: 36000 rpm
688AVVd: 8 mm | D: 16 mm | B: 5 mm | Cr: 1.61 kN | C0r: 0.71 kN | Grease speed: 36000 rpm
688ADDd: 8 mm | D: 16 mm | B: 5 mm | Cr: 1.61 kN | C0r: 0.71 kN | Grease speed: 8000 rpm
698d: 8 mm | D: 19 mm | B: 6 mm | Cr: 2.24 kN | C0r: 0.91 kN | Grease speed: 36000 rpm
698ZZd: 8 mm | D: 19 mm | B: 6 mm | Cr: 2.24 kN | C0r: 0.91 kN | Grease speed: 36000 rpm
698VVd: 8 mm | D: 19 mm | B: 6 mm | Cr: 2.24 kN | C0r: 0.91 kN | Grease speed: 36000 rpm
698DDd: 8 mm | D: 19 mm | B: 6 mm | Cr: 2.24 kN | C0r: 0.91 kN | Grease speed: 18000 rpm
608d: 8 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 34000 rpm
608ZZd: 8 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 34000 rpm
608VVd: 8 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 34000 rpm
608DDd: 8 mm | D: 22 mm | B: 7 mm | Cr: 3.3 kN | C0r: 1.37 kN | Grease speed: 18000 rpm
628d: 8 mm | D: 24 mm | B: 8 mm | Cr: 3.35 kN | C0r: 1.43 kN | Grease speed: 28000 rpm
628ZZd: 8 mm | D: 24 mm | B: 8 mm | Cr: 3.35 kN | C0r: 1.43 kN | Grease speed: 28000 rpm
628VVd: 8 mm | D: 24 mm | B: 8 mm | Cr: 3.35 kN | C0r: 1.43 kN | Grease speed: 28000 rpm
628DDd: 8 mm | D: 24 mm | B: 8 mm | Cr: 3.35 kN | C0r: 1.43 kN | Grease speed: 14000 rpm
638d: 8 mm | D: 28 mm | B: mm | Cr: 4.55 kN | C0r: 1.97 kN | Grease speed: 28000 rpm
638ZZd: 8 mm | D: 28 mm | B: 9 mm | Cr: 4.55 kN | C0r: 1.97 kN | Grease speed: 28000 rpm
638VVd: 8 mm | D: 28 mm | B: 9 mm | Cr: 4.55 kN | C0r: 1.97 kN | Grease speed: 28000 rpm
638DDd: 8 mm | D: 28 mm | B: 9 mm | Cr: 4.55 kN | C0r: 1.97 kN | Grease speed: 12000 rpm
689d: 9 mm | D: 17 mm | B: 4 mm | Cr: 1.33 kN | C0r: 0.665 kN | Grease speed: 36000 rpm
689ZZ1d: 9 mm | D: 17 mm | B: 5 mm | Cr: 1.33 kN | C0r: 0.665 kN | Grease speed: 36000 rpm
689VVd: 9 mm | D: 17 mm | B: 5 mm | Cr: 1.33 kN | C0r: 0.665 kN | Grease speed: 36000 rpm
689DDd: 9 mm | D: 17 mm | B: 5 mm | Cr: 1.33 kN | C0r: 0.665 kN | Grease speed: 14000 rpm
699d: 9 mm | D: 20 mm | B: 6 mm | Cr: 1.72 kN | C0r: 0.84 kN | Grease speed: 34000 rpm
699ZZ1d: 9 mm | D: 20 mm | B: 6 mm | Cr: 1.72 kN | C0r: 0.84 kN | Grease speed: 34000 rpm
699DDd: 9 mm | D: 20 mm | B: 6 mm | Cr: 1.72 kN | C0r: 0.84 kN | Grease speed: 14000 rpm
609d: 9 mm | D: 24 mm | B: 7 mm | Cr: 3.35 kN | C0r: 1.43 kN | Grease speed: 32000 rpm
609ZZd: 9 mm | D: 24 mm | B: 7 mm | Cr: 3.35 kN | C0r: 1.43 kN | Grease speed: 32000 rpm
609VVd: 9 mm | D: 24 mm | B: 7 mm | Cr: 3.35 kN | C0r: 1.43 kN | Grease speed: 32000 rpm
609DDd: 9 mm | D: 24 mm | B: 7 mm | Cr: 3.35 kN | C0r: 1.43 kN | Grease speed: 4000 rpm
629d: 9 mm | D: 26 mm | B: 8 mm | Cr: 4.55 kN | C0r: 1.97 kN | Grease speed: 28000 rpm
629ZZd: 9 mm | D: 26 mm | B: 8 mm | Cr: 4.55 kN | C0r: 1.97 kN | Grease speed: 28000 rpm
629VVd: 9 mm | D: 26 mm | B: 8 mm | Cr: 4.55 kN | C0r: 1.97 kN | Grease speed: 28000 rpm
629DDd: 9 mm | D: 26 mm | B: 8 mm | Cr: 4.55 kN | C0r: 1.97 kN | Grease speed: 12000 rpm
639d: 9 mm | D: 30 mm | B: 10 mm | Cr: 5.1 kN | C0r: 2.39 kN | Grease speed: 24000 rpm
639ZZd: 9 mm | D: 30 mm | B: 10 mm | Cr: 5.1 kN | C0r: 2.39 kN | Grease speed: 24000 rpm
639VVd: 9 mm | D: 30 mm | B: 10 mm | Cr: 5.1 kN | C0r: 2.39 kN | Grease speed: 24000 rpm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
