NSK Monocarrier MCM05 Single-Axis Linear Actuators (Light weight)

NSK Monocarrier MCM05 Single-Axis Linear Actuators (Light weight)

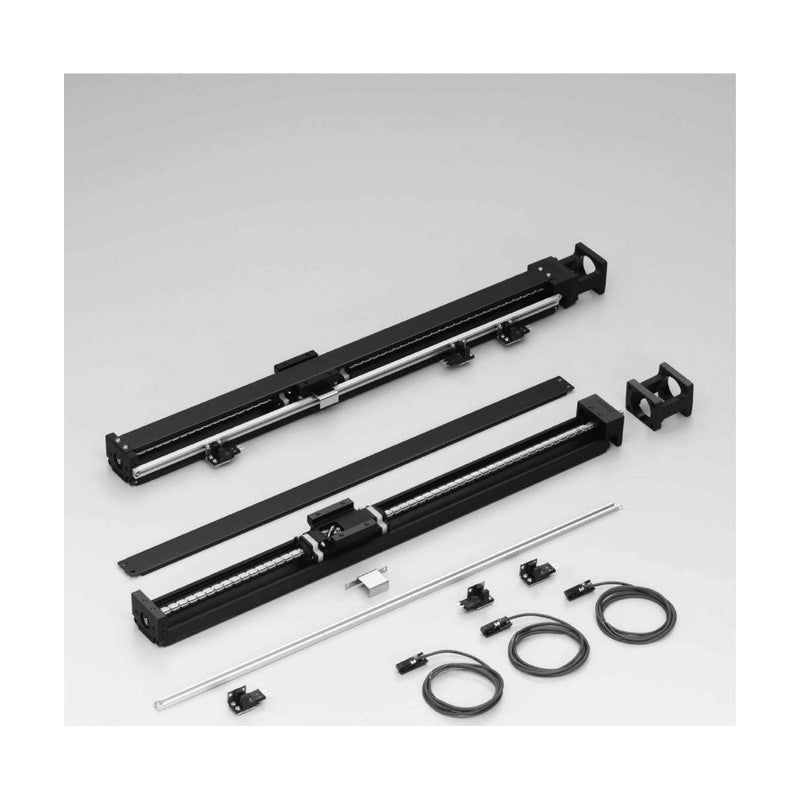

NSK Monocarrier MCM05 is a compact single-axis linear actuator in the MCM Series (light weight type), combining a ball screw, linear guide and support bearings in one body.

Key features

  • All-in-one unit integrating ball screw, linear guide and support bearings
  • Bottom and side datum planes for accurate installation
  • Low-temperature chrome plating on body and slider for rust prevention
  • NSK K1 lubrication unit for long-term maintenance-free operation
  • Single and double slider versions; ball screw leads 5, 10, 20, 30 mm

Specifications

Series MCM Series (Light weight type)
Nominal size (rail width) 48.6 mm
Stroke 50-600 mm
Ball screw lead 5, 10, 20, 30 mm
Accuracy grade High (H)
Slider Single, Double
Source NSK Monocarrier catalogue, p. C29-C32
MCM05040H30K00 Stroke: 400 mm | Lead: 30 mm | Grade: High (H) | Slider: Single
MCM05050H30K00 Stroke: 500 mm | Lead: 30 mm | Grade: High (H) | Slider: Single
MCM05060H30K00 Stroke: 600 mm | Lead: 30 mm | Grade: High (H) | Slider: Single
Linear ActuatorsNSK
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK Monocarrier MCM05 Single-Axis Linear Actuators (Light weight)

Brand NSK·Linear Actuators

Available part numbers (3)

MCM05040H30K00, MCM05050H30K00, MCM05060H30K00

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MCM05040H30K00Stroke: 400 mm | Lead: 30 mm | Grade: High (H) | Slider: Single
MCM05050H30K00Stroke: 500 mm | Lead: 30 mm | Grade: High (H) | Slider: Single
MCM05060H30K00Stroke: 600 mm | Lead: 30 mm | Grade: High (H) | Slider: Single
