• NSK N10 ROBUST High-Speed Cylindrical Roller Bearings (RS, RX, RXH)
1 1

NSK N10 ROBUST High-Speed Cylindrical Roller Bearings (RS, RX, RXH)

NSK N10 ROBUST High-Speed Cylindrical Roller Bearings (RS, RX, RXH)

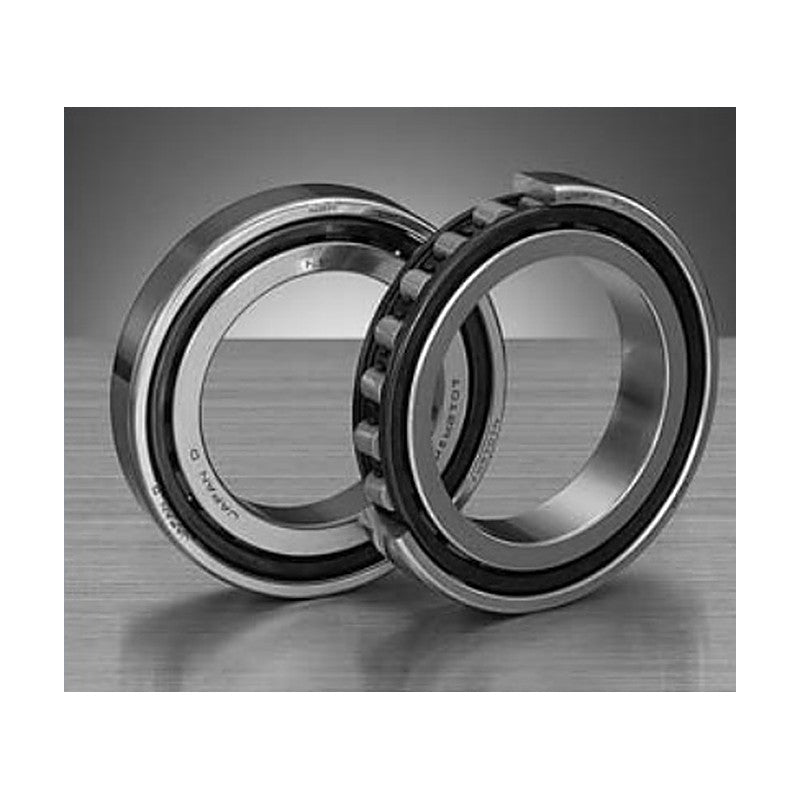

NSK ROBUST N10 single-row ultra high-speed cylindrical roller bearings with PEEK cage (TP) and tapered bore, standard and low-heat-generation (Z) types, bore 45 to 85 mm.

Key features

  • RS: bearing steel rings and rollers
  • RX: SHX heat-resistant steel rings and rollers
  • RXH: SHX rings with ceramic rollers
  • Outer-ring-guided PEEK cage (TP) up to 240 °C
  • Z internal design for reduced heat generation

Specifications

Series N10 ROBUST
Bore Tapered 1/12 (KR)
Bore range 45 - 85 mm
Cage TP PEEK resin
Speed basis Grease lubrication
Source NSK Super Precision Bearings, p. 95, 97
N1009RSTPKR d: 45 mm | D: 75 mm | B: 16 mm | Cr: 24.6 kN | C0r: 26.1 kN | Speed (grease): 16,000 min-1
N1009RXTPKR d: 45 mm | D: 75 mm | B: 16 mm | Cr: 24.6 kN | C0r: 26.1 kN | Speed (grease): 21,000 min-1
N1009RXHTPKR d: 45 mm | D: 75 mm | B: 16 mm | Cr: 24.6 kN | C0r: 26.1 kN | Speed (grease): 23,000 min-1
N1010RSTPKR d: 50 mm | D: 80 mm | B: 16 mm | Cr: 26.6 kN | C0r: 29.7 kN | Speed (grease): 15,000 min-1
N1010RXTPKR d: 50 mm | D: 80 mm | B: 16 mm | Cr: 26.6 kN | C0r: 29.7 kN | Speed (grease): 20,000 min-1
N1010RXHTPKR d: 50 mm | D: 80 mm | B: 16 mm | Cr: 26.6 kN | C0r: 29.7 kN | Speed (grease): 21,000 min-1
N1011RSTPKR d: 55 mm | D: 90 mm | B: 18 mm | Cr: 35.0 kN | C0r: 39.5 kN | Speed (grease): 13,000 min-1
N1011RXTPKR d: 55 mm | D: 90 mm | B: 18 mm | Cr: 35.0 kN | C0r: 39.5 kN | Speed (grease): 18,000 min-1
N1011RXHTPKR d: 55 mm | D: 90 mm | B: 18 mm | Cr: 35.0 kN | C0r: 39.5 kN | Speed (grease): 19,000 min-1
N1012RSTPKR d: 60 mm | D: 95 mm | B: 18 mm | Cr: 37.5 kN | C0r: 44.0 kN | Speed (grease): 12,000 min-1
N1012RXTPKR d: 60 mm | D: 95 mm | B: 18 mm | Cr: 37.5 kN | C0r: 44.0 kN | Speed (grease): 17,000 min-1
N1012RXHTPKR d: 60 mm | D: 95 mm | B: 18 mm | Cr: 37.5 kN | C0r: 44.0 kN | Speed (grease): 18,000 min-1
N1013RSTPKR d: 65 mm | D: 100 mm | B: 18 mm | Cr: 39.5 kN | C0r: 49.0 kN | Speed (grease): 11,000 min-1
N1013RXTPKR d: 65 mm | D: 100 mm | B: 18 mm | Cr: 39.5 kN | C0r: 49.0 kN | Speed (grease): 16,000 min-1
N1013RXHTPKR d: 65 mm | D: 100 mm | B: 18 mm | Cr: 39.5 kN | C0r: 49.0 kN | Speed (grease): 17,000 min-1
N1014RSTPKR d: 70 mm | D: 110 mm | B: 20 mm | Cr: 46.5 kN | C0r: 57.0 kN | Speed (grease): 10,000 min-1
N1014RXTPKR d: 70 mm | D: 110 mm | B: 20 mm | Cr: 46.5 kN | C0r: 57.0 kN | Speed (grease): 15,000 min-1
N1014RXHTPKR d: 70 mm | D: 110 mm | B: 20 mm | Cr: 46.5 kN | C0r: 57.0 kN | Speed (grease): 16,000 min-1
N1015RSTPKR d: 75 mm | D: 115 mm | B: 20 mm | Cr: 49.5 kN | C0r: 63.0 kN | Speed (grease): 9,900 min-1
N1015RXTPKR d: 75 mm | D: 115 mm | B: 20 mm | Cr: 49.5 kN | C0r: 63.0 kN | Speed (grease): 14,000 min-1
N1015RXHTPKR d: 75 mm | D: 115 mm | B: 20 mm | Cr: 49.5 kN | C0r: 63.0 kN | Speed (grease): 15,000 min-1
N1016RSTPKR d: 80 mm | D: 125 mm | B: 22 mm | Cr: 61.5 kN | C0r: 81.5 kN | Speed (grease): 9,200 min-1
N1016RXTPKR d: 80 mm | D: 125 mm | B: 22 mm | Cr: 61.5 kN | C0r: 81.5 kN | Speed (grease): 13,000 min-1
N1016RXHTPKR d: 80 mm | D: 125 mm | B: 22 mm | Cr: 61.5 kN | C0r: 81.5 kN | Speed (grease): 14,000 min-1
N1017RSTPKR d: 85 mm | D: 130 mm | B: 22 mm | Cr: 65.0 kN | C0r: 86.0 kN | Speed (grease): 8,800 min-1
N1017RXTPKR d: 85 mm | D: 130 mm | B: 22 mm | Cr: 65.0 kN | C0r: 86.0 kN | Speed (grease): 12,000 min-1
N1017RXHTPKR d: 85 mm | D: 130 mm | B: 22 mm | Cr: 65.0 kN | C0r: 86.0 kN | Speed (grease): 13,000 min-1
N1009RSZTPKR d: 45 mm | D: 75 mm | B: 16 mm | Cr: 16.0 kN | C0r: 14.7 kN | Speed (grease): 16,000 min-1
N1009RXZTPKR d: 45 mm | D: 75 mm | B: 16 mm | Cr: 16.0 kN | C0r: 14.7 kN | Speed (grease): 21,000 min-1
N1009RXHZTPKR d: 45 mm | D: 75 mm | B: 16 mm | Cr: 16.0 kN | C0r: 14.7 kN | Speed (grease): 23,000 min-1
N1010RSZTPKR d: 50 mm | D: 80 mm | B: 16 mm | Cr: 17.1 kN | C0r: 16.5 kN | Speed (grease): 15,000 min-1
N1010RXZTPKR d: 50 mm | D: 80 mm | B: 16 mm | Cr: 17.1 kN | C0r: 16.5 kN | Speed (grease): 20,000 min-1
N1010RXHZTPKR d: 50 mm | D: 80 mm | B: 16 mm | Cr: 17.1 kN | C0r: 16.5 kN | Speed (grease): 21,000 min-1
N1011RSZTPKR d: 55 mm | D: 90 mm | B: 18 mm | Cr: 20.7 kN | C0r: 19.7 kN | Speed (grease): 13,000 min-1
N1011RXZTPKR d: 55 mm | D: 90 mm | B: 18 mm | Cr: 20.7 kN | C0r: 19.7 kN | Speed (grease): 18,000 min-1
N1011RXHZTPKR d: 55 mm | D: 90 mm | B: 18 mm | Cr: 20.7 kN | C0r: 19.7 kN | Speed (grease): 19,000 min-1
N1012RSZTPKR d: 60 mm | D: 95 mm | B: 18 mm | Cr: 22.2 kN | C0r: 22.1 kN | Speed (grease): 12,000 min-1
N1012RXZTPKR d: 60 mm | D: 95 mm | B: 18 mm | Cr: 22.2 kN | C0r: 22.1 kN | Speed (grease): 17,000 min-1
N1012RXHZTPKR d: 60 mm | D: 95 mm | B: 18 mm | Cr: 22.2 kN | C0r: 22.1 kN | Speed (grease): 18,000 min-1
N1013RSZTPKR d: 65 mm | D: 100 mm | B: 18 mm | Cr: 23.6 kN | C0r: 24.5 kN | Speed (grease): 11,000 min-1
N1013RXZTPKR d: 65 mm | D: 100 mm | B: 18 mm | Cr: 23.6 kN | C0r: 24.5 kN | Speed (grease): 16,000 min-1
N1013RXHZTPKR d: 65 mm | D: 100 mm | B: 18 mm | Cr: 23.6 kN | C0r: 24.5 kN | Speed (grease): 17,000 min-1
N1014RSZTPKR d: 70 mm | D: 110 mm | B: 20 mm | Cr: 27.8 kN | C0r: 28.5 kN | Speed (grease): 10,000 min-1
N1014RXZTPKR d: 70 mm | D: 110 mm | B: 20 mm | Cr: 27.8 kN | C0r: 28.5 kN | Speed (grease): 15,000 min-1
N1014RXHZTPKR d: 70 mm | D: 110 mm | B: 20 mm | Cr: 27.8 kN | C0r: 28.5 kN | Speed (grease): 16,000 min-1
N1015RSZTPKR d: 75 mm | D: 115 mm | B: 20 mm | Cr: 29.6 kN | C0r: 31.5 kN | Speed (grease): 9,900 min-1
N1015RXZTPKR d: 75 mm | D: 115 mm | B: 20 mm | Cr: 29.6 kN | C0r: 31.5 kN | Speed (grease): 14,000 min-1
N1015RXHZTPKR d: 75 mm | D: 115 mm | B: 20 mm | Cr: 29.6 kN | C0r: 31.5 kN | Speed (grease): 15,000 min-1
N1016RSZTPKR d: 80 mm | D: 125 mm | B: 22 mm | Cr: 36.5 kN | C0r: 39.5 kN | Speed (grease): 9,200 min-1
N1016RXZTPKR d: 80 mm | D: 125 mm | B: 22 mm | Cr: 36.5 kN | C0r: 39.5 kN | Speed (grease): 13,000 min-1
N1016RXHZTPKR d: 80 mm | D: 125 mm | B: 22 mm | Cr: 36.5 kN | C0r: 39.5 kN | Speed (grease): 14,000 min-1
N1017RSZTPKR d: 85 mm | D: 130 mm | B: 22 mm | Cr: 38.5 kN | C0r: 43.0 kN | Speed (grease): 8,800 min-1
N1017RXZTPKR d: 85 mm | D: 130 mm | B: 22 mm | Cr: 38.5 kN | C0r: 43.0 kN | Speed (grease): 12,000 min-1
N1017RXHZTPKR d: 85 mm | D: 130 mm | B: 22 mm | Cr: 38.5 kN | C0r: 43.0 kN | Speed (grease): 13,000 min-1
Cylindrical Roller BearingsNSK
54 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK N10 ROBUST High-Speed Cylindrical Roller Bearings (RS, RX, RXH)

Brand NSK·Cylindrical Roller Bearings

Available part numbers (54)

N1009RSTPKR, N1009RXTPKR, N1009RXHTPKR, N1010RSTPKR, N1010RXTPKR, N1010RXHTPKR, N1011RSTPKR, N1011RXTPKR, N1011RXHTPKR, N1012RSTPKR + 44 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
N1009RSTPKRd: 45 mm | D: 75 mm | B: 16 mm | Cr: 24.6 kN | C0r: 26.1 kN | Speed (grease): 16,000 min-1
N1009RXTPKRd: 45 mm | D: 75 mm | B: 16 mm | Cr: 24.6 kN | C0r: 26.1 kN | Speed (grease): 21,000 min-1
N1009RXHTPKRd: 45 mm | D: 75 mm | B: 16 mm | Cr: 24.6 kN | C0r: 26.1 kN | Speed (grease): 23,000 min-1
N1010RSTPKRd: 50 mm | D: 80 mm | B: 16 mm | Cr: 26.6 kN | C0r: 29.7 kN | Speed (grease): 15,000 min-1
N1010RXTPKRd: 50 mm | D: 80 mm | B: 16 mm | Cr: 26.6 kN | C0r: 29.7 kN | Speed (grease): 20,000 min-1
N1010RXHTPKRd: 50 mm | D: 80 mm | B: 16 mm | Cr: 26.6 kN | C0r: 29.7 kN | Speed (grease): 21,000 min-1
N1011RSTPKRd: 55 mm | D: 90 mm | B: 18 mm | Cr: 35.0 kN | C0r: 39.5 kN | Speed (grease): 13,000 min-1
N1011RXTPKRd: 55 mm | D: 90 mm | B: 18 mm | Cr: 35.0 kN | C0r: 39.5 kN | Speed (grease): 18,000 min-1
N1011RXHTPKRd: 55 mm | D: 90 mm | B: 18 mm | Cr: 35.0 kN | C0r: 39.5 kN | Speed (grease): 19,000 min-1
N1012RSTPKRd: 60 mm | D: 95 mm | B: 18 mm | Cr: 37.5 kN | C0r: 44.0 kN | Speed (grease): 12,000 min-1
N1012RXTPKRd: 60 mm | D: 95 mm | B: 18 mm | Cr: 37.5 kN | C0r: 44.0 kN | Speed (grease): 17,000 min-1
N1012RXHTPKRd: 60 mm | D: 95 mm | B: 18 mm | Cr: 37.5 kN | C0r: 44.0 kN | Speed (grease): 18,000 min-1
N1013RSTPKRd: 65 mm | D: 100 mm | B: 18 mm | Cr: 39.5 kN | C0r: 49.0 kN | Speed (grease): 11,000 min-1
N1013RXTPKRd: 65 mm | D: 100 mm | B: 18 mm | Cr: 39.5 kN | C0r: 49.0 kN | Speed (grease): 16,000 min-1
N1013RXHTPKRd: 65 mm | D: 100 mm | B: 18 mm | Cr: 39.5 kN | C0r: 49.0 kN | Speed (grease): 17,000 min-1
N1014RSTPKRd: 70 mm | D: 110 mm | B: 20 mm | Cr: 46.5 kN | C0r: 57.0 kN | Speed (grease): 10,000 min-1
N1014RXTPKRd: 70 mm | D: 110 mm | B: 20 mm | Cr: 46.5 kN | C0r: 57.0 kN | Speed (grease): 15,000 min-1
N1014RXHTPKRd: 70 mm | D: 110 mm | B: 20 mm | Cr: 46.5 kN | C0r: 57.0 kN | Speed (grease): 16,000 min-1
N1015RSTPKRd: 75 mm | D: 115 mm | B: 20 mm | Cr: 49.5 kN | C0r: 63.0 kN | Speed (grease): 9,900 min-1
N1015RXTPKRd: 75 mm | D: 115 mm | B: 20 mm | Cr: 49.5 kN | C0r: 63.0 kN | Speed (grease): 14,000 min-1
N1015RXHTPKRd: 75 mm | D: 115 mm | B: 20 mm | Cr: 49.5 kN | C0r: 63.0 kN | Speed (grease): 15,000 min-1
N1016RSTPKRd: 80 mm | D: 125 mm | B: 22 mm | Cr: 61.5 kN | C0r: 81.5 kN | Speed (grease): 9,200 min-1
N1016RXTPKRd: 80 mm | D: 125 mm | B: 22 mm | Cr: 61.5 kN | C0r: 81.5 kN | Speed (grease): 13,000 min-1
N1016RXHTPKRd: 80 mm | D: 125 mm | B: 22 mm | Cr: 61.5 kN | C0r: 81.5 kN | Speed (grease): 14,000 min-1
N1017RSTPKRd: 85 mm | D: 130 mm | B: 22 mm | Cr: 65.0 kN | C0r: 86.0 kN | Speed (grease): 8,800 min-1
N1017RXTPKRd: 85 mm | D: 130 mm | B: 22 mm | Cr: 65.0 kN | C0r: 86.0 kN | Speed (grease): 12,000 min-1
N1017RXHTPKRd: 85 mm | D: 130 mm | B: 22 mm | Cr: 65.0 kN | C0r: 86.0 kN | Speed (grease): 13,000 min-1
N1009RSZTPKRd: 45 mm | D: 75 mm | B: 16 mm | Cr: 16.0 kN | C0r: 14.7 kN | Speed (grease): 16,000 min-1
N1009RXZTPKRd: 45 mm | D: 75 mm | B: 16 mm | Cr: 16.0 kN | C0r: 14.7 kN | Speed (grease): 21,000 min-1
N1009RXHZTPKRd: 45 mm | D: 75 mm | B: 16 mm | Cr: 16.0 kN | C0r: 14.7 kN | Speed (grease): 23,000 min-1
N1010RSZTPKRd: 50 mm | D: 80 mm | B: 16 mm | Cr: 17.1 kN | C0r: 16.5 kN | Speed (grease): 15,000 min-1
N1010RXZTPKRd: 50 mm | D: 80 mm | B: 16 mm | Cr: 17.1 kN | C0r: 16.5 kN | Speed (grease): 20,000 min-1
N1010RXHZTPKRd: 50 mm | D: 80 mm | B: 16 mm | Cr: 17.1 kN | C0r: 16.5 kN | Speed (grease): 21,000 min-1
N1011RSZTPKRd: 55 mm | D: 90 mm | B: 18 mm | Cr: 20.7 kN | C0r: 19.7 kN | Speed (grease): 13,000 min-1
N1011RXZTPKRd: 55 mm | D: 90 mm | B: 18 mm | Cr: 20.7 kN | C0r: 19.7 kN | Speed (grease): 18,000 min-1
N1011RXHZTPKRd: 55 mm | D: 90 mm | B: 18 mm | Cr: 20.7 kN | C0r: 19.7 kN | Speed (grease): 19,000 min-1
N1012RSZTPKRd: 60 mm | D: 95 mm | B: 18 mm | Cr: 22.2 kN | C0r: 22.1 kN | Speed (grease): 12,000 min-1
N1012RXZTPKRd: 60 mm | D: 95 mm | B: 18 mm | Cr: 22.2 kN | C0r: 22.1 kN | Speed (grease): 17,000 min-1
N1012RXHZTPKRd: 60 mm | D: 95 mm | B: 18 mm | Cr: 22.2 kN | C0r: 22.1 kN | Speed (grease): 18,000 min-1
N1013RSZTPKRd: 65 mm | D: 100 mm | B: 18 mm | Cr: 23.6 kN | C0r: 24.5 kN | Speed (grease): 11,000 min-1
N1013RXZTPKRd: 65 mm | D: 100 mm | B: 18 mm | Cr: 23.6 kN | C0r: 24.5 kN | Speed (grease): 16,000 min-1
N1013RXHZTPKRd: 65 mm | D: 100 mm | B: 18 mm | Cr: 23.6 kN | C0r: 24.5 kN | Speed (grease): 17,000 min-1
N1014RSZTPKRd: 70 mm | D: 110 mm | B: 20 mm | Cr: 27.8 kN | C0r: 28.5 kN | Speed (grease): 10,000 min-1
N1014RXZTPKRd: 70 mm | D: 110 mm | B: 20 mm | Cr: 27.8 kN | C0r: 28.5 kN | Speed (grease): 15,000 min-1
N1014RXHZTPKRd: 70 mm | D: 110 mm | B: 20 mm | Cr: 27.8 kN | C0r: 28.5 kN | Speed (grease): 16,000 min-1
N1015RSZTPKRd: 75 mm | D: 115 mm | B: 20 mm | Cr: 29.6 kN | C0r: 31.5 kN | Speed (grease): 9,900 min-1
N1015RXZTPKRd: 75 mm | D: 115 mm | B: 20 mm | Cr: 29.6 kN | C0r: 31.5 kN | Speed (grease): 14,000 min-1
N1015RXHZTPKRd: 75 mm | D: 115 mm | B: 20 mm | Cr: 29.6 kN | C0r: 31.5 kN | Speed (grease): 15,000 min-1
N1016RSZTPKRd: 80 mm | D: 125 mm | B: 22 mm | Cr: 36.5 kN | C0r: 39.5 kN | Speed (grease): 9,200 min-1
N1016RXZTPKRd: 80 mm | D: 125 mm | B: 22 mm | Cr: 36.5 kN | C0r: 39.5 kN | Speed (grease): 13,000 min-1
N1016RXHZTPKRd: 80 mm | D: 125 mm | B: 22 mm | Cr: 36.5 kN | C0r: 39.5 kN | Speed (grease): 14,000 min-1
N1017RSZTPKRd: 85 mm | D: 130 mm | B: 22 mm | Cr: 38.5 kN | C0r: 43.0 kN | Speed (grease): 8,800 min-1
N1017RXZTPKRd: 85 mm | D: 130 mm | B: 22 mm | Cr: 38.5 kN | C0r: 43.0 kN | Speed (grease): 12,000 min-1
N1017RXHZTPKRd: 85 mm | D: 130 mm | B: 22 mm | Cr: 38.5 kN | C0r: 43.0 kN | Speed (grease): 13,000 min-1
