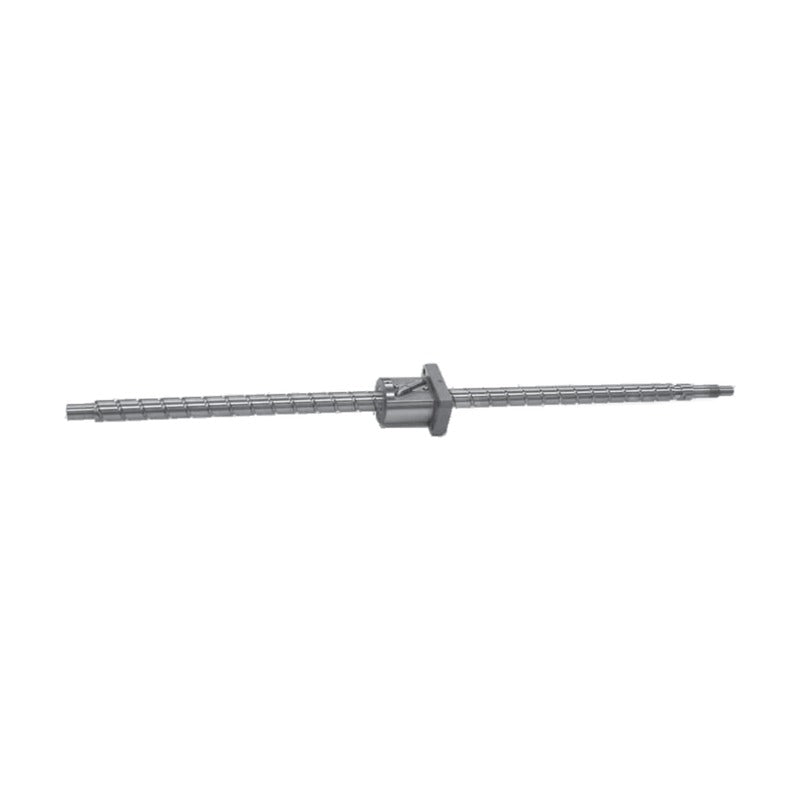

NSK SA Type Ball Screws for Machine Tools, Finished Shaft End

NSK SA Type Ball Screws for Machine Tools, Finished Shaft End

NSK SA type standard ball screws for machine tools have finished shaft ends and preloaded PFT, ZFT or DFT nuts in accuracy grade C5.

Key features

  • Shaft diameters 20 to 50 mm
  • Fine leads 4 to 12 mm
  • P, Z or D preload nuts
  • Accuracy grade C5
  • Rust preventive only: lubricate before use

Specifications

Type SA (finished shaft end)
Nut models PFT, ZFT, DFT
Accuracy grade C5
Brand NSK
Product type Ball Screws
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. B301-B356
W2002SA-1P-C5Z4 Shaft x lead: 20 x 4 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 5.42 kN | C0a: 10.7 kN
W2002SA-2P-C5Z4 Shaft x lead: 20 x 4 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 5.42 kN | C0a: 10.7 kN
W2003SA-1P-C5Z4 Shaft x lead: 20 x 4 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 5.42 kN | C0a: 10.7 kN
W2004SA-1P-C5Z4 Shaft x lead: 20 x 4 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 5.42 kN | C0a: 10.7 kN
W2005SA-1P-C5Z4 Shaft x lead: 20 x 4 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 5.42 kN | C0a: 10.7 kN
W2006SA-1P-C5Z4 Shaft x lead: 20 x 4 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 5.42 kN | C0a: 10.7 kN
W2002SA-3P-C5Z5 Shaft x lead: 20 x 5 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 9.41 kN | C0a: 17.1 kN
W2002SA-4P-C5Z5 Shaft x lead: 20 x 5 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 9.41 kN | C0a: 17.1 kN
W2003SA-2P-C5Z5 Shaft x lead: 20 x 5 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 9.41 kN | C0a: 17.1 kN
W2004SA-2P-C5Z5 Shaft x lead: 20 x 5 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 9.41 kN | C0a: 17.1 kN
W2005SA-2P-C5Z5 Shaft x lead: 20 x 5 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 9.41 kN | C0a: 17.1 kN
W2007SA-1P-C5Z5 Shaft x lead: 20 x 5 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 9.41 kN | C0a: 17.1 kN
W2502SA-1P-C5Z4 Shaft x lead: 25 x 4 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 6.02 kN | C0a: 13.6 kN
W2502SA-2P-C5Z4 Shaft x lead: 25 x 4 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 6.02 kN | C0a: 13.6 kN
W2503SA-1P-C5Z4 Shaft x lead: 25 x 4 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 6.02 kN | C0a: 13.6 kN
W2504SA-1P-C5Z4 Shaft x lead: 25 x 4 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 6.02 kN | C0a: 13.6 kN
W2505SA-1P-C5Z4 Shaft x lead: 25 x 4 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 6.02 kN | C0a: 13.6 kN
W2507SA-1P-C5Z4 Shaft x lead: 25 x 4 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 6.02 kN | C0a: 13.6 kN
W2502SA-3P-C5Z5 Shaft x lead: 25 x 5 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2502SA-4P-C5Z5 Shaft x lead: 25 x 5 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2503SA-2P-C5Z5 Shaft x lead: 25 x 5 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2504SA-2P-C5Z5 Shaft x lead: 25 x 5 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2505SA-2P-C5Z5 Shaft x lead: 25 x 5 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2506SA-1P-C5Z5 Shaft x lead: 25 x 5 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2507SA-2P-C5Z5 Shaft x lead: 25 x 5 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2509SA-1P-C5Z5 Shaft x lead: 25 x 5 mm | Stroke: 900 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2511SA-1P-C5Z5 Shaft x lead: 25 x 5 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2503SA-3P-C5Z6 Shaft x lead: 25 x 6 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 14.1 kN | C0a: 26.8 kN
W2505SA-3P-C5Z6 Shaft x lead: 25 x 6 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 14.1 kN | C0a: 26.8 kN
W2507SA-3P-C5Z6 Shaft x lead: 25 x 6 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 14.1 kN | C0a: 26.8 kN
W2511SA-2P-C5Z6 Shaft x lead: 25 x 6 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 14.1 kN | C0a: 26.8 kN
W2503SA-4P-C5Z10 Shaft x lead: 25 x 10 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 19 kN
W2505SA-4P-C5Z10 Shaft x lead: 25 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 19 kN
W2507SA-4P-C5Z10 Shaft x lead: 25 x 10 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 19 kN
W2509SA-2P-C5Z10 Shaft x lead: 25 x 10 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 19 kN
W2511SA-3P-C5Z10 Shaft x lead: 25 x 10 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 19 kN
W2514SA-1P-C5Z10 Shaft x lead: 25 x 10 mm | Stroke: 1350 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 19 kN
W2802SA-1P-C5Z5 Shaft x lead: 28 x 5 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2803SA-1P-C5Z5 Shaft x lead: 28 x 5 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2804SA-1P-C5Z5 Shaft x lead: 28 x 5 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2805SA-1P-C5Z5 Shaft x lead: 28 x 5 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2807SA-1P-C5Z5 Shaft x lead: 28 x 5 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2809SA-1P-C5Z5 Shaft x lead: 28 x 5 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2811SA-1P-C5Z5 Shaft x lead: 28 x 5 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2802SA-2Z-C5Z5 Shaft x lead: 28 x 5 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2803SA-2Z-C5Z5 Shaft x lead: 28 x 5 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2804SA-2Z-C5Z5 Shaft x lead: 28 x 5 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2805SA-2Z-C5Z5 Shaft x lead: 28 x 5 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2807SA-2Z-C5Z5 Shaft x lead: 28 x 5 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2809SA-2Z-C5Z5 Shaft x lead: 28 x 5 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2811SA-2Z-C5Z5 Shaft x lead: 28 x 5 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2803SA-3P-C5Z6 Shaft x lead: 28 x 6 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2805SA-3P-C5Z6 Shaft x lead: 28 x 6 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2807SA-3P-C5Z6 Shaft x lead: 28 x 6 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2809SA-3P-C5Z6 Shaft x lead: 28 x 6 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2811SA-3P-C5Z6 Shaft x lead: 28 x 6 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2803SA-4Z-C5Z6 Shaft x lead: 28 x 6 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2805SA-4Z-C5Z6 Shaft x lead: 28 x 6 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2807SA-4Z-C5Z6 Shaft x lead: 28 x 6 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2809SA-4Z-C5Z6 Shaft x lead: 28 x 6 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2811SA-4Z-C5Z6 Shaft x lead: 28 x 6 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W3202SA-1P-C5Z5 Shaft x lead: 32 x 5 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3203SA-1P-C5Z5 Shaft x lead: 32 x 5 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3204SA-1P-C5Z5 Shaft x lead: 32 x 5 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3205SA-1P-C5Z5 Shaft x lead: 32 x 5 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3206SA-1P-C5Z5 Shaft x lead: 32 x 5 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3207SA-1P-C5Z5 Shaft x lead: 32 x 5 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3209SA-1P-C5Z5 Shaft x lead: 32 x 5 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3211SA-1P-C5Z5 Shaft x lead: 32 x 5 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3214SA-1P-C5Z5 Shaft x lead: 32 x 5 mm | Stroke: 1350 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3202SA-2Z-C5Z5 Shaft x lead: 32 x 5 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3203SA-2Z-C5Z5 Shaft x lead: 32 x 5 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3204SA-2Z-C5Z5 Shaft x lead: 32 x 5 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3205SA-2Z-C5Z5 Shaft x lead: 32 x 5 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3206SA-2Z-C5Z5 Shaft x lead: 32 x 5 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3207SA-2Z-C5Z5 Shaft x lead: 32 x 5 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3209SA-2Z-C5Z5 Shaft x lead: 32 x 5 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3211SA-2Z-C5Z5 Shaft x lead: 32 x 5 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3214SA-2Z-C5Z5 Shaft x lead: 32 x 5 mm | Stroke: 1350 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3203SA-3P-C5Z6 Shaft x lead: 32 x 6 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 15.5 kN | C0a: 34.7 kN
W3205SA-3P-C5Z6 Shaft x lead: 32 x 6 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 15.5 kN | C0a: 34.7 kN
W3207SA-3P-C5Z6 Shaft x lead: 32 x 6 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 15.5 kN | C0a: 34.7 kN
W3209SA-3P-C5Z6 Shaft x lead: 32 x 6 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 15.5 kN | C0a: 34.7 kN
W3211SA-3P-C5Z6 Shaft x lead: 32 x 6 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 15.5 kN | C0a: 34.7 kN
W3214SA-3P-C5Z6 Shaft x lead: 32 x 6 mm | Stroke: 1350 mm | Accuracy: C5 | Axial play: Z | Ca: 15.5 kN | C0a: 34.7 kN
W3203SA-4Z-C5Z6 Shaft x lead: 32 x 6 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 24.7 kN | C0a: 69.4 kN
W3205SA-4Z-C5Z6 Shaft x lead: 32 x 6 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 24.7 kN | C0a: 69.4 kN
W3207SA-4Z-C5Z6 Shaft x lead: 32 x 6 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 24.7 kN | C0a: 69.4 kN
W3209SA-4Z-C5Z6 Shaft x lead: 32 x 6 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 24.7 kN | C0a: 69.4 kN
W3211SA-4Z-C5Z6 Shaft x lead: 32 x 6 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 24.7 kN | C0a: 69.4 kN
W3214SA-4Z-C5Z6 Shaft x lead: 32 x 6 mm | Stroke: 1350 mm | Accuracy: C5 | Axial play: Z | Ca: 24.7 kN | C0a: 69.4 kN
W3203SA-5Z-C5Z8 Shaft x lead: 32 x 8 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 17.5 kN | C0a: 41 kN
W3205SA-5Z-C5Z8 Shaft x lead: 32 x 8 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 17.5 kN | C0a: 41 kN
W3207SA-5Z-C5Z8 Shaft x lead: 32 x 8 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 17.5 kN | C0a: 41 kN
W3209SA-5Z-C5Z8 Shaft x lead: 32 x 8 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 17.5 kN | C0a: 41 kN
W3214SA-5Z-C5Z8 Shaft x lead: 32 x 8 mm | Stroke: 1350 mm | Accuracy: C5 | Axial play: Z | Ca: 17.5 kN | C0a: 41 kN
W3203SA-6Z-C5Z10 Shaft x lead: 32 x 10 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3204SA-3Z-C5Z10 Shaft x lead: 32 x 10 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3205SA-6Z-C5Z10 Shaft x lead: 32 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3206SA-3Z-C5Z10 Shaft x lead: 32 x 10 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3207SA-6Z-C5Z10 Shaft x lead: 32 x 10 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3209SA-6Z-C5Z10 Shaft x lead: 32 x 10 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3211SA-5Z-C5Z10 Shaft x lead: 32 x 10 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3214SA-6Z-C5Z10 Shaft x lead: 32 x 10 mm | Stroke: 1350 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3217SA-1Z-C5Z10 Shaft x lead: 32 x 10 mm | Stroke: 1650 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3203SA-7D-C5Z10 Shaft x lead: 32 x 10 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3204SA-4D-C5Z10 Shaft x lead: 32 x 10 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3205SA-7D-C5Z10 Shaft x lead: 32 x 10 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3206SA-4D-C5Z10 Shaft x lead: 32 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3207SA-7D-C5Z10 Shaft x lead: 32 x 10 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3209SA-7D-C5Z10 Shaft x lead: 32 x 10 mm | Stroke: 750 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3211SA-6D-C5Z10 Shaft x lead: 32 x 10 mm | Stroke: 950 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3214SA-7D-C5Z10 Shaft x lead: 32 x 10 mm | Stroke: 1250 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3217SA-2D-C5Z10 Shaft x lead: 32 x 10 mm | Stroke: 1550 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3604SA-1Z-C5Z10 Shaft x lead: 36 x 10 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 27.2 kN | C0a: 61.3 kN
W3606SA-1Z-C5Z10 Shaft x lead: 36 x 10 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 27.2 kN | C0a: 61.3 kN
W3609SA-1Z-C5Z10 Shaft x lead: 36 x 10 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 27.2 kN | C0a: 61.3 kN
W3613SA-1Z-C5Z10 Shaft x lead: 36 x 10 mm | Stroke: 1250 mm | Accuracy: C5 | Axial play: Z | Ca: 27.2 kN | C0a: 61.3 kN
W3617SA-1Z-C5Z10 Shaft x lead: 36 x 10 mm | Stroke: 1650 mm | Accuracy: C5 | Axial play: Z | Ca: 27.2 kN | C0a: 61.3 kN
W3604SA-2D-C5Z10 Shaft x lead: 36 x 10 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 49.3 kN | C0a: 123 kN
W3606SA-2D-C5Z10 Shaft x lead: 36 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 49.3 kN | C0a: 123 kN
W3609SA-2D-C5Z10 Shaft x lead: 36 x 10 mm | Stroke: 750 mm | Accuracy: C5 | Axial play: Z | Ca: 49.3 kN | C0a: 123 kN
W3613SA-2D-C5Z10 Shaft x lead: 36 x 10 mm | Stroke: 1150 mm | Accuracy: C5 | Axial play: Z | Ca: 49.3 kN | C0a: 123 kN
W3617SA-2D-C5Z10 Shaft x lead: 36 x 10 mm | Stroke: 1550 mm | Accuracy: C5 | Axial play: Z | Ca: 49.3 kN | C0a: 123 kN
W4003SA-1Z-C5Z5 Shaft x lead: 40 x 5 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 20.2 kN | C0a: 70.6 kN
W4005SA-1Z-C5Z5 Shaft x lead: 40 x 5 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 20.2 kN | C0a: 70.6 kN
W4007SA-1Z-C5Z5 Shaft x lead: 40 x 5 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 20.2 kN | C0a: 70.6 kN
W4009SA-1Z-C5Z5 Shaft x lead: 40 x 5 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 20.2 kN | C0a: 70.6 kN
W4011SA-1Z-C5Z5 Shaft x lead: 40 x 5 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 20.2 kN | C0a: 70.6 kN
W4015SA-1Z-C5Z5 Shaft x lead: 40 x 5 mm | Stroke: 1450 mm | Accuracy: C5 | Axial play: Z | Ca: 20.2 kN | C0a: 70.6 kN
W4003SA-2Z-C5Z8 Shaft x lead: 40 x 8 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 34.9 kN | C0a: 103 kN
W4005SA-2Z-C5Z8 Shaft x lead: 40 x 8 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 34.9 kN | C0a: 103 kN
W4007SA-2Z-C5Z8 Shaft x lead: 40 x 8 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 34.9 kN | C0a: 103 kN
W4009SA-2Z-C5Z8 Shaft x lead: 40 x 8 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 34.9 kN | C0a: 103 kN
W4011SA-2Z-C5Z8 Shaft x lead: 40 x 8 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 34.9 kN | C0a: 103 kN
W4015SA-2Z-C5Z8 Shaft x lead: 40 x 8 mm | Stroke: 1400 mm | Accuracy: C5 | Axial play: Z | Ca: 34.9 kN | C0a: 103 kN
W4004SA-1Z-C5Z10 Shaft x lead: 40 x 10 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4005SA-3Z-C5Z10 Shaft x lead: 40 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4006SA-1Z-C5Z10 Shaft x lead: 40 x 10 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4007SA-3Z-C5Z10 Shaft x lead: 40 x 10 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4009SA-3Z-C5Z10 Shaft x lead: 40 x 10 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4011SA-3Z-C5Z10 Shaft x lead: 40 x 10 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4013SA-1Z-C5Z10 Shaft x lead: 40 x 10 mm | Stroke: 1250 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4015SA-3Z-C5Z10 Shaft x lead: 40 x 10 mm | Stroke: 1450 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4017SA-1Z-C5Z10 Shaft x lead: 40 x 10 mm | Stroke: 1650 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4023SA-1Z-C5Z10 Shaft x lead: 40 x 10 mm | Stroke: 2250 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4004SA-2D-C5Z10 Shaft x lead: 40 x 10 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4005SA-4D-C5Z10 Shaft x lead: 40 x 10 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4006SA-2D-C5Z10 Shaft x lead: 40 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4007SA-4D-C5Z10 Shaft x lead: 40 x 10 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4009SA-4D-C5Z10 Shaft x lead: 40 x 10 mm | Stroke: 750 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4011SA-4D-C5Z10 Shaft x lead: 40 x 10 mm | Stroke: 950 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4013SA-2D-C5Z10 Shaft x lead: 40 x 10 mm | Stroke: 1150 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4015SA-4D-C5Z10 Shaft x lead: 40 x 10 mm | Stroke: 1350 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4017SA-2D-C5Z10 Shaft x lead: 40 x 10 mm | Stroke: 1550 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4023SA-2D-C5Z10 Shaft x lead: 40 x 10 mm | Stroke: 2150 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4006SA-3Z-C5Z12 Shaft x lead: 40 x 12 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 33.6 kN | C0a: 77.5 kN
W4009SA-5Z-C5Z12 Shaft x lead: 40 x 12 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 33.6 kN | C0a: 77.5 kN
W4013SA-3Z-C5Z12 Shaft x lead: 40 x 12 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: Z | Ca: 33.6 kN | C0a: 77.5 kN
W4017SA-3Z-C5Z12 Shaft x lead: 40 x 12 mm | Stroke: 1600 mm | Accuracy: C5 | Axial play: Z | Ca: 33.6 kN | C0a: 77.5 kN
W4024SA-1Z-C5Z12 Shaft x lead: 40 x 12 mm | Stroke: 2300 mm | Accuracy: C5 | Axial play: Z | Ca: 33.6 kN | C0a: 77.5 kN
W4006SA-4D-C5Z12 Shaft x lead: 40 x 12 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 61 kN | C0a: 155 kN
W4009SA-6D-C5Z12 Shaft x lead: 40 x 12 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 61 kN | C0a: 155 kN
W4013SA-4D-C5Z12 Shaft x lead: 40 x 12 mm | Stroke: 1100 mm | Accuracy: C5 | Axial play: Z | Ca: 61 kN | C0a: 155 kN
W4017SA-4D-C5Z12 Shaft x lead: 40 x 12 mm | Stroke: 1500 mm | Accuracy: C5 | Axial play: Z | Ca: 61 kN | C0a: 155 kN
W4024SA-2D-C5Z12 Shaft x lead: 40 x 12 mm | Stroke: 2200 mm | Accuracy: C5 | Axial play: Z | Ca: 61 kN | C0a: 155 kN
W4506SA-1Z-C5Z10 Shaft x lead: 45 x 10 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 29.9 kN | C0a: 77.3 kN
W4509SA-1Z-C5Z10 Shaft x lead: 45 x 10 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 29.9 kN | C0a: 77.3 kN
W4513SA-1Z-C5Z10 Shaft x lead: 45 x 10 mm | Stroke: 1250 mm | Accuracy: C5 | Axial play: Z | Ca: 29.9 kN | C0a: 77.3 kN
W4517SA-1Z-C5Z10 Shaft x lead: 45 x 10 mm | Stroke: 1650 mm | Accuracy: C5 | Axial play: Z | Ca: 29.9 kN | C0a: 77.3 kN
W4524SA-1Z-C5Z10 Shaft x lead: 45 x 10 mm | Stroke: 2350 mm | Accuracy: C5 | Axial play: Z | Ca: 29.9 kN | C0a: 77.3 kN
W5005SA-1Z-C5Z10 Shaft x lead: 50 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5007SA-1Z-C5Z10 Shaft x lead: 50 x 10 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5009SA-1Z-C5Z10 Shaft x lead: 50 x 10 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5011SA-1Z-C5Z10 Shaft x lead: 50 x 10 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5014SA-1Z-C5Z10 Shaft x lead: 50 x 10 mm | Stroke: 1350 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5019SA-1Z-C5Z10 Shaft x lead: 50 x 10 mm | Stroke: 1850 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5025SA-1Z-C5Z10 Shaft x lead: 50 x 10 mm | Stroke: 2450 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5005SA-2Z-C5Z10 Shaft x lead: 50 x 10 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN
W5007SA-2Z-C5Z10 Shaft x lead: 50 x 10 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN
W5009SA-2Z-C5Z10 Shaft x lead: 50 x 10 mm | Stroke: 750 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN
W5011SA-2Z-C5Z10 Shaft x lead: 50 x 10 mm | Stroke: 950 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN
W5014SA-2Z-C5Z10 Shaft x lead: 50 x 10 mm | Stroke: 1250 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN
W5019SA-2Z-C5Z10 Shaft x lead: 50 x 10 mm | Stroke: 1750 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN
W5025SA-2Z-C5Z10 Shaft x lead: 50 x 10 mm | Stroke: 2350 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN
Ball ScrewsNSK
185 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK SA Type Ball Screws for Machine Tools, Finished Shaft End

Brand NSK·Ball Screws

Available part numbers (185)

W2002SA-1P-C5Z4, W2002SA-2P-C5Z4, W2003SA-1P-C5Z4, W2004SA-1P-C5Z4, W2005SA-1P-C5Z4, W2006SA-1P-C5Z4, W2002SA-3P-C5Z5, W2002SA-4P-C5Z5, W2003SA-2P-C5Z5, W2004SA-2P-C5Z5 + 175 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
W2002SA-1P-C5Z4Shaft x lead: 20 x 4 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 5.42 kN | C0a: 10.7 kN
W2002SA-2P-C5Z4Shaft x lead: 20 x 4 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 5.42 kN | C0a: 10.7 kN
W2003SA-1P-C5Z4Shaft x lead: 20 x 4 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 5.42 kN | C0a: 10.7 kN
W2004SA-1P-C5Z4Shaft x lead: 20 x 4 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 5.42 kN | C0a: 10.7 kN
W2005SA-1P-C5Z4Shaft x lead: 20 x 4 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 5.42 kN | C0a: 10.7 kN
W2006SA-1P-C5Z4Shaft x lead: 20 x 4 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 5.42 kN | C0a: 10.7 kN
W2002SA-3P-C5Z5Shaft x lead: 20 x 5 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 9.41 kN | C0a: 17.1 kN
W2002SA-4P-C5Z5Shaft x lead: 20 x 5 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 9.41 kN | C0a: 17.1 kN
W2003SA-2P-C5Z5Shaft x lead: 20 x 5 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 9.41 kN | C0a: 17.1 kN
W2004SA-2P-C5Z5Shaft x lead: 20 x 5 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 9.41 kN | C0a: 17.1 kN
W2005SA-2P-C5Z5Shaft x lead: 20 x 5 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 9.41 kN | C0a: 17.1 kN
W2007SA-1P-C5Z5Shaft x lead: 20 x 5 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 9.41 kN | C0a: 17.1 kN
W2502SA-1P-C5Z4Shaft x lead: 25 x 4 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 6.02 kN | C0a: 13.6 kN
W2502SA-2P-C5Z4Shaft x lead: 25 x 4 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 6.02 kN | C0a: 13.6 kN
W2503SA-1P-C5Z4Shaft x lead: 25 x 4 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 6.02 kN | C0a: 13.6 kN
W2504SA-1P-C5Z4Shaft x lead: 25 x 4 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 6.02 kN | C0a: 13.6 kN
W2505SA-1P-C5Z4Shaft x lead: 25 x 4 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 6.02 kN | C0a: 13.6 kN
W2507SA-1P-C5Z4Shaft x lead: 25 x 4 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 6.02 kN | C0a: 13.6 kN
W2502SA-3P-C5Z5Shaft x lead: 25 x 5 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2502SA-4P-C5Z5Shaft x lead: 25 x 5 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2503SA-2P-C5Z5Shaft x lead: 25 x 5 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2504SA-2P-C5Z5Shaft x lead: 25 x 5 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2505SA-2P-C5Z5Shaft x lead: 25 x 5 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2506SA-1P-C5Z5Shaft x lead: 25 x 5 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2507SA-2P-C5Z5Shaft x lead: 25 x 5 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2509SA-1P-C5Z5Shaft x lead: 25 x 5 mm | Stroke: 900 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2511SA-1P-C5Z5Shaft x lead: 25 x 5 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2503SA-3P-C5Z6Shaft x lead: 25 x 6 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 14.1 kN | C0a: 26.8 kN
W2505SA-3P-C5Z6Shaft x lead: 25 x 6 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 14.1 kN | C0a: 26.8 kN
W2507SA-3P-C5Z6Shaft x lead: 25 x 6 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 14.1 kN | C0a: 26.8 kN
W2511SA-2P-C5Z6Shaft x lead: 25 x 6 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 14.1 kN | C0a: 26.8 kN
W2503SA-4P-C5Z10Shaft x lead: 25 x 10 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 19 kN
W2505SA-4P-C5Z10Shaft x lead: 25 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 19 kN
W2507SA-4P-C5Z10Shaft x lead: 25 x 10 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 19 kN
W2509SA-2P-C5Z10Shaft x lead: 25 x 10 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 19 kN
W2511SA-3P-C5Z10Shaft x lead: 25 x 10 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 19 kN
W2514SA-1P-C5Z10Shaft x lead: 25 x 10 mm | Stroke: 1350 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 19 kN
W2802SA-1P-C5Z5Shaft x lead: 28 x 5 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2803SA-1P-C5Z5Shaft x lead: 28 x 5 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2804SA-1P-C5Z5Shaft x lead: 28 x 5 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2805SA-1P-C5Z5Shaft x lead: 28 x 5 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2807SA-1P-C5Z5Shaft x lead: 28 x 5 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2809SA-1P-C5Z5Shaft x lead: 28 x 5 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2811SA-1P-C5Z5Shaft x lead: 28 x 5 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2802SA-2Z-C5Z5Shaft x lead: 28 x 5 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2803SA-2Z-C5Z5Shaft x lead: 28 x 5 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2804SA-2Z-C5Z5Shaft x lead: 28 x 5 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2805SA-2Z-C5Z5Shaft x lead: 28 x 5 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2807SA-2Z-C5Z5Shaft x lead: 28 x 5 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2809SA-2Z-C5Z5Shaft x lead: 28 x 5 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2811SA-2Z-C5Z5Shaft x lead: 28 x 5 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2803SA-3P-C5Z6Shaft x lead: 28 x 6 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2805SA-3P-C5Z6Shaft x lead: 28 x 6 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2807SA-3P-C5Z6Shaft x lead: 28 x 6 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2809SA-3P-C5Z6Shaft x lead: 28 x 6 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2811SA-3P-C5Z6Shaft x lead: 28 x 6 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2803SA-4Z-C5Z6Shaft x lead: 28 x 6 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2805SA-4Z-C5Z6Shaft x lead: 28 x 6 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2807SA-4Z-C5Z6Shaft x lead: 28 x 6 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2809SA-4Z-C5Z6Shaft x lead: 28 x 6 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2811SA-4Z-C5Z6Shaft x lead: 28 x 6 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W3202SA-1P-C5Z5Shaft x lead: 32 x 5 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3203SA-1P-C5Z5Shaft x lead: 32 x 5 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3204SA-1P-C5Z5Shaft x lead: 32 x 5 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3205SA-1P-C5Z5Shaft x lead: 32 x 5 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3206SA-1P-C5Z5Shaft x lead: 32 x 5 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3207SA-1P-C5Z5Shaft x lead: 32 x 5 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3209SA-1P-C5Z5Shaft x lead: 32 x 5 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3211SA-1P-C5Z5Shaft x lead: 32 x 5 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3214SA-1P-C5Z5Shaft x lead: 32 x 5 mm | Stroke: 1350 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3202SA-2Z-C5Z5Shaft x lead: 32 x 5 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3203SA-2Z-C5Z5Shaft x lead: 32 x 5 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3204SA-2Z-C5Z5Shaft x lead: 32 x 5 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3205SA-2Z-C5Z5Shaft x lead: 32 x 5 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3206SA-2Z-C5Z5Shaft x lead: 32 x 5 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3207SA-2Z-C5Z5Shaft x lead: 32 x 5 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3209SA-2Z-C5Z5Shaft x lead: 32 x 5 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3211SA-2Z-C5Z5Shaft x lead: 32 x 5 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3214SA-2Z-C5Z5Shaft x lead: 32 x 5 mm | Stroke: 1350 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3203SA-3P-C5Z6Shaft x lead: 32 x 6 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 15.5 kN | C0a: 34.7 kN
W3205SA-3P-C5Z6Shaft x lead: 32 x 6 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 15.5 kN | C0a: 34.7 kN
W3207SA-3P-C5Z6Shaft x lead: 32 x 6 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 15.5 kN | C0a: 34.7 kN
W3209SA-3P-C5Z6Shaft x lead: 32 x 6 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 15.5 kN | C0a: 34.7 kN
W3211SA-3P-C5Z6Shaft x lead: 32 x 6 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 15.5 kN | C0a: 34.7 kN
W3214SA-3P-C5Z6Shaft x lead: 32 x 6 mm | Stroke: 1350 mm | Accuracy: C5 | Axial play: Z | Ca: 15.5 kN | C0a: 34.7 kN
W3203SA-4Z-C5Z6Shaft x lead: 32 x 6 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 24.7 kN | C0a: 69.4 kN
W3205SA-4Z-C5Z6Shaft x lead: 32 x 6 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 24.7 kN | C0a: 69.4 kN
W3207SA-4Z-C5Z6Shaft x lead: 32 x 6 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 24.7 kN | C0a: 69.4 kN
W3209SA-4Z-C5Z6Shaft x lead: 32 x 6 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 24.7 kN | C0a: 69.4 kN
W3211SA-4Z-C5Z6Shaft x lead: 32 x 6 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 24.7 kN | C0a: 69.4 kN
W3214SA-4Z-C5Z6Shaft x lead: 32 x 6 mm | Stroke: 1350 mm | Accuracy: C5 | Axial play: Z | Ca: 24.7 kN | C0a: 69.4 kN
W3203SA-5Z-C5Z8Shaft x lead: 32 x 8 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 17.5 kN | C0a: 41 kN
W3205SA-5Z-C5Z8Shaft x lead: 32 x 8 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 17.5 kN | C0a: 41 kN
W3207SA-5Z-C5Z8Shaft x lead: 32 x 8 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 17.5 kN | C0a: 41 kN
W3209SA-5Z-C5Z8Shaft x lead: 32 x 8 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 17.5 kN | C0a: 41 kN
W3214SA-5Z-C5Z8Shaft x lead: 32 x 8 mm | Stroke: 1350 mm | Accuracy: C5 | Axial play: Z | Ca: 17.5 kN | C0a: 41 kN
W3203SA-6Z-C5Z10Shaft x lead: 32 x 10 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3204SA-3Z-C5Z10Shaft x lead: 32 x 10 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3205SA-6Z-C5Z10Shaft x lead: 32 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3206SA-3Z-C5Z10Shaft x lead: 32 x 10 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3207SA-6Z-C5Z10Shaft x lead: 32 x 10 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3209SA-6Z-C5Z10Shaft x lead: 32 x 10 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3211SA-5Z-C5Z10Shaft x lead: 32 x 10 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3214SA-6Z-C5Z10Shaft x lead: 32 x 10 mm | Stroke: 1350 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3217SA-1Z-C5Z10Shaft x lead: 32 x 10 mm | Stroke: 1650 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3203SA-7D-C5Z10Shaft x lead: 32 x 10 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3204SA-4D-C5Z10Shaft x lead: 32 x 10 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3205SA-7D-C5Z10Shaft x lead: 32 x 10 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3206SA-4D-C5Z10Shaft x lead: 32 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3207SA-7D-C5Z10Shaft x lead: 32 x 10 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3209SA-7D-C5Z10Shaft x lead: 32 x 10 mm | Stroke: 750 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3211SA-6D-C5Z10Shaft x lead: 32 x 10 mm | Stroke: 950 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3214SA-7D-C5Z10Shaft x lead: 32 x 10 mm | Stroke: 1250 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3217SA-2D-C5Z10Shaft x lead: 32 x 10 mm | Stroke: 1550 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3604SA-1Z-C5Z10Shaft x lead: 36 x 10 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 27.2 kN | C0a: 61.3 kN
W3606SA-1Z-C5Z10Shaft x lead: 36 x 10 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 27.2 kN | C0a: 61.3 kN
W3609SA-1Z-C5Z10Shaft x lead: 36 x 10 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 27.2 kN | C0a: 61.3 kN
W3613SA-1Z-C5Z10Shaft x lead: 36 x 10 mm | Stroke: 1250 mm | Accuracy: C5 | Axial play: Z | Ca: 27.2 kN | C0a: 61.3 kN
W3617SA-1Z-C5Z10Shaft x lead: 36 x 10 mm | Stroke: 1650 mm | Accuracy: C5 | Axial play: Z | Ca: 27.2 kN | C0a: 61.3 kN
W3604SA-2D-C5Z10Shaft x lead: 36 x 10 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 49.3 kN | C0a: 123 kN
W3606SA-2D-C5Z10Shaft x lead: 36 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 49.3 kN | C0a: 123 kN
W3609SA-2D-C5Z10Shaft x lead: 36 x 10 mm | Stroke: 750 mm | Accuracy: C5 | Axial play: Z | Ca: 49.3 kN | C0a: 123 kN
W3613SA-2D-C5Z10Shaft x lead: 36 x 10 mm | Stroke: 1150 mm | Accuracy: C5 | Axial play: Z | Ca: 49.3 kN | C0a: 123 kN
W3617SA-2D-C5Z10Shaft x lead: 36 x 10 mm | Stroke: 1550 mm | Accuracy: C5 | Axial play: Z | Ca: 49.3 kN | C0a: 123 kN
W4003SA-1Z-C5Z5Shaft x lead: 40 x 5 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 20.2 kN | C0a: 70.6 kN
W4005SA-1Z-C5Z5Shaft x lead: 40 x 5 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 20.2 kN | C0a: 70.6 kN
W4007SA-1Z-C5Z5Shaft x lead: 40 x 5 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 20.2 kN | C0a: 70.6 kN
W4009SA-1Z-C5Z5Shaft x lead: 40 x 5 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 20.2 kN | C0a: 70.6 kN
W4011SA-1Z-C5Z5Shaft x lead: 40 x 5 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 20.2 kN | C0a: 70.6 kN
W4015SA-1Z-C5Z5Shaft x lead: 40 x 5 mm | Stroke: 1450 mm | Accuracy: C5 | Axial play: Z | Ca: 20.2 kN | C0a: 70.6 kN
W4003SA-2Z-C5Z8Shaft x lead: 40 x 8 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 34.9 kN | C0a: 103 kN
W4005SA-2Z-C5Z8Shaft x lead: 40 x 8 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 34.9 kN | C0a: 103 kN
W4007SA-2Z-C5Z8Shaft x lead: 40 x 8 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 34.9 kN | C0a: 103 kN
W4009SA-2Z-C5Z8Shaft x lead: 40 x 8 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 34.9 kN | C0a: 103 kN
W4011SA-2Z-C5Z8Shaft x lead: 40 x 8 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 34.9 kN | C0a: 103 kN
W4015SA-2Z-C5Z8Shaft x lead: 40 x 8 mm | Stroke: 1400 mm | Accuracy: C5 | Axial play: Z | Ca: 34.9 kN | C0a: 103 kN
W4004SA-1Z-C5Z10Shaft x lead: 40 x 10 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4005SA-3Z-C5Z10Shaft x lead: 40 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4006SA-1Z-C5Z10Shaft x lead: 40 x 10 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4007SA-3Z-C5Z10Shaft x lead: 40 x 10 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4009SA-3Z-C5Z10Shaft x lead: 40 x 10 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4011SA-3Z-C5Z10Shaft x lead: 40 x 10 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4013SA-1Z-C5Z10Shaft x lead: 40 x 10 mm | Stroke: 1250 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4015SA-3Z-C5Z10Shaft x lead: 40 x 10 mm | Stroke: 1450 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4017SA-1Z-C5Z10Shaft x lead: 40 x 10 mm | Stroke: 1650 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4023SA-1Z-C5Z10Shaft x lead: 40 x 10 mm | Stroke: 2250 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4004SA-2D-C5Z10Shaft x lead: 40 x 10 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4005SA-4D-C5Z10Shaft x lead: 40 x 10 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4006SA-2D-C5Z10Shaft x lead: 40 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4007SA-4D-C5Z10Shaft x lead: 40 x 10 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4009SA-4D-C5Z10Shaft x lead: 40 x 10 mm | Stroke: 750 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4011SA-4D-C5Z10Shaft x lead: 40 x 10 mm | Stroke: 950 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4013SA-2D-C5Z10Shaft x lead: 40 x 10 mm | Stroke: 1150 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4015SA-4D-C5Z10Shaft x lead: 40 x 10 mm | Stroke: 1350 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4017SA-2D-C5Z10Shaft x lead: 40 x 10 mm | Stroke: 1550 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4023SA-2D-C5Z10Shaft x lead: 40 x 10 mm | Stroke: 2150 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4006SA-3Z-C5Z12Shaft x lead: 40 x 12 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 33.6 kN | C0a: 77.5 kN
W4009SA-5Z-C5Z12Shaft x lead: 40 x 12 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 33.6 kN | C0a: 77.5 kN
W4013SA-3Z-C5Z12Shaft x lead: 40 x 12 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: Z | Ca: 33.6 kN | C0a: 77.5 kN
W4017SA-3Z-C5Z12Shaft x lead: 40 x 12 mm | Stroke: 1600 mm | Accuracy: C5 | Axial play: Z | Ca: 33.6 kN | C0a: 77.5 kN
W4024SA-1Z-C5Z12Shaft x lead: 40 x 12 mm | Stroke: 2300 mm | Accuracy: C5 | Axial play: Z | Ca: 33.6 kN | C0a: 77.5 kN
W4006SA-4D-C5Z12Shaft x lead: 40 x 12 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 61 kN | C0a: 155 kN
W4009SA-6D-C5Z12Shaft x lead: 40 x 12 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 61 kN | C0a: 155 kN
W4013SA-4D-C5Z12Shaft x lead: 40 x 12 mm | Stroke: 1100 mm | Accuracy: C5 | Axial play: Z | Ca: 61 kN | C0a: 155 kN
W4017SA-4D-C5Z12Shaft x lead: 40 x 12 mm | Stroke: 1500 mm | Accuracy: C5 | Axial play: Z | Ca: 61 kN | C0a: 155 kN
W4024SA-2D-C5Z12Shaft x lead: 40 x 12 mm | Stroke: 2200 mm | Accuracy: C5 | Axial play: Z | Ca: 61 kN | C0a: 155 kN
W4506SA-1Z-C5Z10Shaft x lead: 45 x 10 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 29.9 kN | C0a: 77.3 kN
W4509SA-1Z-C5Z10Shaft x lead: 45 x 10 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 29.9 kN | C0a: 77.3 kN
W4513SA-1Z-C5Z10Shaft x lead: 45 x 10 mm | Stroke: 1250 mm | Accuracy: C5 | Axial play: Z | Ca: 29.9 kN | C0a: 77.3 kN
W4517SA-1Z-C5Z10Shaft x lead: 45 x 10 mm | Stroke: 1650 mm | Accuracy: C5 | Axial play: Z | Ca: 29.9 kN | C0a: 77.3 kN
W4524SA-1Z-C5Z10Shaft x lead: 45 x 10 mm | Stroke: 2350 mm | Accuracy: C5 | Axial play: Z | Ca: 29.9 kN | C0a: 77.3 kN
W5005SA-1Z-C5Z10Shaft x lead: 50 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5007SA-1Z-C5Z10Shaft x lead: 50 x 10 mm | Stroke: 650 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5009SA-1Z-C5Z10Shaft x lead: 50 x 10 mm | Stroke: 850 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5011SA-1Z-C5Z10Shaft x lead: 50 x 10 mm | Stroke: 1050 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5014SA-1Z-C5Z10Shaft x lead: 50 x 10 mm | Stroke: 1350 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5019SA-1Z-C5Z10Shaft x lead: 50 x 10 mm | Stroke: 1850 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5025SA-1Z-C5Z10Shaft x lead: 50 x 10 mm | Stroke: 2450 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5005SA-2Z-C5Z10Shaft x lead: 50 x 10 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN
W5007SA-2Z-C5Z10Shaft x lead: 50 x 10 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN
W5009SA-2Z-C5Z10Shaft x lead: 50 x 10 mm | Stroke: 750 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN
W5011SA-2Z-C5Z10Shaft x lead: 50 x 10 mm | Stroke: 950 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN
W5014SA-2Z-C5Z10Shaft x lead: 50 x 10 mm | Stroke: 1250 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN
W5019SA-2Z-C5Z10Shaft x lead: 50 x 10 mm | Stroke: 1750 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN
W5025SA-2Z-C5Z10Shaft x lead: 50 x 10 mm | Stroke: 2350 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
