• NSK SPACEA Clean Grease Bearings (LG2)
1 1

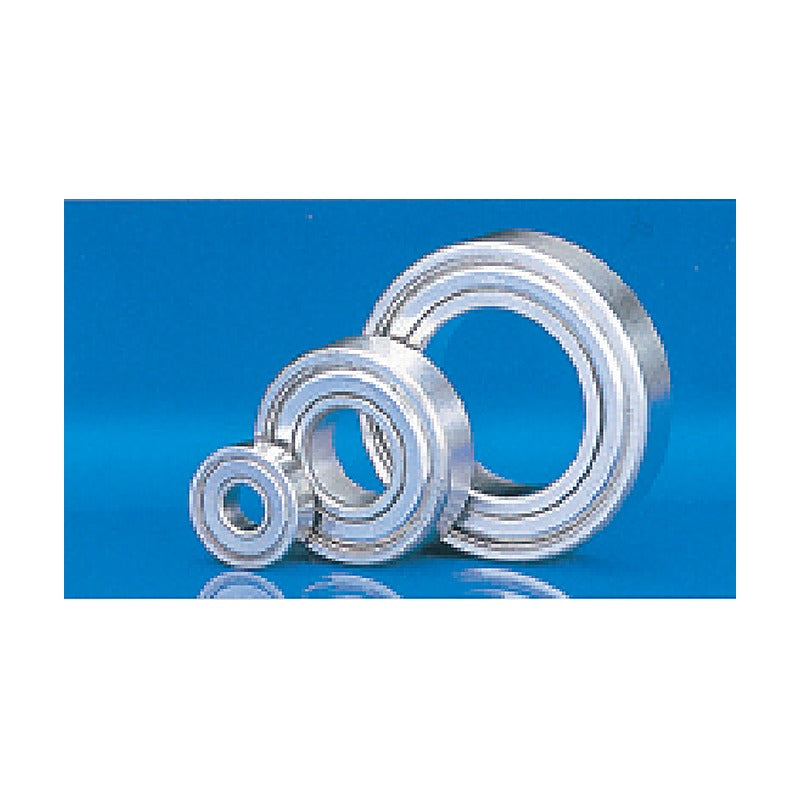

NSK SPACEA Clean Grease Bearings (LG2)

NSK SPACEA Clean Grease Bearings (LG2)

NSK SPACEA bearings filled with NSK clean grease LG2 for low particle emission in clean rooms (class 100-1000); LGU and DL2 greases are listed as options.

Key features

  • Low-dust LG2 clean grease
  • Lower particle generation and torque than commercial fluorine greases
  • For clean room equipment, air atmosphere
  • Alternative greases LGU and DL2 (vacuum) listed - consult NSK

Specifications

Series SPACEA special environment
Basic types Miniature and deep groove ball bearings
Availability Stock, short lead time or made to order
Grease NSK LG2 (LGU / DL2 optional)
Environment Clean room, class 100-1000
Source NSK SPACEA Series Catalogue, p. 24-49
684LZZC3-HLG2 Basic no.: 684 | d: 4 mm | D: 9 mm | B: 4 mm | CH: 545 N
694LZZC3-HLG2 Basic no.: 694 | d: 4 mm | D: 11 mm | B: 4 mm | CH: 815 N
604LZZC3-HLG2 Basic no.: 604 | d: 4 mm | D: 12 mm | B: 4 mm | CH: 815 N
624LZZC3-HLG2 Basic no.: 624 | d: 4 mm | D: 13 mm | B: 5 mm | CH: 1110 N
634LZZC3-HLG2 Basic no.: 634 | d: 4 mm | D: 16 mm | B: 5 mm | CH: 1470 N
685LZZC3-HLG2 Basic no.: 685 | d: 5 mm | D: 11 mm | B: 5 mm | CH: 610 N
695LZZC3-HLG2 Basic no.: 695 | d: 5 mm | D: 13 mm | B: 4 mm | CH: 915 N
605LZZC3-HLG2 Basic no.: 605 | d: 5 mm | D: 14 mm | B: 5 mm | CH: 1130 N
625LZZC3-HLG2 Basic no.: 625 | d: 5 mm | D: 16 mm | B: 5 mm | CH: 1470 N
635LZZC3-HLG2 Basic no.: 635 | d: 5 mm | D: 19 mm | B: 6 mm | CH: 2220 N
686LZZC3-HLG2 Basic no.: 686 | d: 6 mm | D: 13 mm | B: 5 mm | CH: 920 N
696LZZC3-HLG2 Basic no.: 696 | d: 6 mm | D: 15 mm | B: 5 mm | CH: 1470 N
606LZZC3-HLG2 Basic no.: 606 | d: 6 mm | D: 17 mm | B: 6 mm | CH: 1920 N
626LZZC3-HLG2 Basic no.: 626 | d: 6 mm | D: 19 mm | B: 6 mm | CH: 2220 N
636LZZC3-HLG2 Basic no.: 636 | d: 6 mm | D: 22 mm | B: 7 mm | CH: 2800 N
687LZZC3-HLG2 Basic no.: 687 | d: 7 mm | D: 14 mm | B: 5 mm | CH: 1000 N
697LZZC3-HLG2 Basic no.: 697 | d: 7 mm | D: 17 mm | B: 5 mm | CH: 1370 N
607LZZC3-HLG2 Basic no.: 607 | d: 7 mm | D: 19 mm | B: 6 mm | CH: 2220 N
627LZZC3-HLG2 Basic no.: 627 | d: 7 mm | D: 22 mm | B: 7 mm | CH: 2800 N
688LZZC3-HLG2 Basic no.: 688 | d: 8 mm | D: 16 mm | B: 5 mm | CH: 1370 N
698LZZC3-HLG2 Basic no.: 698 | d: 8 mm | D: 19 mm | B: 6 mm | CH: 1900 N
608LZZC3-HLG2 Basic no.: 608 | d: 8 mm | D: 22 mm | B: 7 mm | CH: 2800 N
628LZZC3-HLG2 Basic no.: 628 | d: 8 mm | D: 24 mm | B: 8 mm | CH: 2850 N
638LZZC3-HLG2 Basic no.: 638 | d: 8 mm | D: 28 mm | B: 9 mm | CH: 3900 N
689LZZC3-HLG2 Basic no.: 689 | d: 9 mm | D: 17 mm | B: 5 mm | CH: 1130 N
699LZZC3-HLG2 Basic no.: 699 | d: 9 mm | D: 20 mm | B: 6 mm | CH: 1460 N
609LZZC3-HLG2 Basic no.: 609 | d: 9 mm | D: 24 mm | B: 7 mm | CH: 2850 N
629LZZC3-HLG2 Basic no.: 629 | d: 9 mm | D: 26 mm | B: 8 mm | CH: 3900 N
639LZZC3-HLG2 Basic no.: 639 | d: 9 mm | D: 30 mm | B: 10 mm | CH: 4350 N
R6LZZC3-HLG2 Basic no.: R6 | d: 9.525 mm | D: 22.225 mm | B: 7.142 mm | CH: 2830 N
6800LZZ-HLG2 Basic no.: 6800 | d: 10 mm | D: 19 mm | B: 5 mm | CH: 1460 N
6900LZZ-HLG2 Basic no.: 6900 | d: 10 mm | D: 22 mm | B: 6 mm | CH: 2290 N
6000LZZ-HLG2 Basic no.: 6000 | d: 10 mm | D: 26 mm | B: 8 mm | CH: 3900 N
6200LZZ-HLG2 Basic no.: 6200 | d: 10 mm | D: 30 mm | B: 9 mm | CH: 4350 N
6300LZZ-HLG2 Basic no.: 6300 | d: 10 mm | D: 35 mm | B: 11 mm | CH: 6900 N
6801LZZ-HLG2 Basic no.: 6801 | d: 12 mm | D: 21 mm | B: 5 mm | CH: 1630 N
6901LZZ-HLG2 Basic no.: 6901 | d: 12 mm | D: 24 mm | B: 6 mm | CH: 2460 N
6001LZZ-HLG2 Basic no.: 6001 | d: 12 mm | D: 28 mm | B: 8 mm | CH: 4350 N
6201LZZ-HLG2 Basic no.: 6201 | d: 12 mm | D: 32 mm | B: 10 mm | CH: 5800 N
6301LZZ-HLG2 Basic no.: 6301 | d: 12 mm | D: 37 mm | B: 12 mm | CH: 8250 N
6802LZZ-HLG2 Basic no.: 6802 | d: 15 mm | D: 24 mm | B: 5 mm | CH: 1760 N
6902LZZ-HLG2 Basic no.: 6902 | d: 15 mm | D: 28 mm | B: 7 mm | CH: 3700 N
6002LZZ-HLG2 Basic no.: 6002 | d: 15 mm | D: 32 mm | B: 9 mm | CH: 4750 N
6202LZZ-HLG2 Basic no.: 6202 | d: 15 mm | D: 35 mm | B: 11 mm | CH: 6500 N
6302LZZ-HLG2 Basic no.: 6302 | d: 15 mm | D: 42 mm | B: 13 mm | CH: 9700 N
6803LZZ-HLG2 Basic no.: 6803 | d: 17 mm | D: 26 mm | B: 5 mm | CH: 2240 N
6903LZZ-HLG2 Basic no.: 6903 | d: 17 mm | D: 30 mm | B: 7 mm | CH: 3900 N
6003LZZ-HLG2 Basic no.: 6003 | d: 17 mm | D: 35 mm | B: 10 mm | CH: 5100 N
6203LZZ-HLG2 Basic no.: 6203 | d: 17 mm | D: 40 mm | B: 12 mm | CH: 8150 N
6303LZZ-HLG2 Basic no.: 6303 | d: 17 mm | D: 47 mm | B: 14 mm | CH: 11600 N
6804LZZ-HLG2 Basic no.: 6804 | d: 20 mm | D: 32 mm | B: 7 mm | CH: 3400 N
6904LZZ-HLG2 Basic no.: 6904 | d: 20 mm | D: 37 mm | B: 9 mm | CH: 5400 N
6004LZZ-HLG2 Basic no.: 6004 | d: 20 mm | D: 42 mm | B: 12 mm | CH: 7950 N
6204LZZ-HLG2 Basic no.: 6204 | d: 20 mm | D: 47 mm | B: 14 mm | CH: 10900 N
6304LZZ-HLG2 Basic no.: 6304 | d: 20 mm | D: 52 mm | B: 15 mm | CH: 13500 N
6805LZZ-HLG2 Basic no.: 6805 | d: 25 mm | D: 37 mm | B: 7 mm | CH: 3800 N
6905LZZ-HLG2 Basic no.: 6905 | d: 25 mm | D: 42 mm | B: 9 mm | CH: 5950 N
6005LZZ-HLG2 Basic no.: 6005 | d: 25 mm | D: 47 mm | B: 12 mm | CH: 8550 N
6205LZZ-HLG2 Basic no.: 6205 | d: 25 mm | D: 52 mm | B: 15 mm | CH: 11900 N
6006LZZ-HLG2 Basic no.: 6006 | d: 30 mm | D: 55 mm | B: 13 mm | CH: 11300 N
6206LZZ-HLG2 Basic no.: 6206 | d: 30 mm | D: 62 mm | B: 16 mm | CH: 16500 N
6007LZZ-HLG2 Basic no.: 6007 | d: 35 mm | D: 62 mm | B: 14 mm | CH: 13600 N
6207LZZ-HLG2 Basic no.: 6207 | d: 35 mm | D: 72 mm | B: 17 mm | CH: 21800 N
6008LZZ-HLG2 Basic no.: 6008 | d: 40 mm | D: 68 mm | B: 15 mm | CH: 14200 N
6208LZZ-HLG2 Basic no.: 6208 | d: 40 mm | D: 80 mm | B: 18 mm | CH: 24800 N
6009LZZ-HLG2 Basic no.: 6009 | d: 45 mm | D: 75 mm | B: 16 mm | CH: 17800 N
Deep Groove Ball BearingsNSK
66 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK SPACEA Clean Grease Bearings (LG2)

Brand NSK·Deep Groove Ball Bearings

Available part numbers (66)

684LZZC3-HLG2, 694LZZC3-HLG2, 604LZZC3-HLG2, 624LZZC3-HLG2, 634LZZC3-HLG2, 685LZZC3-HLG2, 695LZZC3-HLG2, 605LZZC3-HLG2, 625LZZC3-HLG2, 635LZZC3-HLG2 + 56 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
684LZZC3-HLG2Basic no.: 684 | d: 4 mm | D: 9 mm | B: 4 mm | CH: 545 N
694LZZC3-HLG2Basic no.: 694 | d: 4 mm | D: 11 mm | B: 4 mm | CH: 815 N
604LZZC3-HLG2Basic no.: 604 | d: 4 mm | D: 12 mm | B: 4 mm | CH: 815 N
624LZZC3-HLG2Basic no.: 624 | d: 4 mm | D: 13 mm | B: 5 mm | CH: 1110 N
634LZZC3-HLG2Basic no.: 634 | d: 4 mm | D: 16 mm | B: 5 mm | CH: 1470 N
685LZZC3-HLG2Basic no.: 685 | d: 5 mm | D: 11 mm | B: 5 mm | CH: 610 N
695LZZC3-HLG2Basic no.: 695 | d: 5 mm | D: 13 mm | B: 4 mm | CH: 915 N
605LZZC3-HLG2Basic no.: 605 | d: 5 mm | D: 14 mm | B: 5 mm | CH: 1130 N
625LZZC3-HLG2Basic no.: 625 | d: 5 mm | D: 16 mm | B: 5 mm | CH: 1470 N
635LZZC3-HLG2Basic no.: 635 | d: 5 mm | D: 19 mm | B: 6 mm | CH: 2220 N
686LZZC3-HLG2Basic no.: 686 | d: 6 mm | D: 13 mm | B: 5 mm | CH: 920 N
696LZZC3-HLG2Basic no.: 696 | d: 6 mm | D: 15 mm | B: 5 mm | CH: 1470 N
606LZZC3-HLG2Basic no.: 606 | d: 6 mm | D: 17 mm | B: 6 mm | CH: 1920 N
626LZZC3-HLG2Basic no.: 626 | d: 6 mm | D: 19 mm | B: 6 mm | CH: 2220 N
636LZZC3-HLG2Basic no.: 636 | d: 6 mm | D: 22 mm | B: 7 mm | CH: 2800 N
687LZZC3-HLG2Basic no.: 687 | d: 7 mm | D: 14 mm | B: 5 mm | CH: 1000 N
697LZZC3-HLG2Basic no.: 697 | d: 7 mm | D: 17 mm | B: 5 mm | CH: 1370 N
607LZZC3-HLG2Basic no.: 607 | d: 7 mm | D: 19 mm | B: 6 mm | CH: 2220 N
627LZZC3-HLG2Basic no.: 627 | d: 7 mm | D: 22 mm | B: 7 mm | CH: 2800 N
688LZZC3-HLG2Basic no.: 688 | d: 8 mm | D: 16 mm | B: 5 mm | CH: 1370 N
698LZZC3-HLG2Basic no.: 698 | d: 8 mm | D: 19 mm | B: 6 mm | CH: 1900 N
608LZZC3-HLG2Basic no.: 608 | d: 8 mm | D: 22 mm | B: 7 mm | CH: 2800 N
628LZZC3-HLG2Basic no.: 628 | d: 8 mm | D: 24 mm | B: 8 mm | CH: 2850 N
638LZZC3-HLG2Basic no.: 638 | d: 8 mm | D: 28 mm | B: 9 mm | CH: 3900 N
689LZZC3-HLG2Basic no.: 689 | d: 9 mm | D: 17 mm | B: 5 mm | CH: 1130 N
699LZZC3-HLG2Basic no.: 699 | d: 9 mm | D: 20 mm | B: 6 mm | CH: 1460 N
609LZZC3-HLG2Basic no.: 609 | d: 9 mm | D: 24 mm | B: 7 mm | CH: 2850 N
629LZZC3-HLG2Basic no.: 629 | d: 9 mm | D: 26 mm | B: 8 mm | CH: 3900 N
639LZZC3-HLG2Basic no.: 639 | d: 9 mm | D: 30 mm | B: 10 mm | CH: 4350 N
R6LZZC3-HLG2Basic no.: R6 | d: 9.525 mm | D: 22.225 mm | B: 7.142 mm | CH: 2830 N
6800LZZ-HLG2Basic no.: 6800 | d: 10 mm | D: 19 mm | B: 5 mm | CH: 1460 N
6900LZZ-HLG2Basic no.: 6900 | d: 10 mm | D: 22 mm | B: 6 mm | CH: 2290 N
6000LZZ-HLG2Basic no.: 6000 | d: 10 mm | D: 26 mm | B: 8 mm | CH: 3900 N
6200LZZ-HLG2Basic no.: 6200 | d: 10 mm | D: 30 mm | B: 9 mm | CH: 4350 N
6300LZZ-HLG2Basic no.: 6300 | d: 10 mm | D: 35 mm | B: 11 mm | CH: 6900 N
6801LZZ-HLG2Basic no.: 6801 | d: 12 mm | D: 21 mm | B: 5 mm | CH: 1630 N
6901LZZ-HLG2Basic no.: 6901 | d: 12 mm | D: 24 mm | B: 6 mm | CH: 2460 N
6001LZZ-HLG2Basic no.: 6001 | d: 12 mm | D: 28 mm | B: 8 mm | CH: 4350 N
6201LZZ-HLG2Basic no.: 6201 | d: 12 mm | D: 32 mm | B: 10 mm | CH: 5800 N
6301LZZ-HLG2Basic no.: 6301 | d: 12 mm | D: 37 mm | B: 12 mm | CH: 8250 N
6802LZZ-HLG2Basic no.: 6802 | d: 15 mm | D: 24 mm | B: 5 mm | CH: 1760 N
6902LZZ-HLG2Basic no.: 6902 | d: 15 mm | D: 28 mm | B: 7 mm | CH: 3700 N
6002LZZ-HLG2Basic no.: 6002 | d: 15 mm | D: 32 mm | B: 9 mm | CH: 4750 N
6202LZZ-HLG2Basic no.: 6202 | d: 15 mm | D: 35 mm | B: 11 mm | CH: 6500 N
6302LZZ-HLG2Basic no.: 6302 | d: 15 mm | D: 42 mm | B: 13 mm | CH: 9700 N
6803LZZ-HLG2Basic no.: 6803 | d: 17 mm | D: 26 mm | B: 5 mm | CH: 2240 N
6903LZZ-HLG2Basic no.: 6903 | d: 17 mm | D: 30 mm | B: 7 mm | CH: 3900 N
6003LZZ-HLG2Basic no.: 6003 | d: 17 mm | D: 35 mm | B: 10 mm | CH: 5100 N
6203LZZ-HLG2Basic no.: 6203 | d: 17 mm | D: 40 mm | B: 12 mm | CH: 8150 N
6303LZZ-HLG2Basic no.: 6303 | d: 17 mm | D: 47 mm | B: 14 mm | CH: 11600 N
6804LZZ-HLG2Basic no.: 6804 | d: 20 mm | D: 32 mm | B: 7 mm | CH: 3400 N
6904LZZ-HLG2Basic no.: 6904 | d: 20 mm | D: 37 mm | B: 9 mm | CH: 5400 N
6004LZZ-HLG2Basic no.: 6004 | d: 20 mm | D: 42 mm | B: 12 mm | CH: 7950 N
6204LZZ-HLG2Basic no.: 6204 | d: 20 mm | D: 47 mm | B: 14 mm | CH: 10900 N
6304LZZ-HLG2Basic no.: 6304 | d: 20 mm | D: 52 mm | B: 15 mm | CH: 13500 N
6805LZZ-HLG2Basic no.: 6805 | d: 25 mm | D: 37 mm | B: 7 mm | CH: 3800 N
6905LZZ-HLG2Basic no.: 6905 | d: 25 mm | D: 42 mm | B: 9 mm | CH: 5950 N
6005LZZ-HLG2Basic no.: 6005 | d: 25 mm | D: 47 mm | B: 12 mm | CH: 8550 N
6205LZZ-HLG2Basic no.: 6205 | d: 25 mm | D: 52 mm | B: 15 mm | CH: 11900 N
6006LZZ-HLG2Basic no.: 6006 | d: 30 mm | D: 55 mm | B: 13 mm | CH: 11300 N
6206LZZ-HLG2Basic no.: 6206 | d: 30 mm | D: 62 mm | B: 16 mm | CH: 16500 N
6007LZZ-HLG2Basic no.: 6007 | d: 35 mm | D: 62 mm | B: 14 mm | CH: 13600 N
6207LZZ-HLG2Basic no.: 6207 | d: 35 mm | D: 72 mm | B: 17 mm | CH: 21800 N
6008LZZ-HLG2Basic no.: 6008 | d: 40 mm | D: 68 mm | B: 15 mm | CH: 14200 N
6208LZZ-HLG2Basic no.: 6208 | d: 40 mm | D: 80 mm | B: 18 mm | CH: 24800 N
6009LZZ-HLG2Basic no.: 6009 | d: 45 mm | D: 75 mm | B: 16 mm | CH: 17800 N
