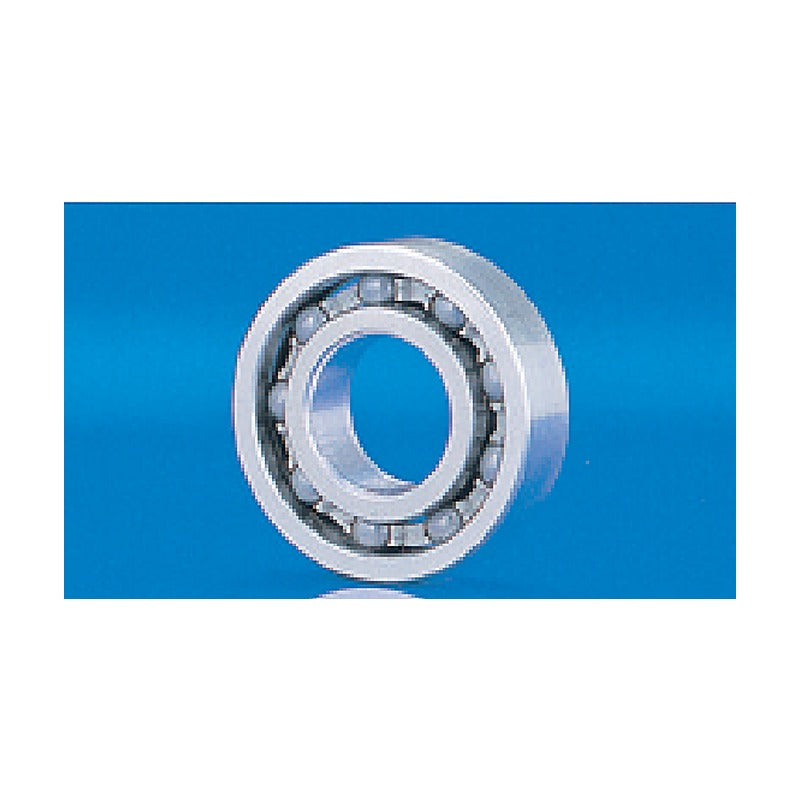

NSK SPACEA ESA High Corrosion-Resistant Non-Magnetic Bearings

NSK SPACEA ESA High Corrosion-Resistant Non-Magnetic Bearings

NSK SPACEA ESA bearings made of high corrosion-resistant, non-magnetic stainless steel with surface-hardened rings, for corrosive and non-magnetic environments.

Key features

  • High corrosion-resistant, non-magnetic stainless steel
  • Surface-hardened inner and outer rings
  • Fluorine-based solid lubrication
  • For electron beam equipment and cleaning machines
  • Standard width of ESA type is 5.558 mm for R6

Specifications

Series SPACEA special environment
Basic types Miniature and deep groove ball bearings
Availability Stock, short lead time or made to order
Material Non-magnetic stainless, hardened
Lubrication Fluorine-based solid
Source NSK SPACEA Series Catalogue, p. 24-39
ESA608 Basic no.: 608 | d: 8 mm | D: 22 mm | B: 7 mm | CH: 2800 N
ESA628 Basic no.: 628 | d: 8 mm | D: 24 mm | B: 8 mm | CH: 2850 N
ESA609 Basic no.: 609 | d: 9 mm | D: 24 mm | B: 7 mm | CH: 2850 N
ESA629 Basic no.: 629 | d: 9 mm | D: 26 mm | B: 8 mm | CH: 3900 N
ESAR6 Basic no.: R6 | d: 9.525 mm | D: 22.225 mm | B: 7.142 mm | CH: 2830 N
ESA6000 Basic no.: 6000 | d: 10 mm | D: 26 mm | B: 8 mm | CH: 3900 N
ESA6200 Basic no.: 6200 | d: 10 mm | D: 30 mm | B: 9 mm | CH: 4350 N
ESA6001 Basic no.: 6001 | d: 12 mm | D: 28 mm | B: 8 mm | CH: 4350 N
ESA6201 Basic no.: 6201 | d: 12 mm | D: 32 mm | B: 10 mm | CH: 5800 N
ESA6002 Basic no.: 6002 | d: 15 mm | D: 32 mm | B: 9 mm | CH: 4750 N
ESA6202 Basic no.: 6202 | d: 15 mm | D: 35 mm | B: 11 mm | CH: 6500 N
ESA6003 Basic no.: 6003 | d: 17 mm | D: 35 mm | B: 10 mm | CH: 5100 N
ESA6203 Basic no.: 6203 | d: 17 mm | D: 40 mm | B: 12 mm | CH: 8150 N
ESA6004 Basic no.: 6004 | d: 20 mm | D: 42 mm | B: 12 mm | CH: 7950 N
ESA6204 Basic no.: 6204 | d: 20 mm | D: 47 mm | B: 14 mm | CH: 10900 N
ESA6005 Basic no.: 6005 | d: 25 mm | D: 47 mm | B: 12 mm | CH: 8550 N
ESA6205 Basic no.: 6205 | d: 25 mm | D: 52 mm | B: 15 mm | CH: 11900 N
ESA6006 Basic no.: 6006 | d: 30 mm | D: 55 mm | B: 13 mm | CH: 11300 N
ESA6206 Basic no.: 6206 | d: 30 mm | D: 62 mm | B: 16 mm | CH: 16500 N
Deep Groove Ball BearingsNSK
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK SPACEA ESA High Corrosion-Resistant Non-Magnetic Bearings

Brand NSK·Deep Groove Ball Bearings

Available part numbers (19)

ESA608, ESA628, ESA609, ESA629, ESAR6, ESA6000, ESA6200, ESA6001, ESA6201, ESA6002 + 9 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ESA608Basic no.: 608 | d: 8 mm | D: 22 mm | B: 7 mm | CH: 2800 N
ESA628Basic no.: 628 | d: 8 mm | D: 24 mm | B: 8 mm | CH: 2850 N
ESA609Basic no.: 609 | d: 9 mm | D: 24 mm | B: 7 mm | CH: 2850 N
ESA629Basic no.: 629 | d: 9 mm | D: 26 mm | B: 8 mm | CH: 3900 N
ESAR6Basic no.: R6 | d: 9.525 mm | D: 22.225 mm | B: 7.142 mm | CH: 2830 N
ESA6000Basic no.: 6000 | d: 10 mm | D: 26 mm | B: 8 mm | CH: 3900 N
ESA6200Basic no.: 6200 | d: 10 mm | D: 30 mm | B: 9 mm | CH: 4350 N
ESA6001Basic no.: 6001 | d: 12 mm | D: 28 mm | B: 8 mm | CH: 4350 N
ESA6201Basic no.: 6201 | d: 12 mm | D: 32 mm | B: 10 mm | CH: 5800 N
ESA6002Basic no.: 6002 | d: 15 mm | D: 32 mm | B: 9 mm | CH: 4750 N
ESA6202Basic no.: 6202 | d: 15 mm | D: 35 mm | B: 11 mm | CH: 6500 N
ESA6003Basic no.: 6003 | d: 17 mm | D: 35 mm | B: 10 mm | CH: 5100 N
ESA6203Basic no.: 6203 | d: 17 mm | D: 40 mm | B: 12 mm | CH: 8150 N
ESA6004Basic no.: 6004 | d: 20 mm | D: 42 mm | B: 12 mm | CH: 7950 N
ESA6204Basic no.: 6204 | d: 20 mm | D: 47 mm | B: 14 mm | CH: 10900 N
ESA6005Basic no.: 6005 | d: 25 mm | D: 47 mm | B: 12 mm | CH: 8550 N
ESA6205Basic no.: 6205 | d: 25 mm | D: 52 mm | B: 15 mm | CH: 11900 N
ESA6006Basic no.: 6006 | d: 30 mm | D: 55 mm | B: 13 mm | CH: 11300 N
ESA6206Basic no.: 6206 | d: 30 mm | D: 62 mm | B: 16 mm | CH: 16500 N
