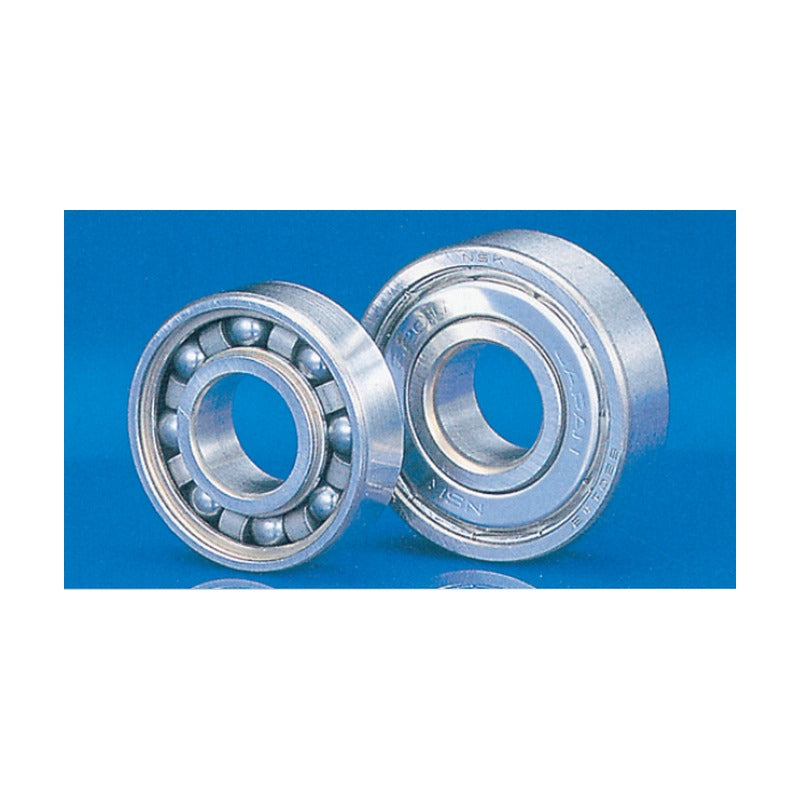

NSK SPACEA YS Spacer-Type High-Temperature Bearings (HMSS2)

NSK SPACEA YS Spacer-Type High-Temperature Bearings (HMSS2)

NSK SPACEA YS spacer-type bearings with MoS2-based solid lubricating spacers for air and vacuum (to 10^-8 Pa) at temperatures up to 350 °C.

Key features

  • MoS2-based self-lubricating spacers instead of a cage
  • Air to 10^-8 Pa vacuum, up to 350 °C
  • Long life compared with conventional high-temperature solid-lubricated bearings
  • For vacuum furnaces and high-temperature transfer

Specifications

Series SPACEA special environment
Basic types Miniature and deep groove ball bearings
Availability Stock, short lead time or made to order
Lubrication MoS2 solid spacers
Temperature Up to 350 °C
Source NSK SPACEA Series Catalogue, p. 24-60
694LZZC4-HMSS2 Basic no.: 694 | d: 4 mm | D: 11 mm | B: 4 mm | CH: 815 N
604LZZC4-HMSS2 Basic no.: 604 | d: 4 mm | D: 12 mm | B: 4 mm | CH: 815 N
624LZZC4-HMSS2 Basic no.: 624 | d: 4 mm | D: 13 mm | B: 5 mm | CH: 1110 N
634LZZC4-HMSS2 Basic no.: 634 | d: 4 mm | D: 16 mm | B: 5 mm | CH: 1470 N
695LZZC4-HMSS2 Basic no.: 695 | d: 5 mm | D: 13 mm | B: 4 mm | CH: 915 N
605LZZC4-HMSS2 Basic no.: 605 | d: 5 mm | D: 14 mm | B: 5 mm | CH: 1130 N
625LZZC4-HMSS2 Basic no.: 625 | d: 5 mm | D: 16 mm | B: 5 mm | CH: 1470 N
635LZZC4-HMSS2 Basic no.: 635 | d: 5 mm | D: 19 mm | B: 6 mm | CH: 2220 N
686LZZC4-HMSS2 Basic no.: 686 | d: 6 mm | D: 13 mm | B: 5 mm | CH: 920 N
696LZZC4-HMSS2 Basic no.: 696 | d: 6 mm | D: 15 mm | B: 5 mm | CH: 1470 N
606LZZC4-HMSS2 Basic no.: 606 | d: 6 mm | D: 17 mm | B: 6 mm | CH: 1920 N
626LZZC4-HMSS2 Basic no.: 626 | d: 6 mm | D: 19 mm | B: 6 mm | CH: 2220 N
636LZZC4-HMSS2 Basic no.: 636 | d: 6 mm | D: 22 mm | B: 7 mm | CH: 2800 N
687LZZC4-HMSS2 Basic no.: 687 | d: 7 mm | D: 14 mm | B: 5 mm | CH: 1000 N
697LZZC4-HMSS2 Basic no.: 697 | d: 7 mm | D: 17 mm | B: 5 mm | CH: 1370 N
607LZZC4-HMSS2 Basic no.: 607 | d: 7 mm | D: 19 mm | B: 6 mm | CH: 2220 N
627LZZC4-HMSS2 Basic no.: 627 | d: 7 mm | D: 22 mm | B: 7 mm | CH: 2800 N
688LZZC4-HMSS2 Basic no.: 688 | d: 8 mm | D: 16 mm | B: 5 mm | CH: 1370 N
698LZZC4-HMSS2 Basic no.: 698 | d: 8 mm | D: 19 mm | B: 6 mm | CH: 1900 N
608LZZC4-HMSS2 Basic no.: 608 | d: 8 mm | D: 22 mm | B: 7 mm | CH: 2800 N
628LZZC4-HMSS2 Basic no.: 628 | d: 8 mm | D: 24 mm | B: 8 mm | CH: 2850 N
638LZZC4-HMSS2 Basic no.: 638 | d: 8 mm | D: 28 mm | B: 9 mm | CH: 3900 N
689LZZC4-HMSS2 Basic no.: 689 | d: 9 mm | D: 17 mm | B: 5 mm | CH: 1130 N
699LZZC4-HMSS2 Basic no.: 699 | d: 9 mm | D: 20 mm | B: 6 mm | CH: 1460 N
609LZZC4-HMSS2 Basic no.: 609 | d: 9 mm | D: 24 mm | B: 7 mm | CH: 2850 N
629LZZC4-HMSS2 Basic no.: 629 | d: 9 mm | D: 26 mm | B: 8 mm | CH: 3900 N
639LZZC4-HMSS2 Basic no.: 639 | d: 9 mm | D: 30 mm | B: 10 mm | CH: 4350 N
R6LZZC4-HMSS2 Basic no.: R6 | d: 9.525 mm | D: 22.225 mm | B: 7.142 mm | CH: 2830 N
6800LZZC4-HMSS2 Basic no.: 6800 | d: 10 mm | D: 19 mm | B: 5 mm | CH: 1460 N
6900LZZC4-HMSS2 Basic no.: 6900 | d: 10 mm | D: 22 mm | B: 6 mm | CH: 2290 N
6000LZZC4-HMSS2 Basic no.: 6000 | d: 10 mm | D: 26 mm | B: 8 mm | CH: 3900 N
6200LZZC4-HMSS2 Basic no.: 6200 | d: 10 mm | D: 30 mm | B: 9 mm | CH: 4350 N
6300LZZC4-HMSS2 Basic no.: 6300 | d: 10 mm | D: 35 mm | B: 11 mm | CH: 6900 N
6801LZZC4-HMSS2 Basic no.: 6801 | d: 12 mm | D: 21 mm | B: 5 mm | CH: 1630 N
6901LZZC4-HMSS2 Basic no.: 6901 | d: 12 mm | D: 24 mm | B: 6 mm | CH: 2460 N
6001LZZC4-HMSS2 Basic no.: 6001 | d: 12 mm | D: 28 mm | B: 8 mm | CH: 4350 N
6201LZZC4-HMSS2 Basic no.: 6201 | d: 12 mm | D: 32 mm | B: 10 mm | CH: 5800 N
6301LZZC4-HMSS2 Basic no.: 6301 | d: 12 mm | D: 37 mm | B: 12 mm | CH: 8250 N
6802LZZC4-HMSS2 Basic no.: 6802 | d: 15 mm | D: 24 mm | B: 5 mm | CH: 1760 N
6902LZZC4-HMSS2 Basic no.: 6902 | d: 15 mm | D: 28 mm | B: 7 mm | CH: 3700 N
6002LZZC4-HMSS2 Basic no.: 6002 | d: 15 mm | D: 32 mm | B: 9 mm | CH: 4750 N
6202LZZC4-HMSS2 Basic no.: 6202 | d: 15 mm | D: 35 mm | B: 11 mm | CH: 6500 N
6302LZZC4-HMSS2 Basic no.: 6302 | d: 15 mm | D: 42 mm | B: 13 mm | CH: 9700 N
6803LZZC4-HMSS2 Basic no.: 6803 | d: 17 mm | D: 26 mm | B: 5 mm | CH: 2240 N
6903LZZC4-HMSS2 Basic no.: 6903 | d: 17 mm | D: 30 mm | B: 7 mm | CH: 3900 N
6003LZZC4-HMSS2 Basic no.: 6003 | d: 17 mm | D: 35 mm | B: 10 mm | CH: 5100 N
6203LZZC4-HMSS2 Basic no.: 6203 | d: 17 mm | D: 40 mm | B: 12 mm | CH: 8150 N
6303LZZC4-HMSS2 Basic no.: 6303 | d: 17 mm | D: 47 mm | B: 14 mm | CH: 11600 N
6804LZZC4-HMSS2 Basic no.: 6804 | d: 20 mm | D: 32 mm | B: 7 mm | CH: 3400 N
6904LZZC4-HMSS2 Basic no.: 6904 | d: 20 mm | D: 37 mm | B: 9 mm | CH: 5400 N
6004LZZC4-HMSS2 Basic no.: 6004 | d: 20 mm | D: 42 mm | B: 12 mm | CH: 7950 N
6204LZZC4-HMSS2 Basic no.: 6204 | d: 20 mm | D: 47 mm | B: 14 mm | CH: 10900 N
6304LZZC4-HMSS2 Basic no.: 6304 | d: 20 mm | D: 52 mm | B: 15 mm | CH: 13500 N
6805LZZC4-HMSS2 Basic no.: 6805 | d: 25 mm | D: 37 mm | B: 7 mm | CH: 3800 N
6905LZZC4-HMSS2 Basic no.: 6905 | d: 25 mm | D: 42 mm | B: 9 mm | CH: 5950 N
6005LZZC4-HMSS2 Basic no.: 6005 | d: 25 mm | D: 47 mm | B: 12 mm | CH: 8550 N
6205LZZC4-HMSS2 Basic no.: 6205 | d: 25 mm | D: 52 mm | B: 15 mm | CH: 11900 N
6006LZZC4-HMSS2 Basic no.: 6006 | d: 30 mm | D: 55 mm | B: 13 mm | CH: 11300 N
6206LZZC4-HMSS2 Basic no.: 6206 | d: 30 mm | D: 62 mm | B: 16 mm | CH: 16500 N
6007LZZC4-HMSS2 Basic no.: 6007 | d: 35 mm | D: 62 mm | B: 14 mm | CH: 13600 N
6207LZZC4-HMSS2 Basic no.: 6207 | d: 35 mm | D: 72 mm | B: 17 mm | CH: 21800 N
6008LZZC4-HMSS2 Basic no.: 6008 | d: 40 mm | D: 68 mm | B: 15 mm | CH: 14200 N
6208LZZC4-HMSS2 Basic no.: 6208 | d: 40 mm | D: 80 mm | B: 18 mm | CH: 24800 N
6009LZZC4-HMSS2 Basic no.: 6009 | d: 45 mm | D: 75 mm | B: 16 mm | CH: 17800 N
Deep Groove Ball BearingsNSK
64 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK SPACEA YS Spacer-Type High-Temperature Bearings (HMSS2)

Brand NSK·Deep Groove Ball Bearings

Available part numbers (64)

694LZZC4-HMSS2, 604LZZC4-HMSS2, 624LZZC4-HMSS2, 634LZZC4-HMSS2, 695LZZC4-HMSS2, 605LZZC4-HMSS2, 625LZZC4-HMSS2, 635LZZC4-HMSS2, 686LZZC4-HMSS2, 696LZZC4-HMSS2 + 54 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
