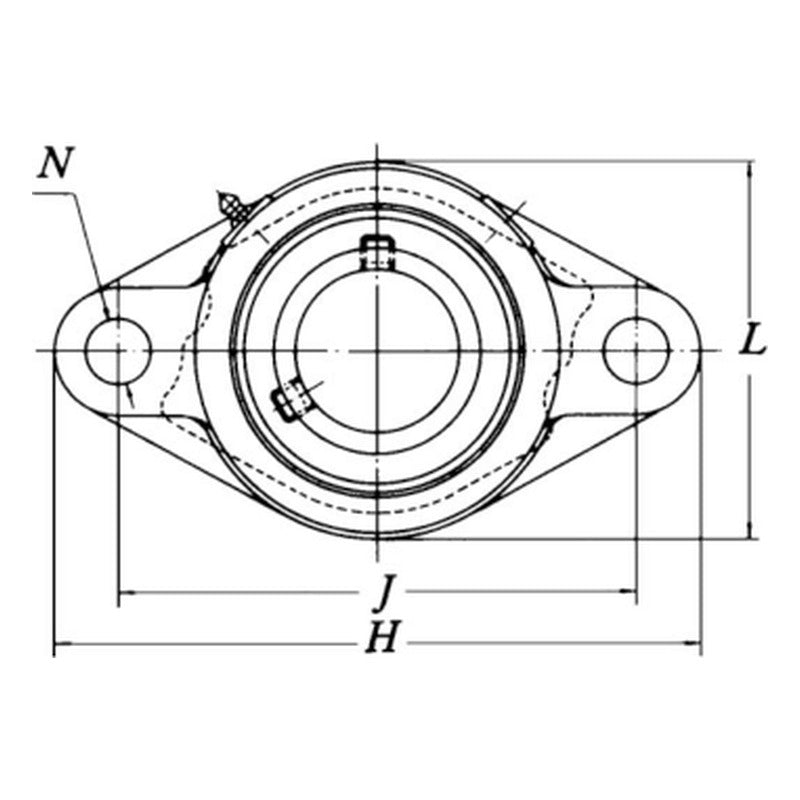

NSK UCFL 2 Two-Bolt Oval Flange Ball Bearing Units (Shaft 12-90)

NSK UCFL two-bolt oval (rhombic) flange cast iron units with set-screw UC 2 insert bearings, shaft diameters 12 to 90 mm.

Key features

Two-bolt oval cast iron flange housing
Self-aligning spherical seat
UC insert with set-screw locking
Optional steel (ZUCFL) and cast (CUCFL) covers

Specifications

Product	Ball bearing unit
Housing	Cast iron
Insert	Deep groove ball bearing, spherical OD
Locking	Set screw
Shaft	12-90 mm
Mounting	2-bolt oval flange
Source	NSK Rolling Bearings Catalogue (Part 3), p. 292-293

UCFL 201		Shaft: 12 mm \| Bearing: UC 201 \| H: 113 mm \| J: 90 mm \| Cr: 12.8 kN
UCFL 202		Shaft: 15 mm \| Bearing: UC 202 \| H: 113 mm \| J: 90 mm \| Cr: 12.8 kN
UCFL 203		Shaft: 17 mm \| Bearing: UC 203 \| H: 113 mm \| J: 90 mm \| Cr: 12.8 kN
UCFL 204		Shaft: 20 mm \| Bearing: UC 204 \| H: 113 mm \| J: 90 mm \| Cr: 12.8 kN
UCFL 205		Shaft: 25 mm \| Bearing: UC 205 \| H: 130 mm \| J: 99 mm \| Cr: 14 kN
UCFL 206		Shaft: 30 mm \| Bearing: UC 206 \| H: 148 mm \| J: 117 mm \| Cr: 19.5 kN
UCFL 207		Shaft: 35 mm \| Bearing: UC 207 \| H: 161 mm \| J: 130 mm \| Cr: 25.7 kN
UCFL 208		Shaft: 40 mm \| Bearing: UC 208 \| H: 175 mm \| J: 144 mm \| Cr: 29.1 kN
UCFL 209		Shaft: 45 mm \| Bearing: UC 209 \| H: 188 mm \| J: 148 mm \| Cr: 31.5 kN
UCFL 210		Shaft: 50 mm \| Bearing: UC 210 \| H: 197 mm \| J: 157 mm \| Cr: 35 kN
UCFL 211		Shaft: 55 mm \| Bearing: UC 211 \| H: 224 mm \| J: 184 mm \| Cr: 43.5 kN
UCFL 212		Shaft: 60 mm \| Bearing: UC 212 \| H: 250 mm \| J: 202 mm \| Cr: 52.5 kN
UCFL 213		Shaft: 65 mm \| Bearing: UC 213 \| H: 258 mm \| J: 210 mm \| Cr: 57.5 kN
UCFL 214		Shaft: 70 mm \| Bearing: UC 214 \| H: 265 mm \| J: 216 mm \| Cr: 62 kN
UCFL 215		Shaft: 75 mm \| Bearing: UC 215 \| H: 275 mm \| J: 225 mm \| Cr: 66 kN
UCFL 216		Shaft: 80 mm \| Bearing: UC 216 \| H: 290 mm \| J: 233 mm \| Cr: 72.5 kN
UCFL 217		Shaft: 85 mm \| Bearing: UC 217 \| H: 305 mm \| J: 248 mm \| Cr: 84 kN
UCFL 218		Shaft: 90 mm \| Bearing: UC 218 \| H: 320 mm \| J: 265 mm \| Cr: 96 kN

Mounted Bearing UnitsNSK

18 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK UCFL 2 Two-Bolt Oval Flange Ball Bearing Units (Shaft 12-90)

Brand NSK·Mounted Bearing Units

Available part numbers (18)

UCFL 201, UCFL 202, UCFL 203, UCFL 204, UCFL 205, UCFL 206, UCFL 207, UCFL 208, UCFL 209, UCFL 210 + 8 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
