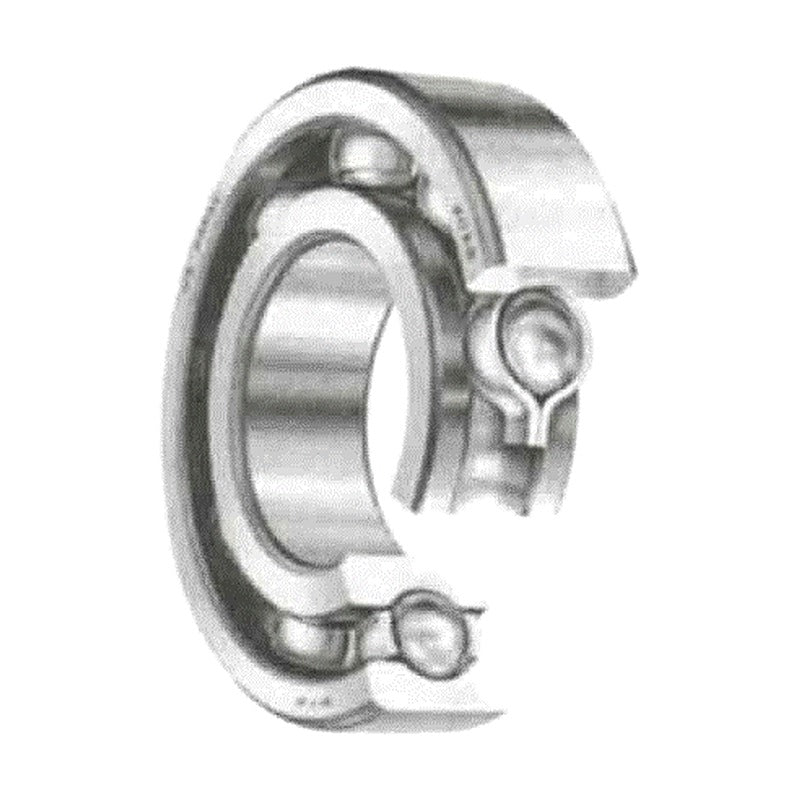

NTN 62 Series Deep Groove Ball Bearings (Open, ZZ, LLB, LLH, LLU, N, N

NTN 62 Series Deep Groove Ball Bearings (Open, ZZ, LLB, LLH, LLU, N, N

NTN 62 series single-row deep groove ball bearings, bore 10-220 mm, in open, shielded and sealed versions plus snap-ring groove types where listed.

Key features

  • Single-row deep groove design for radial and moderate axial loads
  • ZZ: steel shields on both sides
  • LLB / LLF: non-contact rubber seals both sides; LLH: low-torque seals; LLU: contact seals
  • N: snap ring groove; NR: snap ring groove with snap ring
  • Basic load ratings to ISO 281 / ISO 76 as listed by NTN

Specifications

Series 62
Bearing type Single-row deep groove ball bearing
Bore range 10-220 mm
Load rating unit kN
Mass Open type, approx.
Source NTN NTN Ball and Roller Bearings catalogue, p. 5-11
6200 d: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.1 kN | C0r: 2.39 kN | Mass: 0.032 kg
6200ZZ d: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.1 kN | C0r: 2.39 kN | Mass: 0.032 kg
6200LLB d: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.1 kN | C0r: 2.39 kN | Mass: 0.032 kg
6200LLH d: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.1 kN | C0r: 2.39 kN | Mass: 0.032 kg
6200LLU d: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.1 kN | C0r: 2.39 kN | Mass: 0.032 kg
6200N d: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.1 kN | C0r: 2.39 kN | Mass: 0.032 kg
6200NR d: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.1 kN | C0r: 2.39 kN | Mass: 0.032 kg
6201 d: 12 mm | D: 32 mm | B: 10 mm | Cr: 6.1 kN | C0r: 2.75 kN | Mass: 0.037 kg
6201ZZ d: 12 mm | D: 32 mm | B: 10 mm | Cr: 6.1 kN | C0r: 2.75 kN | Mass: 0.037 kg
6201LLB d: 12 mm | D: 32 mm | B: 10 mm | Cr: 6.1 kN | C0r: 2.75 kN | Mass: 0.037 kg
6201LLH d: 12 mm | D: 32 mm | B: 10 mm | Cr: 6.1 kN | C0r: 2.75 kN | Mass: 0.037 kg
6201LLU d: 12 mm | D: 32 mm | B: 10 mm | Cr: 6.1 kN | C0r: 2.75 kN | Mass: 0.037 kg
6201N d: 12 mm | D: 32 mm | B: 10 mm | Cr: 6.1 kN | C0r: 2.75 kN | Mass: 0.037 kg
6201NR d: 12 mm | D: 32 mm | B: 10 mm | Cr: 6.1 kN | C0r: 2.75 kN | Mass: 0.037 kg
6202 d: 15 mm | D: 35 mm | B: 11 mm | Cr: 7.75 kN | C0r: 3.6 kN | Mass: 0.045 kg
6202ZZ d: 15 mm | D: 35 mm | B: 11 mm | Cr: 7.75 kN | C0r: 3.6 kN | Mass: 0.045 kg
6202LLB d: 15 mm | D: 35 mm | B: 11 mm | Cr: 7.75 kN | C0r: 3.6 kN | Mass: 0.045 kg
6202LLH d: 15 mm | D: 35 mm | B: 11 mm | Cr: 7.75 kN | C0r: 3.6 kN | Mass: 0.045 kg
6202LLU d: 15 mm | D: 35 mm | B: 11 mm | Cr: 7.75 kN | C0r: 3.6 kN | Mass: 0.045 kg
6202N d: 15 mm | D: 35 mm | B: 11 mm | Cr: 7.75 kN | C0r: 3.6 kN | Mass: 0.045 kg
6202NR d: 15 mm | D: 35 mm | B: 11 mm | Cr: 7.75 kN | C0r: 3.6 kN | Mass: 0.045 kg
6203 d: 17 mm | D: 40 mm | B: 12 mm | Cr: 9.6 kN | C0r: 4.6 kN | Mass: 0.066 kg
6203ZZ d: 17 mm | D: 40 mm | B: 12 mm | Cr: 9.6 kN | C0r: 4.6 kN | Mass: 0.066 kg
6203LLB d: 17 mm | D: 40 mm | B: 12 mm | Cr: 9.6 kN | C0r: 4.6 kN | Mass: 0.066 kg
6203LLH d: 17 mm | D: 40 mm | B: 12 mm | Cr: 9.6 kN | C0r: 4.6 kN | Mass: 0.066 kg
6203LLU d: 17 mm | D: 40 mm | B: 12 mm | Cr: 9.6 kN | C0r: 4.6 kN | Mass: 0.066 kg
6203N d: 17 mm | D: 40 mm | B: 12 mm | Cr: 9.6 kN | C0r: 4.6 kN | Mass: 0.066 kg
6203NR d: 17 mm | D: 40 mm | B: 12 mm | Cr: 9.6 kN | C0r: 4.6 kN | Mass: 0.066 kg
6204 d: 20 mm | D: 47 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Mass: 0.106 kg
6204ZZ d: 20 mm | D: 47 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Mass: 0.106 kg
6204LLB d: 20 mm | D: 47 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Mass: 0.106 kg
6204LLH d: 20 mm | D: 47 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Mass: 0.106 kg
6204LLU d: 20 mm | D: 47 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Mass: 0.106 kg
6204N d: 20 mm | D: 47 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Mass: 0.106 kg
6204NR d: 20 mm | D: 47 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Mass: 0.106 kg
6205 d: 25 mm | D: 52 mm | B: 15 mm | Cr: 14 kN | C0r: 7.85 kN | Mass: 0.128 kg
6205ZZ d: 25 mm | D: 52 mm | B: 15 mm | Cr: 14 kN | C0r: 7.85 kN | Mass: 0.128 kg
6205LLB d: 25 mm | D: 52 mm | B: 15 mm | Cr: 14 kN | C0r: 7.85 kN | Mass: 0.128 kg
6205LLH d: 25 mm | D: 52 mm | B: 15 mm | Cr: 14 kN | C0r: 7.85 kN | Mass: 0.128 kg
6205LLU d: 25 mm | D: 52 mm | B: 15 mm | Cr: 14 kN | C0r: 7.85 kN | Mass: 0.128 kg
6205N d: 25 mm | D: 52 mm | B: 15 mm | Cr: 14 kN | C0r: 7.85 kN | Mass: 0.128 kg
6205NR d: 25 mm | D: 52 mm | B: 15 mm | Cr: 14 kN | C0r: 7.85 kN | Mass: 0.128 kg
6206 d: 30 mm | D: 62 mm | B: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN | Mass: 0.199 kg
6206ZZ d: 30 mm | D: 62 mm | B: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN | Mass: 0.199 kg
6206LLB d: 30 mm | D: 62 mm | B: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN | Mass: 0.199 kg
6206LLH d: 30 mm | D: 62 mm | B: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN | Mass: 0.199 kg
6206LLU d: 30 mm | D: 62 mm | B: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN | Mass: 0.199 kg
6206N d: 30 mm | D: 62 mm | B: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN | Mass: 0.199 kg
6206NR d: 30 mm | D: 62 mm | B: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN | Mass: 0.199 kg
6207 d: 35 mm | D: 72 mm | B: 17 mm | Cr: 25.7 kN | C0r: 15.3 kN | Mass: 0.288 kg
6207ZZ d: 35 mm | D: 72 mm | B: 17 mm | Cr: 25.7 kN | C0r: 15.3 kN | Mass: 0.288 kg
6207LLB d: 35 mm | D: 72 mm | B: 17 mm | Cr: 25.7 kN | C0r: 15.3 kN | Mass: 0.288 kg
6207LLH d: 35 mm | D: 72 mm | B: 17 mm | Cr: 25.7 kN | C0r: 15.3 kN | Mass: 0.288 kg
6207LLU d: 35 mm | D: 72 mm | B: 17 mm | Cr: 25.7 kN | C0r: 15.3 kN | Mass: 0.288 kg
6207N d: 35 mm | D: 72 mm | B: 17 mm | Cr: 25.7 kN | C0r: 15.3 kN | Mass: 0.288 kg
6207NR d: 35 mm | D: 72 mm | B: 17 mm | Cr: 25.7 kN | C0r: 15.3 kN | Mass: 0.288 kg
6208 d: 40 mm | D: 80 mm | B: 18 mm | Cr: 29.1 kN | C0r: 17.8 kN | Mass: 0.366 kg
6208ZZ d: 40 mm | D: 80 mm | B: 18 mm | Cr: 29.1 kN | C0r: 17.8 kN | Mass: 0.366 kg
6208LLB d: 40 mm | D: 80 mm | B: 18 mm | Cr: 29.1 kN | C0r: 17.8 kN | Mass: 0.366 kg
6208LLH d: 40 mm | D: 80 mm | B: 18 mm | Cr: 29.1 kN | C0r: 17.8 kN | Mass: 0.366 kg
6208LLU d: 40 mm | D: 80 mm | B: 18 mm | Cr: 29.1 kN | C0r: 17.8 kN | Mass: 0.366 kg
6208N d: 40 mm | D: 80 mm | B: 18 mm | Cr: 29.1 kN | C0r: 17.8 kN | Mass: 0.366 kg
6208NR d: 40 mm | D: 80 mm | B: 18 mm | Cr: 29.1 kN | C0r: 17.8 kN | Mass: 0.366 kg
6209 d: 45 mm | D: 85 mm | B: 19 mm | Cr: 32.5 kN | C0r: 20.4 kN | Mass: 0.398 kg
6209ZZ d: 45 mm | D: 85 mm | B: 19 mm | Cr: 32.5 kN | C0r: 20.4 kN | Mass: 0.398 kg
6209LLB d: 45 mm | D: 85 mm | B: 19 mm | Cr: 32.5 kN | C0r: 20.4 kN | Mass: 0.398 kg
6209LLH d: 45 mm | D: 85 mm | B: 19 mm | Cr: 32.5 kN | C0r: 20.4 kN | Mass: 0.398 kg
6209LLU d: 45 mm | D: 85 mm | B: 19 mm | Cr: 32.5 kN | C0r: 20.4 kN | Mass: 0.398 kg
6209N d: 45 mm | D: 85 mm | B: 19 mm | Cr: 32.5 kN | C0r: 20.4 kN | Mass: 0.398 kg
6209NR d: 45 mm | D: 85 mm | B: 19 mm | Cr: 32.5 kN | C0r: 20.4 kN | Mass: 0.398 kg
6210 d: 50 mm | D: 90 mm | B: 20 mm | Cr: 35 kN | C0r: 23.2 kN | Mass: 0.454 kg
6210ZZ d: 50 mm | D: 90 mm | B: 20 mm | Cr: 35 kN | C0r: 23.2 kN | Mass: 0.454 kg
6210LLB d: 50 mm | D: 90 mm | B: 20 mm | Cr: 35 kN | C0r: 23.2 kN | Mass: 0.454 kg
6210LLU d: 50 mm | D: 90 mm | B: 20 mm | Cr: 35 kN | C0r: 23.2 kN | Mass: 0.454 kg
6210N d: 50 mm | D: 90 mm | B: 20 mm | Cr: 35 kN | C0r: 23.2 kN | Mass: 0.454 kg
6210NR d: 50 mm | D: 90 mm | B: 20 mm | Cr: 35 kN | C0r: 23.2 kN | Mass: 0.454 kg
6211 d: 55 mm | D: 100 mm | B: 21 mm | Cr: 43.5 kN | C0r: 29.2 kN | Mass: 0.601 kg
6211ZZ d: 55 mm | D: 100 mm | B: 21 mm | Cr: 43.5 kN | C0r: 29.2 kN | Mass: 0.601 kg
6211LLB d: 55 mm | D: 100 mm | B: 21 mm | Cr: 43.5 kN | C0r: 29.2 kN | Mass: 0.601 kg
6211LLU d: 55 mm | D: 100 mm | B: 21 mm | Cr: 43.5 kN | C0r: 29.2 kN | Mass: 0.601 kg
6211N d: 55 mm | D: 100 mm | B: 21 mm | Cr: 43.5 kN | C0r: 29.2 kN | Mass: 0.601 kg
6211NR d: 55 mm | D: 100 mm | B: 21 mm | Cr: 43.5 kN | C0r: 29.2 kN | Mass: 0.601 kg
6212 d: 60 mm | D: 110 mm | B: 22 mm | Cr: 52.5 kN | C0r: 36 kN | Mass: 0.783 kg
6212ZZ d: 60 mm | D: 110 mm | B: 22 mm | Cr: 52.5 kN | C0r: 36 kN | Mass: 0.783 kg
6212LLB d: 60 mm | D: 110 mm | B: 22 mm | Cr: 52.5 kN | C0r: 36 kN | Mass: 0.783 kg
6212LLU d: 60 mm | D: 110 mm | B: 22 mm | Cr: 52.5 kN | C0r: 36 kN | Mass: 0.783 kg
6212N d: 60 mm | D: 110 mm | B: 22 mm | Cr: 52.5 kN | C0r: 36 kN | Mass: 0.783 kg
6212NR d: 60 mm | D: 110 mm | B: 22 mm | Cr: 52.5 kN | C0r: 36 kN | Mass: 0.783 kg
6218 d: 90 mm | D: 160 mm | B: 30 mm | Cr: 96 kN | C0r: 71.5 kN | Mass: 2.15 kg
6218ZZ d: 90 mm | D: 160 mm | B: 30 mm | Cr: 96 kN | C0r: 71.5 kN | Mass: 2.15 kg
6218LLB d: 90 mm | D: 160 mm | B: 30 mm | Cr: 96 kN | C0r: 71.5 kN | Mass: 2.15 kg
6218LLU d: 90 mm | D: 160 mm | B: 30 mm | Cr: 96 kN | C0r: 71.5 kN | Mass: 2.15 kg
6218N d: 90 mm | D: 160 mm | B: 30 mm | Cr: 96 kN | C0r: 71.5 kN | Mass: 2.15 kg
6218NR d: 90 mm | D: 160 mm | B: 30 mm | Cr: 96 kN | C0r: 71.5 kN | Mass: 2.15 kg
6219 d: 95 mm | D: 170 mm | B: 32 mm | Cr: 109 kN | C0r: 82 kN | Mass: 2.62 kg
6219ZZ d: 95 mm | D: 170 mm | B: 32 mm | Cr: 109 kN | C0r: 82 kN | Mass: 2.62 kg
6219LLB d: 95 mm | D: 170 mm | B: 32 mm | Cr: 109 kN | C0r: 82 kN | Mass: 2.62 kg
6219LLU d: 95 mm | D: 170 mm | B: 32 mm | Cr: 109 kN | C0r: 82 kN | Mass: 2.62 kg
6219N d: 95 mm | D: 170 mm | B: 32 mm | Cr: 109 kN | C0r: 82 kN | Mass: 2.62 kg
6219NR d: 95 mm | D: 170 mm | B: 32 mm | Cr: 109 kN | C0r: 82 kN | Mass: 2.62 kg
6220 d: 100 mm | D: 180 mm | B: 34 mm | Cr: 122 kN | C0r: 93 kN | Mass: 3.14 kg
6220ZZ d: 100 mm | D: 180 mm | B: 34 mm | Cr: 122 kN | C0r: 93 kN | Mass: 3.14 kg
6220LLB d: 100 mm | D: 180 mm | B: 34 mm | Cr: 122 kN | C0r: 93 kN | Mass: 3.14 kg
6220LLU d: 100 mm | D: 180 mm | B: 34 mm | Cr: 122 kN | C0r: 93 kN | Mass: 3.14 kg
6220N d: 100 mm | D: 180 mm | B: 34 mm | Cr: 122 kN | C0r: 93 kN | Mass: 3.14 kg
6220NR d: 100 mm | D: 180 mm | B: 34 mm | Cr: 122 kN | C0r: 93 kN | Mass: 3.14 kg
6221 d: 105 mm | D: 190 mm | B: 36 mm | Cr: 133 kN | C0r: 105 kN | Mass: 3.7 kg
6221ZZ d: 105 mm | D: 190 mm | B: 36 mm | Cr: 133 kN | C0r: 105 kN | Mass: 3.7 kg
6221LLU d: 105 mm | D: 190 mm | B: 36 mm | Cr: 133 kN | C0r: 105 kN | Mass: 3.7 kg
6221N d: 105 mm | D: 190 mm | B: 36 mm | Cr: 133 kN | C0r: 105 kN | Mass: 3.7 kg
6221NR d: 105 mm | D: 190 mm | B: 36 mm | Cr: 133 kN | C0r: 105 kN | Mass: 3.7 kg
6222 d: 110 mm | D: 200 mm | B: 38 mm | Cr: 144 kN | C0r: 117 kN | Mass: 4.36 kg
6222ZZ d: 110 mm | D: 200 mm | B: 38 mm | Cr: 144 kN | C0r: 117 kN | Mass: 4.36 kg
6222LLU d: 110 mm | D: 200 mm | B: 38 mm | Cr: 144 kN | C0r: 117 kN | Mass: 4.36 kg
6222N d: 110 mm | D: 200 mm | B: 38 mm | Cr: 144 kN | C0r: 117 kN | Mass: 4.36 kg
6222NR d: 110 mm | D: 200 mm | B: 38 mm | Cr: 144 kN | C0r: 117 kN | Mass: 4.36 kg
6224 d: 120 mm | D: 215 mm | B: 40 mm | Cr: 155 kN | C0r: 131 kN | Mass: 5.15 kg
6224ZZ d: 120 mm | D: 215 mm | B: 40 mm | Cr: 155 kN | C0r: 131 kN | Mass: 5.15 kg
6224LLU d: 120 mm | D: 215 mm | B: 40 mm | Cr: 155 kN | C0r: 131 kN | Mass: 5.15 kg
6226 d: 130 mm | D: 230 mm | B: 40 mm | Cr: 167 kN | C0r: 146 kN | Mass: 5.82 kg
6228 d: 140 mm | D: 250 mm | B: 42 mm | Cr: 166 kN | C0r: 150 kN | Mass: 7.57 kg
6230 d: 150 mm | D: 270 mm | B: 45 mm | Cr: 176 kN | C0r: 168 kN | Mass: 9.41 kg
6232 d: 160 mm | D: 290 mm | B: 48 mm | Cr: 185 kN | C0r: 186 kN | Mass: 11.7 kg
6234 d: 170 mm | D: 310 mm | B: 52 mm | Cr: 212 kN | C0r: 223 kN | Mass: 14.5 kg
6236 d: 180 mm | D: 320 mm | B: 52 mm | Cr: 227 kN | C0r: 241 kN | Mass: 15.1 kg
6238 d: 190 mm | D: 340 mm | B: 55 mm | Cr: 255 kN | C0r: 281 kN | Mass: 18.2 kg
6240 d: 200 mm | D: 360 mm | B: 58 mm | Cr: 269 kN | C0r: 310 kN | Mass: 21.6 kg
6244 d: 220 mm | D: 400 mm | B: 65 mm | Cr: 297 kN | C0r: 365 kN | Mass: 30.2 kg
Deep Groove Ball BearingsNTN
128 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN 62 Series Deep Groove Ball Bearings (Open, ZZ, LLB, LLH, LLU, N, N

Brand NTN·Deep Groove Ball Bearings

Available part numbers (128)

6200, 6200ZZ, 6200LLB, 6200LLH, 6200LLU, 6200N, 6200NR, 6201, 6201ZZ, 6201LLB + 118 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6200d: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.1 kN | C0r: 2.39 kN | Mass: 0.032 kg
6200ZZd: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.1 kN | C0r: 2.39 kN | Mass: 0.032 kg
6200LLBd: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.1 kN | C0r: 2.39 kN | Mass: 0.032 kg
6200LLHd: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.1 kN | C0r: 2.39 kN | Mass: 0.032 kg
6200LLUd: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.1 kN | C0r: 2.39 kN | Mass: 0.032 kg
6200Nd: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.1 kN | C0r: 2.39 kN | Mass: 0.032 kg
6200NRd: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.1 kN | C0r: 2.39 kN | Mass: 0.032 kg
6201d: 12 mm | D: 32 mm | B: 10 mm | Cr: 6.1 kN | C0r: 2.75 kN | Mass: 0.037 kg
6201ZZd: 12 mm | D: 32 mm | B: 10 mm | Cr: 6.1 kN | C0r: 2.75 kN | Mass: 0.037 kg
6201LLBd: 12 mm | D: 32 mm | B: 10 mm | Cr: 6.1 kN | C0r: 2.75 kN | Mass: 0.037 kg
6201LLHd: 12 mm | D: 32 mm | B: 10 mm | Cr: 6.1 kN | C0r: 2.75 kN | Mass: 0.037 kg
6201LLUd: 12 mm | D: 32 mm | B: 10 mm | Cr: 6.1 kN | C0r: 2.75 kN | Mass: 0.037 kg
6201Nd: 12 mm | D: 32 mm | B: 10 mm | Cr: 6.1 kN | C0r: 2.75 kN | Mass: 0.037 kg
6201NRd: 12 mm | D: 32 mm | B: 10 mm | Cr: 6.1 kN | C0r: 2.75 kN | Mass: 0.037 kg
6202d: 15 mm | D: 35 mm | B: 11 mm | Cr: 7.75 kN | C0r: 3.6 kN | Mass: 0.045 kg
6202ZZd: 15 mm | D: 35 mm | B: 11 mm | Cr: 7.75 kN | C0r: 3.6 kN | Mass: 0.045 kg
6202LLBd: 15 mm | D: 35 mm | B: 11 mm | Cr: 7.75 kN | C0r: 3.6 kN | Mass: 0.045 kg
6202LLHd: 15 mm | D: 35 mm | B: 11 mm | Cr: 7.75 kN | C0r: 3.6 kN | Mass: 0.045 kg
6202LLUd: 15 mm | D: 35 mm | B: 11 mm | Cr: 7.75 kN | C0r: 3.6 kN | Mass: 0.045 kg
6202Nd: 15 mm | D: 35 mm | B: 11 mm | Cr: 7.75 kN | C0r: 3.6 kN | Mass: 0.045 kg
6202NRd: 15 mm | D: 35 mm | B: 11 mm | Cr: 7.75 kN | C0r: 3.6 kN | Mass: 0.045 kg
6203d: 17 mm | D: 40 mm | B: 12 mm | Cr: 9.6 kN | C0r: 4.6 kN | Mass: 0.066 kg
6203ZZd: 17 mm | D: 40 mm | B: 12 mm | Cr: 9.6 kN | C0r: 4.6 kN | Mass: 0.066 kg
6203LLBd: 17 mm | D: 40 mm | B: 12 mm | Cr: 9.6 kN | C0r: 4.6 kN | Mass: 0.066 kg
6203LLHd: 17 mm | D: 40 mm | B: 12 mm | Cr: 9.6 kN | C0r: 4.6 kN | Mass: 0.066 kg
6203LLUd: 17 mm | D: 40 mm | B: 12 mm | Cr: 9.6 kN | C0r: 4.6 kN | Mass: 0.066 kg
6203Nd: 17 mm | D: 40 mm | B: 12 mm | Cr: 9.6 kN | C0r: 4.6 kN | Mass: 0.066 kg
6203NRd: 17 mm | D: 40 mm | B: 12 mm | Cr: 9.6 kN | C0r: 4.6 kN | Mass: 0.066 kg
6204d: 20 mm | D: 47 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Mass: 0.106 kg
6204ZZd: 20 mm | D: 47 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Mass: 0.106 kg
6204LLBd: 20 mm | D: 47 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Mass: 0.106 kg
6204LLHd: 20 mm | D: 47 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Mass: 0.106 kg
6204LLUd: 20 mm | D: 47 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Mass: 0.106 kg
6204Nd: 20 mm | D: 47 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Mass: 0.106 kg
6204NRd: 20 mm | D: 47 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Mass: 0.106 kg
6205d: 25 mm | D: 52 mm | B: 15 mm | Cr: 14 kN | C0r: 7.85 kN | Mass: 0.128 kg
6205ZZd: 25 mm | D: 52 mm | B: 15 mm | Cr: 14 kN | C0r: 7.85 kN | Mass: 0.128 kg
6205LLBd: 25 mm | D: 52 mm | B: 15 mm | Cr: 14 kN | C0r: 7.85 kN | Mass: 0.128 kg
6205LLHd: 25 mm | D: 52 mm | B: 15 mm | Cr: 14 kN | C0r: 7.85 kN | Mass: 0.128 kg
6205LLUd: 25 mm | D: 52 mm | B: 15 mm | Cr: 14 kN | C0r: 7.85 kN | Mass: 0.128 kg
6205Nd: 25 mm | D: 52 mm | B: 15 mm | Cr: 14 kN | C0r: 7.85 kN | Mass: 0.128 kg
6205NRd: 25 mm | D: 52 mm | B: 15 mm | Cr: 14 kN | C0r: 7.85 kN | Mass: 0.128 kg
6206d: 30 mm | D: 62 mm | B: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN | Mass: 0.199 kg
6206ZZd: 30 mm | D: 62 mm | B: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN | Mass: 0.199 kg
6206LLBd: 30 mm | D: 62 mm | B: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN | Mass: 0.199 kg
6206LLHd: 30 mm | D: 62 mm | B: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN | Mass: 0.199 kg
6206LLUd: 30 mm | D: 62 mm | B: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN | Mass: 0.199 kg
6206Nd: 30 mm | D: 62 mm | B: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN | Mass: 0.199 kg
6206NRd: 30 mm | D: 62 mm | B: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN | Mass: 0.199 kg
6207d: 35 mm | D: 72 mm | B: 17 mm | Cr: 25.7 kN | C0r: 15.3 kN | Mass: 0.288 kg
6207ZZd: 35 mm | D: 72 mm | B: 17 mm | Cr: 25.7 kN | C0r: 15.3 kN | Mass: 0.288 kg
6207LLBd: 35 mm | D: 72 mm | B: 17 mm | Cr: 25.7 kN | C0r: 15.3 kN | Mass: 0.288 kg
6207LLHd: 35 mm | D: 72 mm | B: 17 mm | Cr: 25.7 kN | C0r: 15.3 kN | Mass: 0.288 kg
6207LLUd: 35 mm | D: 72 mm | B: 17 mm | Cr: 25.7 kN | C0r: 15.3 kN | Mass: 0.288 kg
6207Nd: 35 mm | D: 72 mm | B: 17 mm | Cr: 25.7 kN | C0r: 15.3 kN | Mass: 0.288 kg
6207NRd: 35 mm | D: 72 mm | B: 17 mm | Cr: 25.7 kN | C0r: 15.3 kN | Mass: 0.288 kg
6208d: 40 mm | D: 80 mm | B: 18 mm | Cr: 29.1 kN | C0r: 17.8 kN | Mass: 0.366 kg
6208ZZd: 40 mm | D: 80 mm | B: 18 mm | Cr: 29.1 kN | C0r: 17.8 kN | Mass: 0.366 kg
6208LLBd: 40 mm | D: 80 mm | B: 18 mm | Cr: 29.1 kN | C0r: 17.8 kN | Mass: 0.366 kg
6208LLHd: 40 mm | D: 80 mm | B: 18 mm | Cr: 29.1 kN | C0r: 17.8 kN | Mass: 0.366 kg
6208LLUd: 40 mm | D: 80 mm | B: 18 mm | Cr: 29.1 kN | C0r: 17.8 kN | Mass: 0.366 kg
6208Nd: 40 mm | D: 80 mm | B: 18 mm | Cr: 29.1 kN | C0r: 17.8 kN | Mass: 0.366 kg
6208NRd: 40 mm | D: 80 mm | B: 18 mm | Cr: 29.1 kN | C0r: 17.8 kN | Mass: 0.366 kg
6209d: 45 mm | D: 85 mm | B: 19 mm | Cr: 32.5 kN | C0r: 20.4 kN | Mass: 0.398 kg
6209ZZd: 45 mm | D: 85 mm | B: 19 mm | Cr: 32.5 kN | C0r: 20.4 kN | Mass: 0.398 kg
6209LLBd: 45 mm | D: 85 mm | B: 19 mm | Cr: 32.5 kN | C0r: 20.4 kN | Mass: 0.398 kg
6209LLHd: 45 mm | D: 85 mm | B: 19 mm | Cr: 32.5 kN | C0r: 20.4 kN | Mass: 0.398 kg
6209LLUd: 45 mm | D: 85 mm | B: 19 mm | Cr: 32.5 kN | C0r: 20.4 kN | Mass: 0.398 kg
6209Nd: 45 mm | D: 85 mm | B: 19 mm | Cr: 32.5 kN | C0r: 20.4 kN | Mass: 0.398 kg
6209NRd: 45 mm | D: 85 mm | B: 19 mm | Cr: 32.5 kN | C0r: 20.4 kN | Mass: 0.398 kg
6210d: 50 mm | D: 90 mm | B: 20 mm | Cr: 35 kN | C0r: 23.2 kN | Mass: 0.454 kg
6210ZZd: 50 mm | D: 90 mm | B: 20 mm | Cr: 35 kN | C0r: 23.2 kN | Mass: 0.454 kg
6210LLBd: 50 mm | D: 90 mm | B: 20 mm | Cr: 35 kN | C0r: 23.2 kN | Mass: 0.454 kg
6210LLUd: 50 mm | D: 90 mm | B: 20 mm | Cr: 35 kN | C0r: 23.2 kN | Mass: 0.454 kg
6210Nd: 50 mm | D: 90 mm | B: 20 mm | Cr: 35 kN | C0r: 23.2 kN | Mass: 0.454 kg
6210NRd: 50 mm | D: 90 mm | B: 20 mm | Cr: 35 kN | C0r: 23.2 kN | Mass: 0.454 kg
6211d: 55 mm | D: 100 mm | B: 21 mm | Cr: 43.5 kN | C0r: 29.2 kN | Mass: 0.601 kg
6211ZZd: 55 mm | D: 100 mm | B: 21 mm | Cr: 43.5 kN | C0r: 29.2 kN | Mass: 0.601 kg
6211LLBd: 55 mm | D: 100 mm | B: 21 mm | Cr: 43.5 kN | C0r: 29.2 kN | Mass: 0.601 kg
6211LLUd: 55 mm | D: 100 mm | B: 21 mm | Cr: 43.5 kN | C0r: 29.2 kN | Mass: 0.601 kg
6211Nd: 55 mm | D: 100 mm | B: 21 mm | Cr: 43.5 kN | C0r: 29.2 kN | Mass: 0.601 kg
6211NRd: 55 mm | D: 100 mm | B: 21 mm | Cr: 43.5 kN | C0r: 29.2 kN | Mass: 0.601 kg
6212d: 60 mm | D: 110 mm | B: 22 mm | Cr: 52.5 kN | C0r: 36 kN | Mass: 0.783 kg
6212ZZd: 60 mm | D: 110 mm | B: 22 mm | Cr: 52.5 kN | C0r: 36 kN | Mass: 0.783 kg
6212LLBd: 60 mm | D: 110 mm | B: 22 mm | Cr: 52.5 kN | C0r: 36 kN | Mass: 0.783 kg
6212LLUd: 60 mm | D: 110 mm | B: 22 mm | Cr: 52.5 kN | C0r: 36 kN | Mass: 0.783 kg
6212Nd: 60 mm | D: 110 mm | B: 22 mm | Cr: 52.5 kN | C0r: 36 kN | Mass: 0.783 kg
6212NRd: 60 mm | D: 110 mm | B: 22 mm | Cr: 52.5 kN | C0r: 36 kN | Mass: 0.783 kg
6218d: 90 mm | D: 160 mm | B: 30 mm | Cr: 96 kN | C0r: 71.5 kN | Mass: 2.15 kg
6218ZZd: 90 mm | D: 160 mm | B: 30 mm | Cr: 96 kN | C0r: 71.5 kN | Mass: 2.15 kg
6218LLBd: 90 mm | D: 160 mm | B: 30 mm | Cr: 96 kN | C0r: 71.5 kN | Mass: 2.15 kg
6218LLUd: 90 mm | D: 160 mm | B: 30 mm | Cr: 96 kN | C0r: 71.5 kN | Mass: 2.15 kg
6218Nd: 90 mm | D: 160 mm | B: 30 mm | Cr: 96 kN | C0r: 71.5 kN | Mass: 2.15 kg
6218NRd: 90 mm | D: 160 mm | B: 30 mm | Cr: 96 kN | C0r: 71.5 kN | Mass: 2.15 kg
6219d: 95 mm | D: 170 mm | B: 32 mm | Cr: 109 kN | C0r: 82 kN | Mass: 2.62 kg
6219ZZd: 95 mm | D: 170 mm | B: 32 mm | Cr: 109 kN | C0r: 82 kN | Mass: 2.62 kg
6219LLBd: 95 mm | D: 170 mm | B: 32 mm | Cr: 109 kN | C0r: 82 kN | Mass: 2.62 kg
6219LLUd: 95 mm | D: 170 mm | B: 32 mm | Cr: 109 kN | C0r: 82 kN | Mass: 2.62 kg
6219Nd: 95 mm | D: 170 mm | B: 32 mm | Cr: 109 kN | C0r: 82 kN | Mass: 2.62 kg
6219NRd: 95 mm | D: 170 mm | B: 32 mm | Cr: 109 kN | C0r: 82 kN | Mass: 2.62 kg
6220d: 100 mm | D: 180 mm | B: 34 mm | Cr: 122 kN | C0r: 93 kN | Mass: 3.14 kg
6220ZZd: 100 mm | D: 180 mm | B: 34 mm | Cr: 122 kN | C0r: 93 kN | Mass: 3.14 kg
6220LLBd: 100 mm | D: 180 mm | B: 34 mm | Cr: 122 kN | C0r: 93 kN | Mass: 3.14 kg
6220LLUd: 100 mm | D: 180 mm | B: 34 mm | Cr: 122 kN | C0r: 93 kN | Mass: 3.14 kg
6220Nd: 100 mm | D: 180 mm | B: 34 mm | Cr: 122 kN | C0r: 93 kN | Mass: 3.14 kg
6220NRd: 100 mm | D: 180 mm | B: 34 mm | Cr: 122 kN | C0r: 93 kN | Mass: 3.14 kg
6221d: 105 mm | D: 190 mm | B: 36 mm | Cr: 133 kN | C0r: 105 kN | Mass: 3.7 kg
6221ZZd: 105 mm | D: 190 mm | B: 36 mm | Cr: 133 kN | C0r: 105 kN | Mass: 3.7 kg
6221LLUd: 105 mm | D: 190 mm | B: 36 mm | Cr: 133 kN | C0r: 105 kN | Mass: 3.7 kg
6221Nd: 105 mm | D: 190 mm | B: 36 mm | Cr: 133 kN | C0r: 105 kN | Mass: 3.7 kg
6221NRd: 105 mm | D: 190 mm | B: 36 mm | Cr: 133 kN | C0r: 105 kN | Mass: 3.7 kg
6222d: 110 mm | D: 200 mm | B: 38 mm | Cr: 144 kN | C0r: 117 kN | Mass: 4.36 kg
6222ZZd: 110 mm | D: 200 mm | B: 38 mm | Cr: 144 kN | C0r: 117 kN | Mass: 4.36 kg
6222LLUd: 110 mm | D: 200 mm | B: 38 mm | Cr: 144 kN | C0r: 117 kN | Mass: 4.36 kg
6222Nd: 110 mm | D: 200 mm | B: 38 mm | Cr: 144 kN | C0r: 117 kN | Mass: 4.36 kg
6222NRd: 110 mm | D: 200 mm | B: 38 mm | Cr: 144 kN | C0r: 117 kN | Mass: 4.36 kg
6224d: 120 mm | D: 215 mm | B: 40 mm | Cr: 155 kN | C0r: 131 kN | Mass: 5.15 kg
6224ZZd: 120 mm | D: 215 mm | B: 40 mm | Cr: 155 kN | C0r: 131 kN | Mass: 5.15 kg
6224LLUd: 120 mm | D: 215 mm | B: 40 mm | Cr: 155 kN | C0r: 131 kN | Mass: 5.15 kg
6226d: 130 mm | D: 230 mm | B: 40 mm | Cr: 167 kN | C0r: 146 kN | Mass: 5.82 kg
6228d: 140 mm | D: 250 mm | B: 42 mm | Cr: 166 kN | C0r: 150 kN | Mass: 7.57 kg
6230d: 150 mm | D: 270 mm | B: 45 mm | Cr: 176 kN | C0r: 168 kN | Mass: 9.41 kg
6232d: 160 mm | D: 290 mm | B: 48 mm | Cr: 185 kN | C0r: 186 kN | Mass: 11.7 kg
6234d: 170 mm | D: 310 mm | B: 52 mm | Cr: 212 kN | C0r: 223 kN | Mass: 14.5 kg
6236d: 180 mm | D: 320 mm | B: 52 mm | Cr: 227 kN | C0r: 241 kN | Mass: 15.1 kg
6238d: 190 mm | D: 340 mm | B: 55 mm | Cr: 255 kN | C0r: 281 kN | Mass: 18.2 kg
6240d: 200 mm | D: 360 mm | B: 58 mm | Cr: 269 kN | C0r: 310 kN | Mass: 21.6 kg
6244d: 220 mm | D: 400 mm | B: 65 mm | Cr: 297 kN | C0r: 365 kN | Mass: 30.2 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
