NTN AH / AHX Withdrawal Sleeves for Spherical Roller Bearings

NTN AH / AHX Withdrawal Sleeves for Spherical Roller Bearings

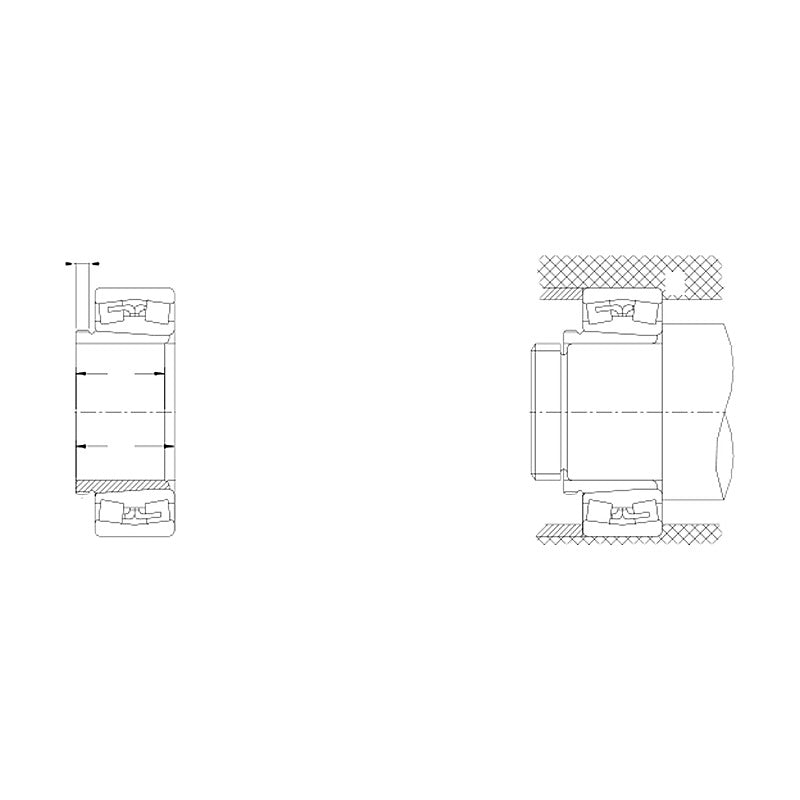

NTN AH and AHX withdrawal sleeves for mounting and easy dismounting of tapered-bore spherical roller bearings on shafts.

Key features

  • Sleeve is pressed between shaft and bearing bore
  • Bearing is removed by driving the sleeve out with a nut
  • Matching AN / HN withdrawal nuts listed per size
  • Mass listed for the sleeve

Specifications

Product type Withdrawal sleeve
Taper 1:12
Used with Spherical roller bearings
Brand NTN
Product category Bearing Accessories
Source NTN NTN Ball and Roller Bearings catalogue, p. 143-149
AH316 Shaft: 75 mm | For bearing: 22216EK7 | Mass: 0.365 kg | Nut: AN18
AHX2316 Shaft: 75 mm | For bearing: 22316BK7 | Mass: 0.597 kg | Nut: AN18
AHX317 Shaft: 80 mm | For bearing: 22217EK7 | Mass: 0.429 kg | Nut: AN19
AHX2317 Shaft: 80 mm | For bearing: 22317BK7 | Mass: 0.67 kg | Nut: AN19
AHX318 Shaft: 85 mm | For bearing: 22218EK7 | Mass: 0.461 kg | Nut: AN20
AHX3218 Shaft: 85 mm | For bearing: 23218BK7 | Mass: 0.576 kg | Nut: AN20
AHX2318 Shaft: 85 mm | For bearing: 22318BK7 | Mass: 0.779 kg | Nut: AN20
AHX319 Shaft: 90 mm | For bearing: 22219BK7 | Mass: 0.532 kg | Nut: AN21
AHX2319 Shaft: 90 mm | For bearing: 22319BK7 | Mass: 0.886 kg | Nut: AN21
AHX320 Shaft: 95 mm | For bearing: 22220BK7 | Mass: 0.582 kg | Nut: AN22
AHX3220 Shaft: 95 mm | For bearing: 23220BK7 | Mass: 0.767 kg | Nut: AN22
AHX2320 Shaft: 95 mm | For bearing: 22320BK7 | Mass: 0.998 kg | Nut: AN22
AHX3122 Shaft: 105 mm | For bearing: 23122BK7 | Mass: 0.76 kg | Nut: AN24
AH2412 Shaft: 105 mm | For bearing: 24122BK307 | Mass: 0.73 kg | Nut: AN23
AHX3222 Shaft: 105 mm | For bearing: 23222BK7 | Mass: 1.04 kg | Nut: AN25
AHX322 Shaft: 105 mm | For bearing: 21322K7 | Mass: 0.663 kg | Nut: AN24
AHX2322 Shaft: 105 mm | For bearing: 22322BK7 | Mass: 1.35 kg | Nut: AN25
AHX3024 Shaft: 115 mm | For bearing: 23024BK7 | Mass: 0.75 kg | Nut: AN26
AH2402 Shaft: 115 mm | For bearing: 24024BK307 | Mass: 0.65 kg | Nut: AN25
AHX3124 Shaft: 115 mm | For bearing: 23124BK7 | Mass: 0.95 kg | Nut: AN26
Bearing AccessoriesNTN
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN AH / AHX Withdrawal Sleeves for Spherical Roller Bearings

Brand NTN·Bearing Accessories

Available part numbers (20)

AH316, AHX2316, AHX317, AHX2317, AHX318, AHX3218, AHX2318, AHX319, AHX2319, AHX320 + 10 more — see full table ↓
