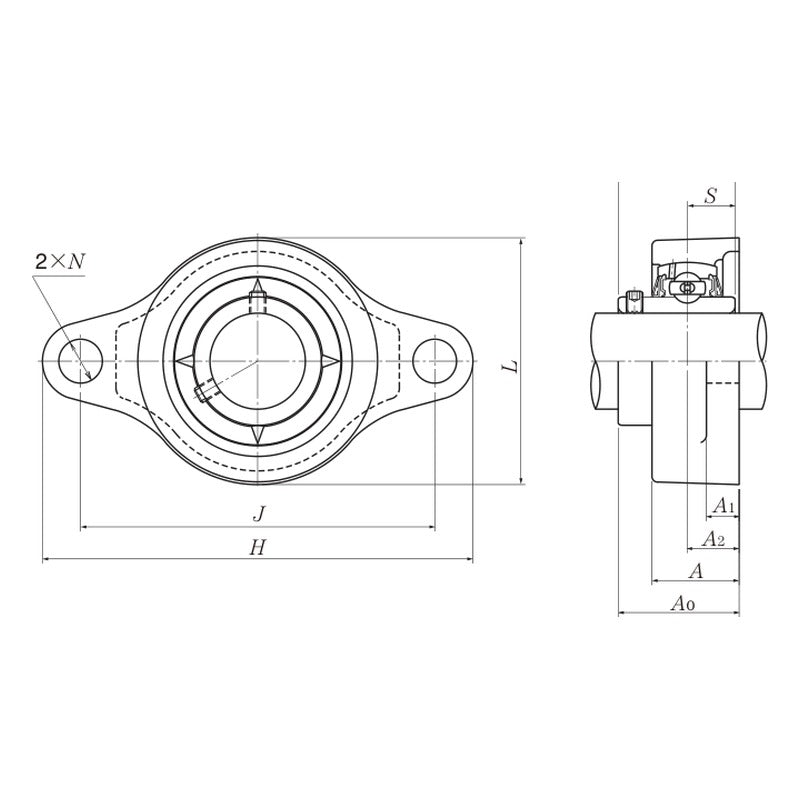

NTN F-UCFM2 Rhombus Flanged Units (Stainless Series)

NTN F-UCFM2 Rhombus Flanged Units (Stainless Series)

NTN F-UCFM2 series rhombus flanged units (stainless series), set screw locking type, for shafts 20-50 mm.

Key features

  • Rhombus flanged units (Stainless series) with UC type insert bearing, set screw locking
  • Insert bearing has spherical outside diameter for initial misalignment compensation
  • Metric bores
  • Pre-lubricated, sealed insert bearing
  • Dust cover options: S/SM pressed steel and C/CM cast iron covers (open / closed end) where listed
  • Stainless / plastic housing series with LP09 food-grade grease specification

Specifications

Series F-UCFM2
Unit type Rhombus flanged units (Stainless series)
Shaft range 20-50 mm
Locking Set screw
Brand NTN
Source NTN NTN Bearing Units Dimension Table, p. 182-183
F-UCFM204/LP09 Shaft: 20 mm | Insert bearing: F-UC204D1/LP09 | Housing: FM204 | Cover: None (open unit)
F-FS-UCFM204/LP09 Shaft: 20 mm | Insert bearing: F-UC204D1/LP09 | Housing: FM204 | Cover: Stainless, open end
F-FSM-UCFM204/LP09 Shaft: 20 mm | Insert bearing: F-UC204D1/LP09 | Housing: FM204 | Cover: Stainless, closed end
F-UCFM205/LP09 Shaft: 25 mm | Insert bearing: F-UC205D1/LP09 | Housing: FM205 | Cover: None (open unit)
F-FS-UCFM205/LP09 Shaft: 25 mm | Insert bearing: F-UC205D1/LP09 | Housing: FM205 | Cover: Stainless, open end
F-FSM-UCFM205/LP09 Shaft: 25 mm | Insert bearing: F-UC205D1/LP09 | Housing: FM205 | Cover: Stainless, closed end
F-UCFM206/LP09 Shaft: 30 mm | Insert bearing: F-UC206D1/LP09 | Housing: FM206 | Cover: None (open unit)
F-FS-UCFM206/LP09 Shaft: 30 mm | Insert bearing: F-UC206D1/LP09 | Housing: FM206 | Cover: Stainless, open end
F-FSM-UCFM206/LP09 Shaft: 30 mm | Insert bearing: F-UC206D1/LP09 | Housing: FM206 | Cover: Stainless, closed end
F-UCFM207/LP09 Shaft: 35 mm | Insert bearing: F-UC207D1/LP09 | Housing: FM207 | Cover: None (open unit)
F-FS-UCFM207/LP09 Shaft: 35 mm | Insert bearing: F-UC207D1/LP09 | Housing: FM207 | Cover: Stainless, open end
F-FSM-UCFM207/LP09 Shaft: 35 mm | Insert bearing: F-UC207D1/LP09 | Housing: FM207 | Cover: Stainless, closed end
F-UCFM208/LP09 Shaft: 40 mm | Insert bearing: F-UC208D1/LP09 | Housing: FM208 | Cover: None (open unit)
F-FS-UCFM208/LP09 Shaft: 40 mm | Insert bearing: F-UC208D1/LP09 | Housing: FM208 | Cover: Stainless, open end
F-FSM-UCFM208/LP09 Shaft: 40 mm | Insert bearing: F-UC208D1/LP09 | Housing: FM208 | Cover: Stainless, closed end
F-UCFM209/LP09 Shaft: 45 mm | Insert bearing: F-UC209D1/LP09 | Housing: FM209 | Cover: None (open unit)
F-FS-UCFM209/LP09 Shaft: 45 mm | Insert bearing: F-UC209D1/LP09 | Housing: FM209 | Cover: Stainless, open end
F-FSM-UCFM209/LP09 Shaft: 45 mm | Insert bearing: F-UC209D1/LP09 | Housing: FM209 | Cover: Stainless, closed end
F-UCFM210/LP09 Shaft: 50 mm | Insert bearing: F-UC210D1/LP09 | Housing: FM210 | Cover: None (open unit)
F-FS-UCFM210/LP09 Shaft: 50 mm | Insert bearing: F-UC210D1/LP09 | Housing: FM210 | Cover: Stainless, open end
F-FSM-UCFM210/LP09 Shaft: 50 mm | Insert bearing: F-UC210D1/LP09 | Housing: FM210 | Cover: Stainless, closed end
