NTN H2, H3, H23 Adapter Sleeves for Self-Aligning Ball Bearings

NTN H2, H3, H23 Adapter Sleeves for Self-Aligning Ball Bearings

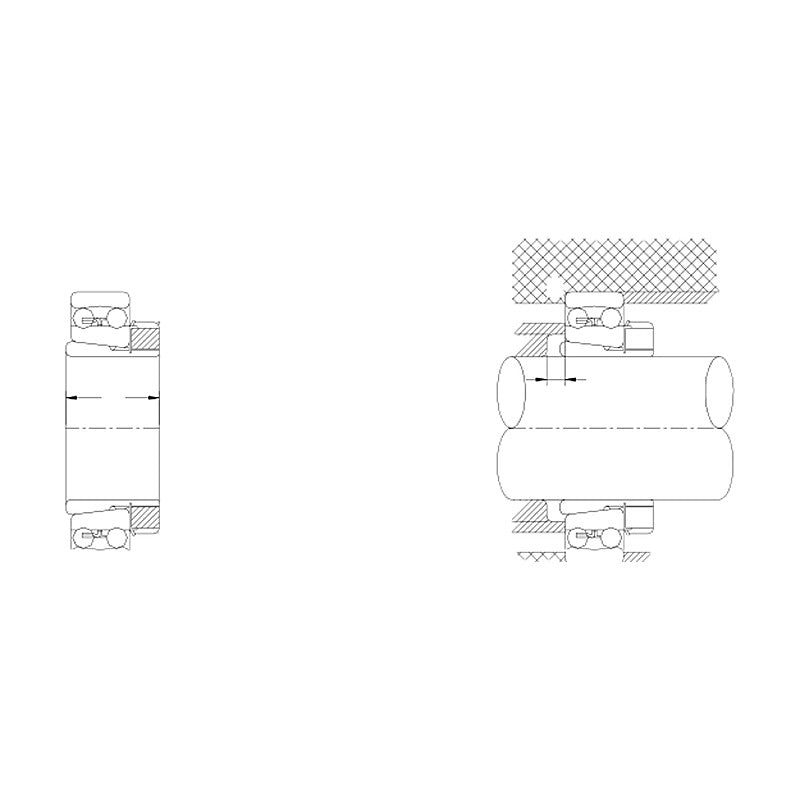

NTN adapter sleeve assemblies (sleeve, lock nut and washer) for mounting tapered-bore self-aligning ball bearings on plain shafts.

Key features

  • Mounts K-suffix tapered bore bearings on cylindrical shafts
  • Supplied as sleeve with lock nut and lock washer
  • H2, H3 and H23 series matched to bearing series
  • Mass listed for the adapter assembly

Specifications

Series H2, H3, H23
Product type Adapter sleeve assembly
Taper 1:12
Brand NTN
Product category Bearing Accessories
Source NTN NTN Ball and Roller Bearings catalogue, p. 50-52
H204 Shaft: 17 mm | For bearing: 1204K | Mass: 0.041 kg
H304 Shaft: 17 mm | For bearing: 2204K | Mass: 0.045 kg
H2304 Shaft: 17 mm | For bearing: 2304K | Mass: 0.049 kg
H205X Shaft: 20 mm | For bearing: 1205K | Mass: 0.07 kg
H305X Shaft: 20 mm | For bearing: 2205K | Mass: 0.075 kg
H2305X Shaft: 20 mm | For bearing: 2305K | Mass: 0.087 kg
H206X Shaft: 25 mm | For bearing: 1206K | Mass: 0.099 kg
H306X Shaft: 25 mm | For bearing: 2206K | Mass: 0.109 kg
H2306X Shaft: 25 mm | For bearing: 2306K | Mass: 0.126 kg
H207X Shaft: 30 mm | For bearing: 1207K | Mass: 0.125 kg
H307X Shaft: 30 mm | For bearing: 2207K | Mass: 0.142 kg
H2307X Shaft: 30 mm | For bearing: 2307K | Mass: 0.165 kg
H208X Shaft: 35 mm | For bearing: 1208K | Mass: 0.174 kg
H308X Shaft: 35 mm | For bearing: 2208K | Mass: 0.189 kg
H2308X Shaft: 35 mm | For bearing: 2308K | Mass: 0.224 kg
H209X Shaft: 40 mm | For bearing: 1209K | Mass: 0.227 kg
H309X Shaft: 40 mm | For bearing: 2209K | Mass: 0.248 kg
H2309X Shaft: 40 mm | For bearing: 2309K | Mass: 0.28 kg
H210X Shaft: 45 mm | For bearing: 1210K | Mass: 0.274 kg
H310X Shaft: 45 mm | For bearing: 2210K | Mass: 0.303 kg
H2310X Shaft: 45 mm | For bearing: 2310K | Mass: 0.352 kg
H211X Shaft: 50 mm | For bearing: 1211K | Mass: 0.308 kg
H311X Shaft: 17 mm | For bearing: 2211K | Mass: 0.345 kg
H2311X Shaft: 17 mm | For bearing: 2311K | Mass: 0.42 kg
H212X Shaft: 20 mm | For bearing: 1212K | Mass: 0.346 kg
H312X Shaft: 20 mm | For bearing: 2212K | Mass: 0.394 kg
H2312X Shaft: 20 mm | For bearing: 2312K | Mass: 0.481 kg
H213X Shaft: 25 mm | For bearing: 1213K | Mass: 0.401 kg
H313X Shaft: 25 mm | For bearing: 2213K | Mass: 0.458 kg
H2313X Shaft: 25 mm | For bearing: 2313K | Mass: 0.557 kg
H215X Shaft: 30 mm | For bearing: 1215K | Mass: 0.707 kg
H315X Shaft: 30 mm | For bearing: 2215K | Mass: 0.831 kg
H2315X Shaft: 30 mm | For bearing: 2315K | Mass: 1.05 kg
H216X Shaft: 35 mm | For bearing: 1216K | Mass: 0.882 kg
H316X Shaft: 35 mm | For bearing: 2216K | Mass: 1.03 kg
H2316X Shaft: 35 mm | For bearing: 2316K | Mass: 1.28 kg
H217X Shaft: 40 mm | For bearing: 1217K | Mass: 1.02 kg
H317X Shaft: 40 mm | For bearing: 2217K | Mass: 1.18 kg
H2317X Shaft: 40 mm | For bearing: 2317K | Mass: 1.45 kg
H218X Shaft: 45 mm | For bearing: 1218K | Mass: 1.19 kg
H318X Shaft: 45 mm | For bearing: 2218K | Mass: 1.37 kg
H2318X Shaft: 45 mm | For bearing: 2318K | Mass: 1.69 kg
H219X Shaft: 50 mm | For bearing: 1219K | Mass: 1.37 kg
H319X Shaft: 50 mm | For bearing: 2219K | Mass: 1.56 kg
H2319X Shaft: 85 mm | For bearing: 2319K | Mass: 1.92 kg
H220X Shaft: 90 mm | For bearing: 1220K | Mass: 1.49 kg
H320X Shaft: 90 mm | For bearing: 2220K | Mass: 1.69 kg
H2320X Shaft: 90 mm | For bearing: 2320K | Mass: 2.15 kg
H222X Shaft: 100 mm | For bearing: 1222K | Mass: 1.93 kg
H322X Shaft: 100 mm | For bearing: 2222K | Mass: 2.18 kg
H2322X Shaft: 100 mm | For bearing: 2322K | Mass: 2.74 kg
