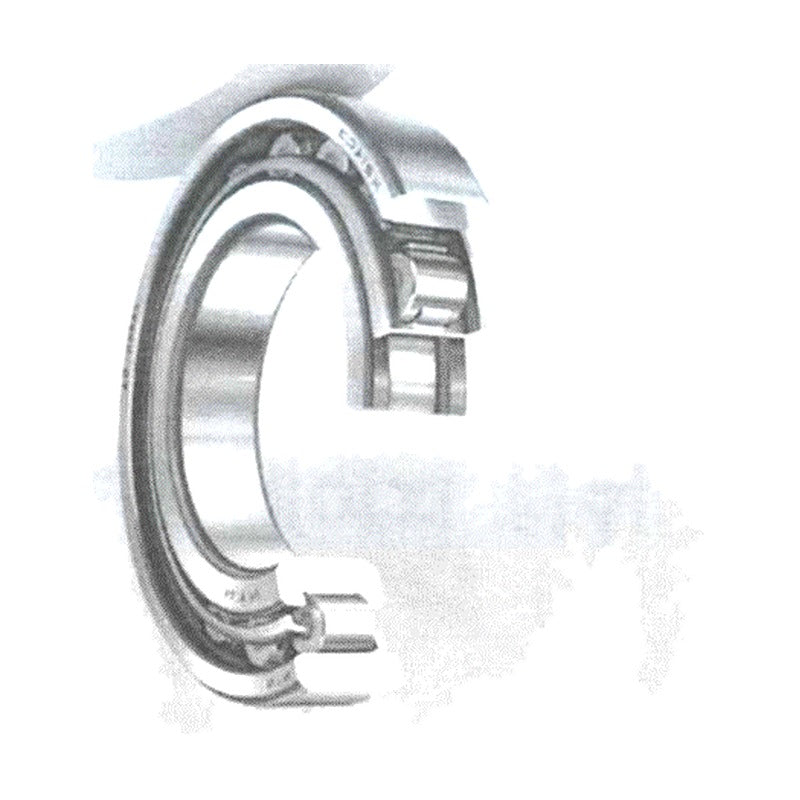

NTN NU2 Series Cylindrical Roller Bearings (NU, NJ, NUP, N, NF)

NTN NU2 Series Cylindrical Roller Bearings (NU, NJ, NUP, N, NF)

NTN single-row cylindrical roller bearings of dimension series 2, bore 20-320 mm, in NU, NJ, NUP, N and NF configurations as listed.

Key features

  • High radial load capacity with line-contact rollers
  • NU/N: separable, free axial movement; NJ: one-direction axial location; NUP/NF: locating designs
  • E suffix: high-capacity internal design where listed
  • Mass shown for NU type

Specifications

Dimension series 2
Bearing type Single-row cylindrical roller bearing
Bore range 20-320 mm
Configurations NU, NJ, NUP, N, NF
Load rating unit kN
Source NTN NTN Ball and Roller Bearings catalogue, p. 56-63
NU204E d: 20 mm | D: 47 mm | B: 14 mm | Cr: 25.7 kN | C0r: 22.6 kN | Mass: 0.122 kg
NJ204E d: 20 mm | D: 47 mm | B: 14 mm | Cr: 25.7 kN | C0r: 22.6 kN | Mass: 0.122 kg
NUP204E d: 20 mm | D: 47 mm | B: 14 mm | Cr: 25.7 kN | C0r: 22.6 kN | Mass: 0.122 kg
NU205E d: 25 mm | D: 52 mm | B: 15 mm | Cr: 29.3 kN | C0r: 27.7 kN | Mass: 0.151 kg
NJ205E d: 25 mm | D: 52 mm | B: 15 mm | Cr: 29.3 kN | C0r: 27.7 kN | Mass: 0.151 kg
NUP205E d: 25 mm | D: 52 mm | B: 15 mm | Cr: 29.3 kN | C0r: 27.7 kN | Mass: 0.151 kg
NU206E d: 30 mm | D: 62 mm | B: 16 mm | Cr: 39 kN | C0r: 37.5 kN | Mass: 0.226 kg
NJ206E d: 30 mm | D: 62 mm | B: 16 mm | Cr: 39 kN | C0r: 37.5 kN | Mass: 0.226 kg
NUP206E d: 30 mm | D: 62 mm | B: 16 mm | Cr: 39 kN | C0r: 37.5 kN | Mass: 0.226 kg
NU207E d: 35 mm | D: 72 mm | B: 17 mm | Cr: 50.5 kN | C0r: 50 kN | Mass: 0.327 kg
NJ207E d: 35 mm | D: 72 mm | B: 17 mm | Cr: 50.5 kN | C0r: 50 kN | Mass: 0.327 kg
NUP207E d: 35 mm | D: 72 mm | B: 17 mm | Cr: 50.5 kN | C0r: 50 kN | Mass: 0.327 kg
NU208 d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.5 kN | C0r: 43 kN | Mass: 0.378 kg
NJ208 d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.5 kN | C0r: 43 kN | Mass: 0.378 kg
NUP208 d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.5 kN | C0r: 43 kN | Mass: 0.378 kg
N208 d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.5 kN | C0r: 43 kN | Mass: 0.378 kg
NF208 d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.5 kN | C0r: 43 kN | Mass: 0.378 kg
NU208E d: 40 mm | D: 80 mm | B: 18 mm | Cr: 55.5 kN | C0r: 55.5 kN | Mass: 0.426 kg
NJ208E d: 40 mm | D: 80 mm | B: 18 mm | Cr: 55.5 kN | C0r: 55.5 kN | Mass: 0.426 kg
NUP208E d: 40 mm | D: 80 mm | B: 18 mm | Cr: 55.5 kN | C0r: 55.5 kN | Mass: 0.426 kg
NU209 d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46 kN | C0r: 47 kN | Mass: 0.432 kg
NJ209 d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46 kN | C0r: 47 kN | Mass: 0.432 kg
NUP209 d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46 kN | C0r: 47 kN | Mass: 0.432 kg
N209 d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46 kN | C0r: 47 kN | Mass: 0.432 kg
NF209 d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46 kN | C0r: 47 kN | Mass: 0.432 kg
NU209E d: 45 mm | D: 85 mm | B: 19 mm | Cr: 63 kN | C0r: 66.5 kN | Mass: 0.495 kg
NJ209E d: 45 mm | D: 85 mm | B: 19 mm | Cr: 63 kN | C0r: 66.5 kN | Mass: 0.495 kg
NUP209E d: 45 mm | D: 85 mm | B: 19 mm | Cr: 63 kN | C0r: 66.5 kN | Mass: 0.495 kg
NU210 d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48 kN | C0r: 51 kN | Mass: 0.47 kg
NJ210 d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48 kN | C0r: 51 kN | Mass: 0.47 kg
NUP210 d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48 kN | C0r: 51 kN | Mass: 0.47 kg
N210 d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48 kN | C0r: 51 kN | Mass: 0.47 kg
NF210 d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48 kN | C0r: 51 kN | Mass: 0.47 kg
NU210E d: 50 mm | D: 90 mm | B: 20 mm | Cr: 66 kN | C0r: 72 kN | Mass: 0.54 kg
NJ210E d: 50 mm | D: 90 mm | B: 20 mm | Cr: 66 kN | C0r: 72 kN | Mass: 0.54 kg
NUP210E d: 50 mm | D: 90 mm | B: 20 mm | Cr: 66 kN | C0r: 72 kN | Mass: 0.54 kg
NU211 d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58 kN | C0r: 62.5 kN | Mass: 0.638 kg
NJ211 d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58 kN | C0r: 62.5 kN | Mass: 0.638 kg
NUP211 d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58 kN | C0r: 62.5 kN | Mass: 0.638 kg
N211 d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58 kN | C0r: 62.5 kN | Mass: 0.638 kg
NF211 d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58 kN | C0r: 62.5 kN | Mass: 0.638 kg
NU211E d: 55 mm | D: 100 mm | B: 21 mm | Cr: 82.5 kN | C0r: 93 kN | Mass: 0.718 kg
NJ211E d: 55 mm | D: 100 mm | B: 21 mm | Cr: 82.5 kN | C0r: 93 kN | Mass: 0.718 kg
NUP211E d: 55 mm | D: 100 mm | B: 21 mm | Cr: 82.5 kN | C0r: 93 kN | Mass: 0.718 kg
NU212 d: 60 mm | D: 110 mm | B: 22 mm | Cr: 68.5 kN | C0r: 75 kN | Mass: 0.818 kg
NJ212 d: 60 mm | D: 110 mm | B: 22 mm | Cr: 68.5 kN | C0r: 75 kN | Mass: 0.818 kg
NUP212 d: 60 mm | D: 110 mm | B: 22 mm | Cr: 68.5 kN | C0r: 75 kN | Mass: 0.818 kg
N212 d: 60 mm | D: 110 mm | B: 22 mm | Cr: 68.5 kN | C0r: 75 kN | Mass: 0.818 kg
NU212E d: 60 mm | D: 110 mm | B: 22 mm | Cr: 97.5 kN | C0r: 107 kN | Mass: 0.923 kg
NJ212E d: 60 mm | D: 110 mm | B: 22 mm | Cr: 97.5 kN | C0r: 107 kN | Mass: 0.923 kg
NUP212E d: 60 mm | D: 110 mm | B: 22 mm | Cr: 97.5 kN | C0r: 107 kN | Mass: 0.923 kg
NU213 d: 65 mm | D: 120 mm | B: 23 mm | Cr: 84 kN | C0r: 94.5 kN | Mass: 1.02 kg
NJ213 d: 65 mm | D: 120 mm | B: 23 mm | Cr: 84 kN | C0r: 94.5 kN | Mass: 1.02 kg
NUP213 d: 65 mm | D: 120 mm | B: 23 mm | Cr: 84 kN | C0r: 94.5 kN | Mass: 1.02 kg
N213 d: 65 mm | D: 120 mm | B: 23 mm | Cr: 84 kN | C0r: 94.5 kN | Mass: 1.02 kg
NF213 d: 65 mm | D: 120 mm | B: 23 mm | Cr: 84 kN | C0r: 94.5 kN | Mass: 1.02 kg
NU213E d: 65 mm | D: 120 mm | B: 23 mm | Cr: 108 kN | C0r: 119 kN | Mass: 1.21 kg
NJ213E d: 65 mm | D: 120 mm | B: 23 mm | Cr: 108 kN | C0r: 119 kN | Mass: 1.21 kg
NUP213E d: 65 mm | D: 120 mm | B: 23 mm | Cr: 108 kN | C0r: 119 kN | Mass: 1.21 kg
NU214 d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.5 kN | C0r: 95 kN | Mass: 1.12 kg
NJ214 d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.5 kN | C0r: 95 kN | Mass: 1.12 kg
NUP214 d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.5 kN | C0r: 95 kN | Mass: 1.12 kg
N214 d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.5 kN | C0r: 95 kN | Mass: 1.12 kg
NF214 d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.5 kN | C0r: 95 kN | Mass: 1.12 kg
NU214E d: 70 mm | D: 125 mm | B: 24 mm | Cr: 119 kN | C0r: 137 kN | Mass: 1.3 kg
NJ214E d: 70 mm | D: 125 mm | B: 24 mm | Cr: 119 kN | C0r: 137 kN | Mass: 1.3 kg
NUP214E d: 70 mm | D: 125 mm | B: 24 mm | Cr: 119 kN | C0r: 137 kN | Mass: 1.3 kg
NU215 d: 75 mm | D: 130 mm | B: 25 mm | Cr: 96.5 kN | C0r: 111 kN | Mass: 1.23 kg
NJ215 d: 75 mm | D: 130 mm | B: 25 mm | Cr: 96.5 kN | C0r: 111 kN | Mass: 1.23 kg
NUP215 d: 75 mm | D: 130 mm | B: 25 mm | Cr: 96.5 kN | C0r: 111 kN | Mass: 1.23 kg
N215 d: 75 mm | D: 130 mm | B: 25 mm | Cr: 96.5 kN | C0r: 111 kN | Mass: 1.23 kg
NF215 d: 75 mm | D: 130 mm | B: 25 mm | Cr: 96.5 kN | C0r: 111 kN | Mass: 1.23 kg
NU215E d: 75 mm | D: 130 mm | B: 25 mm | Cr: 130 kN | C0r: 156 kN | Mass: 1.41 kg
NJ215E d: 75 mm | D: 130 mm | B: 25 mm | Cr: 130 kN | C0r: 156 kN | Mass: 1.41 kg
NUP215E d: 75 mm | D: 130 mm | B: 25 mm | Cr: 130 kN | C0r: 156 kN | Mass: 1.41 kg
NU216 d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Mass: 1.5 kg
NJ216 d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Mass: 1.5 kg
NUP216 d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Mass: 1.5 kg
N216 d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Mass: 1.5 kg
NF216 d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Mass: 1.5 kg
NU216E d: 80 mm | D: 140 mm | B: 26 mm | Cr: 139 kN | C0r: 167 kN | Mass: 1.67 kg
NJ216E d: 80 mm | D: 140 mm | B: 26 mm | Cr: 139 kN | C0r: 167 kN | Mass: 1.67 kg
NUP216E d: 80 mm | D: 140 mm | B: 26 mm | Cr: 139 kN | C0r: 167 kN | Mass: 1.67 kg
NU217 d: 85 mm | D: 150 mm | B: 28 mm | Cr: 120 kN | C0r: 140 kN | Mass: 1.87 kg
NJ217 d: 85 mm | D: 150 mm | B: 28 mm | Cr: 120 kN | C0r: 140 kN | Mass: 1.87 kg
NUP217 d: 85 mm | D: 150 mm | B: 28 mm | Cr: 120 kN | C0r: 140 kN | Mass: 1.87 kg
N217 d: 85 mm | D: 150 mm | B: 28 mm | Cr: 120 kN | C0r: 140 kN | Mass: 1.87 kg
NF217 d: 85 mm | D: 150 mm | B: 28 mm | Cr: 120 kN | C0r: 140 kN | Mass: 1.87 kg
NU217E d: 85 mm | D: 150 mm | B: 28 mm | Cr: 167 kN | C0r: 199 kN | Mass: 2.11 kg
NJ217E d: 85 mm | D: 150 mm | B: 28 mm | Cr: 167 kN | C0r: 199 kN | Mass: 2.11 kg
NUP217E d: 85 mm | D: 150 mm | B: 28 mm | Cr: 167 kN | C0r: 199 kN | Mass: 2.11 kg
NU218 d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Mass: 2.3 kg
NJ218 d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Mass: 2.3 kg
NUP218 d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Mass: 2.3 kg
N218 d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Mass: 2.3 kg
NF218 d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Mass: 2.3 kg
NU218E d: 90 mm | D: 160 mm | B: 30 mm | Cr: 182 kN | C0r: 217 kN | Mass: 2.44 kg
NJ218E d: 90 mm | D: 160 mm | B: 30 mm | Cr: 182 kN | C0r: 217 kN | Mass: 2.44 kg
NUP218E d: 90 mm | D: 160 mm | B: 30 mm | Cr: 182 kN | C0r: 217 kN | Mass: 2.44 kg
NU219 d: 95 mm | D: 170 mm | B: 32 mm | Cr: 166 kN | C0r: 195 kN | Mass: 2.78 kg
NJ219 d: 95 mm | D: 170 mm | B: 32 mm | Cr: 166 kN | C0r: 195 kN | Mass: 2.78 kg
NUP219 d: 95 mm | D: 170 mm | B: 32 mm | Cr: 166 kN | C0r: 195 kN | Mass: 2.78 kg
N219 d: 95 mm | D: 170 mm | B: 32 mm | Cr: 166 kN | C0r: 195 kN | Mass: 2.78 kg
NF219 d: 95 mm | D: 170 mm | B: 32 mm | Cr: 166 kN | C0r: 195 kN | Mass: 2.78 kg
NU219E d: 95 mm | D: 170 mm | B: 32 mm | Cr: 220 kN | C0r: 265 kN | Mass: 3.02 kg
NJ219E d: 95 mm | D: 170 mm | B: 32 mm | Cr: 220 kN | C0r: 265 kN | Mass: 3.02 kg
NUP219E d: 95 mm | D: 170 mm | B: 32 mm | Cr: 220 kN | C0r: 265 kN | Mass: 3.02 kg
NU220 d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Mass: 3.33 kg
NJ220 d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Mass: 3.33 kg
NUP220 d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Mass: 3.33 kg
N220 d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Mass: 3.33 kg
NF220 d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Mass: 3.33 kg
NU220E d: 100 mm | D: 180 mm | B: 34 mm | Cr: 249 kN | C0r: 305 kN | Mass: 3.66 kg
NJ220E d: 100 mm | D: 180 mm | B: 34 mm | Cr: 249 kN | C0r: 305 kN | Mass: 3.66 kg
NUP220E d: 100 mm | D: 180 mm | B: 34 mm | Cr: 249 kN | C0r: 305 kN | Mass: 3.66 kg
NU221 d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Mass: 3.95 kg
NJ221 d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Mass: 3.95 kg
NUP221 d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Mass: 3.95 kg
N221 d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Mass: 3.95 kg
NF221 d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Mass: 3.95 kg
NU222 d: 110 mm | D: 200 mm | B: 38 mm | Cr: 240 kN | C0r: 290 kN | Mass: 4.63 kg
NJ222 d: 110 mm | D: 200 mm | B: 38 mm | Cr: 240 kN | C0r: 290 kN | Mass: 4.63 kg
NUP222 d: 110 mm | D: 200 mm | B: 38 mm | Cr: 240 kN | C0r: 290 kN | Mass: 4.63 kg
N222 d: 110 mm | D: 200 mm | B: 38 mm | Cr: 240 kN | C0r: 290 kN | Mass: 4.63 kg
NF222 d: 110 mm | D: 200 mm | B: 38 mm | Cr: 240 kN | C0r: 290 kN | Mass: 4.63 kg
NU222E d: 110 mm | D: 200 mm | B: 38 mm | Cr: 293 kN | C0r: 365 kN | Mass: 4.27 kg
NJ222E d: 110 mm | D: 200 mm | B: 38 mm | Cr: 293 kN | C0r: 365 kN | Mass: 4.27 kg
NUP222E d: 110 mm | D: 200 mm | B: 38 mm | Cr: 293 kN | C0r: 365 kN | Mass: 4.27 kg
NU224 d: 120 mm | D: 215 mm | B: 40 mm | Cr: 260 kN | C0r: 320 kN | Mass: 5.57 kg
NJ224 d: 120 mm | D: 215 mm | B: 40 mm | Cr: 260 kN | C0r: 320 kN | Mass: 5.57 kg
NUP224 d: 120 mm | D: 215 mm | B: 40 mm | Cr: 260 kN | C0r: 320 kN | Mass: 5.57 kg
N224 d: 120 mm | D: 215 mm | B: 40 mm | Cr: 260 kN | C0r: 320 kN | Mass: 5.57 kg
NF224 d: 120 mm | D: 215 mm | B: 40 mm | Cr: 260 kN | C0r: 320 kN | Mass: 5.57 kg
NU224E d: 120 mm | D: 215 mm | B: 40 mm | Cr: 335 kN | C0r: 420 kN | Mass: 5.97 kg
NJ224E d: 120 mm | D: 215 mm | B: 40 mm | Cr: 335 kN | C0r: 420 kN | Mass: 5.97 kg
NUP224E d: 120 mm | D: 215 mm | B: 40 mm | Cr: 335 kN | C0r: 420 kN | Mass: 5.97 kg
NU226 d: 130 mm | D: 230 mm | B: 40 mm | Cr: 270 kN | C0r: 340 kN | Mass: 6.3 kg
NJ226 d: 130 mm | D: 230 mm | B: 40 mm | Cr: 270 kN | C0r: 340 kN | Mass: 6.3 kg
NUP226 d: 130 mm | D: 230 mm | B: 40 mm | Cr: 270 kN | C0r: 340 kN | Mass: 6.3 kg
N226 d: 130 mm | D: 230 mm | B: 40 mm | Cr: 270 kN | C0r: 340 kN | Mass: 6.3 kg
NF226 d: 130 mm | D: 230 mm | B: 40 mm | Cr: 270 kN | C0r: 340 kN | Mass: 6.3 kg
NU226E d: 130 mm | D: 230 mm | B: 40 mm | Cr: 365 kN | C0r: 455 kN | Mass: 6.9 kg
NJ226E d: 130 mm | D: 230 mm | B: 40 mm | Cr: 365 kN | C0r: 455 kN | Mass: 6.9 kg
NUP226E d: 130 mm | D: 230 mm | B: 40 mm | Cr: 365 kN | C0r: 455 kN | Mass: 6.9 kg
NU228 d: 140 mm | D: 250 mm | B: 42 mm | Cr: 310 kN | C0r: 400 kN | Mass: 7.88 kg
NJ228 d: 140 mm | D: 250 mm | B: 42 mm | Cr: 310 kN | C0r: 400 kN | Mass: 7.88 kg
NUP228 d: 140 mm | D: 250 mm | B: 42 mm | Cr: 310 kN | C0r: 400 kN | Mass: 7.88 kg
N228 d: 140 mm | D: 250 mm | B: 42 mm | Cr: 310 kN | C0r: 400 kN | Mass: 7.88 kg
NF228 d: 140 mm | D: 250 mm | B: 42 mm | Cr: 310 kN | C0r: 400 kN | Mass: 7.88 kg
NU228E d: 140 mm | D: 250 mm | B: 42 mm | Cr: 395 kN | C0r: 515 kN | Mass: 8.73 kg
NJ228E d: 140 mm | D: 250 mm | B: 42 mm | Cr: 395 kN | C0r: 515 kN | Mass: 8.73 kg
NUP228E d: 140 mm | D: 250 mm | B: 42 mm | Cr: 395 kN | C0r: 515 kN | Mass: 8.73 kg
NU230 d: 150 mm | D: 270 mm | B: 45 mm | Cr: 345 kN | C0r: 435 kN | Mass: 9.92 kg
NJ230 d: 150 mm | D: 270 mm | B: 45 mm | Cr: 345 kN | C0r: 435 kN | Mass: 9.92 kg
NUP230 d: 150 mm | D: 270 mm | B: 45 mm | Cr: 345 kN | C0r: 435 kN | Mass: 9.92 kg
N230 d: 150 mm | D: 270 mm | B: 45 mm | Cr: 345 kN | C0r: 435 kN | Mass: 9.92 kg
NF230 d: 150 mm | D: 270 mm | B: 45 mm | Cr: 345 kN | C0r: 435 kN | Mass: 9.92 kg
NU230E d: 150 mm | D: 270 mm | B: 45 mm | Cr: 450 kN | C0r: 595 kN | Mass: 11 kg
NJ230E d: 150 mm | D: 270 mm | B: 45 mm | Cr: 450 kN | C0r: 595 kN | Mass: 11 kg
NUP230E d: 150 mm | D: 270 mm | B: 45 mm | Cr: 450 kN | C0r: 595 kN | Mass: 11 kg
NU232 d: 160 mm | D: 290 mm | B: 48 mm | Cr: 430 kN | C0r: 570 kN | Mass: 13.7 kg
NJ232 d: 160 mm | D: 290 mm | B: 48 mm | Cr: 430 kN | C0r: 570 kN | Mass: 13.7 kg
NUP232 d: 160 mm | D: 290 mm | B: 48 mm | Cr: 430 kN | C0r: 570 kN | Mass: 13.7 kg
N232 d: 160 mm | D: 290 mm | B: 48 mm | Cr: 430 kN | C0r: 570 kN | Mass: 13.7 kg
NF232 d: 160 mm | D: 290 mm | B: 48 mm | Cr: 430 kN | C0r: 570 kN | Mass: 13.7 kg
NU232E d: 160 mm | D: 290 mm | B: 48 mm | Cr: 500 kN | C0r: 665 kN | Mass: 15.6 kg
NJ232E d: 160 mm | D: 290 mm | B: 48 mm | Cr: 500 kN | C0r: 665 kN | Mass: 15.6 kg
NUP232E d: 160 mm | D: 290 mm | B: 48 mm | Cr: 500 kN | C0r: 665 kN | Mass: 15.6 kg
NU234 d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 635 kN | Mass: 17 kg
NJ234 d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 635 kN | Mass: 17 kg
NUP234 d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 635 kN | Mass: 17 kg
N234 d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 635 kN | Mass: 17 kg
NF234 d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 635 kN | Mass: 17 kg
NU234E d: 170 mm | D: 310 mm | B: 52 mm | Cr: 605 kN | C0r: 800 kN | Mass: 19.6 kg
NJ234E d: 170 mm | D: 310 mm | B: 52 mm | Cr: 605 kN | C0r: 800 kN | Mass: 19.6 kg
NUP234E d: 170 mm | D: 310 mm | B: 52 mm | Cr: 605 kN | C0r: 800 kN | Mass: 19.6 kg
NU236 d: 180 mm | D: 320 mm | B: 52 mm | Cr: 495 kN | C0r: 675 kN | Mass: 17.7 kg
NJ236 d: 180 mm | D: 320 mm | B: 52 mm | Cr: 495 kN | C0r: 675 kN | Mass: 17.7 kg
NUP236 d: 180 mm | D: 320 mm | B: 52 mm | Cr: 495 kN | C0r: 675 kN | Mass: 17.7 kg
N236 d: 180 mm | D: 320 mm | B: 52 mm | Cr: 495 kN | C0r: 675 kN | Mass: 17.7 kg
NF236 d: 180 mm | D: 320 mm | B: 52 mm | Cr: 495 kN | C0r: 675 kN | Mass: 17.7 kg
NU236E d: 180 mm | D: 320 mm | B: 52 mm | Cr: 625 kN | C0r: 850 kN | Mass: 20.4 kg
NJ236E d: 180 mm | D: 320 mm | B: 52 mm | Cr: 625 kN | C0r: 850 kN | Mass: 20.4 kg
NUP236E d: 180 mm | D: 320 mm | B: 52 mm | Cr: 625 kN | C0r: 850 kN | Mass: 20.4 kg
NU238 d: 190 mm | D: 340 mm | B: 55 mm | Cr: 555 kN | C0r: 770 kN | Mass: 21.3 kg
NJ238 d: 190 mm | D: 340 mm | B: 55 mm | Cr: 555 kN | C0r: 770 kN | Mass: 21.3 kg
NUP238 d: 190 mm | D: 340 mm | B: 55 mm | Cr: 555 kN | C0r: 770 kN | Mass: 21.3 kg
N238 d: 190 mm | D: 340 mm | B: 55 mm | Cr: 555 kN | C0r: 770 kN | Mass: 21.3 kg
NF238 d: 190 mm | D: 340 mm | B: 55 mm | Cr: 555 kN | C0r: 770 kN | Mass: 21.3 kg
NU238E d: 190 mm | D: 340 mm | B: 55 mm | Cr: 695 kN | C0r: 955 kN | Mass: 24.2 kg
NJ238E d: 190 mm | D: 340 mm | B: 55 mm | Cr: 695 kN | C0r: 955 kN | Mass: 24.2 kg
NUP238E d: 190 mm | D: 340 mm | B: 55 mm | Cr: 695 kN | C0r: 955 kN | Mass: 24.2 kg
NU240 d: 200 mm | D: 360 mm | B: 58 mm | Cr: 620 kN | C0r: 865 kN | Mass: 25.3 kg
NJ240 d: 200 mm | D: 360 mm | B: 58 mm | Cr: 620 kN | C0r: 865 kN | Mass: 25.3 kg
NUP240 d: 200 mm | D: 360 mm | B: 58 mm | Cr: 620 kN | C0r: 865 kN | Mass: 25.3 kg
N240 d: 200 mm | D: 360 mm | B: 58 mm | Cr: 620 kN | C0r: 865 kN | Mass: 25.3 kg
NF240 d: 200 mm | D: 360 mm | B: 58 mm | Cr: 620 kN | C0r: 865 kN | Mass: 25.3 kg
NU240E d: 200 mm | D: 360 mm | B: 58 mm | Cr: 765 kN | C0r: 1060 kN | Mass: 28.1 kg
NJ240E d: 200 mm | D: 360 mm | B: 58 mm | Cr: 765 kN | C0r: 1060 kN | Mass: 28.1 kg
NUP240E d: 200 mm | D: 360 mm | B: 58 mm | Cr: 765 kN | C0r: 1060 kN | Mass: 28.1 kg
NU244 d: 220 mm | D: 400 mm | B: 65 mm | Cr: 760 kN | C0r: 1080 kN | Mass: 37.7 kg
NJ244 d: 220 mm | D: 400 mm | B: 65 mm | Cr: 760 kN | C0r: 1080 kN | Mass: 37.7 kg
NUP244 d: 220 mm | D: 400 mm | B: 65 mm | Cr: 760 kN | C0r: 1080 kN | Mass: 37.7 kg
N244 d: 220 mm | D: 400 mm | B: 65 mm | Cr: 760 kN | C0r: 1080 kN | Mass: 37.7 kg
NF244 d: 220 mm | D: 400 mm | B: 65 mm | Cr: 760 kN | C0r: 1080 kN | Mass: 37.7 kg
NU248 d: 240 mm | D: 440 mm | B: 72 mm | Cr: 935 kN | C0r: 1340 kN | Mass: 50.2 kg
NJ248 d: 240 mm | D: 440 mm | B: 72 mm | Cr: 935 kN | C0r: 1340 kN | Mass: 50.2 kg
NUP248 d: 240 mm | D: 440 mm | B: 72 mm | Cr: 935 kN | C0r: 1340 kN | Mass: 50.2 kg
N248 d: 240 mm | D: 440 mm | B: 72 mm | Cr: 935 kN | C0r: 1340 kN | Mass: 50.2 kg
NF248 d: 240 mm | D: 440 mm | B: 72 mm | Cr: 935 kN | C0r: 1340 kN | Mass: 50.2 kg
NU252 d: 260 mm | D: 480 mm | B: 80 mm | Cr: 1150 kN | C0r: 1660 kN | Mass: 66.9 kg
NJ252 d: 260 mm | D: 480 mm | B: 80 mm | Cr: 1150 kN | C0r: 1660 kN | Mass: 66.9 kg
NUP252 d: 260 mm | D: 480 mm | B: 80 mm | Cr: 1150 kN | C0r: 1660 kN | Mass: 66.9 kg
N252 d: 260 mm | D: 480 mm | B: 80 mm | Cr: 1150 kN | C0r: 1660 kN | Mass: 66.9 kg
NF252 d: 260 mm | D: 480 mm | B: 80 mm | Cr: 1150 kN | C0r: 1660 kN | Mass: 66.9 kg
NU256 d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1190 kN | C0r: 1760 kN | Mass: 70.8 kg
NJ256 d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1190 kN | C0r: 1760 kN | Mass: 70.8 kg
NUP256 d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1190 kN | C0r: 1760 kN | Mass: 70.8 kg
N256 d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1190 kN | C0r: 1760 kN | Mass: 70.8 kg
NF256 d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1190 kN | C0r: 1760 kN | Mass: 70.8 kg
NU260 d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1400 kN | C0r: 2070 kN | Mass: 88.2 kg
NJ260 d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1400 kN | C0r: 2070 kN | Mass: 88.2 kg
NUP260 d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1400 kN | C0r: 2070 kN | Mass: 88.2 kg
N260 d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1400 kN | C0r: 2070 kN | Mass: 88.2 kg
NF260 d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1400 kN | C0r: 2070 kN | Mass: 88.2 kg
NU264 d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1600 kN | C0r: 2390 kN | Mass: 111 kg
NJ264 d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1600 kN | C0r: 2390 kN | Mass: 111 kg
NUP264 d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1600 kN | C0r: 2390 kN | Mass: 111 kg
N264 d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1600 kN | C0r: 2390 kN | Mass: 111 kg
NF264 d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1600 kN | C0r: 2390 kN | Mass: 111 kg
Cylindrical Roller BearingsNTN
230 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN NU2 Series Cylindrical Roller Bearings (NU, NJ, NUP, N, NF)

Brand NTN·Cylindrical Roller Bearings

Available part numbers (230)

NU204E, NJ204E, NUP204E, NU205E, NJ205E, NUP205E, NU206E, NJ206E, NUP206E, NU207E + 220 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NU204Ed: 20 mm | D: 47 mm | B: 14 mm | Cr: 25.7 kN | C0r: 22.6 kN | Mass: 0.122 kg
NJ204Ed: 20 mm | D: 47 mm | B: 14 mm | Cr: 25.7 kN | C0r: 22.6 kN | Mass: 0.122 kg
NUP204Ed: 20 mm | D: 47 mm | B: 14 mm | Cr: 25.7 kN | C0r: 22.6 kN | Mass: 0.122 kg
NU205Ed: 25 mm | D: 52 mm | B: 15 mm | Cr: 29.3 kN | C0r: 27.7 kN | Mass: 0.151 kg
NJ205Ed: 25 mm | D: 52 mm | B: 15 mm | Cr: 29.3 kN | C0r: 27.7 kN | Mass: 0.151 kg
NUP205Ed: 25 mm | D: 52 mm | B: 15 mm | Cr: 29.3 kN | C0r: 27.7 kN | Mass: 0.151 kg
NU206Ed: 30 mm | D: 62 mm | B: 16 mm | Cr: 39 kN | C0r: 37.5 kN | Mass: 0.226 kg
NJ206Ed: 30 mm | D: 62 mm | B: 16 mm | Cr: 39 kN | C0r: 37.5 kN | Mass: 0.226 kg
NUP206Ed: 30 mm | D: 62 mm | B: 16 mm | Cr: 39 kN | C0r: 37.5 kN | Mass: 0.226 kg
NU207Ed: 35 mm | D: 72 mm | B: 17 mm | Cr: 50.5 kN | C0r: 50 kN | Mass: 0.327 kg
NJ207Ed: 35 mm | D: 72 mm | B: 17 mm | Cr: 50.5 kN | C0r: 50 kN | Mass: 0.327 kg
NUP207Ed: 35 mm | D: 72 mm | B: 17 mm | Cr: 50.5 kN | C0r: 50 kN | Mass: 0.327 kg
NU208d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.5 kN | C0r: 43 kN | Mass: 0.378 kg
NJ208d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.5 kN | C0r: 43 kN | Mass: 0.378 kg
NUP208d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.5 kN | C0r: 43 kN | Mass: 0.378 kg
N208d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.5 kN | C0r: 43 kN | Mass: 0.378 kg
NF208d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.5 kN | C0r: 43 kN | Mass: 0.378 kg
NU208Ed: 40 mm | D: 80 mm | B: 18 mm | Cr: 55.5 kN | C0r: 55.5 kN | Mass: 0.426 kg
NJ208Ed: 40 mm | D: 80 mm | B: 18 mm | Cr: 55.5 kN | C0r: 55.5 kN | Mass: 0.426 kg
NUP208Ed: 40 mm | D: 80 mm | B: 18 mm | Cr: 55.5 kN | C0r: 55.5 kN | Mass: 0.426 kg
NU209d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46 kN | C0r: 47 kN | Mass: 0.432 kg
NJ209d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46 kN | C0r: 47 kN | Mass: 0.432 kg
NUP209d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46 kN | C0r: 47 kN | Mass: 0.432 kg
N209d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46 kN | C0r: 47 kN | Mass: 0.432 kg
NF209d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46 kN | C0r: 47 kN | Mass: 0.432 kg
NU209Ed: 45 mm | D: 85 mm | B: 19 mm | Cr: 63 kN | C0r: 66.5 kN | Mass: 0.495 kg
NJ209Ed: 45 mm | D: 85 mm | B: 19 mm | Cr: 63 kN | C0r: 66.5 kN | Mass: 0.495 kg
NUP209Ed: 45 mm | D: 85 mm | B: 19 mm | Cr: 63 kN | C0r: 66.5 kN | Mass: 0.495 kg
NU210d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48 kN | C0r: 51 kN | Mass: 0.47 kg
NJ210d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48 kN | C0r: 51 kN | Mass: 0.47 kg
NUP210d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48 kN | C0r: 51 kN | Mass: 0.47 kg
N210d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48 kN | C0r: 51 kN | Mass: 0.47 kg
NF210d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48 kN | C0r: 51 kN | Mass: 0.47 kg
NU210Ed: 50 mm | D: 90 mm | B: 20 mm | Cr: 66 kN | C0r: 72 kN | Mass: 0.54 kg
NJ210Ed: 50 mm | D: 90 mm | B: 20 mm | Cr: 66 kN | C0r: 72 kN | Mass: 0.54 kg
NUP210Ed: 50 mm | D: 90 mm | B: 20 mm | Cr: 66 kN | C0r: 72 kN | Mass: 0.54 kg
NU211d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58 kN | C0r: 62.5 kN | Mass: 0.638 kg
NJ211d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58 kN | C0r: 62.5 kN | Mass: 0.638 kg
NUP211d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58 kN | C0r: 62.5 kN | Mass: 0.638 kg
N211d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58 kN | C0r: 62.5 kN | Mass: 0.638 kg
NF211d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58 kN | C0r: 62.5 kN | Mass: 0.638 kg
NU211Ed: 55 mm | D: 100 mm | B: 21 mm | Cr: 82.5 kN | C0r: 93 kN | Mass: 0.718 kg
NJ211Ed: 55 mm | D: 100 mm | B: 21 mm | Cr: 82.5 kN | C0r: 93 kN | Mass: 0.718 kg
NUP211Ed: 55 mm | D: 100 mm | B: 21 mm | Cr: 82.5 kN | C0r: 93 kN | Mass: 0.718 kg
NU212d: 60 mm | D: 110 mm | B: 22 mm | Cr: 68.5 kN | C0r: 75 kN | Mass: 0.818 kg
NJ212d: 60 mm | D: 110 mm | B: 22 mm | Cr: 68.5 kN | C0r: 75 kN | Mass: 0.818 kg
NUP212d: 60 mm | D: 110 mm | B: 22 mm | Cr: 68.5 kN | C0r: 75 kN | Mass: 0.818 kg
N212d: 60 mm | D: 110 mm | B: 22 mm | Cr: 68.5 kN | C0r: 75 kN | Mass: 0.818 kg
NU212Ed: 60 mm | D: 110 mm | B: 22 mm | Cr: 97.5 kN | C0r: 107 kN | Mass: 0.923 kg
NJ212Ed: 60 mm | D: 110 mm | B: 22 mm | Cr: 97.5 kN | C0r: 107 kN | Mass: 0.923 kg
NUP212Ed: 60 mm | D: 110 mm | B: 22 mm | Cr: 97.5 kN | C0r: 107 kN | Mass: 0.923 kg
NU213d: 65 mm | D: 120 mm | B: 23 mm | Cr: 84 kN | C0r: 94.5 kN | Mass: 1.02 kg
NJ213d: 65 mm | D: 120 mm | B: 23 mm | Cr: 84 kN | C0r: 94.5 kN | Mass: 1.02 kg
NUP213d: 65 mm | D: 120 mm | B: 23 mm | Cr: 84 kN | C0r: 94.5 kN | Mass: 1.02 kg
N213d: 65 mm | D: 120 mm | B: 23 mm | Cr: 84 kN | C0r: 94.5 kN | Mass: 1.02 kg
NF213d: 65 mm | D: 120 mm | B: 23 mm | Cr: 84 kN | C0r: 94.5 kN | Mass: 1.02 kg
NU213Ed: 65 mm | D: 120 mm | B: 23 mm | Cr: 108 kN | C0r: 119 kN | Mass: 1.21 kg
NJ213Ed: 65 mm | D: 120 mm | B: 23 mm | Cr: 108 kN | C0r: 119 kN | Mass: 1.21 kg
NUP213Ed: 65 mm | D: 120 mm | B: 23 mm | Cr: 108 kN | C0r: 119 kN | Mass: 1.21 kg
NU214d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.5 kN | C0r: 95 kN | Mass: 1.12 kg
NJ214d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.5 kN | C0r: 95 kN | Mass: 1.12 kg
NUP214d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.5 kN | C0r: 95 kN | Mass: 1.12 kg
N214d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.5 kN | C0r: 95 kN | Mass: 1.12 kg
NF214d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.5 kN | C0r: 95 kN | Mass: 1.12 kg
NU214Ed: 70 mm | D: 125 mm | B: 24 mm | Cr: 119 kN | C0r: 137 kN | Mass: 1.3 kg
NJ214Ed: 70 mm | D: 125 mm | B: 24 mm | Cr: 119 kN | C0r: 137 kN | Mass: 1.3 kg
NUP214Ed: 70 mm | D: 125 mm | B: 24 mm | Cr: 119 kN | C0r: 137 kN | Mass: 1.3 kg
NU215d: 75 mm | D: 130 mm | B: 25 mm | Cr: 96.5 kN | C0r: 111 kN | Mass: 1.23 kg
NJ215d: 75 mm | D: 130 mm | B: 25 mm | Cr: 96.5 kN | C0r: 111 kN | Mass: 1.23 kg
NUP215d: 75 mm | D: 130 mm | B: 25 mm | Cr: 96.5 kN | C0r: 111 kN | Mass: 1.23 kg
N215d: 75 mm | D: 130 mm | B: 25 mm | Cr: 96.5 kN | C0r: 111 kN | Mass: 1.23 kg
NF215d: 75 mm | D: 130 mm | B: 25 mm | Cr: 96.5 kN | C0r: 111 kN | Mass: 1.23 kg
NU215Ed: 75 mm | D: 130 mm | B: 25 mm | Cr: 130 kN | C0r: 156 kN | Mass: 1.41 kg
NJ215Ed: 75 mm | D: 130 mm | B: 25 mm | Cr: 130 kN | C0r: 156 kN | Mass: 1.41 kg
NUP215Ed: 75 mm | D: 130 mm | B: 25 mm | Cr: 130 kN | C0r: 156 kN | Mass: 1.41 kg
NU216d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Mass: 1.5 kg
NJ216d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Mass: 1.5 kg
NUP216d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Mass: 1.5 kg
N216d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Mass: 1.5 kg
NF216d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Mass: 1.5 kg
NU216Ed: 80 mm | D: 140 mm | B: 26 mm | Cr: 139 kN | C0r: 167 kN | Mass: 1.67 kg
NJ216Ed: 80 mm | D: 140 mm | B: 26 mm | Cr: 139 kN | C0r: 167 kN | Mass: 1.67 kg
NUP216Ed: 80 mm | D: 140 mm | B: 26 mm | Cr: 139 kN | C0r: 167 kN | Mass: 1.67 kg
NU217d: 85 mm | D: 150 mm | B: 28 mm | Cr: 120 kN | C0r: 140 kN | Mass: 1.87 kg
NJ217d: 85 mm | D: 150 mm | B: 28 mm | Cr: 120 kN | C0r: 140 kN | Mass: 1.87 kg
NUP217d: 85 mm | D: 150 mm | B: 28 mm | Cr: 120 kN | C0r: 140 kN | Mass: 1.87 kg
N217d: 85 mm | D: 150 mm | B: 28 mm | Cr: 120 kN | C0r: 140 kN | Mass: 1.87 kg
NF217d: 85 mm | D: 150 mm | B: 28 mm | Cr: 120 kN | C0r: 140 kN | Mass: 1.87 kg
NU217Ed: 85 mm | D: 150 mm | B: 28 mm | Cr: 167 kN | C0r: 199 kN | Mass: 2.11 kg
NJ217Ed: 85 mm | D: 150 mm | B: 28 mm | Cr: 167 kN | C0r: 199 kN | Mass: 2.11 kg
NUP217Ed: 85 mm | D: 150 mm | B: 28 mm | Cr: 167 kN | C0r: 199 kN | Mass: 2.11 kg
NU218d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Mass: 2.3 kg
NJ218d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Mass: 2.3 kg
NUP218d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Mass: 2.3 kg
N218d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Mass: 2.3 kg
NF218d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Mass: 2.3 kg
NU218Ed: 90 mm | D: 160 mm | B: 30 mm | Cr: 182 kN | C0r: 217 kN | Mass: 2.44 kg
NJ218Ed: 90 mm | D: 160 mm | B: 30 mm | Cr: 182 kN | C0r: 217 kN | Mass: 2.44 kg
NUP218Ed: 90 mm | D: 160 mm | B: 30 mm | Cr: 182 kN | C0r: 217 kN | Mass: 2.44 kg
NU219d: 95 mm | D: 170 mm | B: 32 mm | Cr: 166 kN | C0r: 195 kN | Mass: 2.78 kg
NJ219d: 95 mm | D: 170 mm | B: 32 mm | Cr: 166 kN | C0r: 195 kN | Mass: 2.78 kg
NUP219d: 95 mm | D: 170 mm | B: 32 mm | Cr: 166 kN | C0r: 195 kN | Mass: 2.78 kg
N219d: 95 mm | D: 170 mm | B: 32 mm | Cr: 166 kN | C0r: 195 kN | Mass: 2.78 kg
NF219d: 95 mm | D: 170 mm | B: 32 mm | Cr: 166 kN | C0r: 195 kN | Mass: 2.78 kg
NU219Ed: 95 mm | D: 170 mm | B: 32 mm | Cr: 220 kN | C0r: 265 kN | Mass: 3.02 kg
NJ219Ed: 95 mm | D: 170 mm | B: 32 mm | Cr: 220 kN | C0r: 265 kN | Mass: 3.02 kg
NUP219Ed: 95 mm | D: 170 mm | B: 32 mm | Cr: 220 kN | C0r: 265 kN | Mass: 3.02 kg
NU220d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Mass: 3.33 kg
NJ220d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Mass: 3.33 kg
NUP220d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Mass: 3.33 kg
N220d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Mass: 3.33 kg
NF220d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Mass: 3.33 kg
NU220Ed: 100 mm | D: 180 mm | B: 34 mm | Cr: 249 kN | C0r: 305 kN | Mass: 3.66 kg
NJ220Ed: 100 mm | D: 180 mm | B: 34 mm | Cr: 249 kN | C0r: 305 kN | Mass: 3.66 kg
NUP220Ed: 100 mm | D: 180 mm | B: 34 mm | Cr: 249 kN | C0r: 305 kN | Mass: 3.66 kg
NU221d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Mass: 3.95 kg
NJ221d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Mass: 3.95 kg
NUP221d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Mass: 3.95 kg
N221d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Mass: 3.95 kg
NF221d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Mass: 3.95 kg
NU222d: 110 mm | D: 200 mm | B: 38 mm | Cr: 240 kN | C0r: 290 kN | Mass: 4.63 kg
NJ222d: 110 mm | D: 200 mm | B: 38 mm | Cr: 240 kN | C0r: 290 kN | Mass: 4.63 kg
NUP222d: 110 mm | D: 200 mm | B: 38 mm | Cr: 240 kN | C0r: 290 kN | Mass: 4.63 kg
N222d: 110 mm | D: 200 mm | B: 38 mm | Cr: 240 kN | C0r: 290 kN | Mass: 4.63 kg
NF222d: 110 mm | D: 200 mm | B: 38 mm | Cr: 240 kN | C0r: 290 kN | Mass: 4.63 kg
NU222Ed: 110 mm | D: 200 mm | B: 38 mm | Cr: 293 kN | C0r: 365 kN | Mass: 4.27 kg
NJ222Ed: 110 mm | D: 200 mm | B: 38 mm | Cr: 293 kN | C0r: 365 kN | Mass: 4.27 kg
NUP222Ed: 110 mm | D: 200 mm | B: 38 mm | Cr: 293 kN | C0r: 365 kN | Mass: 4.27 kg
NU224d: 120 mm | D: 215 mm | B: 40 mm | Cr: 260 kN | C0r: 320 kN | Mass: 5.57 kg
NJ224d: 120 mm | D: 215 mm | B: 40 mm | Cr: 260 kN | C0r: 320 kN | Mass: 5.57 kg
NUP224d: 120 mm | D: 215 mm | B: 40 mm | Cr: 260 kN | C0r: 320 kN | Mass: 5.57 kg
N224d: 120 mm | D: 215 mm | B: 40 mm | Cr: 260 kN | C0r: 320 kN | Mass: 5.57 kg
NF224d: 120 mm | D: 215 mm | B: 40 mm | Cr: 260 kN | C0r: 320 kN | Mass: 5.57 kg
NU224Ed: 120 mm | D: 215 mm | B: 40 mm | Cr: 335 kN | C0r: 420 kN | Mass: 5.97 kg
NJ224Ed: 120 mm | D: 215 mm | B: 40 mm | Cr: 335 kN | C0r: 420 kN | Mass: 5.97 kg
NUP224Ed: 120 mm | D: 215 mm | B: 40 mm | Cr: 335 kN | C0r: 420 kN | Mass: 5.97 kg
NU226d: 130 mm | D: 230 mm | B: 40 mm | Cr: 270 kN | C0r: 340 kN | Mass: 6.3 kg
NJ226d: 130 mm | D: 230 mm | B: 40 mm | Cr: 270 kN | C0r: 340 kN | Mass: 6.3 kg
NUP226d: 130 mm | D: 230 mm | B: 40 mm | Cr: 270 kN | C0r: 340 kN | Mass: 6.3 kg
N226d: 130 mm | D: 230 mm | B: 40 mm | Cr: 270 kN | C0r: 340 kN | Mass: 6.3 kg
NF226d: 130 mm | D: 230 mm | B: 40 mm | Cr: 270 kN | C0r: 340 kN | Mass: 6.3 kg
NU226Ed: 130 mm | D: 230 mm | B: 40 mm | Cr: 365 kN | C0r: 455 kN | Mass: 6.9 kg
NJ226Ed: 130 mm | D: 230 mm | B: 40 mm | Cr: 365 kN | C0r: 455 kN | Mass: 6.9 kg
NUP226Ed: 130 mm | D: 230 mm | B: 40 mm | Cr: 365 kN | C0r: 455 kN | Mass: 6.9 kg
NU228d: 140 mm | D: 250 mm | B: 42 mm | Cr: 310 kN | C0r: 400 kN | Mass: 7.88 kg
NJ228d: 140 mm | D: 250 mm | B: 42 mm | Cr: 310 kN | C0r: 400 kN | Mass: 7.88 kg
NUP228d: 140 mm | D: 250 mm | B: 42 mm | Cr: 310 kN | C0r: 400 kN | Mass: 7.88 kg
N228d: 140 mm | D: 250 mm | B: 42 mm | Cr: 310 kN | C0r: 400 kN | Mass: 7.88 kg
NF228d: 140 mm | D: 250 mm | B: 42 mm | Cr: 310 kN | C0r: 400 kN | Mass: 7.88 kg
NU228Ed: 140 mm | D: 250 mm | B: 42 mm | Cr: 395 kN | C0r: 515 kN | Mass: 8.73 kg
NJ228Ed: 140 mm | D: 250 mm | B: 42 mm | Cr: 395 kN | C0r: 515 kN | Mass: 8.73 kg
NUP228Ed: 140 mm | D: 250 mm | B: 42 mm | Cr: 395 kN | C0r: 515 kN | Mass: 8.73 kg
NU230d: 150 mm | D: 270 mm | B: 45 mm | Cr: 345 kN | C0r: 435 kN | Mass: 9.92 kg
NJ230d: 150 mm | D: 270 mm | B: 45 mm | Cr: 345 kN | C0r: 435 kN | Mass: 9.92 kg
NUP230d: 150 mm | D: 270 mm | B: 45 mm | Cr: 345 kN | C0r: 435 kN | Mass: 9.92 kg
N230d: 150 mm | D: 270 mm | B: 45 mm | Cr: 345 kN | C0r: 435 kN | Mass: 9.92 kg
NF230d: 150 mm | D: 270 mm | B: 45 mm | Cr: 345 kN | C0r: 435 kN | Mass: 9.92 kg
NU230Ed: 150 mm | D: 270 mm | B: 45 mm | Cr: 450 kN | C0r: 595 kN | Mass: 11 kg
NJ230Ed: 150 mm | D: 270 mm | B: 45 mm | Cr: 450 kN | C0r: 595 kN | Mass: 11 kg
NUP230Ed: 150 mm | D: 270 mm | B: 45 mm | Cr: 450 kN | C0r: 595 kN | Mass: 11 kg
NU232d: 160 mm | D: 290 mm | B: 48 mm | Cr: 430 kN | C0r: 570 kN | Mass: 13.7 kg
NJ232d: 160 mm | D: 290 mm | B: 48 mm | Cr: 430 kN | C0r: 570 kN | Mass: 13.7 kg
NUP232d: 160 mm | D: 290 mm | B: 48 mm | Cr: 430 kN | C0r: 570 kN | Mass: 13.7 kg
N232d: 160 mm | D: 290 mm | B: 48 mm | Cr: 430 kN | C0r: 570 kN | Mass: 13.7 kg
NF232d: 160 mm | D: 290 mm | B: 48 mm | Cr: 430 kN | C0r: 570 kN | Mass: 13.7 kg
NU232Ed: 160 mm | D: 290 mm | B: 48 mm | Cr: 500 kN | C0r: 665 kN | Mass: 15.6 kg
NJ232Ed: 160 mm | D: 290 mm | B: 48 mm | Cr: 500 kN | C0r: 665 kN | Mass: 15.6 kg
NUP232Ed: 160 mm | D: 290 mm | B: 48 mm | Cr: 500 kN | C0r: 665 kN | Mass: 15.6 kg
NU234d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 635 kN | Mass: 17 kg
NJ234d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 635 kN | Mass: 17 kg
NUP234d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 635 kN | Mass: 17 kg
N234d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 635 kN | Mass: 17 kg
NF234d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 635 kN | Mass: 17 kg
NU234Ed: 170 mm | D: 310 mm | B: 52 mm | Cr: 605 kN | C0r: 800 kN | Mass: 19.6 kg
NJ234Ed: 170 mm | D: 310 mm | B: 52 mm | Cr: 605 kN | C0r: 800 kN | Mass: 19.6 kg
NUP234Ed: 170 mm | D: 310 mm | B: 52 mm | Cr: 605 kN | C0r: 800 kN | Mass: 19.6 kg
NU236d: 180 mm | D: 320 mm | B: 52 mm | Cr: 495 kN | C0r: 675 kN | Mass: 17.7 kg
NJ236d: 180 mm | D: 320 mm | B: 52 mm | Cr: 495 kN | C0r: 675 kN | Mass: 17.7 kg
NUP236d: 180 mm | D: 320 mm | B: 52 mm | Cr: 495 kN | C0r: 675 kN | Mass: 17.7 kg
N236d: 180 mm | D: 320 mm | B: 52 mm | Cr: 495 kN | C0r: 675 kN | Mass: 17.7 kg
NF236d: 180 mm | D: 320 mm | B: 52 mm | Cr: 495 kN | C0r: 675 kN | Mass: 17.7 kg
NU236Ed: 180 mm | D: 320 mm | B: 52 mm | Cr: 625 kN | C0r: 850 kN | Mass: 20.4 kg
NJ236Ed: 180 mm | D: 320 mm | B: 52 mm | Cr: 625 kN | C0r: 850 kN | Mass: 20.4 kg
NUP236Ed: 180 mm | D: 320 mm | B: 52 mm | Cr: 625 kN | C0r: 850 kN | Mass: 20.4 kg
NU238d: 190 mm | D: 340 mm | B: 55 mm | Cr: 555 kN | C0r: 770 kN | Mass: 21.3 kg
NJ238d: 190 mm | D: 340 mm | B: 55 mm | Cr: 555 kN | C0r: 770 kN | Mass: 21.3 kg
NUP238d: 190 mm | D: 340 mm | B: 55 mm | Cr: 555 kN | C0r: 770 kN | Mass: 21.3 kg
N238d: 190 mm | D: 340 mm | B: 55 mm | Cr: 555 kN | C0r: 770 kN | Mass: 21.3 kg
NF238d: 190 mm | D: 340 mm | B: 55 mm | Cr: 555 kN | C0r: 770 kN | Mass: 21.3 kg
NU238Ed: 190 mm | D: 340 mm | B: 55 mm | Cr: 695 kN | C0r: 955 kN | Mass: 24.2 kg
NJ238Ed: 190 mm | D: 340 mm | B: 55 mm | Cr: 695 kN | C0r: 955 kN | Mass: 24.2 kg
NUP238Ed: 190 mm | D: 340 mm | B: 55 mm | Cr: 695 kN | C0r: 955 kN | Mass: 24.2 kg
NU240d: 200 mm | D: 360 mm | B: 58 mm | Cr: 620 kN | C0r: 865 kN | Mass: 25.3 kg
NJ240d: 200 mm | D: 360 mm | B: 58 mm | Cr: 620 kN | C0r: 865 kN | Mass: 25.3 kg
NUP240d: 200 mm | D: 360 mm | B: 58 mm | Cr: 620 kN | C0r: 865 kN | Mass: 25.3 kg
N240d: 200 mm | D: 360 mm | B: 58 mm | Cr: 620 kN | C0r: 865 kN | Mass: 25.3 kg
NF240d: 200 mm | D: 360 mm | B: 58 mm | Cr: 620 kN | C0r: 865 kN | Mass: 25.3 kg
NU240Ed: 200 mm | D: 360 mm | B: 58 mm | Cr: 765 kN | C0r: 1060 kN | Mass: 28.1 kg
NJ240Ed: 200 mm | D: 360 mm | B: 58 mm | Cr: 765 kN | C0r: 1060 kN | Mass: 28.1 kg
NUP240Ed: 200 mm | D: 360 mm | B: 58 mm | Cr: 765 kN | C0r: 1060 kN | Mass: 28.1 kg
NU244d: 220 mm | D: 400 mm | B: 65 mm | Cr: 760 kN | C0r: 1080 kN | Mass: 37.7 kg
NJ244d: 220 mm | D: 400 mm | B: 65 mm | Cr: 760 kN | C0r: 1080 kN | Mass: 37.7 kg
NUP244d: 220 mm | D: 400 mm | B: 65 mm | Cr: 760 kN | C0r: 1080 kN | Mass: 37.7 kg
N244d: 220 mm | D: 400 mm | B: 65 mm | Cr: 760 kN | C0r: 1080 kN | Mass: 37.7 kg
NF244d: 220 mm | D: 400 mm | B: 65 mm | Cr: 760 kN | C0r: 1080 kN | Mass: 37.7 kg
NU248d: 240 mm | D: 440 mm | B: 72 mm | Cr: 935 kN | C0r: 1340 kN | Mass: 50.2 kg
NJ248d: 240 mm | D: 440 mm | B: 72 mm | Cr: 935 kN | C0r: 1340 kN | Mass: 50.2 kg
NUP248d: 240 mm | D: 440 mm | B: 72 mm | Cr: 935 kN | C0r: 1340 kN | Mass: 50.2 kg
N248d: 240 mm | D: 440 mm | B: 72 mm | Cr: 935 kN | C0r: 1340 kN | Mass: 50.2 kg
NF248d: 240 mm | D: 440 mm | B: 72 mm | Cr: 935 kN | C0r: 1340 kN | Mass: 50.2 kg
NU252d: 260 mm | D: 480 mm | B: 80 mm | Cr: 1150 kN | C0r: 1660 kN | Mass: 66.9 kg
NJ252d: 260 mm | D: 480 mm | B: 80 mm | Cr: 1150 kN | C0r: 1660 kN | Mass: 66.9 kg
NUP252d: 260 mm | D: 480 mm | B: 80 mm | Cr: 1150 kN | C0r: 1660 kN | Mass: 66.9 kg
N252d: 260 mm | D: 480 mm | B: 80 mm | Cr: 1150 kN | C0r: 1660 kN | Mass: 66.9 kg
NF252d: 260 mm | D: 480 mm | B: 80 mm | Cr: 1150 kN | C0r: 1660 kN | Mass: 66.9 kg
NU256d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1190 kN | C0r: 1760 kN | Mass: 70.8 kg
NJ256d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1190 kN | C0r: 1760 kN | Mass: 70.8 kg
NUP256d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1190 kN | C0r: 1760 kN | Mass: 70.8 kg
N256d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1190 kN | C0r: 1760 kN | Mass: 70.8 kg
NF256d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1190 kN | C0r: 1760 kN | Mass: 70.8 kg
NU260d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1400 kN | C0r: 2070 kN | Mass: 88.2 kg
NJ260d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1400 kN | C0r: 2070 kN | Mass: 88.2 kg
NUP260d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1400 kN | C0r: 2070 kN | Mass: 88.2 kg
N260d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1400 kN | C0r: 2070 kN | Mass: 88.2 kg
NF260d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1400 kN | C0r: 2070 kN | Mass: 88.2 kg
NU264d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1600 kN | C0r: 2390 kN | Mass: 111 kg
NJ264d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1600 kN | C0r: 2390 kN | Mass: 111 kg
NUP264d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1600 kN | C0r: 2390 kN | Mass: 111 kg
N264d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1600 kN | C0r: 2390 kN | Mass: 111 kg
NF264d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1600 kN | C0r: 2390 kN | Mass: 111 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
