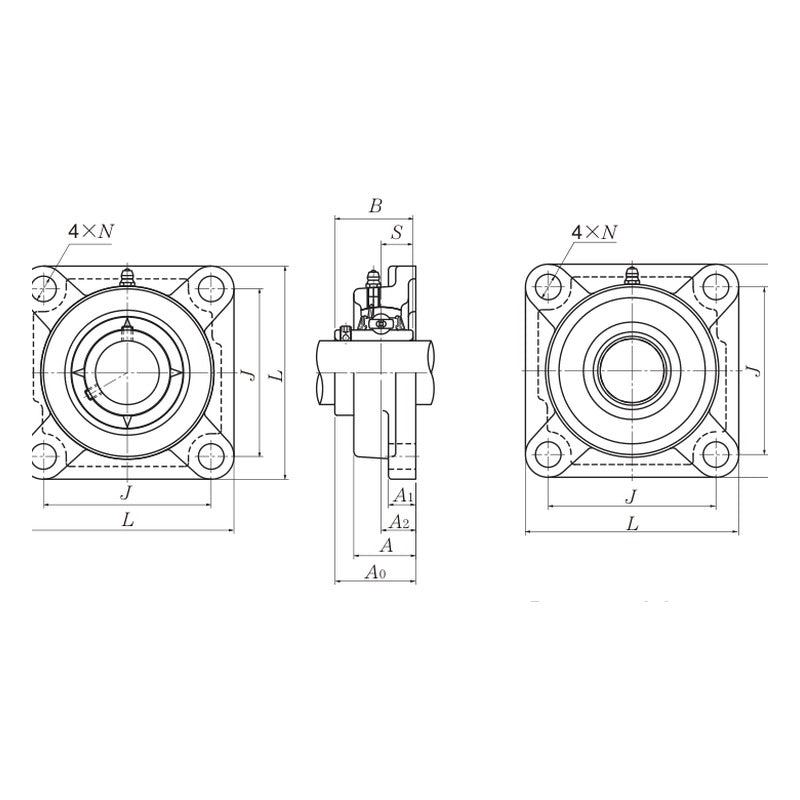

NTN UCFX Square Flanged Units, Cast Housing

NTN UCFX Square Flanged Units, Cast Housing

NTN UCFX series square flanged units cast housing, set screw locking type, for shafts 25-100 mm and inch sizes.

Key features

  • Square flanged units cast housing with UC type insert bearing, set screw locking
  • Insert bearing has spherical outside diameter for initial misalignment compensation
  • Metric bores and inch bores (-XYY = whole inches and sixteenths)
  • D1 suffix: relubricatable design
  • Dust cover options: S/SM pressed steel and C/CM cast iron covers (open / closed end) where listed

Specifications

Series UCFX
Unit type Square flanged units cast housing
Shaft range 25-100 mm
Locking Set screw
Brand NTN
Source NTN NTN Bearing Units Dimension Table, p. 132-137
UCFX05D1 Shaft: 25 mm | Insert bearing: UCX05D1 | Housing: FX05D1 | Cover: None (open unit)
C-UCFX05D1 Shaft: 25 mm | Insert bearing: UCX05D1 | Housing: FX05D1 | Cover: Cast iron, open end
CM-UCFX05D1 Shaft: 25 mm | Insert bearing: UCX05D1 | Housing: FX05D1 | Cover: Cast iron, closed end
UCFX05-013D1 Shaft: 13/16 in | Insert bearing: UCX05-013D1 | Housing: FX05D1 | Cover: None (open unit)
C-UCFX05-013D1 Shaft: 13/16 in | Insert bearing: UCX05-013D1 | Housing: FX05D1 | Cover: Cast iron, open end
CM-UCFX05-013D1 Shaft: 13/16 in | Insert bearing: UCX05-013D1 | Housing: FX05D1 | Cover: Cast iron, closed end
UCFX05-014D1 Shaft: 7/8 in | Insert bearing: UCX05-014D1 | Housing: FX05D1 | Cover: None (open unit)
C-UCFX05-014D1 Shaft: 7/8 in | Insert bearing: UCX05-014D1 | Housing: FX05D1 | Cover: Cast iron, open end
CM-UCFX05-014D1 Shaft: 7/8 in | Insert bearing: UCX05-014D1 | Housing: FX05D1 | Cover: Cast iron, closed end
UCFX05-015D1 Shaft: 15/16 in | Insert bearing: UCX05-015D1 | Housing: FX05D1 | Cover: None (open unit)
C-UCFX05-015D1 Shaft: 15/16 in | Insert bearing: UCX05-015D1 | Housing: FX05D1 | Cover: Cast iron, open end
CM-UCFX05-015D1 Shaft: 15/16 in | Insert bearing: UCX05-015D1 | Housing: FX05D1 | Cover: Cast iron, closed end
UCFX05-100D1 Shaft: 1 in | Insert bearing: UCX05-100D1 | Housing: FX05D1 | Cover: None (open unit)
C-UCFX05-100D1 Shaft: 1 in | Insert bearing: UCX05-100D1 | Housing: FX05D1 | Cover: Cast iron, open end
CM-UCFX05-100D1 Shaft: 1 in | Insert bearing: UCX05-100D1 | Housing: FX05D1 | Cover: Cast iron, closed end
UCFX06D1 Shaft: 30 mm | Insert bearing: UCX06D1 | Housing: FX06D1 | Cover: None (open unit)
C-UCFX06D1 Shaft: 30 mm | Insert bearing: UCX06D1 | Housing: FX06D1 | Cover: Cast iron, open end
CM-UCFX06D1 Shaft: 30 mm | Insert bearing: UCX06D1 | Housing: FX06D1 | Cover: Cast iron, closed end
UCFX06-101D1 Shaft: 1-1/16 in | Insert bearing: UCX06-101D1 | Housing: FX06D1 | Cover: None (open unit)
C-UCFX06-101D1 Shaft: 1-1/16 in | Insert bearing: UCX06-101D1 | Housing: FX06D1 | Cover: Cast iron, open end
CM-UCFX06-101D1 Shaft: 1-1/16 in | Insert bearing: UCX06-101D1 | Housing: FX06D1 | Cover: Cast iron, closed end
UCFX06-102D1 Shaft: 1-1/8 in | Insert bearing: UCX06-102D1 | Housing: FX06D1 | Cover: None (open unit)
C-UCFX06-102D1 Shaft: 1-1/8 in | Insert bearing: UCX06-102D1 | Housing: FX06D1 | Cover: Cast iron, open end
CM-UCFX06-102D1 Shaft: 1-1/8 in | Insert bearing: UCX06-102D1 | Housing: FX06D1 | Cover: Cast iron, closed end
UCFX06-103D1 Shaft: 1-3/16 in | Insert bearing: UCX06-103D1 | Housing: FX06D1 | Cover: None (open unit)
C-UCFX06-103D1 Shaft: 1-3/16 in | Insert bearing: UCX06-103D1 | Housing: FX06D1 | Cover: Cast iron, open end
CM-UCFX06-103D1 Shaft: 1-3/16 in | Insert bearing: UCX06-103D1 | Housing: FX06D1 | Cover: Cast iron, closed end
UCFX06-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: FX06D1 | Cover: None (open unit)
C-UCFX06-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: FX06D1 | Cover: Cast iron, open end
CM-UCFX06-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: FX06D1 | Cover: Cast iron, closed end
UCFX07D1 Shaft: 35 mm | Insert bearing: UCX07D1 | Housing: FX07D1 | Cover: None (open unit)
S-UCFX07D1 Shaft: 35 mm | Insert bearing: UCX07D1 | Housing: FX07D1 | Cover: Pressed steel, open end
SM-UCFX07D1 Shaft: 35 mm | Insert bearing: UCX07D1 | Housing: FX07D1 | Cover: Pressed steel, closed end
C-UCFX07D1 Shaft: 35 mm | Insert bearing: UCX07D1 | Housing: FX07D1 | Cover: Cast iron, open end
CM-UCFX07D1 Shaft: 35 mm | Insert bearing: UCX07D1 | Housing: FX07D1 | Cover: Cast iron, closed end
UCFX07-105D1 Shaft: 1-5/16 in | Insert bearing: UCX07-105D1 | Housing: FX07D1 | Cover: None (open unit)
S-UCFX07-105D1 Shaft: 1-5/16 in | Insert bearing: UCX07-105D1 | Housing: FX07D1 | Cover: Pressed steel, open end
SM-UCFX07-105D1 Shaft: 1-5/16 in | Insert bearing: UCX07-105D1 | Housing: FX07D1 | Cover: Pressed steel, closed end
C-UCFX07-105D1 Shaft: 1-5/16 in | Insert bearing: UCX07-105D1 | Housing: FX07D1 | Cover: Cast iron, open end
CM-UCFX07-105D1 Shaft: 1-5/16 in | Insert bearing: UCX07-105D1 | Housing: FX07D1 | Cover: Cast iron, closed end
UCFX07-106D1 Shaft: 1-3/8 in | Insert bearing: UCX07-106D1 | Housing: FX07D1 | Cover: None (open unit)
S-UCFX07-106D1 Shaft: 1-3/8 in | Insert bearing: UCX07-106D1 | Housing: FX07D1 | Cover: Pressed steel, open end
SM-UCFX07-106D1 Shaft: 1-3/8 in | Insert bearing: UCX07-106D1 | Housing: FX07D1 | Cover: Pressed steel, closed end
C-UCFX07-106D1 Shaft: 1-3/8 in | Insert bearing: UCX07-106D1 | Housing: FX07D1 | Cover: Cast iron, open end
CM-UCFX07-106D1 Shaft: 1-3/8 in | Insert bearing: UCX07-106D1 | Housing: FX07D1 | Cover: Cast iron, closed end
UCFX07-107D1 Shaft: 1-7/16 in | Insert bearing: UCX07-107D1 | Housing: FX07D1 | Cover: None (open unit)
S-UCFX07-107D1 Shaft: 1-7/16 in | Insert bearing: UCX07-107D1 | Housing: FX07D1 | Cover: Pressed steel, open end
SM-UCFX07-107D1 Shaft: 1-7/16 in | Insert bearing: UCX07-107D1 | Housing: FX07D1 | Cover: Pressed steel, closed end
C-UCFX07-107D1 Shaft: 1-7/16 in | Insert bearing: UCX07-107D1 | Housing: FX07D1 | Cover: Cast iron, open end
CM-UCFX07-107D1 Shaft: 1-7/16 in | Insert bearing: UCX07-107D1 | Housing: FX07D1 | Cover: Cast iron, closed end
UCFX08D1 Shaft: 40 mm | Insert bearing: UCX08D1 | Housing: FX08D1 | Cover: None (open unit)
S-UCFX08D1 Shaft: 40 mm | Insert bearing: UCX08D1 | Housing: FX08D1 | Cover: Pressed steel, open end
SM-UCFX08D1 Shaft: 40 mm | Insert bearing: UCX08D1 | Housing: FX08D1 | Cover: Pressed steel, closed end
C-UCFX08D1 Shaft: 40 mm | Insert bearing: UCX08D1 | Housing: FX08D1 | Cover: Cast iron, open end
CM-UCFX08D1 Shaft: 40 mm | Insert bearing: UCX08D1 | Housing: FX08D1 | Cover: Cast iron, closed end
UCFX08-108D1 Shaft: 1-1/2 in | Insert bearing: UCX08-108D1 | Housing: FX08D1 | Cover: None (open unit)
S-UCFX08-108D1 Shaft: 1-1/2 in | Insert bearing: UCX08-108D1 | Housing: FX08D1 | Cover: Pressed steel, open end
SM-UCFX08-108D1 Shaft: 1-1/2 in | Insert bearing: UCX08-108D1 | Housing: FX08D1 | Cover: Pressed steel, closed end
C-UCFX08-108D1 Shaft: 1-1/2 in | Insert bearing: UCX08-108D1 | Housing: FX08D1 | Cover: Cast iron, open end
CM-UCFX08-108D1 Shaft: 1-1/2 in | Insert bearing: UCX08-108D1 | Housing: FX08D1 | Cover: Cast iron, closed end
UCFX08-109D1 Shaft: 1-9/16 in | Insert bearing: UCX08-109D1 | Housing: FX08D1 | Cover: None (open unit)
S-UCFX08-109D1 Shaft: 1-9/16 in | Insert bearing: UCX08-109D1 | Housing: FX08D1 | Cover: Pressed steel, open end
SM-UCFX08-109D1 Shaft: 1-9/16 in | Insert bearing: UCX08-109D1 | Housing: FX08D1 | Cover: Pressed steel, closed end
C-UCFX08-109D1 Shaft: 1-9/16 in | Insert bearing: UCX08-109D1 | Housing: FX08D1 | Cover: Cast iron, open end
CM-UCFX08-109D1 Shaft: 1-9/16 in | Insert bearing: UCX08-109D1 | Housing: FX08D1 | Cover: Cast iron, closed end
UCFX09D1 Shaft: 45 mm | Insert bearing: UCX09D1 | Housing: FX09D1 | Cover: None (open unit)
S-UCFX09D1 Shaft: 45 mm | Insert bearing: UCX09D1 | Housing: FX09D1 | Cover: Pressed steel, open end
SM-UCFX09D1 Shaft: 45 mm | Insert bearing: UCX09D1 | Housing: FX09D1 | Cover: Pressed steel, closed end
C-UCFX09D1 Shaft: 45 mm | Insert bearing: UCX09D1 | Housing: FX09D1 | Cover: Cast iron, open end
CM-UCFX09D1 Shaft: 45 mm | Insert bearing: UCX09D1 | Housing: FX09D1 | Cover: Cast iron, closed end
UCFX09-110D1 Shaft: 1-5/8 in | Insert bearing: UCX09-110D1 | Housing: FX09D1 | Cover: None (open unit)
S-UCFX09-110D1 Shaft: 1-5/8 in | Insert bearing: UCX09-110D1 | Housing: FX09D1 | Cover: Pressed steel, open end
SM-UCFX09-110D1 Shaft: 1-5/8 in | Insert bearing: UCX09-110D1 | Housing: FX09D1 | Cover: Pressed steel, closed end
C-UCFX09-110D1 Shaft: 1-5/8 in | Insert bearing: UCX09-110D1 | Housing: FX09D1 | Cover: Cast iron, open end
CM-UCFX09-110D1 Shaft: 1-5/8 in | Insert bearing: UCX09-110D1 | Housing: FX09D1 | Cover: Cast iron, closed end
UCFX09-111D1 Shaft: 1-11/16 in | Insert bearing: UCX09-111D1 | Housing: FX09D1 | Cover: None (open unit)
S-UCFX09-111D1 Shaft: 1-11/16 in | Insert bearing: UCX09-111D1 | Housing: FX09D1 | Cover: Pressed steel, open end
SM-UCFX09-111D1 Shaft: 1-11/16 in | Insert bearing: UCX09-111D1 | Housing: FX09D1 | Cover: Pressed steel, closed end
C-UCFX09-111D1 Shaft: 1-11/16 in | Insert bearing: UCX09-111D1 | Housing: FX09D1 | Cover: Cast iron, open end
CM-UCFX09-111D1 Shaft: 1-11/16 in | Insert bearing: UCX09-111D1 | Housing: FX09D1 | Cover: Cast iron, closed end
UCFX09-112D1 Shaft: 1-3/4 in | Insert bearing: UCX09-112D1 | Housing: FX09D1 | Cover: None (open unit)
S-UCFX09-112D1 Shaft: 1-3/4 in | Insert bearing: UCX09-112D1 | Housing: FX09D1 | Cover: Pressed steel, open end
SM-UCFX09-112D1 Shaft: 1-3/4 in | Insert bearing: UCX09-112D1 | Housing: FX09D1 | Cover: Pressed steel, closed end
C-UCFX09-112D1 Shaft: 1-3/4 in | Insert bearing: UCX09-112D1 | Housing: FX09D1 | Cover: Cast iron, open end
CM-UCFX09-112D1 Shaft: 1-3/4 in | Insert bearing: UCX09-112D1 | Housing: FX09D1 | Cover: Cast iron, closed end
UCFX09-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FX09D1 | Cover: None (open unit)
S-UCFX09-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FX09D1 | Cover: Pressed steel, open end
SM-UCFX09-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FX09D1 | Cover: Pressed steel, closed end
C-UCFX09-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FX09D1 | Cover: Cast iron, open end
CM-UCFX09-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FX09D1 | Cover: Cast iron, closed end
UCFX10D1 Shaft: 50 mm | Insert bearing: UCX10D1 | Housing: FX10D1 | Cover: None (open unit)
S-UCFX10D1 Shaft: 50 mm | Insert bearing: UCX10D1 | Housing: FX10D1 | Cover: Pressed steel, open end
SM-UCFX10D1 Shaft: 50 mm | Insert bearing: UCX10D1 | Housing: FX10D1 | Cover: Pressed steel, closed end
C-UCFX10D1 Shaft: 50 mm | Insert bearing: UCX10D1 | Housing: FX10D1 | Cover: Cast iron, open end
CM-UCFX10D1 Shaft: 50 mm | Insert bearing: UCX10D1 | Housing: FX10D1 | Cover: Cast iron, closed end
UCFX10-114D1 Shaft: 1-7/8 in | Insert bearing: UCX10-114D1 | Housing: FX10D1 | Cover: None (open unit)
S-UCFX10-114D1 Shaft: 1-7/8 in | Insert bearing: UCX10-114D1 | Housing: FX10D1 | Cover: Pressed steel, open end
SM-UCFX10-114D1 Shaft: 1-7/8 in | Insert bearing: UCX10-114D1 | Housing: FX10D1 | Cover: Pressed steel, closed end
C-UCFX10-114D1 Shaft: 1-7/8 in | Insert bearing: UCX10-114D1 | Housing: FX10D1 | Cover: Cast iron, open end
CM-UCFX10-114D1 Shaft: 1-7/8 in | Insert bearing: UCX10-114D1 | Housing: FX10D1 | Cover: Cast iron, closed end
UCFX10-115D1 Shaft: 1-15/16 in | Insert bearing: UCX10-115D1 | Housing: FX10D1 | Cover: None (open unit)
S-UCFX10-115D1 Shaft: 1-15/16 in | Insert bearing: UCX10-115D1 | Housing: FX10D1 | Cover: Pressed steel, open end
SM-UCFX10-115D1 Shaft: 1-15/16 in | Insert bearing: UCX10-115D1 | Housing: FX10D1 | Cover: Pressed steel, closed end
C-UCFX10-115D1 Shaft: 1-15/16 in | Insert bearing: UCX10-115D1 | Housing: FX10D1 | Cover: Cast iron, open end
CM-UCFX10-115D1 Shaft: 1-15/16 in | Insert bearing: UCX10-115D1 | Housing: FX10D1 | Cover: Cast iron, closed end
UCFX10-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FX10D1 | Cover: None (open unit)
S-UCFX10-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FX10D1 | Cover: Pressed steel, open end
SM-UCFX10-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FX10D1 | Cover: Pressed steel, closed end
C-UCFX10-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FX10D1 | Cover: Cast iron, open end
CM-UCFX10-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FX10D1 | Cover: Cast iron, closed end
UCFX11D1 Shaft: 55 mm | Insert bearing: UCX11D1 | Housing: FX11D1 | Cover: None (open unit)
S-UCFX11D1 Shaft: 55 mm | Insert bearing: UCX11D1 | Housing: FX11D1 | Cover: Pressed steel, open end
SM-UCFX11D1 Shaft: 55 mm | Insert bearing: UCX11D1 | Housing: FX11D1 | Cover: Pressed steel, closed end
C-UCFX11D1 Shaft: 55 mm | Insert bearing: UCX11D1 | Housing: FX11D1 | Cover: Cast iron, open end
CM-UCFX11D1 Shaft: 55 mm | Insert bearing: UCX11D1 | Housing: FX11D1 | Cover: Cast iron, closed end
UCFX11-201D1 Shaft: 2-1/16 in | Insert bearing: UCX11-201D1 | Housing: FX11D1 | Cover: None (open unit)
S-UCFX11-201D1 Shaft: 2-1/16 in | Insert bearing: UCX11-201D1 | Housing: FX11D1 | Cover: Pressed steel, open end
SM-UCFX11-201D1 Shaft: 2-1/16 in | Insert bearing: UCX11-201D1 | Housing: FX11D1 | Cover: Pressed steel, closed end
C-UCFX11-201D1 Shaft: 2-1/16 in | Insert bearing: UCX11-201D1 | Housing: FX11D1 | Cover: Cast iron, open end
CM-UCFX11-201D1 Shaft: 2-1/16 in | Insert bearing: UCX11-201D1 | Housing: FX11D1 | Cover: Cast iron, closed end
UCFX11-202D1 Shaft: 2-1/8 in | Insert bearing: UCX11-202D1 | Housing: FX11D1 | Cover: None (open unit)
S-UCFX11-202D1 Shaft: 2-1/8 in | Insert bearing: UCX11-202D1 | Housing: FX11D1 | Cover: Pressed steel, open end
SM-UCFX11-202D1 Shaft: 2-1/8 in | Insert bearing: UCX11-202D1 | Housing: FX11D1 | Cover: Pressed steel, closed end
C-UCFX11-202D1 Shaft: 2-1/8 in | Insert bearing: UCX11-202D1 | Housing: FX11D1 | Cover: Cast iron, open end
CM-UCFX11-202D1 Shaft: 2-1/8 in | Insert bearing: UCX11-202D1 | Housing: FX11D1 | Cover: Cast iron, closed end
UCFX11-203D1 Shaft: 2-3/16 in | Insert bearing: UCX11-203D1 | Housing: FX11D1 | Cover: None (open unit)
S-UCFX11-203D1 Shaft: 2-3/16 in | Insert bearing: UCX11-203D1 | Housing: FX11D1 | Cover: Pressed steel, open end
SM-UCFX11-203D1 Shaft: 2-3/16 in | Insert bearing: UCX11-203D1 | Housing: FX11D1 | Cover: Pressed steel, closed end
C-UCFX11-203D1 Shaft: 2-3/16 in | Insert bearing: UCX11-203D1 | Housing: FX11D1 | Cover: Cast iron, open end
CM-UCFX11-203D1 Shaft: 2-3/16 in | Insert bearing: UCX11-203D1 | Housing: FX11D1 | Cover: Cast iron, closed end
UCFX11-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: FX11D1 | Cover: None (open unit)
S-UCFX11-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: FX11D1 | Cover: Pressed steel, open end
SM-UCFX11-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: FX11D1 | Cover: Pressed steel, closed end
C-UCFX11-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: FX11D1 | Cover: Cast iron, open end
CM-UCFX11-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: FX11D1 | Cover: Cast iron, closed end
UCFX11-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: FX11D1 | Cover: None (open unit)
S-UCFX11-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: FX11D1 | Cover: Pressed steel, open end
SM-UCFX11-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: FX11D1 | Cover: Pressed steel, closed end
C-UCFX11-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: FX11D1 | Cover: Cast iron, open end
CM-UCFX11-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: FX11D1 | Cover: Cast iron, closed end
UCFX12D1 Shaft: 60 mm | Insert bearing: UCX12D1 | Housing: FX12D1 | Cover: None (open unit)
S-UCFX12D1 Shaft: 60 mm | Insert bearing: UCX12D1 | Housing: FX12D1 | Cover: Pressed steel, open end
SM-UCFX12D1 Shaft: 60 mm | Insert bearing: UCX12D1 | Housing: FX12D1 | Cover: Pressed steel, closed end
C-UCFX12D1 Shaft: 60 mm | Insert bearing: UCX12D1 | Housing: FX12D1 | Cover: Cast iron, open end
CM-UCFX12D1 Shaft: 60 mm | Insert bearing: UCX12D1 | Housing: FX12D1 | Cover: Cast iron, closed end
UCFX12-206D1 Shaft: 2-3/8 in | Insert bearing: UCX12-206D1 | Housing: FX12D1 | Cover: None (open unit)
S-UCFX12-206D1 Shaft: 2-3/8 in | Insert bearing: UCX12-206D1 | Housing: FX12D1 | Cover: Pressed steel, open end
SM-UCFX12-206D1 Shaft: 2-3/8 in | Insert bearing: UCX12-206D1 | Housing: FX12D1 | Cover: Pressed steel, closed end
C-UCFX12-206D1 Shaft: 2-3/8 in | Insert bearing: UCX12-206D1 | Housing: FX12D1 | Cover: Cast iron, open end
CM-UCFX12-206D1 Shaft: 2-3/8 in | Insert bearing: UCX12-206D1 | Housing: FX12D1 | Cover: Cast iron, closed end
UCFX12-207D1 Shaft: 2-7/16 in | Insert bearing: UCX12-207D1 | Housing: FX12D1 | Cover: None (open unit)
S-UCFX12-207D1 Shaft: 2-7/16 in | Insert bearing: UCX12-207D1 | Housing: FX12D1 | Cover: Pressed steel, open end
SM-UCFX12-207D1 Shaft: 2-7/16 in | Insert bearing: UCX12-207D1 | Housing: FX12D1 | Cover: Pressed steel, closed end
C-UCFX12-207D1 Shaft: 2-7/16 in | Insert bearing: UCX12-207D1 | Housing: FX12D1 | Cover: Cast iron, open end
CM-UCFX12-207D1 Shaft: 2-7/16 in | Insert bearing: UCX12-207D1 | Housing: FX12D1 | Cover: Cast iron, closed end
UCFX13D1 Shaft: 65 mm | Insert bearing: UCX13D1 | Housing: FX13D1 | Cover: None (open unit)
C-UCFX13D1 Shaft: 65 mm | Insert bearing: UCX13D1 | Housing: FX13D1 | Cover: Cast iron, open end
CM-UCFX13D1 Shaft: 65 mm | Insert bearing: UCX13D1 | Housing: FX13D1 | Cover: Cast iron, closed end
UCFX13-208D1 Shaft: 2-1/2 in | Insert bearing: UCX13-208D1 | Housing: FX13D1 | Cover: None (open unit)
C-UCFX13-208D1 Shaft: 2-1/2 in | Insert bearing: UCX13-208D1 | Housing: FX13D1 | Cover: Cast iron, open end
CM-UCFX13-208D1 Shaft: 2-1/2 in | Insert bearing: UCX13-208D1 | Housing: FX13D1 | Cover: Cast iron, closed end
UCFX13-209D1 Shaft: 2-9/16 in | Insert bearing: UCX13-209D1 | Housing: FX13D1 | Cover: None (open unit)
C-UCFX13-209D1 Shaft: 2-9/16 in | Insert bearing: UCX13-209D1 | Housing: FX13D1 | Cover: Cast iron, open end
CM-UCFX13-209D1 Shaft: 2-9/16 in | Insert bearing: UCX13-209D1 | Housing: FX13D1 | Cover: Cast iron, closed end
UCFX14D1 Shaft: 70 mm | Insert bearing: UCX14D1 | Housing: FX14D1 | Cover: None (open unit)
C-UCFX14D1 Shaft: 70 mm | Insert bearing: UCX14D1 | Housing: FX14D1 | Cover: Cast iron, open end
CM-UCFX14D1 Shaft: 70 mm | Insert bearing: UCX14D1 | Housing: FX14D1 | Cover: Cast iron, closed end
UCFX14-210D1 Shaft: 2-5/8 in | Insert bearing: UCX14-210D1 | Housing: FX14D1 | Cover: None (open unit)
C-UCFX14-210D1 Shaft: 2-5/8 in | Insert bearing: UCX14-210D1 | Housing: FX14D1 | Cover: Cast iron, open end
CM-UCFX14-210D1 Shaft: 2-5/8 in | Insert bearing: UCX14-210D1 | Housing: FX14D1 | Cover: Cast iron, closed end
UCFX14-211D1 Shaft: 2-11/16 in | Insert bearing: UCX14-211D1 | Housing: FX14D1 | Cover: None (open unit)
C-UCFX14-211D1 Shaft: 2-11/16 in | Insert bearing: UCX14-211D1 | Housing: FX14D1 | Cover: Cast iron, open end
CM-UCFX14-211D1 Shaft: 2-11/16 in | Insert bearing: UCX14-211D1 | Housing: FX14D1 | Cover: Cast iron, closed end
UCFX14-212D1 Shaft: 2-3/4 in | Insert bearing: UCX14-212D1 | Housing: FX14D1 | Cover: None (open unit)
C-UCFX14-212D1 Shaft: 2-3/4 in | Insert bearing: UCX14-212D1 | Housing: FX14D1 | Cover: Cast iron, open end
CM-UCFX14-212D1 Shaft: 2-3/4 in | Insert bearing: UCX14-212D1 | Housing: FX14D1 | Cover: Cast iron, closed end
UCFX15D1 Shaft: 75 mm | Insert bearing: UCX15D1 | Housing: FX15D1 | Cover: None (open unit)
C-UCFX15D1 Shaft: 75 mm | Insert bearing: UCX15D1 | Housing: FX15D1 | Cover: Cast iron, open end
CM-UCFX15D1 Shaft: 75 mm | Insert bearing: UCX15D1 | Housing: FX15D1 | Cover: Cast iron, closed end
UCFX15-213D1 Shaft: 2-13/16 in | Insert bearing: UCX15-213D1 | Housing: FX15D1 | Cover: None (open unit)
C-UCFX15-213D1 Shaft: 2-13/16 in | Insert bearing: UCX15-213D1 | Housing: FX15D1 | Cover: Cast iron, open end
CM-UCFX15-213D1 Shaft: 2-13/16 in | Insert bearing: UCX15-213D1 | Housing: FX15D1 | Cover: Cast iron, closed end
UCFX15-214D1 Shaft: 2-7/8 in | Insert bearing: UCX15-214D1 | Housing: FX15D1 | Cover: None (open unit)
C-UCFX15-214D1 Shaft: 2-7/8 in | Insert bearing: UCX15-214D1 | Housing: FX15D1 | Cover: Cast iron, open end
CM-UCFX15-214D1 Shaft: 2-7/8 in | Insert bearing: UCX15-214D1 | Housing: FX15D1 | Cover: Cast iron, closed end
UCFX15-215D1 Shaft: 2-15/16 in | Insert bearing: UCX15-215D1 | Housing: FX15D1 | Cover: None (open unit)
C-UCFX15-215D1 Shaft: 2-15/16 in | Insert bearing: UCX15-215D1 | Housing: FX15D1 | Cover: Cast iron, open end
CM-UCFX15-215D1 Shaft: 2-15/16 in | Insert bearing: UCX15-215D1 | Housing: FX15D1 | Cover: Cast iron, closed end
UCFX15-300D1 Shaft: 3 in | Insert bearing: UCX15-300D1 | Housing: FX15D1 | Cover: None (open unit)
C-UCFX15-300D1 Shaft: 3 in | Insert bearing: UCX15-300D1 | Housing: FX15D1 | Cover: Cast iron, open end
CM-UCFX15-300D1 Shaft: 3 in | Insert bearing: UCX15-300D1 | Housing: FX15D1 | Cover: Cast iron, closed end
UCFX16D1 Shaft: 80 mm | Insert bearing: UCX16D1 | Housing: FX16D1 | Cover: None (open unit)
C-UCFX16D1 Shaft: 80 mm | Insert bearing: UCX16D1 | Housing: FX16D1 | Cover: Cast iron, open end
CM-UCFX16D1 Shaft: 80 mm | Insert bearing: UCX16D1 | Housing: FX16D1 | Cover: Cast iron, closed end
UCFX16-301D1 Shaft: 3-1/16 in | Insert bearing: UCX16-301D1 | Housing: FX16D1 | Cover: None (open unit)
C-UCFX16-301D1 Shaft: 3-1/16 in | Insert bearing: UCX16-301D1 | Housing: FX16D1 | Cover: Cast iron, open end
CM-UCFX16-301D1 Shaft: 3-1/16 in | Insert bearing: UCX16-301D1 | Housing: FX16D1 | Cover: Cast iron, closed end
UCFX16-302D1 Shaft: 3-1/8 in | Insert bearing: UCX16-302D1 | Housing: FX16D1 | Cover: None (open unit)
C-UCFX16-302D1 Shaft: 3-1/8 in | Insert bearing: UCX16-302D1 | Housing: FX16D1 | Cover: Cast iron, open end
CM-UCFX16-302D1 Shaft: 3-1/8 in | Insert bearing: UCX16-302D1 | Housing: FX16D1 | Cover: Cast iron, closed end
UCFX16-303D1 Shaft: 3-3/16 in | Insert bearing: UCX16-303D1 | Housing: FX16D1 | Cover: None (open unit)
C-UCFX16-303D1 Shaft: 3-3/16 in | Insert bearing: UCX16-303D1 | Housing: FX16D1 | Cover: Cast iron, open end
CM-UCFX16-303D1 Shaft: 3-3/16 in | Insert bearing: UCX16-303D1 | Housing: FX16D1 | Cover: Cast iron, closed end
UCFX16-304D1 Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: FX16D1 | Cover: None (open unit)
C-UCFX16-304D1 Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: FX16D1 | Cover: Cast iron, open end
CM-UCFX16-304D1 Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: FX16D1 | Cover: Cast iron, closed end
UCFX17D1 Shaft: 85 mm | Insert bearing: UCX17D1 | Housing: FX17D1 | Cover: None (open unit)
C-UCFX17D1 Shaft: 85 mm | Insert bearing: UCX17D1 | Housing: FX17D1 | Cover: Cast iron, open end
CM-UCFX17D1 Shaft: 85 mm | Insert bearing: UCX17D1 | Housing: FX17D1 | Cover: Cast iron, closed end
UCFX17-305D1 Shaft: 3-5/16 in | Insert bearing: UCX17-305D1 | Housing: FX17D1 | Cover: None (open unit)
C-UCFX17-305D1 Shaft: 3-5/16 in | Insert bearing: UCX17-305D1 | Housing: FX17D1 | Cover: Cast iron, open end
CM-UCFX17-305D1 Shaft: 3-5/16 in | Insert bearing: UCX17-305D1 | Housing: FX17D1 | Cover: Cast iron, closed end
UCFX17-307D1 Shaft: 3-7/16 in | Insert bearing: UCX17-307D1 | Housing: FX17D1 | Cover: None (open unit)
C-UCFX17-307D1 Shaft: 3-7/16 in | Insert bearing: UCX17-307D1 | Housing: FX17D1 | Cover: Cast iron, open end
CM-UCFX17-307D1 Shaft: 3-7/16 in | Insert bearing: UCX17-307D1 | Housing: FX17D1 | Cover: Cast iron, closed end
UCFX18D1 Shaft: 90 mm | Insert bearing: UCX18D1 | Housing: FX18D1 | Cover: None (open unit)
C-UCFX18D1 Shaft: 90 mm | Insert bearing: UCX18D1 | Housing: FX18D1 | Cover: Cast iron, open end
CM-UCFX18D1 Shaft: 90 mm | Insert bearing: UCX18D1 | Housing: FX18D1 | Cover: Cast iron, closed end
UCFX18-307D1 Shaft: 3-7/16 in | Insert bearing: UCX18-307D1 | Housing: FX18D1 | Cover: None (open unit)
C-UCFX18-307D1 Shaft: 3-7/16 in | Insert bearing: UCX18-307D1 | Housing: FX18D1 | Cover: Cast iron, open end
CM-UCFX18-307D1 Shaft: 3-7/16 in | Insert bearing: UCX18-307D1 | Housing: FX18D1 | Cover: Cast iron, closed end
UCFX18-308D1 Shaft: 3-1/2 in | Insert bearing: UCX18-308D1 | Housing: FX18D1 | Cover: None (open unit)
C-UCFX18-308D1 Shaft: 3-1/2 in | Insert bearing: UCX18-308D1 | Housing: FX18D1 | Cover: Cast iron, open end
CM-UCFX18-308D1 Shaft: 3-1/2 in | Insert bearing: UCX18-308D1 | Housing: FX18D1 | Cover: Cast iron, closed end
UCFX20D1 Shaft: 100 mm | Insert bearing: UCX20D1 | Housing: FX20D1 | Cover: None (open unit)
C-UCFX20D1 Shaft: 100 mm | Insert bearing: UCX20D1 | Housing: FX20D1 | Cover: Cast iron, open end
CM-UCFX20D1 Shaft: 100 mm | Insert bearing: UCX20D1 | Housing: FX20D1 | Cover: Cast iron, closed end
UCFX20-313D1 Shaft: 3-13/16 in | Insert bearing: UCX20-313D1 | Housing: FX20D1 | Cover: None (open unit)
C-UCFX20-313D1 Shaft: 3-13/16 in | Insert bearing: UCX20-313D1 | Housing: FX20D1 | Cover: Cast iron, open end
CM-UCFX20-313D1 Shaft: 3-13/16 in | Insert bearing: UCX20-313D1 | Housing: FX20D1 | Cover: Cast iron, closed end
UCFX20-314D1 Shaft: 3-7/8 in | Insert bearing: UCX20-314D1 | Housing: FX20D1 | Cover: None (open unit)
C-UCFX20-314D1 Shaft: 3-7/8 in | Insert bearing: UCX20-314D1 | Housing: FX20D1 | Cover: Cast iron, open end
CM-UCFX20-314D1 Shaft: 3-7/8 in | Insert bearing: UCX20-314D1 | Housing: FX20D1 | Cover: Cast iron, closed end
UCFX20-315D1 Shaft: 3-15/16 in | Insert bearing: UCX20-315D1 | Housing: FX20D1 | Cover: None (open unit)
C-UCFX20-315D1 Shaft: 3-15/16 in | Insert bearing: UCX20-315D1 | Housing: FX20D1 | Cover: Cast iron, open end
CM-UCFX20-315D1 Shaft: 3-15/16 in | Insert bearing: UCX20-315D1 | Housing: FX20D1 | Cover: Cast iron, closed end
UCFX20-400D1 Shaft: 4 in | Insert bearing: UCX20-400D1 | Housing: FX20D1 | Cover: None (open unit)
C-UCFX20-400D1 Shaft: 4 in | Insert bearing: UCX20-400D1 | Housing: FX20D1 | Cover: Cast iron, open end
CM-UCFX20-400D1 Shaft: 4 in | Insert bearing: UCX20-400D1 | Housing: FX20D1 | Cover: Cast iron, closed end
Mounted Bearing UnitsNTN
239 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN UCFX Square Flanged Units, Cast Housing

Brand NTN·Mounted Bearing Units

Available part numbers (239)

UCFX05D1, C-UCFX05D1, CM-UCFX05D1, UCFX05-013D1, C-UCFX05-013D1, CM-UCFX05-013D1, UCFX05-014D1, C-UCFX05-014D1, CM-UCFX05-014D1, UCFX05-015D1 + 229 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCFX05D1Shaft: 25 mm | Insert bearing: UCX05D1 | Housing: FX05D1 | Cover: None (open unit)
C-UCFX05D1Shaft: 25 mm | Insert bearing: UCX05D1 | Housing: FX05D1 | Cover: Cast iron, open end
CM-UCFX05D1Shaft: 25 mm | Insert bearing: UCX05D1 | Housing: FX05D1 | Cover: Cast iron, closed end
UCFX05-013D1Shaft: 13/16 in | Insert bearing: UCX05-013D1 | Housing: FX05D1 | Cover: None (open unit)
C-UCFX05-013D1Shaft: 13/16 in | Insert bearing: UCX05-013D1 | Housing: FX05D1 | Cover: Cast iron, open end
CM-UCFX05-013D1Shaft: 13/16 in | Insert bearing: UCX05-013D1 | Housing: FX05D1 | Cover: Cast iron, closed end
UCFX05-014D1Shaft: 7/8 in | Insert bearing: UCX05-014D1 | Housing: FX05D1 | Cover: None (open unit)
C-UCFX05-014D1Shaft: 7/8 in | Insert bearing: UCX05-014D1 | Housing: FX05D1 | Cover: Cast iron, open end
CM-UCFX05-014D1Shaft: 7/8 in | Insert bearing: UCX05-014D1 | Housing: FX05D1 | Cover: Cast iron, closed end
UCFX05-015D1Shaft: 15/16 in | Insert bearing: UCX05-015D1 | Housing: FX05D1 | Cover: None (open unit)
C-UCFX05-015D1Shaft: 15/16 in | Insert bearing: UCX05-015D1 | Housing: FX05D1 | Cover: Cast iron, open end
CM-UCFX05-015D1Shaft: 15/16 in | Insert bearing: UCX05-015D1 | Housing: FX05D1 | Cover: Cast iron, closed end
UCFX05-100D1Shaft: 1 in | Insert bearing: UCX05-100D1 | Housing: FX05D1 | Cover: None (open unit)
C-UCFX05-100D1Shaft: 1 in | Insert bearing: UCX05-100D1 | Housing: FX05D1 | Cover: Cast iron, open end
CM-UCFX05-100D1Shaft: 1 in | Insert bearing: UCX05-100D1 | Housing: FX05D1 | Cover: Cast iron, closed end
UCFX06D1Shaft: 30 mm | Insert bearing: UCX06D1 | Housing: FX06D1 | Cover: None (open unit)
C-UCFX06D1Shaft: 30 mm | Insert bearing: UCX06D1 | Housing: FX06D1 | Cover: Cast iron, open end
CM-UCFX06D1Shaft: 30 mm | Insert bearing: UCX06D1 | Housing: FX06D1 | Cover: Cast iron, closed end
UCFX06-101D1Shaft: 1-1/16 in | Insert bearing: UCX06-101D1 | Housing: FX06D1 | Cover: None (open unit)
C-UCFX06-101D1Shaft: 1-1/16 in | Insert bearing: UCX06-101D1 | Housing: FX06D1 | Cover: Cast iron, open end
CM-UCFX06-101D1Shaft: 1-1/16 in | Insert bearing: UCX06-101D1 | Housing: FX06D1 | Cover: Cast iron, closed end
UCFX06-102D1Shaft: 1-1/8 in | Insert bearing: UCX06-102D1 | Housing: FX06D1 | Cover: None (open unit)
C-UCFX06-102D1Shaft: 1-1/8 in | Insert bearing: UCX06-102D1 | Housing: FX06D1 | Cover: Cast iron, open end
CM-UCFX06-102D1Shaft: 1-1/8 in | Insert bearing: UCX06-102D1 | Housing: FX06D1 | Cover: Cast iron, closed end
UCFX06-103D1Shaft: 1-3/16 in | Insert bearing: UCX06-103D1 | Housing: FX06D1 | Cover: None (open unit)
C-UCFX06-103D1Shaft: 1-3/16 in | Insert bearing: UCX06-103D1 | Housing: FX06D1 | Cover: Cast iron, open end
CM-UCFX06-103D1Shaft: 1-3/16 in | Insert bearing: UCX06-103D1 | Housing: FX06D1 | Cover: Cast iron, closed end
UCFX06-104D1Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: FX06D1 | Cover: None (open unit)
C-UCFX06-104D1Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: FX06D1 | Cover: Cast iron, open end
CM-UCFX06-104D1Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: FX06D1 | Cover: Cast iron, closed end
UCFX07D1Shaft: 35 mm | Insert bearing: UCX07D1 | Housing: FX07D1 | Cover: None (open unit)
S-UCFX07D1Shaft: 35 mm | Insert bearing: UCX07D1 | Housing: FX07D1 | Cover: Pressed steel, open end
SM-UCFX07D1Shaft: 35 mm | Insert bearing: UCX07D1 | Housing: FX07D1 | Cover: Pressed steel, closed end
C-UCFX07D1Shaft: 35 mm | Insert bearing: UCX07D1 | Housing: FX07D1 | Cover: Cast iron, open end
CM-UCFX07D1Shaft: 35 mm | Insert bearing: UCX07D1 | Housing: FX07D1 | Cover: Cast iron, closed end
UCFX07-105D1Shaft: 1-5/16 in | Insert bearing: UCX07-105D1 | Housing: FX07D1 | Cover: None (open unit)
S-UCFX07-105D1Shaft: 1-5/16 in | Insert bearing: UCX07-105D1 | Housing: FX07D1 | Cover: Pressed steel, open end
SM-UCFX07-105D1Shaft: 1-5/16 in | Insert bearing: UCX07-105D1 | Housing: FX07D1 | Cover: Pressed steel, closed end
C-UCFX07-105D1Shaft: 1-5/16 in | Insert bearing: UCX07-105D1 | Housing: FX07D1 | Cover: Cast iron, open end
CM-UCFX07-105D1Shaft: 1-5/16 in | Insert bearing: UCX07-105D1 | Housing: FX07D1 | Cover: Cast iron, closed end
UCFX07-106D1Shaft: 1-3/8 in | Insert bearing: UCX07-106D1 | Housing: FX07D1 | Cover: None (open unit)
S-UCFX07-106D1Shaft: 1-3/8 in | Insert bearing: UCX07-106D1 | Housing: FX07D1 | Cover: Pressed steel, open end
SM-UCFX07-106D1Shaft: 1-3/8 in | Insert bearing: UCX07-106D1 | Housing: FX07D1 | Cover: Pressed steel, closed end
C-UCFX07-106D1Shaft: 1-3/8 in | Insert bearing: UCX07-106D1 | Housing: FX07D1 | Cover: Cast iron, open end
CM-UCFX07-106D1Shaft: 1-3/8 in | Insert bearing: UCX07-106D1 | Housing: FX07D1 | Cover: Cast iron, closed end
UCFX07-107D1Shaft: 1-7/16 in | Insert bearing: UCX07-107D1 | Housing: FX07D1 | Cover: None (open unit)
S-UCFX07-107D1Shaft: 1-7/16 in | Insert bearing: UCX07-107D1 | Housing: FX07D1 | Cover: Pressed steel, open end
SM-UCFX07-107D1Shaft: 1-7/16 in | Insert bearing: UCX07-107D1 | Housing: FX07D1 | Cover: Pressed steel, closed end
C-UCFX07-107D1Shaft: 1-7/16 in | Insert bearing: UCX07-107D1 | Housing: FX07D1 | Cover: Cast iron, open end
CM-UCFX07-107D1Shaft: 1-7/16 in | Insert bearing: UCX07-107D1 | Housing: FX07D1 | Cover: Cast iron, closed end
UCFX08D1Shaft: 40 mm | Insert bearing: UCX08D1 | Housing: FX08D1 | Cover: None (open unit)
S-UCFX08D1Shaft: 40 mm | Insert bearing: UCX08D1 | Housing: FX08D1 | Cover: Pressed steel, open end
SM-UCFX08D1Shaft: 40 mm | Insert bearing: UCX08D1 | Housing: FX08D1 | Cover: Pressed steel, closed end
C-UCFX08D1Shaft: 40 mm | Insert bearing: UCX08D1 | Housing: FX08D1 | Cover: Cast iron, open end
CM-UCFX08D1Shaft: 40 mm | Insert bearing: UCX08D1 | Housing: FX08D1 | Cover: Cast iron, closed end
UCFX08-108D1Shaft: 1-1/2 in | Insert bearing: UCX08-108D1 | Housing: FX08D1 | Cover: None (open unit)
S-UCFX08-108D1Shaft: 1-1/2 in | Insert bearing: UCX08-108D1 | Housing: FX08D1 | Cover: Pressed steel, open end
SM-UCFX08-108D1Shaft: 1-1/2 in | Insert bearing: UCX08-108D1 | Housing: FX08D1 | Cover: Pressed steel, closed end
C-UCFX08-108D1Shaft: 1-1/2 in | Insert bearing: UCX08-108D1 | Housing: FX08D1 | Cover: Cast iron, open end
CM-UCFX08-108D1Shaft: 1-1/2 in | Insert bearing: UCX08-108D1 | Housing: FX08D1 | Cover: Cast iron, closed end
UCFX08-109D1Shaft: 1-9/16 in | Insert bearing: UCX08-109D1 | Housing: FX08D1 | Cover: None (open unit)
S-UCFX08-109D1Shaft: 1-9/16 in | Insert bearing: UCX08-109D1 | Housing: FX08D1 | Cover: Pressed steel, open end
SM-UCFX08-109D1Shaft: 1-9/16 in | Insert bearing: UCX08-109D1 | Housing: FX08D1 | Cover: Pressed steel, closed end
C-UCFX08-109D1Shaft: 1-9/16 in | Insert bearing: UCX08-109D1 | Housing: FX08D1 | Cover: Cast iron, open end
CM-UCFX08-109D1Shaft: 1-9/16 in | Insert bearing: UCX08-109D1 | Housing: FX08D1 | Cover: Cast iron, closed end
UCFX09D1Shaft: 45 mm | Insert bearing: UCX09D1 | Housing: FX09D1 | Cover: None (open unit)
S-UCFX09D1Shaft: 45 mm | Insert bearing: UCX09D1 | Housing: FX09D1 | Cover: Pressed steel, open end
SM-UCFX09D1Shaft: 45 mm | Insert bearing: UCX09D1 | Housing: FX09D1 | Cover: Pressed steel, closed end
C-UCFX09D1Shaft: 45 mm | Insert bearing: UCX09D1 | Housing: FX09D1 | Cover: Cast iron, open end
CM-UCFX09D1Shaft: 45 mm | Insert bearing: UCX09D1 | Housing: FX09D1 | Cover: Cast iron, closed end
UCFX09-110D1Shaft: 1-5/8 in | Insert bearing: UCX09-110D1 | Housing: FX09D1 | Cover: None (open unit)
S-UCFX09-110D1Shaft: 1-5/8 in | Insert bearing: UCX09-110D1 | Housing: FX09D1 | Cover: Pressed steel, open end
SM-UCFX09-110D1Shaft: 1-5/8 in | Insert bearing: UCX09-110D1 | Housing: FX09D1 | Cover: Pressed steel, closed end
C-UCFX09-110D1Shaft: 1-5/8 in | Insert bearing: UCX09-110D1 | Housing: FX09D1 | Cover: Cast iron, open end
CM-UCFX09-110D1Shaft: 1-5/8 in | Insert bearing: UCX09-110D1 | Housing: FX09D1 | Cover: Cast iron, closed end
UCFX09-111D1Shaft: 1-11/16 in | Insert bearing: UCX09-111D1 | Housing: FX09D1 | Cover: None (open unit)
S-UCFX09-111D1Shaft: 1-11/16 in | Insert bearing: UCX09-111D1 | Housing: FX09D1 | Cover: Pressed steel, open end
SM-UCFX09-111D1Shaft: 1-11/16 in | Insert bearing: UCX09-111D1 | Housing: FX09D1 | Cover: Pressed steel, closed end
C-UCFX09-111D1Shaft: 1-11/16 in | Insert bearing: UCX09-111D1 | Housing: FX09D1 | Cover: Cast iron, open end
CM-UCFX09-111D1Shaft: 1-11/16 in | Insert bearing: UCX09-111D1 | Housing: FX09D1 | Cover: Cast iron, closed end
UCFX09-112D1Shaft: 1-3/4 in | Insert bearing: UCX09-112D1 | Housing: FX09D1 | Cover: None (open unit)
S-UCFX09-112D1Shaft: 1-3/4 in | Insert bearing: UCX09-112D1 | Housing: FX09D1 | Cover: Pressed steel, open end
SM-UCFX09-112D1Shaft: 1-3/4 in | Insert bearing: UCX09-112D1 | Housing: FX09D1 | Cover: Pressed steel, closed end
C-UCFX09-112D1Shaft: 1-3/4 in | Insert bearing: UCX09-112D1 | Housing: FX09D1 | Cover: Cast iron, open end
CM-UCFX09-112D1Shaft: 1-3/4 in | Insert bearing: UCX09-112D1 | Housing: FX09D1 | Cover: Cast iron, closed end
UCFX09-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FX09D1 | Cover: None (open unit)
S-UCFX09-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FX09D1 | Cover: Pressed steel, open end
SM-UCFX09-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FX09D1 | Cover: Pressed steel, closed end
C-UCFX09-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FX09D1 | Cover: Cast iron, open end
CM-UCFX09-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FX09D1 | Cover: Cast iron, closed end
UCFX10D1Shaft: 50 mm | Insert bearing: UCX10D1 | Housing: FX10D1 | Cover: None (open unit)
S-UCFX10D1Shaft: 50 mm | Insert bearing: UCX10D1 | Housing: FX10D1 | Cover: Pressed steel, open end
SM-UCFX10D1Shaft: 50 mm | Insert bearing: UCX10D1 | Housing: FX10D1 | Cover: Pressed steel, closed end
C-UCFX10D1Shaft: 50 mm | Insert bearing: UCX10D1 | Housing: FX10D1 | Cover: Cast iron, open end
CM-UCFX10D1Shaft: 50 mm | Insert bearing: UCX10D1 | Housing: FX10D1 | Cover: Cast iron, closed end
UCFX10-114D1Shaft: 1-7/8 in | Insert bearing: UCX10-114D1 | Housing: FX10D1 | Cover: None (open unit)
S-UCFX10-114D1Shaft: 1-7/8 in | Insert bearing: UCX10-114D1 | Housing: FX10D1 | Cover: Pressed steel, open end
SM-UCFX10-114D1Shaft: 1-7/8 in | Insert bearing: UCX10-114D1 | Housing: FX10D1 | Cover: Pressed steel, closed end
C-UCFX10-114D1Shaft: 1-7/8 in | Insert bearing: UCX10-114D1 | Housing: FX10D1 | Cover: Cast iron, open end
CM-UCFX10-114D1Shaft: 1-7/8 in | Insert bearing: UCX10-114D1 | Housing: FX10D1 | Cover: Cast iron, closed end
UCFX10-115D1Shaft: 1-15/16 in | Insert bearing: UCX10-115D1 | Housing: FX10D1 | Cover: None (open unit)
S-UCFX10-115D1Shaft: 1-15/16 in | Insert bearing: UCX10-115D1 | Housing: FX10D1 | Cover: Pressed steel, open end
SM-UCFX10-115D1Shaft: 1-15/16 in | Insert bearing: UCX10-115D1 | Housing: FX10D1 | Cover: Pressed steel, closed end
C-UCFX10-115D1Shaft: 1-15/16 in | Insert bearing: UCX10-115D1 | Housing: FX10D1 | Cover: Cast iron, open end
CM-UCFX10-115D1Shaft: 1-15/16 in | Insert bearing: UCX10-115D1 | Housing: FX10D1 | Cover: Cast iron, closed end
UCFX10-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FX10D1 | Cover: None (open unit)
S-UCFX10-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FX10D1 | Cover: Pressed steel, open end
SM-UCFX10-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FX10D1 | Cover: Pressed steel, closed end
C-UCFX10-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FX10D1 | Cover: Cast iron, open end
CM-UCFX10-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FX10D1 | Cover: Cast iron, closed end
UCFX11D1Shaft: 55 mm | Insert bearing: UCX11D1 | Housing: FX11D1 | Cover: None (open unit)
S-UCFX11D1Shaft: 55 mm | Insert bearing: UCX11D1 | Housing: FX11D1 | Cover: Pressed steel, open end
SM-UCFX11D1Shaft: 55 mm | Insert bearing: UCX11D1 | Housing: FX11D1 | Cover: Pressed steel, closed end
C-UCFX11D1Shaft: 55 mm | Insert bearing: UCX11D1 | Housing: FX11D1 | Cover: Cast iron, open end
CM-UCFX11D1Shaft: 55 mm | Insert bearing: UCX11D1 | Housing: FX11D1 | Cover: Cast iron, closed end
UCFX11-201D1Shaft: 2-1/16 in | Insert bearing: UCX11-201D1 | Housing: FX11D1 | Cover: None (open unit)
S-UCFX11-201D1Shaft: 2-1/16 in | Insert bearing: UCX11-201D1 | Housing: FX11D1 | Cover: Pressed steel, open end
SM-UCFX11-201D1Shaft: 2-1/16 in | Insert bearing: UCX11-201D1 | Housing: FX11D1 | Cover: Pressed steel, closed end
C-UCFX11-201D1Shaft: 2-1/16 in | Insert bearing: UCX11-201D1 | Housing: FX11D1 | Cover: Cast iron, open end
CM-UCFX11-201D1Shaft: 2-1/16 in | Insert bearing: UCX11-201D1 | Housing: FX11D1 | Cover: Cast iron, closed end
UCFX11-202D1Shaft: 2-1/8 in | Insert bearing: UCX11-202D1 | Housing: FX11D1 | Cover: None (open unit)
S-UCFX11-202D1Shaft: 2-1/8 in | Insert bearing: UCX11-202D1 | Housing: FX11D1 | Cover: Pressed steel, open end
SM-UCFX11-202D1Shaft: 2-1/8 in | Insert bearing: UCX11-202D1 | Housing: FX11D1 | Cover: Pressed steel, closed end
C-UCFX11-202D1Shaft: 2-1/8 in | Insert bearing: UCX11-202D1 | Housing: FX11D1 | Cover: Cast iron, open end
CM-UCFX11-202D1Shaft: 2-1/8 in | Insert bearing: UCX11-202D1 | Housing: FX11D1 | Cover: Cast iron, closed end
UCFX11-203D1Shaft: 2-3/16 in | Insert bearing: UCX11-203D1 | Housing: FX11D1 | Cover: None (open unit)
S-UCFX11-203D1Shaft: 2-3/16 in | Insert bearing: UCX11-203D1 | Housing: FX11D1 | Cover: Pressed steel, open end
SM-UCFX11-203D1Shaft: 2-3/16 in | Insert bearing: UCX11-203D1 | Housing: FX11D1 | Cover: Pressed steel, closed end
C-UCFX11-203D1Shaft: 2-3/16 in | Insert bearing: UCX11-203D1 | Housing: FX11D1 | Cover: Cast iron, open end
CM-UCFX11-203D1Shaft: 2-3/16 in | Insert bearing: UCX11-203D1 | Housing: FX11D1 | Cover: Cast iron, closed end
UCFX11-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: FX11D1 | Cover: None (open unit)
S-UCFX11-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: FX11D1 | Cover: Pressed steel, open end
SM-UCFX11-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: FX11D1 | Cover: Pressed steel, closed end
C-UCFX11-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: FX11D1 | Cover: Cast iron, open end
CM-UCFX11-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: FX11D1 | Cover: Cast iron, closed end
UCFX11-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: FX11D1 | Cover: None (open unit)
S-UCFX11-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: FX11D1 | Cover: Pressed steel, open end
SM-UCFX11-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: FX11D1 | Cover: Pressed steel, closed end
C-UCFX11-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: FX11D1 | Cover: Cast iron, open end
CM-UCFX11-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: FX11D1 | Cover: Cast iron, closed end
UCFX12D1Shaft: 60 mm | Insert bearing: UCX12D1 | Housing: FX12D1 | Cover: None (open unit)
S-UCFX12D1Shaft: 60 mm | Insert bearing: UCX12D1 | Housing: FX12D1 | Cover: Pressed steel, open end
SM-UCFX12D1Shaft: 60 mm | Insert bearing: UCX12D1 | Housing: FX12D1 | Cover: Pressed steel, closed end
C-UCFX12D1Shaft: 60 mm | Insert bearing: UCX12D1 | Housing: FX12D1 | Cover: Cast iron, open end
CM-UCFX12D1Shaft: 60 mm | Insert bearing: UCX12D1 | Housing: FX12D1 | Cover: Cast iron, closed end
UCFX12-206D1Shaft: 2-3/8 in | Insert bearing: UCX12-206D1 | Housing: FX12D1 | Cover: None (open unit)
S-UCFX12-206D1Shaft: 2-3/8 in | Insert bearing: UCX12-206D1 | Housing: FX12D1 | Cover: Pressed steel, open end
SM-UCFX12-206D1Shaft: 2-3/8 in | Insert bearing: UCX12-206D1 | Housing: FX12D1 | Cover: Pressed steel, closed end
C-UCFX12-206D1Shaft: 2-3/8 in | Insert bearing: UCX12-206D1 | Housing: FX12D1 | Cover: Cast iron, open end
CM-UCFX12-206D1Shaft: 2-3/8 in | Insert bearing: UCX12-206D1 | Housing: FX12D1 | Cover: Cast iron, closed end
UCFX12-207D1Shaft: 2-7/16 in | Insert bearing: UCX12-207D1 | Housing: FX12D1 | Cover: None (open unit)
S-UCFX12-207D1Shaft: 2-7/16 in | Insert bearing: UCX12-207D1 | Housing: FX12D1 | Cover: Pressed steel, open end
SM-UCFX12-207D1Shaft: 2-7/16 in | Insert bearing: UCX12-207D1 | Housing: FX12D1 | Cover: Pressed steel, closed end
C-UCFX12-207D1Shaft: 2-7/16 in | Insert bearing: UCX12-207D1 | Housing: FX12D1 | Cover: Cast iron, open end
CM-UCFX12-207D1Shaft: 2-7/16 in | Insert bearing: UCX12-207D1 | Housing: FX12D1 | Cover: Cast iron, closed end
UCFX13D1Shaft: 65 mm | Insert bearing: UCX13D1 | Housing: FX13D1 | Cover: None (open unit)
C-UCFX13D1Shaft: 65 mm | Insert bearing: UCX13D1 | Housing: FX13D1 | Cover: Cast iron, open end
CM-UCFX13D1Shaft: 65 mm | Insert bearing: UCX13D1 | Housing: FX13D1 | Cover: Cast iron, closed end
UCFX13-208D1Shaft: 2-1/2 in | Insert bearing: UCX13-208D1 | Housing: FX13D1 | Cover: None (open unit)
C-UCFX13-208D1Shaft: 2-1/2 in | Insert bearing: UCX13-208D1 | Housing: FX13D1 | Cover: Cast iron, open end
CM-UCFX13-208D1Shaft: 2-1/2 in | Insert bearing: UCX13-208D1 | Housing: FX13D1 | Cover: Cast iron, closed end
UCFX13-209D1Shaft: 2-9/16 in | Insert bearing: UCX13-209D1 | Housing: FX13D1 | Cover: None (open unit)
C-UCFX13-209D1Shaft: 2-9/16 in | Insert bearing: UCX13-209D1 | Housing: FX13D1 | Cover: Cast iron, open end
CM-UCFX13-209D1Shaft: 2-9/16 in | Insert bearing: UCX13-209D1 | Housing: FX13D1 | Cover: Cast iron, closed end
UCFX14D1Shaft: 70 mm | Insert bearing: UCX14D1 | Housing: FX14D1 | Cover: None (open unit)
C-UCFX14D1Shaft: 70 mm | Insert bearing: UCX14D1 | Housing: FX14D1 | Cover: Cast iron, open end
CM-UCFX14D1Shaft: 70 mm | Insert bearing: UCX14D1 | Housing: FX14D1 | Cover: Cast iron, closed end
UCFX14-210D1Shaft: 2-5/8 in | Insert bearing: UCX14-210D1 | Housing: FX14D1 | Cover: None (open unit)
C-UCFX14-210D1Shaft: 2-5/8 in | Insert bearing: UCX14-210D1 | Housing: FX14D1 | Cover: Cast iron, open end
CM-UCFX14-210D1Shaft: 2-5/8 in | Insert bearing: UCX14-210D1 | Housing: FX14D1 | Cover: Cast iron, closed end
UCFX14-211D1Shaft: 2-11/16 in | Insert bearing: UCX14-211D1 | Housing: FX14D1 | Cover: None (open unit)
C-UCFX14-211D1Shaft: 2-11/16 in | Insert bearing: UCX14-211D1 | Housing: FX14D1 | Cover: Cast iron, open end
CM-UCFX14-211D1Shaft: 2-11/16 in | Insert bearing: UCX14-211D1 | Housing: FX14D1 | Cover: Cast iron, closed end
UCFX14-212D1Shaft: 2-3/4 in | Insert bearing: UCX14-212D1 | Housing: FX14D1 | Cover: None (open unit)
C-UCFX14-212D1Shaft: 2-3/4 in | Insert bearing: UCX14-212D1 | Housing: FX14D1 | Cover: Cast iron, open end
CM-UCFX14-212D1Shaft: 2-3/4 in | Insert bearing: UCX14-212D1 | Housing: FX14D1 | Cover: Cast iron, closed end
UCFX15D1Shaft: 75 mm | Insert bearing: UCX15D1 | Housing: FX15D1 | Cover: None (open unit)
C-UCFX15D1Shaft: 75 mm | Insert bearing: UCX15D1 | Housing: FX15D1 | Cover: Cast iron, open end
CM-UCFX15D1Shaft: 75 mm | Insert bearing: UCX15D1 | Housing: FX15D1 | Cover: Cast iron, closed end
UCFX15-213D1Shaft: 2-13/16 in | Insert bearing: UCX15-213D1 | Housing: FX15D1 | Cover: None (open unit)
C-UCFX15-213D1Shaft: 2-13/16 in | Insert bearing: UCX15-213D1 | Housing: FX15D1 | Cover: Cast iron, open end
CM-UCFX15-213D1Shaft: 2-13/16 in | Insert bearing: UCX15-213D1 | Housing: FX15D1 | Cover: Cast iron, closed end
UCFX15-214D1Shaft: 2-7/8 in | Insert bearing: UCX15-214D1 | Housing: FX15D1 | Cover: None (open unit)
C-UCFX15-214D1Shaft: 2-7/8 in | Insert bearing: UCX15-214D1 | Housing: FX15D1 | Cover: Cast iron, open end
CM-UCFX15-214D1Shaft: 2-7/8 in | Insert bearing: UCX15-214D1 | Housing: FX15D1 | Cover: Cast iron, closed end
UCFX15-215D1Shaft: 2-15/16 in | Insert bearing: UCX15-215D1 | Housing: FX15D1 | Cover: None (open unit)
C-UCFX15-215D1Shaft: 2-15/16 in | Insert bearing: UCX15-215D1 | Housing: FX15D1 | Cover: Cast iron, open end
CM-UCFX15-215D1Shaft: 2-15/16 in | Insert bearing: UCX15-215D1 | Housing: FX15D1 | Cover: Cast iron, closed end
UCFX15-300D1Shaft: 3 in | Insert bearing: UCX15-300D1 | Housing: FX15D1 | Cover: None (open unit)
C-UCFX15-300D1Shaft: 3 in | Insert bearing: UCX15-300D1 | Housing: FX15D1 | Cover: Cast iron, open end
CM-UCFX15-300D1Shaft: 3 in | Insert bearing: UCX15-300D1 | Housing: FX15D1 | Cover: Cast iron, closed end
UCFX16D1Shaft: 80 mm | Insert bearing: UCX16D1 | Housing: FX16D1 | Cover: None (open unit)
C-UCFX16D1Shaft: 80 mm | Insert bearing: UCX16D1 | Housing: FX16D1 | Cover: Cast iron, open end
CM-UCFX16D1Shaft: 80 mm | Insert bearing: UCX16D1 | Housing: FX16D1 | Cover: Cast iron, closed end
UCFX16-301D1Shaft: 3-1/16 in | Insert bearing: UCX16-301D1 | Housing: FX16D1 | Cover: None (open unit)
C-UCFX16-301D1Shaft: 3-1/16 in | Insert bearing: UCX16-301D1 | Housing: FX16D1 | Cover: Cast iron, open end
CM-UCFX16-301D1Shaft: 3-1/16 in | Insert bearing: UCX16-301D1 | Housing: FX16D1 | Cover: Cast iron, closed end
UCFX16-302D1Shaft: 3-1/8 in | Insert bearing: UCX16-302D1 | Housing: FX16D1 | Cover: None (open unit)
C-UCFX16-302D1Shaft: 3-1/8 in | Insert bearing: UCX16-302D1 | Housing: FX16D1 | Cover: Cast iron, open end
CM-UCFX16-302D1Shaft: 3-1/8 in | Insert bearing: UCX16-302D1 | Housing: FX16D1 | Cover: Cast iron, closed end
UCFX16-303D1Shaft: 3-3/16 in | Insert bearing: UCX16-303D1 | Housing: FX16D1 | Cover: None (open unit)
C-UCFX16-303D1Shaft: 3-3/16 in | Insert bearing: UCX16-303D1 | Housing: FX16D1 | Cover: Cast iron, open end
CM-UCFX16-303D1Shaft: 3-3/16 in | Insert bearing: UCX16-303D1 | Housing: FX16D1 | Cover: Cast iron, closed end
UCFX16-304D1Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: FX16D1 | Cover: None (open unit)
C-UCFX16-304D1Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: FX16D1 | Cover: Cast iron, open end
CM-UCFX16-304D1Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: FX16D1 | Cover: Cast iron, closed end
UCFX17D1Shaft: 85 mm | Insert bearing: UCX17D1 | Housing: FX17D1 | Cover: None (open unit)
C-UCFX17D1Shaft: 85 mm | Insert bearing: UCX17D1 | Housing: FX17D1 | Cover: Cast iron, open end
CM-UCFX17D1Shaft: 85 mm | Insert bearing: UCX17D1 | Housing: FX17D1 | Cover: Cast iron, closed end
UCFX17-305D1Shaft: 3-5/16 in | Insert bearing: UCX17-305D1 | Housing: FX17D1 | Cover: None (open unit)
C-UCFX17-305D1Shaft: 3-5/16 in | Insert bearing: UCX17-305D1 | Housing: FX17D1 | Cover: Cast iron, open end
CM-UCFX17-305D1Shaft: 3-5/16 in | Insert bearing: UCX17-305D1 | Housing: FX17D1 | Cover: Cast iron, closed end
UCFX17-307D1Shaft: 3-7/16 in | Insert bearing: UCX17-307D1 | Housing: FX17D1 | Cover: None (open unit)
C-UCFX17-307D1Shaft: 3-7/16 in | Insert bearing: UCX17-307D1 | Housing: FX17D1 | Cover: Cast iron, open end
CM-UCFX17-307D1Shaft: 3-7/16 in | Insert bearing: UCX17-307D1 | Housing: FX17D1 | Cover: Cast iron, closed end
UCFX18D1Shaft: 90 mm | Insert bearing: UCX18D1 | Housing: FX18D1 | Cover: None (open unit)
C-UCFX18D1Shaft: 90 mm | Insert bearing: UCX18D1 | Housing: FX18D1 | Cover: Cast iron, open end
CM-UCFX18D1Shaft: 90 mm | Insert bearing: UCX18D1 | Housing: FX18D1 | Cover: Cast iron, closed end
UCFX18-307D1Shaft: 3-7/16 in | Insert bearing: UCX18-307D1 | Housing: FX18D1 | Cover: None (open unit)
C-UCFX18-307D1Shaft: 3-7/16 in | Insert bearing: UCX18-307D1 | Housing: FX18D1 | Cover: Cast iron, open end
CM-UCFX18-307D1Shaft: 3-7/16 in | Insert bearing: UCX18-307D1 | Housing: FX18D1 | Cover: Cast iron, closed end
UCFX18-308D1Shaft: 3-1/2 in | Insert bearing: UCX18-308D1 | Housing: FX18D1 | Cover: None (open unit)
C-UCFX18-308D1Shaft: 3-1/2 in | Insert bearing: UCX18-308D1 | Housing: FX18D1 | Cover: Cast iron, open end
CM-UCFX18-308D1Shaft: 3-1/2 in | Insert bearing: UCX18-308D1 | Housing: FX18D1 | Cover: Cast iron, closed end
UCFX20D1Shaft: 100 mm | Insert bearing: UCX20D1 | Housing: FX20D1 | Cover: None (open unit)
C-UCFX20D1Shaft: 100 mm | Insert bearing: UCX20D1 | Housing: FX20D1 | Cover: Cast iron, open end
CM-UCFX20D1Shaft: 100 mm | Insert bearing: UCX20D1 | Housing: FX20D1 | Cover: Cast iron, closed end
UCFX20-313D1Shaft: 3-13/16 in | Insert bearing: UCX20-313D1 | Housing: FX20D1 | Cover: None (open unit)
C-UCFX20-313D1Shaft: 3-13/16 in | Insert bearing: UCX20-313D1 | Housing: FX20D1 | Cover: Cast iron, open end
CM-UCFX20-313D1Shaft: 3-13/16 in | Insert bearing: UCX20-313D1 | Housing: FX20D1 | Cover: Cast iron, closed end
UCFX20-314D1Shaft: 3-7/8 in | Insert bearing: UCX20-314D1 | Housing: FX20D1 | Cover: None (open unit)
C-UCFX20-314D1Shaft: 3-7/8 in | Insert bearing: UCX20-314D1 | Housing: FX20D1 | Cover: Cast iron, open end
CM-UCFX20-314D1Shaft: 3-7/8 in | Insert bearing: UCX20-314D1 | Housing: FX20D1 | Cover: Cast iron, closed end
UCFX20-315D1Shaft: 3-15/16 in | Insert bearing: UCX20-315D1 | Housing: FX20D1 | Cover: None (open unit)
C-UCFX20-315D1Shaft: 3-15/16 in | Insert bearing: UCX20-315D1 | Housing: FX20D1 | Cover: Cast iron, open end
CM-UCFX20-315D1Shaft: 3-15/16 in | Insert bearing: UCX20-315D1 | Housing: FX20D1 | Cover: Cast iron, closed end
UCFX20-400D1Shaft: 4 in | Insert bearing: UCX20-400D1 | Housing: FX20D1 | Cover: None (open unit)
C-UCFX20-400D1Shaft: 4 in | Insert bearing: UCX20-400D1 | Housing: FX20D1 | Cover: Cast iron, open end
CM-UCFX20-400D1Shaft: 4 in | Insert bearing: UCX20-400D1 | Housing: FX20D1 | Cover: Cast iron, closed end

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
