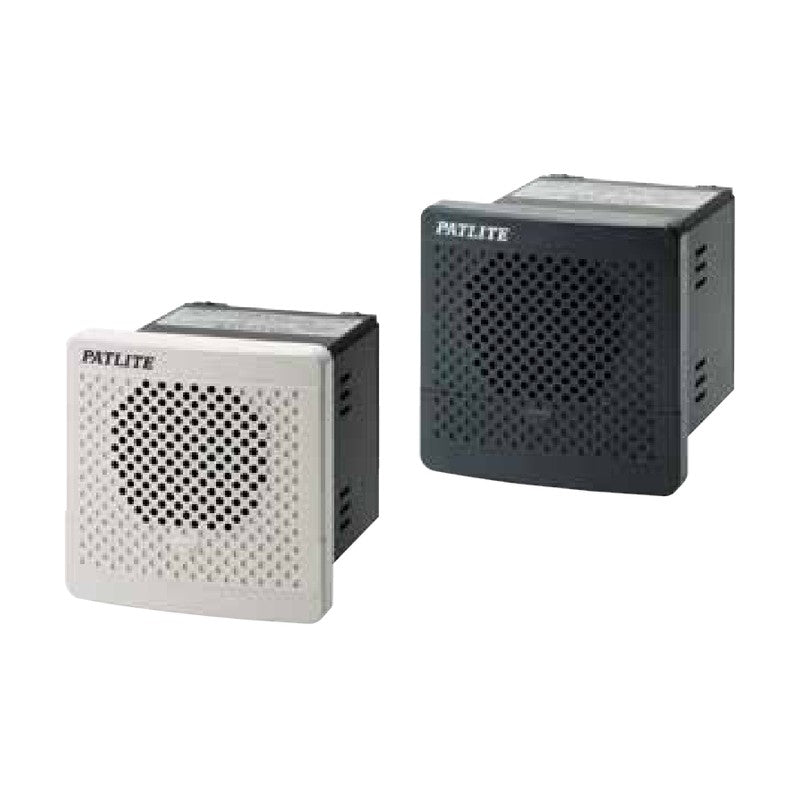

PATLITE BD-A Audible Alarm for Panel Mounting, 80 mm Square

PATLITE BD-A Audible Alarm for Panel Mounting, 80 mm Square

Panel-mount 80 mm square electronic audible alarm with 4 inputs and 32 alarm sounds, in light gray or dark gray. 32 alarm sounds selectable from sound charts Type A, C, D or E. 4 inputs, 90 dB.

Key features

  • Mounting hole compliant with IEC 61554 (DIN 43700), 68 mm square
  • IP54

Specifications

Size 80 mm square
Supported Transistors NPN
Volume Control Rotating knob
Use Indoor
Ambient Temperature -20 to +55°C
Ingress Protection IP54
Approvals CE, UKCA, UL (DC type), FCC, RoHS10
BD-24AA-J Rated Voltage: 12-24V DC | Power Consumption: 4.0 W | Mass: 0.16 kg | Alarm Type: Type A | Color: Light gray
BD-24AA-K Rated Voltage: 12-24V DC | Power Consumption: 4.0 W | Mass: 0.16 kg | Alarm Type: Type A | Color: Dark gray
BD-24AC-J Rated Voltage: 12-24V DC | Power Consumption: 4.0 W | Mass: 0.16 kg | Alarm Type: Type C | Color: Light gray
BD-24AC-K Rated Voltage: 12-24V DC | Power Consumption: 4.0 W | Mass: 0.16 kg | Alarm Type: Type C | Color: Dark gray
BD-24AD-J Rated Voltage: 12-24V DC | Power Consumption: 4.0 W | Mass: 0.16 kg | Alarm Type: Type D | Color: Light gray
BD-24AD-K Rated Voltage: 12-24V DC | Power Consumption: 4.0 W | Mass: 0.16 kg | Alarm Type: Type D | Color: Dark gray
BD-24AE-J Rated Voltage: 12-24V DC | Power Consumption: 4.0 W | Mass: 0.16 kg | Alarm Type: Type E | Color: Light gray
BD-24AE-K Rated Voltage: 12-24V DC | Power Consumption: 4.0 W | Mass: 0.16 kg | Alarm Type: Type E | Color: Dark gray
BD-100AA-J Rated Voltage: 100/220V AC | Power Consumption: 5.0 W | Mass: 0.18 kg | Alarm Type: Type A | Color: Light gray
BD-100AA-K Rated Voltage: 100/220V AC | Power Consumption: 5.0 W | Mass: 0.18 kg | Alarm Type: Type A | Color: Dark gray
BD-100AC-J Rated Voltage: 100/220V AC | Power Consumption: 5.0 W | Mass: 0.18 kg | Alarm Type: Type C | Color: Light gray
BD-100AC-K Rated Voltage: 100/220V AC | Power Consumption: 5.0 W | Mass: 0.18 kg | Alarm Type: Type C | Color: Dark gray
BD-100AD-J Rated Voltage: 100/220V AC | Power Consumption: 5.0 W | Mass: 0.18 kg | Alarm Type: Type D | Color: Light gray
BD-100AD-K Rated Voltage: 100/220V AC | Power Consumption: 5.0 W | Mass: 0.18 kg | Alarm Type: Type D | Color: Dark gray
BD-100AE-J Rated Voltage: 100/220V AC | Power Consumption: 5.0 W | Mass: 0.18 kg | Alarm Type: Type E | Color: Light gray
BD-100AE-K Rated Voltage: 100/220V AC | Power Consumption: 5.0 W | Mass: 0.18 kg | Alarm Type: Type E | Color: Dark gray
BuzzersPATLITE
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE BD-A Audible Alarm for Panel Mounting, 80 mm Square

Brand PATLITE·Buzzers

Available part numbers (16)

BD-24AA-J, BD-24AA-K, BD-24AC-J, BD-24AC-K, BD-24AD-J, BD-24AD-K, BD-24AE-J, BD-24AE-K, BD-100AA-J, BD-100AA-K + 6 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BD-24AA-JRated Voltage: 12-24V DC | Power Consumption: 4.0 W | Mass: 0.16 kg | Alarm Type: Type A | Color: Light gray
BD-24AA-KRated Voltage: 12-24V DC | Power Consumption: 4.0 W | Mass: 0.16 kg | Alarm Type: Type A | Color: Dark gray
BD-24AC-JRated Voltage: 12-24V DC | Power Consumption: 4.0 W | Mass: 0.16 kg | Alarm Type: Type C | Color: Light gray
BD-24AC-KRated Voltage: 12-24V DC | Power Consumption: 4.0 W | Mass: 0.16 kg | Alarm Type: Type C | Color: Dark gray
BD-24AD-JRated Voltage: 12-24V DC | Power Consumption: 4.0 W | Mass: 0.16 kg | Alarm Type: Type D | Color: Light gray
BD-24AD-KRated Voltage: 12-24V DC | Power Consumption: 4.0 W | Mass: 0.16 kg | Alarm Type: Type D | Color: Dark gray
BD-24AE-JRated Voltage: 12-24V DC | Power Consumption: 4.0 W | Mass: 0.16 kg | Alarm Type: Type E | Color: Light gray
BD-24AE-KRated Voltage: 12-24V DC | Power Consumption: 4.0 W | Mass: 0.16 kg | Alarm Type: Type E | Color: Dark gray
BD-100AA-JRated Voltage: 100/220V AC | Power Consumption: 5.0 W | Mass: 0.18 kg | Alarm Type: Type A | Color: Light gray
BD-100AA-KRated Voltage: 100/220V AC | Power Consumption: 5.0 W | Mass: 0.18 kg | Alarm Type: Type A | Color: Dark gray
BD-100AC-JRated Voltage: 100/220V AC | Power Consumption: 5.0 W | Mass: 0.18 kg | Alarm Type: Type C | Color: Light gray
BD-100AC-KRated Voltage: 100/220V AC | Power Consumption: 5.0 W | Mass: 0.18 kg | Alarm Type: Type C | Color: Dark gray
BD-100AD-JRated Voltage: 100/220V AC | Power Consumption: 5.0 W | Mass: 0.18 kg | Alarm Type: Type D | Color: Light gray
BD-100AD-KRated Voltage: 100/220V AC | Power Consumption: 5.0 W | Mass: 0.18 kg | Alarm Type: Type D | Color: Dark gray
BD-100AE-JRated Voltage: 100/220V AC | Power Consumption: 5.0 W | Mass: 0.18 kg | Alarm Type: Type E | Color: Light gray
BD-100AE-KRated Voltage: 100/220V AC | Power Consumption: 5.0 W | Mass: 0.18 kg | Alarm Type: Type E | Color: Dark gray
