• PATLITE BK Audible Alarm for Panel Mounting, 120 mm Square
1 1

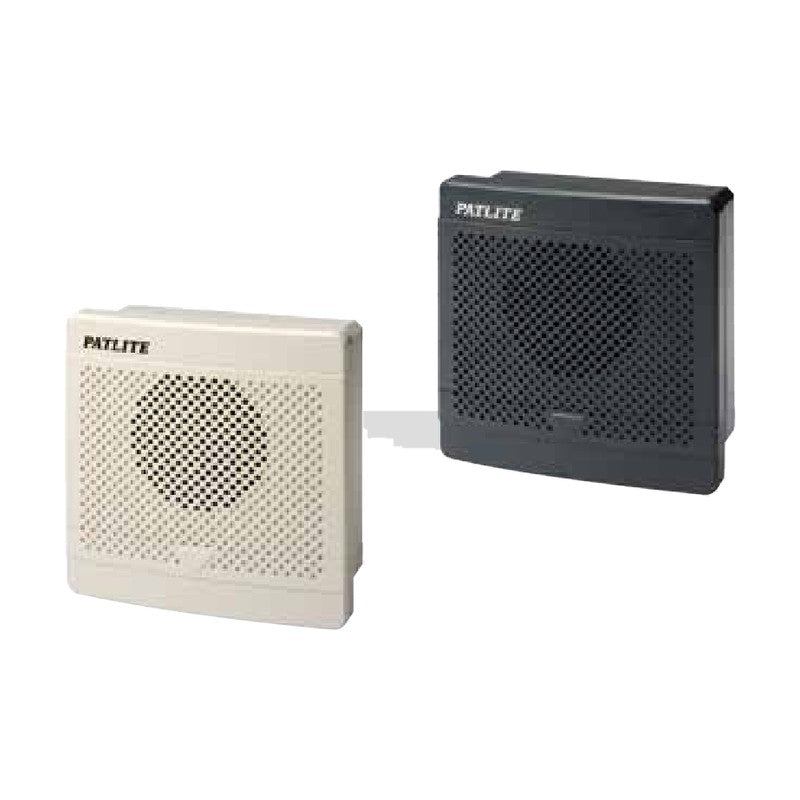

PATLITE BK Audible Alarm for Panel Mounting, 120 mm Square

PATLITE BK Audible Alarm for Panel Mounting, 120 mm Square

Panel-mount 120 mm square electronic audible alarm with 8/32 bit/binary inputs and 32 alarm sounds, 95 dB. 32 alarm sounds selectable from sound charts Type A, C, D or E. 95 dB.

Key features

  • Light gray or dark gray front
  • IP54

Specifications

Size 120 mm square
Supported Transistors NPN
Volume Control Rotating knob
Use Indoor
Ambient Temperature -20 to +50°C
Ingress Protection IP54
Approvals CE (DC type), UKCA (DC type), RoHS10
BK-24A-J Rated Voltage: 12-24V DC | Power Consumption: 12 W | Mass: 0.35 kg | Alarm Type: Type A | Color: Light gray
BK-24A-K Rated Voltage: 12-24V DC | Power Consumption: 12 W | Mass: 0.35 kg | Alarm Type: Type A | Color: Dark gray
BK-24C-J Rated Voltage: 12-24V DC | Power Consumption: 12 W | Mass: 0.35 kg | Alarm Type: Type C | Color: Light gray
BK-24C-K Rated Voltage: 12-24V DC | Power Consumption: 12 W | Mass: 0.35 kg | Alarm Type: Type C | Color: Dark gray
BK-24D-J Rated Voltage: 12-24V DC | Power Consumption: 12 W | Mass: 0.35 kg | Alarm Type: Type D | Color: Light gray
BK-24D-K Rated Voltage: 12-24V DC | Power Consumption: 12 W | Mass: 0.35 kg | Alarm Type: Type D | Color: Dark gray
BK-24E-J Rated Voltage: 12-24V DC | Power Consumption: 12 W | Mass: 0.35 kg | Alarm Type: Type E | Color: Light gray
BK-24E-K Rated Voltage: 12-24V DC | Power Consumption: 12 W | Mass: 0.35 kg | Alarm Type: Type E | Color: Dark gray
BK-100A-J Rated Voltage: 100V AC | Power Consumption: 10 W | Mass: 0.53 kg | Alarm Type: Type A | Color: Light gray
BK-100A-K Rated Voltage: 100V AC | Power Consumption: 10 W | Mass: 0.53 kg | Alarm Type: Type A | Color: Dark gray
BK-100C-J Rated Voltage: 100V AC | Power Consumption: 10 W | Mass: 0.53 kg | Alarm Type: Type C | Color: Light gray
BK-100C-K Rated Voltage: 100V AC | Power Consumption: 10 W | Mass: 0.53 kg | Alarm Type: Type C | Color: Dark gray
BK-100D-J Rated Voltage: 100V AC | Power Consumption: 10 W | Mass: 0.53 kg | Alarm Type: Type D | Color: Light gray
BK-100D-K Rated Voltage: 100V AC | Power Consumption: 10 W | Mass: 0.53 kg | Alarm Type: Type D | Color: Dark gray
BK-100E-J Rated Voltage: 100V AC | Power Consumption: 10 W | Mass: 0.53 kg | Alarm Type: Type E | Color: Light gray
BK-100E-K Rated Voltage: 100V AC | Power Consumption: 10 W | Mass: 0.53 kg | Alarm Type: Type E | Color: Dark gray
BK-220A-J Rated Voltage: 220V AC | Power Consumption: 11 W | Mass: 0.53 kg | Alarm Type: Type A | Color: Light gray
BK-220A-K Rated Voltage: 220V AC | Power Consumption: 11 W | Mass: 0.53 kg | Alarm Type: Type A | Color: Dark gray
BK-220C-J Rated Voltage: 220V AC | Power Consumption: 11 W | Mass: 0.53 kg | Alarm Type: Type C | Color: Light gray
BK-220C-K Rated Voltage: 220V AC | Power Consumption: 11 W | Mass: 0.53 kg | Alarm Type: Type C | Color: Dark gray
BK-220D-J Rated Voltage: 220V AC | Power Consumption: 11 W | Mass: 0.53 kg | Alarm Type: Type D | Color: Light gray
BK-220D-K Rated Voltage: 220V AC | Power Consumption: 11 W | Mass: 0.53 kg | Alarm Type: Type D | Color: Dark gray
BK-220E-J Rated Voltage: 220V AC | Power Consumption: 11 W | Mass: 0.53 kg | Alarm Type: Type E | Color: Light gray
BK-220E-K Rated Voltage: 220V AC | Power Consumption: 11 W | Mass: 0.53 kg | Alarm Type: Type E | Color: Dark gray
BuzzersPATLITE
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE BK Audible Alarm for Panel Mounting, 120 mm Square

Brand PATLITE·Buzzers

Available part numbers (24)

BK-24A-J, BK-24A-K, BK-24C-J, BK-24C-K, BK-24D-J, BK-24D-K, BK-24E-J, BK-24E-K, BK-100A-J, BK-100A-K + 14 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BK-24A-JRated Voltage: 12-24V DC | Power Consumption: 12 W | Mass: 0.35 kg | Alarm Type: Type A | Color: Light gray
BK-24A-KRated Voltage: 12-24V DC | Power Consumption: 12 W | Mass: 0.35 kg | Alarm Type: Type A | Color: Dark gray
BK-24C-JRated Voltage: 12-24V DC | Power Consumption: 12 W | Mass: 0.35 kg | Alarm Type: Type C | Color: Light gray
BK-24C-KRated Voltage: 12-24V DC | Power Consumption: 12 W | Mass: 0.35 kg | Alarm Type: Type C | Color: Dark gray
BK-24D-JRated Voltage: 12-24V DC | Power Consumption: 12 W | Mass: 0.35 kg | Alarm Type: Type D | Color: Light gray
BK-24D-KRated Voltage: 12-24V DC | Power Consumption: 12 W | Mass: 0.35 kg | Alarm Type: Type D | Color: Dark gray
BK-24E-JRated Voltage: 12-24V DC | Power Consumption: 12 W | Mass: 0.35 kg | Alarm Type: Type E | Color: Light gray
BK-24E-KRated Voltage: 12-24V DC | Power Consumption: 12 W | Mass: 0.35 kg | Alarm Type: Type E | Color: Dark gray
BK-100A-JRated Voltage: 100V AC | Power Consumption: 10 W | Mass: 0.53 kg | Alarm Type: Type A | Color: Light gray
BK-100A-KRated Voltage: 100V AC | Power Consumption: 10 W | Mass: 0.53 kg | Alarm Type: Type A | Color: Dark gray
BK-100C-JRated Voltage: 100V AC | Power Consumption: 10 W | Mass: 0.53 kg | Alarm Type: Type C | Color: Light gray
BK-100C-KRated Voltage: 100V AC | Power Consumption: 10 W | Mass: 0.53 kg | Alarm Type: Type C | Color: Dark gray
BK-100D-JRated Voltage: 100V AC | Power Consumption: 10 W | Mass: 0.53 kg | Alarm Type: Type D | Color: Light gray
BK-100D-KRated Voltage: 100V AC | Power Consumption: 10 W | Mass: 0.53 kg | Alarm Type: Type D | Color: Dark gray
BK-100E-JRated Voltage: 100V AC | Power Consumption: 10 W | Mass: 0.53 kg | Alarm Type: Type E | Color: Light gray
BK-100E-KRated Voltage: 100V AC | Power Consumption: 10 W | Mass: 0.53 kg | Alarm Type: Type E | Color: Dark gray
BK-220A-JRated Voltage: 220V AC | Power Consumption: 11 W | Mass: 0.53 kg | Alarm Type: Type A | Color: Light gray
BK-220A-KRated Voltage: 220V AC | Power Consumption: 11 W | Mass: 0.53 kg | Alarm Type: Type A | Color: Dark gray
BK-220C-JRated Voltage: 220V AC | Power Consumption: 11 W | Mass: 0.53 kg | Alarm Type: Type C | Color: Light gray
BK-220C-KRated Voltage: 220V AC | Power Consumption: 11 W | Mass: 0.53 kg | Alarm Type: Type C | Color: Dark gray
BK-220D-JRated Voltage: 220V AC | Power Consumption: 11 W | Mass: 0.53 kg | Alarm Type: Type D | Color: Light gray
BK-220D-KRated Voltage: 220V AC | Power Consumption: 11 W | Mass: 0.53 kg | Alarm Type: Type D | Color: Dark gray
BK-220E-JRated Voltage: 220V AC | Power Consumption: 11 W | Mass: 0.53 kg | Alarm Type: Type E | Color: Light gray
BK-220E-KRated Voltage: 220V AC | Power Consumption: 11 W | Mass: 0.53 kg | Alarm Type: Type E | Color: Dark gray
