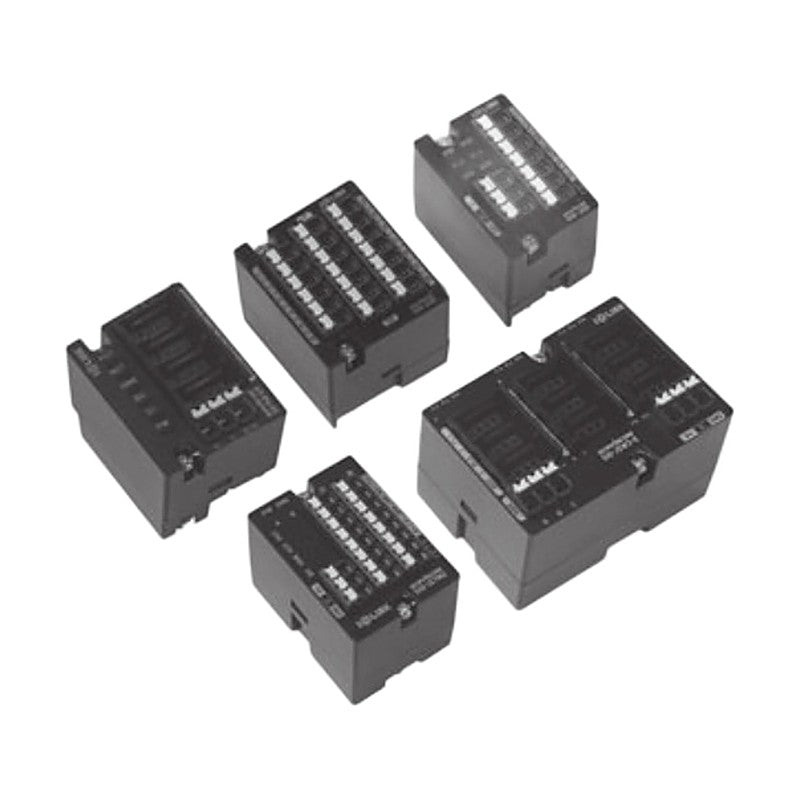

Samwon ACT SIO Servo Amplifier I/O Terminal Blocks, Push-in Type

Push-in terminal blocks that plug directly onto the servo amplifier MDR I/O connector, for wiring limit inputs and brake outputs without a separate cable.

Key features

No separate connection cable or terminal block needed - saves cost and space
Servo amplifier limit inputs and brake outputs wired easily in the field with push-in terminals
I/O status indication lamps for easy checking (no lamps on SIO-20P / SIO-26P / SIO-36P)
General-purpose 20P/26P/36P models connect sensor inputs, brake outputs, line driver and analog monitor signals
UL certified: SIO-J5G, SIO-J5W2, SIO-J5W3

Specifications

Rated voltage	24 V DC
Rated current	1 A
Indication	Power, I/O: LED (green); EM2, STOP: LED (red)
Insulation resistance	500 MOhm min. (500 V DC)
Dielectric strength	500 V AC for 1 min
Wire size	Solid 0.2-1.5 mm2, stranded 0.2-1.5 mm2 (AWG24-16)
Operating temperature	-10 to +50 C (no condensation)
Terminal pitch	3.5 mm push-in
Case	Polycarbonate
Terminal block	LCP

SIO-J5G		Servo: MITSUBISHI MR-J5-G/J4-B, J3-B \| Inputs: FLS/RLS/DOG/EM2 \| Output: MBR \| Servo side: MDR 20P male \| Terminals: 10-pole \| Size: 22.0 x 33.0 mm \| Certification: CE, UL
SIO-J5W2		Servo: MITSUBISHI MR-J5W2-G/J4W2-B, J3W-B \| Inputs: 2-axis FLS/RLS/DOG/EM2 \| Output: 2-axis MBR \| Servo side: MDR 26P male \| Terminals: 17-pole \| Size: 30.0 x 37.0 mm \| Certification: CE, UL
SIO-J5W3		Servo: MITSUBISHI MR-J5W3-G/J4W3-B \| Inputs: 3-axis FLS/RLS/DOG/EM2 \| Output: 3-axis MBR \| Servo side: MDR 26P male \| Terminals: 24-pole \| Size: 38.0 x 37.0 mm \| Certification: CE, UL
SIO-L7NH		Servo: LS Mecapion L7NH \| Inputs: POT/NOT/HOME/STOP \| Output: BRAKE \| Servo side: MDR 20P male \| Terminals: 10-pole \| Size: 22.0 x 33.0 mm \| Certification: CE
SIO-iX7M2		Servo: LS Mecapion iX7MA (2-axis) \| Inputs: 2-axis POT/NOT/HOME/EMG \| Output: 2-axis BRAKE \| Servo side: MDR 36P male \| Terminals: 19-pole \| Size: 30.0 x 43.0 mm \| Certification: CE
SIO-iX7M3		Servo: LS Mecapion iX7MA (3-axis) \| Inputs: 3-axis POT/NOT/HOME/EMG \| Output: 3-axis BRAKE \| Servo side: MDR 36P male \| Terminals: 27-pole \| Size: 38.0 x 43.0 mm \| Certification: CE
SIO-iX7M4		Servo: LS Mecapion iX7MA (4-axis) \| Inputs: 4-axis POT/NOT/HOME/EMG \| Output: 4-axis BRAKE \| Servo side: MDR 36P male \| Terminals: 35-pole \| Size: 48.0 x 43.0 mm \| Certification: CE
SIO-PYO		Servo: PANASONIC A6N/A6B, YASKAWA Sigma-7/Sigma-X, OMRON G5 \| Inputs: POT/NOT/HOME/DI \| Output: BRAKE \| Servo side: MDR 26P male \| Terminals: 10-pole + phase output connector 53014-0710 \| Size: 22.0 x 38.0 mm \| Certification: CE
SIO-PAB		Servo: PANASONIC A6N/A5N (RTEX), A6B (EtherCAT) \| Inputs: POT/NOT/HOME/DI \| Output: BRAKE \| Servo side: MDR 26P male \| Terminals: 10-pole + phase output connector 53014-0710 \| Size: 22.0 x 38.0 mm \| Certification: CE
SIO-20P		Servo: MITSUBISHI J5-G/J4-B, J3-B \| Terminals: 20-pole, no lamps \| Servo side: MDR 20P male \| Size: 30.0 x 33.0 mm \| Certification: CE
SIO-26P		Servo: MITSUBISHI J5W3-G/J4W3-B, J5W2-G/J4W2-B, J3W-B \| Terminals: 26-pole, no lamps \| Servo side: MDR 26P male \| Size: 35.0 x 37.0 mm \| Certification: CE
SIO-36P		Servo: LS Mecapion iX7MA \| Terminals: 36-pole, no lamps \| Servo side: MDR 36P male \| Size: 38.0 x 43.0 mm \| Certification: CE

Interface Terminal BlocksSamwon ACT

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SIO Servo Amplifier I/O Terminal Blocks, Push-in Type

Brand Samwon ACT·Interface Terminal Blocks

Available part numbers (12)

SIO-J5G, SIO-J5W2, SIO-J5W3, SIO-L7NH, SIO-iX7M2, SIO-iX7M3, SIO-iX7M4, SIO-PYO, SIO-PAB, SIO-20P + 2 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SIO-J5G	Servo: MITSUBISHI MR-J5-G/J4-B, J3-B \| Inputs: FLS/RLS/DOG/EM2 \| Output: MBR \| Servo side: MDR 20P male \| Terminals: 10-pole \| Size: 22.0 x 33.0 mm \| Certification: CE, UL
	SIO-J5W2	Servo: MITSUBISHI MR-J5W2-G/J4W2-B, J3W-B \| Inputs: 2-axis FLS/RLS/DOG/EM2 \| Output: 2-axis MBR \| Servo side: MDR 26P male \| Terminals: 17-pole \| Size: 30.0 x 37.0 mm \| Certification: CE, UL
	SIO-J5W3	Servo: MITSUBISHI MR-J5W3-G/J4W3-B \| Inputs: 3-axis FLS/RLS/DOG/EM2 \| Output: 3-axis MBR \| Servo side: MDR 26P male \| Terminals: 24-pole \| Size: 38.0 x 37.0 mm \| Certification: CE, UL
	SIO-L7NH	Servo: LS Mecapion L7NH \| Inputs: POT/NOT/HOME/STOP \| Output: BRAKE \| Servo side: MDR 20P male \| Terminals: 10-pole \| Size: 22.0 x 33.0 mm \| Certification: CE
	SIO-iX7M2	Servo: LS Mecapion iX7MA (2-axis) \| Inputs: 2-axis POT/NOT/HOME/EMG \| Output: 2-axis BRAKE \| Servo side: MDR 36P male \| Terminals: 19-pole \| Size: 30.0 x 43.0 mm \| Certification: CE
	SIO-iX7M3	Servo: LS Mecapion iX7MA (3-axis) \| Inputs: 3-axis POT/NOT/HOME/EMG \| Output: 3-axis BRAKE \| Servo side: MDR 36P male \| Terminals: 27-pole \| Size: 38.0 x 43.0 mm \| Certification: CE
	SIO-iX7M4	Servo: LS Mecapion iX7MA (4-axis) \| Inputs: 4-axis POT/NOT/HOME/EMG \| Output: 4-axis BRAKE \| Servo side: MDR 36P male \| Terminals: 35-pole \| Size: 48.0 x 43.0 mm \| Certification: CE
	SIO-PYO	Servo: PANASONIC A6N/A6B, YASKAWA Sigma-7/Sigma-X, OMRON G5 \| Inputs: POT/NOT/HOME/DI \| Output: BRAKE \| Servo side: MDR 26P male \| Terminals: 10-pole + phase output connector 53014-0710 \| Size: 22.0 x 38.0 mm \| Certification: CE
	SIO-PAB	Servo: PANASONIC A6N/A5N (RTEX), A6B (EtherCAT) \| Inputs: POT/NOT/HOME/DI \| Output: BRAKE \| Servo side: MDR 26P male \| Terminals: 10-pole + phase output connector 53014-0710 \| Size: 22.0 x 38.0 mm \| Certification: CE
	SIO-20P	Servo: MITSUBISHI J5-G/J4-B, J3-B \| Terminals: 20-pole, no lamps \| Servo side: MDR 20P male \| Size: 30.0 x 33.0 mm \| Certification: CE
	SIO-26P	Servo: MITSUBISHI J5W3-G/J4W3-B, J5W2-G/J4W2-B, J3W-B \| Terminals: 26-pole, no lamps \| Servo side: MDR 26P male \| Size: 35.0 x 37.0 mm \| Certification: CE
	SIO-36P	Servo: LS Mecapion iX7MA \| Terminals: 36-pole, no lamps \| Servo side: MDR 36P male \| Size: 38.0 x 43.0 mm \| Certification: CE
