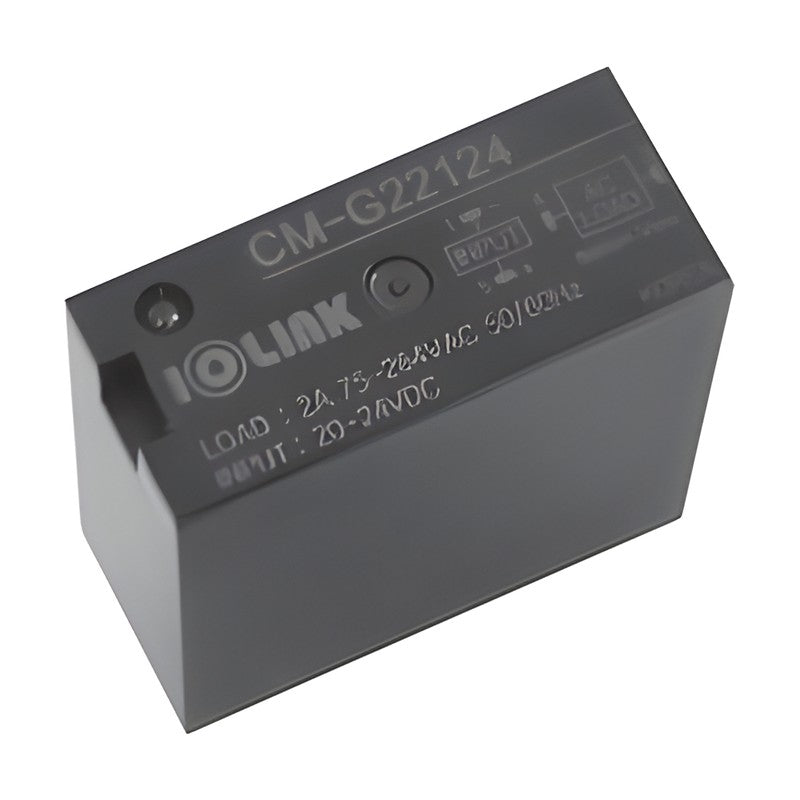

Samwon ACT CM-G22124 Solid State Relay, AC Load 2 A

Plug-in zero-cross solid state relay module using PANASONIC AQG22124 for AC loads up to 2 A, for use in R4W/R16W hybrid sockets.

Key features

Contactless SSR without arcing, chattering or bounce
Zero-cross turn-on suppresses inrush current, suited to inductive loads
Uses PANASONIC AQG22124 (made in Japan)

Specifications

Input Voltage	19.2-28.8 V DC
Load Voltage	75-264 V AC, 45-65 Hz
Max. Load Current	2 A AC (Ta 25 C max.)
Non-Repetitive Surge Current	30 A (one cycle at 60 Hz)
Breakdown Voltage	3,000 Vrms input-output, 1 min
Operate / Release Time	1/2 cycle + 1 ms max.
Ambient Temperature	-30 to +80 C (no condensation)
Operational Method	Zero-cross (turn-on and turn-off)
Dimensions	29 x 13 x 29 mm max.

CM-G22124

Type: SSR, AC load

Solid State RelaysSamwon ACT

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing
