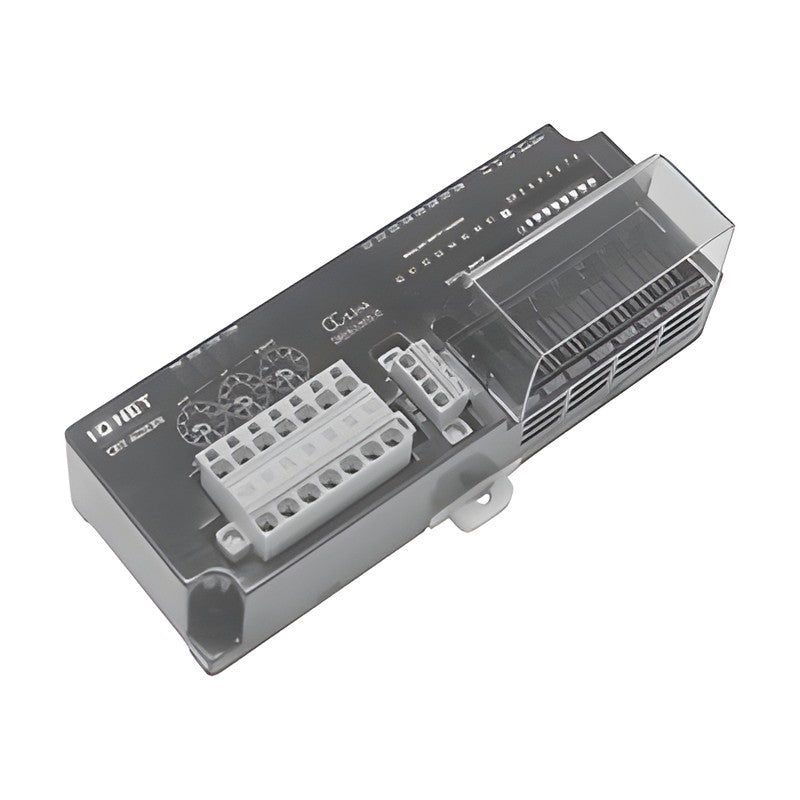

Samwon ACT CRT-ADIE8N CC-Link Remote Analog + Digital Input Terminal

CC-Link remote terminal combining 8 analog inputs and 8 NPN digital inputs on 5-pin e-con connectors.

Key features

CC-Link Ver.1.1 remote terminal: up to 10 Mbps, 100 m, up to 64 stations
Analog input range indicator LEDs
Averaging functions (count, time, moving average). 5-wire e-con connectors carry analog and digital sensor signals together

Specifications

Digital Inputs	8, NPN (+COM)
Analog Inputs	8, -10 to 10 V / 0-5 V / 1-5 V, 0-20 mA / 4-20 mA
Conversion Speed	Sampling 800 us/channel, averaging 200 us/channel
Accuracy	Voltage +/-0.3%, current +/-0.4% (0-55 C)
CC-Link Station Type	Remote device station, 2 stations occupied
Unit Power	20.4-26.4 V DC
I/O Connector	e-con EC-5SP4 5P female x 8
Dimensions (W x D)	135.0 x 50.0 mm
Mounting	Screw / DIN rail (channel)
Approvals	CE, cULus

CRT-ADIE8N

Points: 8 analog + 8 digital

Remote I/O TerminalsSamwon ACT

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT CRT-ADIE8N CC-Link Remote Analog + Digital Input Terminal

Brand Samwon ACT·Remote I/O Terminals

Available part numbers (1)

CRT-ADIE8N

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
