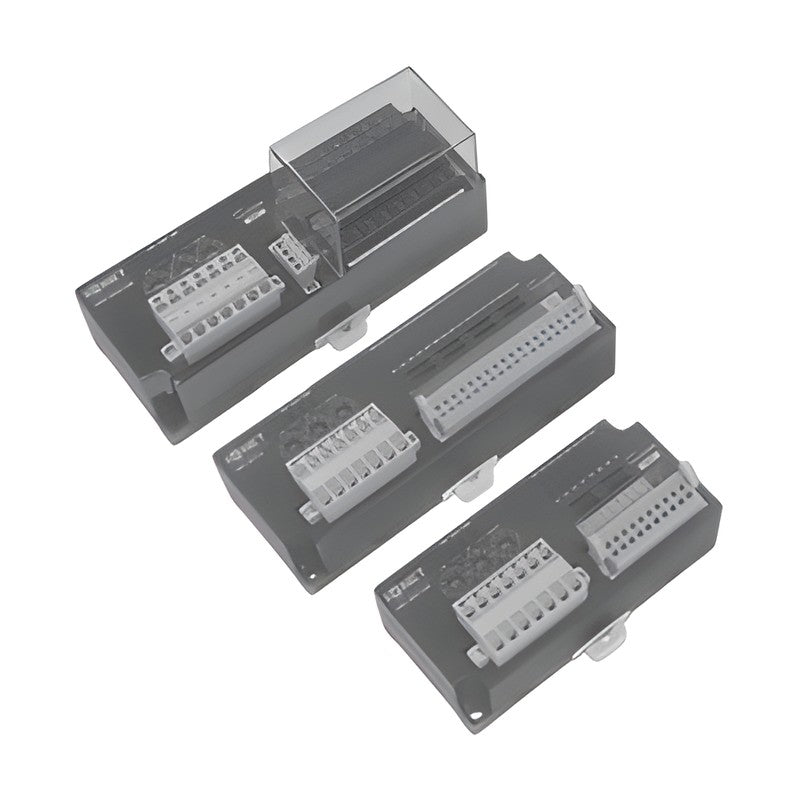

Samwon ACT CRT Series CC-Link Remote Digital I/O Terminals

Samwon ACT CRT Series CC-Link Remote Digital I/O Terminals

CC-Link Ver.1.1 remote digital I/O terminals with 16 or 32 points, available with push-in spring terminal blocks or e-con connectors.

Key features

  • CC-Link remote terminal: up to 10 Mbps, 100 m transmission, up to 64 stations
  • Push-type screwless terminals or standard e-con connectors speed up wiring
  • Detachable load-side terminal block for maintenance without rewiring
  • EMC certified to EN IEC 61000-6-2 / 61000-6-4; UL 61010-1 and 61010-2-201 safety
  • Passed CC-Link Partner Association conformance test

Specifications

Network CC-Link Ver.1.10, up to 10 Mbps, 100 m, max. 64 stations
Unit Power Supply 24 V DC +/-10%
Isolation Photocoupler
Insulation Resistance 10 Mohm
Dielectric Strength 500 V AC
Protection IP20
Case Polycarbonate
Ambient Temperature -10 to +50 C, 35-85% RH
Mounting Screw / DIN rail (channel)
Approvals CE, cULus
CRT-DIT16 Points: 16 | I/O: Input | Common: NPN/PNP | I/O Terminal: Push-in spring 3.5 mm pitch 20p | Dimensions (W x D): 105.0 x 50.0 mm | Unit Current: 42 mA
CRT-DOT16N Points: 16 | I/O: Output | Common: NPN | I/O Terminal: Push-in spring 3.5 mm pitch 20p | Dimensions (W x D): 105.0 x 50.0 mm | Unit Current: 60 mA
CRT-DHT16N Points: 16 | I/O: Input/Output | Common: NPN | I/O Terminal: Push-in spring 3.5 mm pitch 20p | Dimensions (W x D): 105.0 x 50.0 mm | Unit Current: 60 mA
CRT-DIT32 Points: 32 | I/O: Input | Common: NPN/PNP | I/O Terminal: Push-in spring 3.5 mm pitch 36p | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 50 mA
CRT-DOT32N Points: 32 | I/O: Output | Common: NPN | I/O Terminal: Push-in spring 3.5 mm pitch 36p | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 80 mA
CRT-DHT32N Points: 32 | I/O: Input/Output | Common: NPN | I/O Terminal: Push-in spring 3.5 mm pitch 36p | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 70 mA
CRT-DOT32P Points: 32 | I/O: Output | Common: PNP | I/O Terminal: Push-in spring 3.5 mm pitch 36p | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 80 mA
CRT-DHT32P Points: 32 | I/O: Input/Output | Common: PNP | I/O Terminal: Push-in spring 3.5 mm pitch 36p | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 70 mA
CRT-DIE16N Points: 16 | I/O: Input | Common: NPN | I/O Terminal: e-CON EC-3SP4 3P female x 16 | Dimensions (W x D): 140.0 x 50.0 mm | Unit Current: 80 mA
CRT-DOE16N Points: 16 | I/O: Output | Common: NPN | I/O Terminal: e-CON EC-3SP4 3P female x 16 | Dimensions (W x D): 140.0 x 50.0 mm | Unit Current: 50 mA
CRT-DHE16N Points: 16 | I/O: Input/Output | Common: NPN | I/O Terminal: e-CON EC-3SP4 3P female x 16 | Dimensions (W x D): 140.0 x 50.0 mm | Unit Current: 50 mA
Remote I/O TerminalsSamwon ACT
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT CRT Series CC-Link Remote Digital I/O Terminals

Brand Samwon ACT·Remote I/O Terminals

Available part numbers (11)

CRT-DIT16, CRT-DOT16N, CRT-DHT16N, CRT-DIT32, CRT-DOT32N, CRT-DHT32N, CRT-DOT32P, CRT-DHT32P, CRT-DIE16N, CRT-DOE16N + 1 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CRT-DIT16Points: 16 | I/O: Input | Common: NPN/PNP | I/O Terminal: Push-in spring 3.5 mm pitch 20p | Dimensions (W x D): 105.0 x 50.0 mm | Unit Current: 42 mA
CRT-DOT16NPoints: 16 | I/O: Output | Common: NPN | I/O Terminal: Push-in spring 3.5 mm pitch 20p | Dimensions (W x D): 105.0 x 50.0 mm | Unit Current: 60 mA
CRT-DHT16NPoints: 16 | I/O: Input/Output | Common: NPN | I/O Terminal: Push-in spring 3.5 mm pitch 20p | Dimensions (W x D): 105.0 x 50.0 mm | Unit Current: 60 mA
CRT-DIT32Points: 32 | I/O: Input | Common: NPN/PNP | I/O Terminal: Push-in spring 3.5 mm pitch 36p | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 50 mA
CRT-DOT32NPoints: 32 | I/O: Output | Common: NPN | I/O Terminal: Push-in spring 3.5 mm pitch 36p | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 80 mA
CRT-DHT32NPoints: 32 | I/O: Input/Output | Common: NPN | I/O Terminal: Push-in spring 3.5 mm pitch 36p | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 70 mA
CRT-DOT32PPoints: 32 | I/O: Output | Common: PNP | I/O Terminal: Push-in spring 3.5 mm pitch 36p | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 80 mA
CRT-DHT32PPoints: 32 | I/O: Input/Output | Common: PNP | I/O Terminal: Push-in spring 3.5 mm pitch 36p | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 70 mA
CRT-DIE16NPoints: 16 | I/O: Input | Common: NPN | I/O Terminal: e-CON EC-3SP4 3P female x 16 | Dimensions (W x D): 140.0 x 50.0 mm | Unit Current: 80 mA
CRT-DOE16NPoints: 16 | I/O: Output | Common: NPN | I/O Terminal: e-CON EC-3SP4 3P female x 16 | Dimensions (W x D): 140.0 x 50.0 mm | Unit Current: 50 mA
CRT-DHE16NPoints: 16 | I/O: Input/Output | Common: NPN | I/O Terminal: e-CON EC-3SP4 3P female x 16 | Dimensions (W x D): 140.0 x 50.0 mm | Unit Current: 50 mA
