Samwon ACT FTB Series Push-In PLC Front Terminals for F-40 (FCN) Connectors

Samwon ACT FTB Series Push-In PLC Front Terminals for F-40 (FCN) Connectors

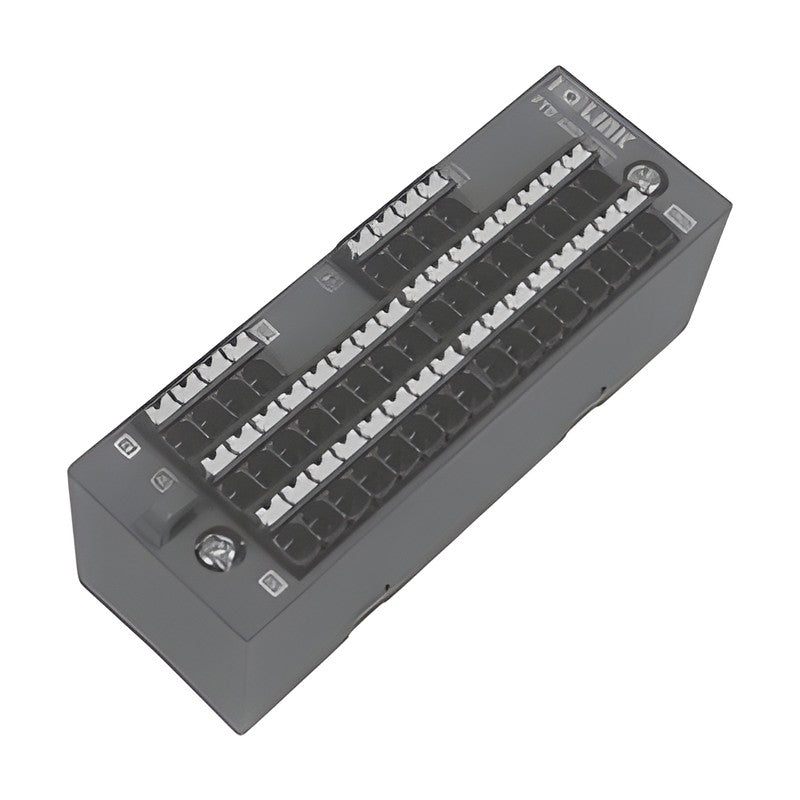

Push-in front terminals that plug directly onto PLC I/O cards with 40-pin FCN connectors so field wires can be connected without a separate terminal block.

Key features

  • Converts FCN-connector PLC cards to direct wiring
  • Push-in terminals for easy wiring and vibration resistance
  • No separate terminal block needed; ideal for space-limited panels

Specifications

Rated Voltage 24 V DC
Rated Current 1 A
Insulation Resistance 100 MOhm min. (500 V DC)
Withstand Voltage 500 V AC, 1 min
Applicable Wire Solid 0.2-1.5 mm2; Stranded UL 24-16 AWG / IEC 1.5 mm2
Operating Temperature -10 to +50 C (no condensation)
Material Case: PBT; PCB: Epoxy 1.6 t; Terminal: LCP; Conductor: Cu alloy
Connector Pins 40
Applicable Tool Flat screwdriver 2.5 x 0.35 mm
FTB-40Q PLC: Mitsubishi Q | Cards: QX41, QX41-S1, QX41-S2, QX71, QY41P, QY41H, QY71, QD62, QD62E, QD62D, QD63P6, QD64D2, QD75P1(N), QD75D1(N), QD75P2(N), QD75D2(N), QD70P4
FTB-401 PLC: Mitsubishi iQ-R / LS Electric XGT | Cards: RX41C4, RX41C6HS, RX61C6HS, RX71C4, RY41NT2P, RY41PT1P, RY41NT2H, RY41PT2H, RD62P2, RD62D2, RD62P2E, RD75P2, XGI-D24A, XGI-D24B, XGQ-TR4A, XGQ-TR4B, XGF-PD1H, XGF-PO1H, XGF-PD2H, XGF-PO2H
FTB-403 PLC: LS Electric XGT | Cards: XGF-HO2A, XGF-HD2A, XGF-PD1A, XGF-PO1A
Connector Terminal BlocksSamwon ACT
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT FTB Series Push-In PLC Front Terminals for F-40 (FCN) Connectors

Brand Samwon ACT·Connector Terminal Blocks

Available part numbers (3)

FTB-40Q, FTB-401, FTB-403

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FTB-40QPLC: Mitsubishi Q | Cards: QX41, QX41-S1, QX41-S2, QX71, QY41P, QY41H, QY71, QD62, QD62E, QD62D, QD63P6, QD64D2, QD75P1(N), QD75D1(N), QD75P2(N), QD75D2(N), QD70P4
FTB-401PLC: Mitsubishi iQ-R / LS Electric XGT | Cards: RX41C4, RX41C6HS, RX61C6HS, RX71C4, RY41NT2P, RY41PT1P, RY41NT2H, RY41PT2H, RD62P2, RD62D2, RD62P2E, RD75P2, XGI-D24A, XGI-D24B, XGQ-TR4A, XGQ-TR4B, XGF-PD1H, XGF-PO1H, XGF-PD2H, XGF-PO2H
FTB-403PLC: LS Electric XGT | Cards: XGF-HO2A, XGF-HD2A, XGF-PD1A, XGF-PO1A
