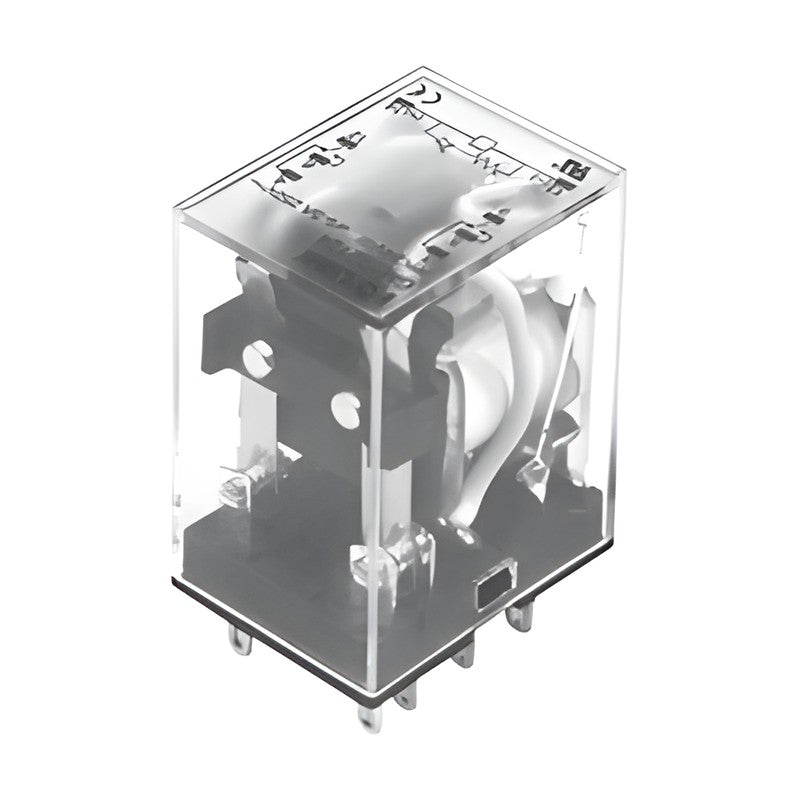

Samwon ACT GMY DPDT MY-Type General Purpose Relay, 5 A

Samwon ACT GMY DPDT MY-Type General Purpose Relay, 5 A

Plug-in MY-type general purpose relay with two changeover (DPDT) contacts rated 5 A, for sequence control and power switching.

Key features

  • General-purpose MY-type relay for sequence control and power switching. 2-pole contacts switch 5 A resistive loads
  • High reliability with 2,000 V AC coil-contact dielectric strength
  • LED coil indicator
  • UL and CE approved

Specifications

Contact Resistance 50 mohm max.
Operate / Release Time 20 ms max.
Electrical Life 2 x 10^5 operations min. (1,800 operations/h)
Mechanical Life 1 x 10^7 operations min. (18,000 operations/h)
Insulation Resistance 500 Mohm min. (500 V DC)
Dielectric Strength 2,000 V AC 1 min (contact-coil), 1,000 V AC 1 min (between contacts)
Terminal Plug-in
Contact Material Ag alloy
Approvals UL, CE
Contact Form DPDT
Rated Load (Resistive) 5 A 250 V AC, 5 A 30 V DC
Motor Load (AC-15) 1/3 HP 240 V AC, 1/6 HP 240 V AC
Samwon ACT GMY DPDT MY-Type General Purpose Relay, 5 A - reference 2
GMY22124 Coil Voltage: 24 V DC | Coil Current: 36.9 mA | Power: Approx. 0.9 W
GMY211Y0 Coil Voltage: 200/220 V AC | Coil Current: 6.8 mA (50 Hz) / 5.8 mA (60 Hz) | Power: Approx. 1.2 VA
GMY211X0 Coil Voltage: 100/110 V AC | Coil Current: 12.9 mA (50 Hz) / 11.0 mA (60 Hz) | Power: Approx. 1.2 VA
General Purpose RelaysSamwon ACT
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT GMY DPDT MY-Type General Purpose Relay, 5 A

Brand Samwon ACT·General Purpose Relays

Available part numbers (3)

GMY22124, GMY211Y0, GMY211X0

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Samwon ACT GMY DPDT MY-Type General Purpose Relay, 5 A - reference 2
0 selected
RFQ List (0)
Product codeSpec
GMY22124Coil Voltage: 24 V DC | Coil Current: 36.9 mA | Power: Approx. 0.9 W
GMY211Y0Coil Voltage: 200/220 V AC | Coil Current: 6.8 mA (50 Hz) / 5.8 mA (60 Hz) | Power: Approx. 1.2 VA
GMY211X0Coil Voltage: 100/110 V AC | Coil Current: 12.9 mA (50 Hz) / 11.0 mA (60 Hz) | Power: Approx. 1.2 VA
