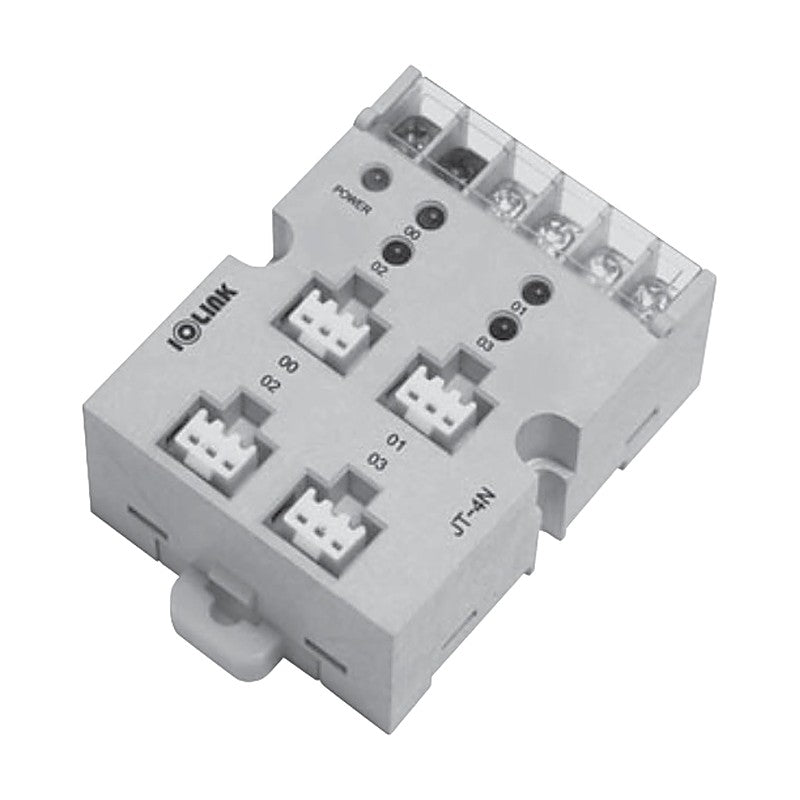

Samwon ACT JT-4N(P) / JT-8N(P) JST SM Connector Breakout Units

Samwon ACT JT-4N(P) / JT-8N(P) JST SM Connector Breakout Units

Low-cost 4- and 8-point breakout units with JST SM connectors for wiring sensors, solenoids and switches with the power side bussed as a common.

Key features

  • Uses widely available JST SM connectors for sensors, solenoids and switches
  • Input side wired to a terminal block with the power side bussed as common
  • Channel mounting and built-in signal LEDs for easy I/O checks
  • Compact enough for semiconductor, LCD and PDP equipment and clean rooms
  • Mating connector SMR-03V-N and contact SYM-001T-P0.6 (AWG 22-28) sold separately

Specifications

Rated Voltage 12-24 V DC
Rated Current 2 A
Insulation Resistance 100 MOhm min. (500 V DC)
Withstand Voltage 500 V AC, 1 min
Applicable Wire (Terminal) AWG 22-16 (1.5 mm2 max.)
Screw Torque 0.8 N.m (8 kgf.cm)
Operating Temperature -10 to +50 C (no condensation)
Material Connector: PA6; Case: Modified PPO; PCB: Epoxy 1.6 t
Mounting Screw / DIN rail (channel)
Samwon ACT JT-4N(P) / JT-8N(P) JST SM Connector Breakout Units - reference 2
JT-4N Points: 4 | Common: NPN (+COM) | Connector: SMP-03V with contact x 4 | Dimensions (W x D): 45.0 x 59.0 mm
JT-4P Points: 4 | Common: PNP (-COM) | Connector: SMP-03V with contact x 4 | Dimensions (W x D): 45.0 x 59.0 mm
JT-8N Points: 8 | Common: NPN (+COM) | Connector: SMP-03V with contact x 8 | Dimensions (W x D): 73.0 x 59.0 mm
JT-8P Points: 8 | Common: PNP (-COM) | Connector: SMP-03V with contact x 8 | Dimensions (W x D): 73.0 x 59.0 mm
Interface Terminal BlocksSamwon ACT
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT JT-4N(P) / JT-8N(P) JST SM Connector Breakout Units

Brand Samwon ACT·Interface Terminal Blocks

Available part numbers (4)

JT-4N, JT-4P, JT-8N, JT-8P

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Samwon ACT JT-4N(P) / JT-8N(P) JST SM Connector Breakout Units - reference 2
0 selected
RFQ List (0)
Product codeSpec
JT-4NPoints: 4 | Common: NPN (+COM) | Connector: SMP-03V with contact x 4 | Dimensions (W x D): 45.0 x 59.0 mm
JT-4PPoints: 4 | Common: PNP (-COM) | Connector: SMP-03V with contact x 4 | Dimensions (W x D): 45.0 x 59.0 mm
JT-8NPoints: 8 | Common: NPN (+COM) | Connector: SMP-03V with contact x 8 | Dimensions (W x D): 73.0 x 59.0 mm
JT-8PPoints: 8 | Common: PNP (-COM) | Connector: SMP-03V with contact x 8 | Dimensions (W x D): 73.0 x 59.0 mm
