Samwon ACT MC-AD Series 5-Pin e-con Digital/Analog I/O Breakout Terminals

Samwon ACT MC-AD Series 5-Pin e-con Digital/Analog I/O Breakout Terminals

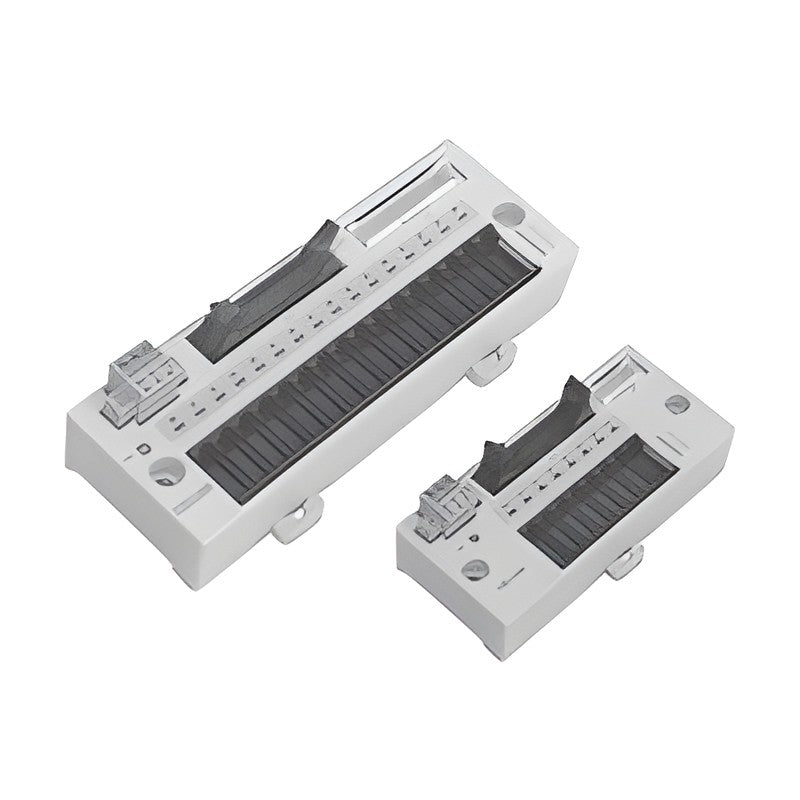

8- or 16-point breakout terminals with 5-pin e-con sockets that combine digital and analog sensor signals and route them to separate digital and analog connectors. 5-wire e-con breakout for sensors with both digital and analog signals.

Key features

  • Separate digital and analog connectors for easy connection to upper modules
  • Digital signal operation indicator LEDs
  • Case construction mounts by screws or DIN rail
  • Suited to compact control panels, semiconductor and clean-room equipment

Specifications

Rated Voltage 12-30 V DC
Rated Current 5 A (total), 1 A (per point)
Insulation Resistance 100 MOhm min. (500 V DC)
Withstand Voltage 500 V AC, 1 min
Applicable Wire (Terminal) Solid 0.5-1.5 mm2; Stranded UL 16-22 AWG / IEC 1.5 mm2
Applicable Wire (e-con) 26-20 AWG
Operating Temperature -10 to +50 C (no condensation)
Digital I/O Connector HIF3BA-20PA-2.54DSA / XG4A-2031
Mounting Screw / DIN rail (channel)
MC-AD08NL-5 Digital/analog points: 8 / 8 | Common: NPN (+COM) | Analog connector: 5016451820 | e-con: EC-5SP4 x 2 | Dimensions (W x D): 105.0 x 48.0 mm
MC-AD08PL-5 Digital/analog points: 8 / 8 | Common: PNP (-COM) | Analog connector: 5016451820 | e-con: EC-5SP4 x 2 | Dimensions (W x D): 105.0 x 48.0 mm
MC-AD16NL-5 Digital/analog points: 16 / 16 | Common: NPN (+COM) | Analog connector: 5016453420 | e-con: EC-5SP4 x 4 | Dimensions (W x D): 133.0 x 48.0 mm
MC-AD16PL-5 Digital/analog points: 16 / 16 | Common: PNP (-COM) | Analog connector: 5016453420 | e-con: EC-5SP4 x 4 | Dimensions (W x D): 133.0 x 48.0 mm
