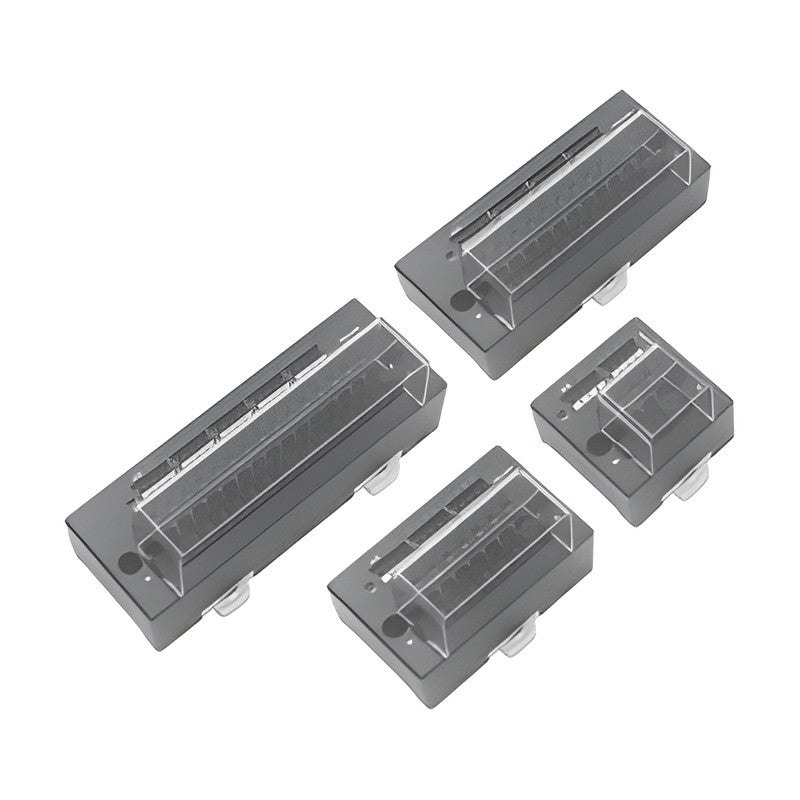

Samwon ACT MC-E Series e-con Interface Breakout Units with Push-In Terminals

Samwon ACT MC-E Series e-con Interface Breakout Units with Push-In Terminals

Interface breakout units that convert 4/8/12/16 I/O signals wired on push-in screwless terminals to 3-pin e-con connectors.

Key features

  • Push-in screwless pluggable terminal block for reliable wiring under vibration. e-con connectors are wired without stripping and lock with a lever. 2- and 3-wire sensors can be connected without a separate power supply
  • Case construction mounts by screws or DIN rail
  • Optional dust covers T04-W to T16-W (see MC-T series)

Specifications

Rated Voltage 12-24 V DC
Rated Current 1 A
Insulation Resistance 100 MOhm min. (500 V DC)
Withstand Voltage 500 V AC, 1 min
Applicable Wire (Terminal) AWG 24-16
Applicable Wire (e-con) AWG 28-20
Operating Temperature -10 to +50 C (no condensation)
Material e-con: PA66; Case: Polycarbonate; Terminal block: LCP; Conductor: Cu alloy; PCB: Epoxy 1.6 t
Mounting Screw / DIN rail (channel)
MC-E04NL-3 Points: 4 | Common: NPN (+COM) | I/O terminal: 8-pole push-in | e-con: 3P female x 4 | Dimensions (W x D): 49.0 x 48.0 mm
MC-E04PL-3 Points: 4 | Common: PNP (-COM) | I/O terminal: 8-pole push-in | e-con: 3P female x 4 | Dimensions (W x D): 49.0 x 48.0 mm
MC-E08NL-3 Points: 8 | Common: NPN (+COM) | I/O terminal: 12-pole push-in | e-con: 3P female x 8 | Dimensions (W x D): 77.0 x 48.0 mm
MC-E08PL-3 Points: 8 | Common: PNP (-COM) | I/O terminal: 12-pole push-in | e-con: 3P female x 8 | Dimensions (W x D): 77.0 x 48.0 mm
MC-E12NL-3 Points: 12 | Common: NPN (+COM) | I/O terminal: 16-pole push-in | e-con: 3P female x 12 | Dimensions (W x D): 105.0 x 48.0 mm
MC-E12PL-3 Points: 12 | Common: PNP (-COM) | I/O terminal: 16-pole push-in | e-con: 3P female x 12 | Dimensions (W x D): 105.0 x 48.0 mm
MC-E16NL-3 Points: 16 | Common: NPN (+COM) | I/O terminal: 20-pole push-in | e-con: 3P female x 16 | Dimensions (W x D): 133.0 x 48.0 mm
MC-E16PL-3 Points: 16 | Common: PNP (-COM) | I/O terminal: 20-pole push-in | e-con: 3P female x 16 | Dimensions (W x D): 133.0 x 48.0 mm
