Samwon ACT MC-T Series e-con Interface Breakout Units with Terminal Block

Samwon ACT MC-T Series e-con Interface Breakout Units with Terminal Block

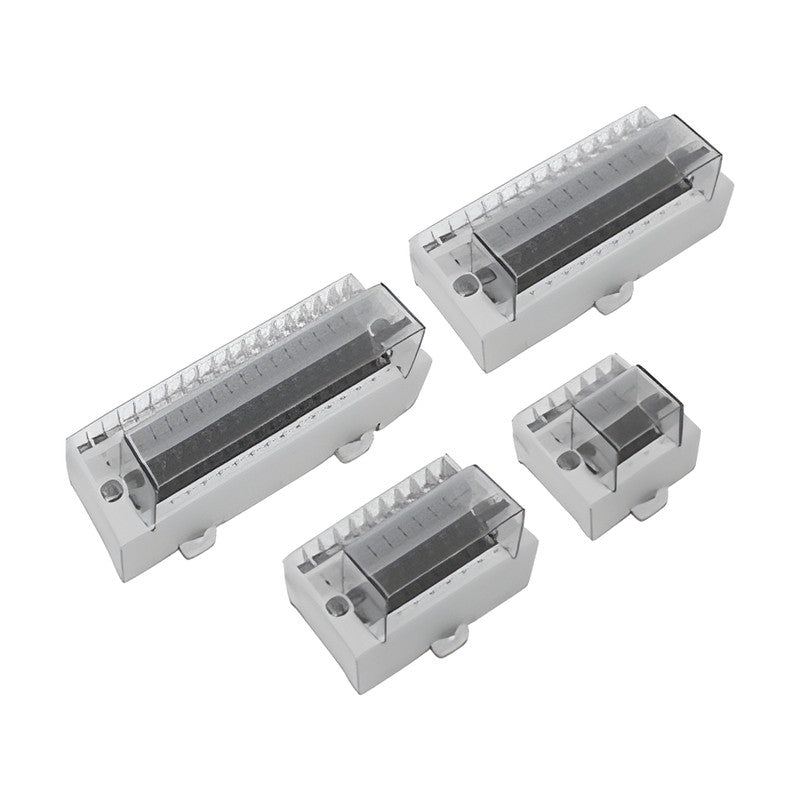

7.0 mm pitch interface breakout units that convert 4/8/12/16 terminal-block-wired I/O signals to 3-pin e-con connectors. 7.0 mm pitch screw terminal block input with 3-pin e-con outputs. e-con connectors are wired without stripping (AWG 26-20) and lock with a lever. 2- and 3-wire sensors can be connected without a separate power supply.

Key features

  • Versions with LED indicators (NL/PL) and non-polar versions without indicators (D)
  • Optional dust covers T04-W to T16-W

Specifications

Rated Voltage 12-24 V DC
Rated Current 1 A
Insulation Resistance 100 MOhm min. (500 V DC)
Withstand Voltage 500 V AC, 1 min
Applicable Wire (Terminal) AWG 22-16 (1.5 mm2 max.)
Applicable Wire (e-con) AWG 26-20
Screw Torque 0.8 N.m (8 kgf.cm)
Operating Temperature -10 to +50 C
Material e-con: PA66; Case: Modified PPO; PCB: Epoxy 1.6 t
Mounting Screw / DIN rail (channel)
MC-T04NL-3 Points: 4 | Common: NPN (+COM) | Indicator: LED | I/O terminal: 6-pole terminal block | e-con: 3P female x 4 | Dimensions (W x D): 49.0 x 48.0 mm
MC-T04PL-3 Points: 4 | Common: PNP (-COM) | Indicator: LED | I/O terminal: 6-pole terminal block | e-con: 3P female x 4 | Dimensions (W x D): 49.0 x 48.0 mm
MC-T04D-3 Points: 4 | Common: Non-polar | Indicator: none | I/O terminal: 6-pole terminal block | e-con: 3P female x 4 | Dimensions (W x D): 49.0 x 48.0 mm
MC-T08NL-3 Points: 8 | Common: NPN (+COM) | Indicator: LED | I/O terminal: 10-pole terminal block | e-con: 3P female x 8 | Dimensions (W x D): 77.0 x 48.0 mm
MC-T08PL-3 Points: 8 | Common: PNP (-COM) | Indicator: LED | I/O terminal: 10-pole terminal block | e-con: 3P female x 8 | Dimensions (W x D): 77.0 x 48.0 mm
MC-T08D-3 Points: 8 | Common: Non-polar | Indicator: none | I/O terminal: 10-pole terminal block | e-con: 3P female x 8 | Dimensions (W x D): 77.0 x 48.0 mm
MC-T12NL-3 Points: 12 | Common: NPN (+COM) | Indicator: LED | I/O terminal: 14-pole terminal block | e-con: 3P female x 12 | Dimensions (W x D): 105.0 x 48.0 mm
MC-T12PL-3 Points: 12 | Common: PNP (-COM) | Indicator: LED | I/O terminal: 14-pole terminal block | e-con: 3P female x 12 | Dimensions (W x D): 105.0 x 48.0 mm
MC-T12D-3 Points: 12 | Common: Non-polar | Indicator: none | I/O terminal: 14-pole terminal block | e-con: 3P female x 12 | Dimensions (W x D): 105.0 x 48.0 mm
MC-T16NL-3 Points: 16 | Common: NPN (+COM) | Indicator: LED | I/O terminal: 18-pole terminal block | e-con: 3P female x 16 | Dimensions (W x D): 133.0 x 48.0 mm
MC-T16PL-3 Points: 16 | Common: PNP (-COM) | Indicator: LED | I/O terminal: 18-pole terminal block | e-con: 3P female x 16 | Dimensions (W x D): 133.0 x 48.0 mm
MC-T16D-3 Points: 16 | Common: Non-polar | Indicator: none | I/O terminal: 18-pole terminal block | e-con: 3P female x 16 | Dimensions (W x D): 133.0 x 48.0 mm
T04-W Type: Dust cover, sold separately | Length A: 29.0 +/-0.5 mm | Fits: MC-T04 / MC-E04 units
T08-W Type: Dust cover, sold separately | Length A: 55.5 +/-0.5 mm | Fits: MC-T08 / MC-E08 units
T12-W Type: Dust cover, sold separately | Length A: 82.0 +/-0.5 mm | Fits: MC-T12 / MC-E12 units
T16-W Type: Dust cover, sold separately | Length A: 108.0 +/-0.5 mm | Fits: MC-T16 / MC-E16 units
