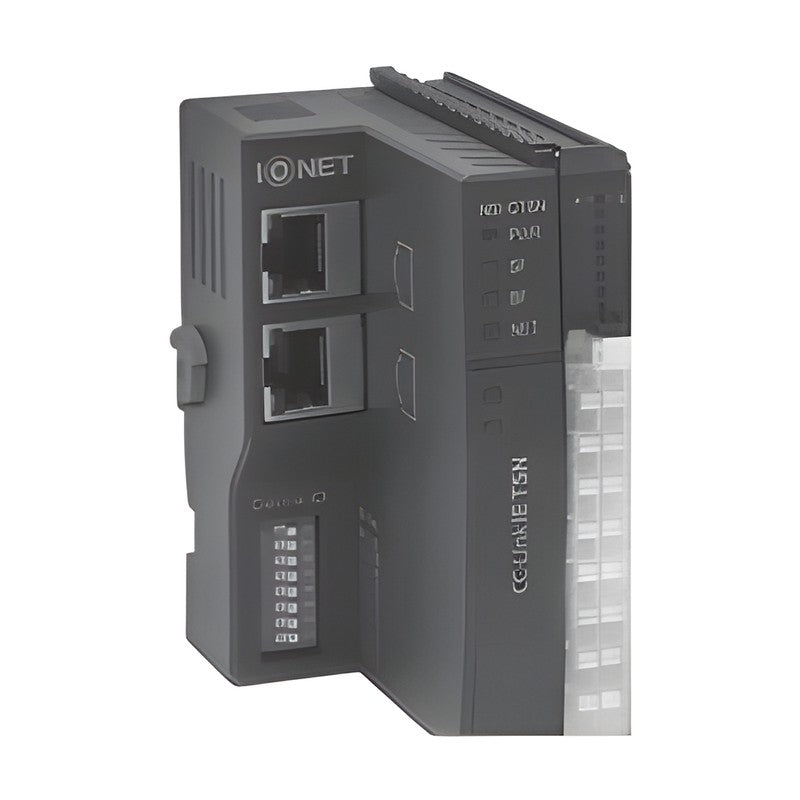

Samwon ACT NSI-CTSN CC-Link IE TSN Coupler for NSI Distributed I/O System

CC-Link IE TSN (Class B) coupler of the NSI distributed I/O system that connects up to 32 NSI expansion I/O modules. 2 x RJ45 ports with switch function.

Key features

CC-Link IE TSN (Class B) protocol, 1 Gbps / 100 Mbps
Connects up to 32 expansion modules
Communication parameters set by DIP switch
Over-current, reverse-connection and surge protection on power input
Listed as an upcoming release in the catalog

Specifications

Operating Environment	-20 to 60 C, 5-90% RH (no condensation)
System Power Diagnostics	Supported
Mounting	DIN rail
Communication Connector	RJ45 x 2 (switch function)
Rated Voltage	24 V DC
Field Power Supply	24 V DC, output current 10 A max.
Backplane Bus Current	2 A max.
Protocol	CC-Link IE TSN (Class B)
Max. Stations	254 (depends on master)
Max. Distance Between Nodes	Twisted pair 100 m
Indicators	PWR green, BF / SF / NET red
Dimensions (L x W x H)	50 x 103 x 82 mm

NSI-CTSN

Network: CC-Link IE TSN | Status: Coming soon

Distributed I/O ModulesSamwon ACT

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT NSI-CTSN CC-Link IE TSN Coupler for NSI Distributed I/O System

Brand Samwon ACT·Distributed I/O Modules

Available part numbers (1)

NSI-CTSN
