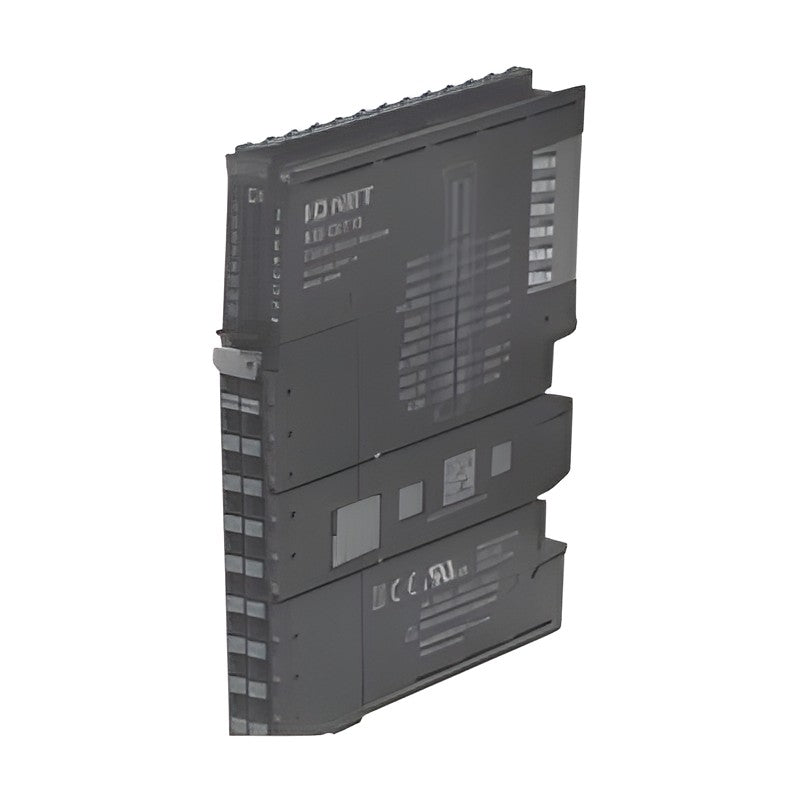

Samwon ACT NSI-DIT16 16-Point Digital Input Module, NPN/PNP

16-point 24 V DC digital input expansion module for the NSI distributed I/O system, supporting NPN and PNP sensors.

Key features

NPN / PNP mixed input
Hardware 200 us filter
Bus communication and channels isolated
Green LED per input channel

Specifications

Operating Environment	-20 to 60 C, 5-90% RH (no condensation)
System Power Diagnostics	Supported
Mounting	DIN rail
Inputs	16
Rated Voltage	24 V DC
Rated Bus Input Current	60 mA (Us, full load)
OFF Voltage	5 V DC, 1 mA max.
ON Voltage	15 V DC, 2.5 mA min.
Input Delay	4-6 ms
Cable Length	Shielded 500 m, unshielded 300 m
Isolation Voltage	500 V DC
Approvals	UL, CE, KC

NSI-DIT16

Inputs: 16 | Input Mode: NPN / PNP

Distributed I/O ModulesSamwon ACT

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT NSI-DIT16 16-Point Digital Input Module, NPN/PNP

Brand Samwon ACT·Distributed I/O Modules

Available part numbers (1)

NSI-DIT16

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
