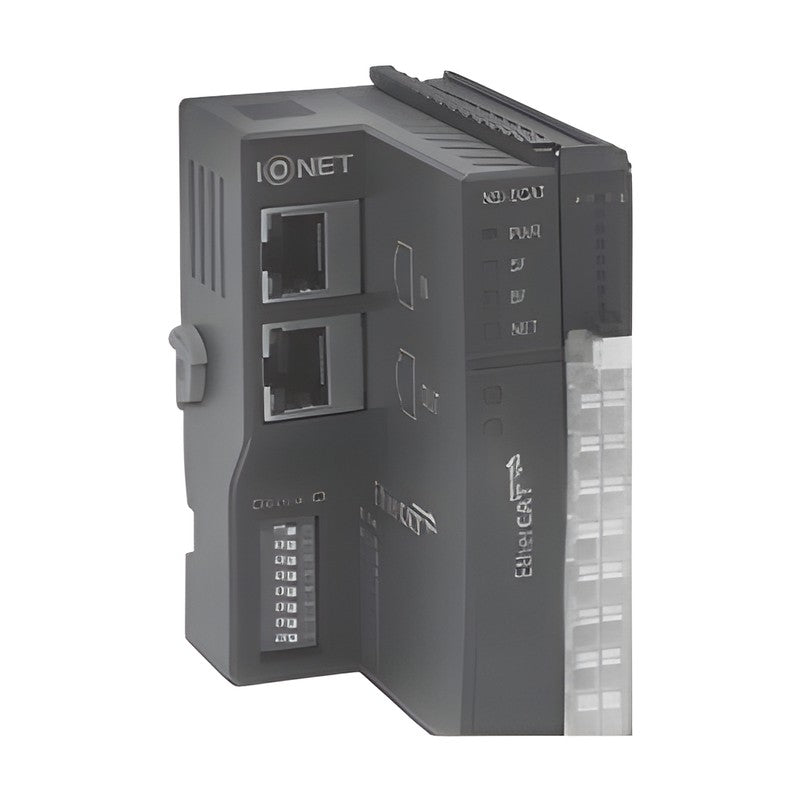

Samwon ACT NSI-ECAT EtherCAT Coupler for NSI Distributed I/O System

EtherCAT slave coupler (adapter) of the NSI distributed I/O system that connects up to 32 NSI expansion I/O modules to an EtherCAT network. 2 x RJ45 ports, 100 Mbit/s.

Key features

Bus and power separation for reliability
Independent EtherCAT slave station; ESI file provided
Connects up to 32 expansion modules (max. 512 DI / 512 DO / 64 AI / 64 AO per coupler)
Couplers and I/O modules are separable; detachable terminal blocks for easy maintenance

Specifications

Operating Environment	-20 to 60 C, 5-90% RH (no condensation)
System Power Diagnostics	Supported
Mounting	DIN rail
Communication Connector	RJ45 x 2
Rated Voltage	24 V DC
Power Consumption	67 mA typ. at 24 V DC
Rated Bus Current	245 mA, 5 V DC (converted from 24 V DC input)
Field Power Supply	24 V DC, output current 10 A max.
Bus Expansion Output	5 V DC, 2 A (add NSI-PRT05V when more than 16 modules)
Protocol	EtherCAT Slave
Address Setting	DIP switch or assigned by master
Max. Stations	255

NSI-ECAT

Network: EtherCAT

Distributed I/O ModulesSamwon ACT

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT NSI-ECAT EtherCAT Coupler for NSI Distributed I/O System

Brand Samwon ACT·Distributed I/O Modules

Available part numbers (1)

NSI-ECAT
