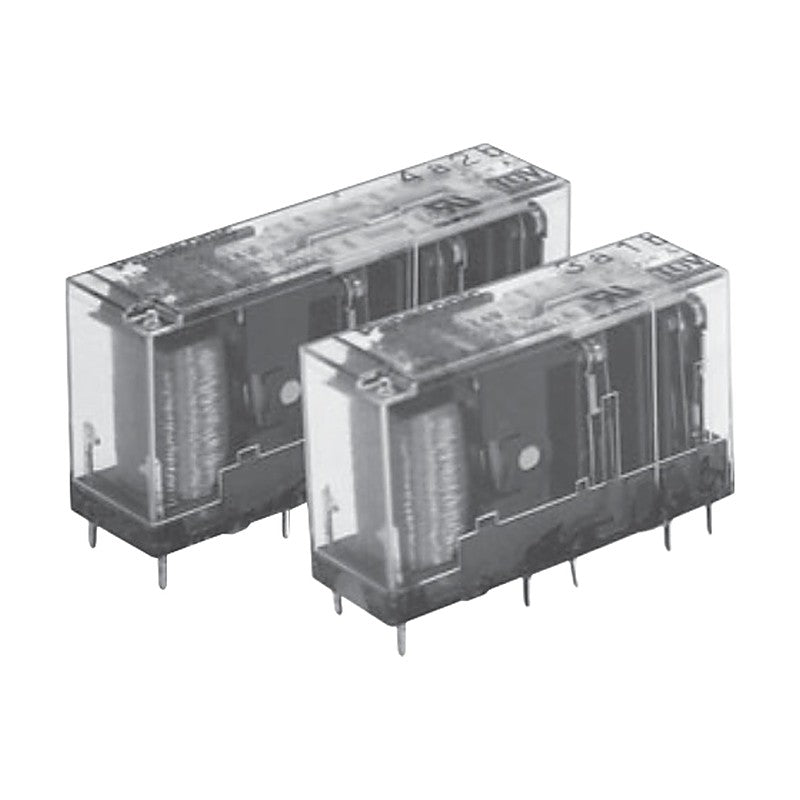

Samwon ACT PANASONIC SFS Safety Relay, Forcibly Guided Contacts, 24 V DC

Samwon ACT PANASONIC SFS Safety Relay, Forcibly Guided Contacts, 24 V DC

PCB-mount safety relay with forcibly guided (mechanically linked) contacts in 4-pole and 6-pole versions for safety circuits, made by PANASONIC.

Key features

  • Forcibly guided contact structure: NO and NC contacts never close at the same time, allowing contact welding detection
  • Relay operation can be checked by the LED on the socket
  • Slim, lightweight design: 40/50 (L) x 13 (W) x 24 (H) mm
  • Fast response: 8 ms max
  • UL, TUV (CE) and S-mark approvals
  • PANASONIC relay made in Japan

Specifications

Coil Voltage 24 V DC
Pick-Up Voltage 75% V or less of nominal
Drop-Out Voltage 10% V or more of nominal
Contact Rating 6 A 250 V AC, 6 A 30 V DC
Max. Switching Power 1,500 VA, 180 W
Min. Switching Capacity 1 mA 5 V DC
Contact Material Au flashed AgSnO2
Dielectric Strength (Coil-Contact) 4,000 Vrms 1 min
Ambient Temperature -40 to +85 C
Mounting PCB (use SFS-SW sockets for DIN rail)
Approvals UL, TUV, S-mark
SFS2-DC24V Poles: 4 | Contacts: 2a2b | Coil Current: 15 mA | Weight: Approx. 20 g | Socket: SFS4-SW-D24 / SFS4-SW-C11
SFS3-DC24V Poles: 4 | Contacts: 3a1b | Coil Current: 15 mA | Weight: Approx. 20 g | Socket: SFS4-SW-D24 / SFS4-SW-C11
SFS4-DC24V Poles: 6 | Contacts: 4a2b | Coil Current: 20.8 mA | Weight: Approx. 23 g | Socket: SFS6-SW-D24 / SFS6-SW-C11
SFS5-DC24V Poles: 6 | Contacts: 5a1b | Coil Current: 20.8 mA | Weight: Approx. 23 g | Socket: SFS6-SW-D24 / SFS6-SW-C11
SFS6-DC24V Poles: 6 | Contacts: 3a3b | Coil Current: 20.8 mA | Weight: Approx. 23 g | Socket: SFS6-SW-D24 / SFS6-SW-C11
Safety RelaysSamwon ACT
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT PANASONIC SFS Safety Relay, Forcibly Guided Contacts, 24 V DC

Brand Samwon ACT·Safety Relays

Available part numbers (5)

SFS2-DC24V, SFS3-DC24V, SFS4-DC24V, SFS5-DC24V, SFS6-DC24V

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SFS2-DC24VPoles: 4 | Contacts: 2a2b | Coil Current: 15 mA | Weight: Approx. 20 g | Socket: SFS4-SW-D24 / SFS4-SW-C11
SFS3-DC24VPoles: 4 | Contacts: 3a1b | Coil Current: 15 mA | Weight: Approx. 20 g | Socket: SFS4-SW-D24 / SFS4-SW-C11
SFS4-DC24VPoles: 6 | Contacts: 4a2b | Coil Current: 20.8 mA | Weight: Approx. 23 g | Socket: SFS6-SW-D24 / SFS6-SW-C11
SFS5-DC24VPoles: 6 | Contacts: 5a1b | Coil Current: 20.8 mA | Weight: Approx. 23 g | Socket: SFS6-SW-D24 / SFS6-SW-C11
SFS6-DC24VPoles: 6 | Contacts: 3a3b | Coil Current: 20.8 mA | Weight: Approx. 23 g | Socket: SFS6-SW-D24 / SFS6-SW-C11
