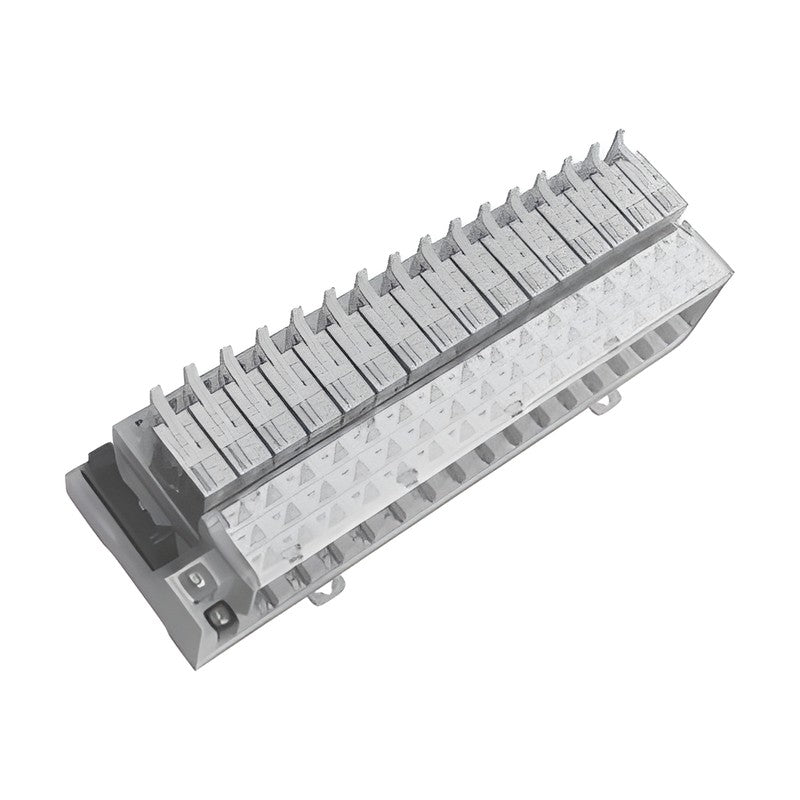

Samwon ACT R16A 16-Point Power Relay Terminal with SHN Relay, 10 A

Connector-type 16-point power relay terminal fitted with SAMWON ACT SHN12024 relays (10 A, 1 Form C) for PLC outputs driving heavy loads.

Key features

SHN power relays rated 10 A for large solenoid valves
Replaces LY relays with a smaller footprint; one-touch connector input reduces wiring
Lever for easy relay removal
Brass conductor plates on the relay output for 10 A contact capacity. 4P short bars (4 pcs) included

Specifications

Case	Modified PPO
Conductor	C2680 t0.8 / C2100 t0.3
Terminal Screw	M3.5 x 10L
Applicable Wire	AWG22-16 (1.5 mm2 max)
Relay	SAMWON ACT SHN12024
Points	16 (1c x 16)
Coil Voltage	24 V DC
Contact	1 Form C, 10 A 250 V AC / 10 A 30 V DC
Contact Common	Individual common (4P short bar included)
Coil-Side Interface	Connector MIL-C-83503 20-pin
Contact-Side Interface	Screw terminal block, 13.5 mm pitch
Dimensions (W x D)	236.0 x 77.0 mm

R16A-NC-DC24VC		Coil Common: NPN (+COM)
R16A-PC-DC24VC		Coil Common: PNP (-COM)
