Samwon ACT R16C-B Series 16-Point Relay Terminals with Individual Load Contacts

Samwon ACT R16C-B Series 16-Point Relay Terminals with Individual Load Contacts

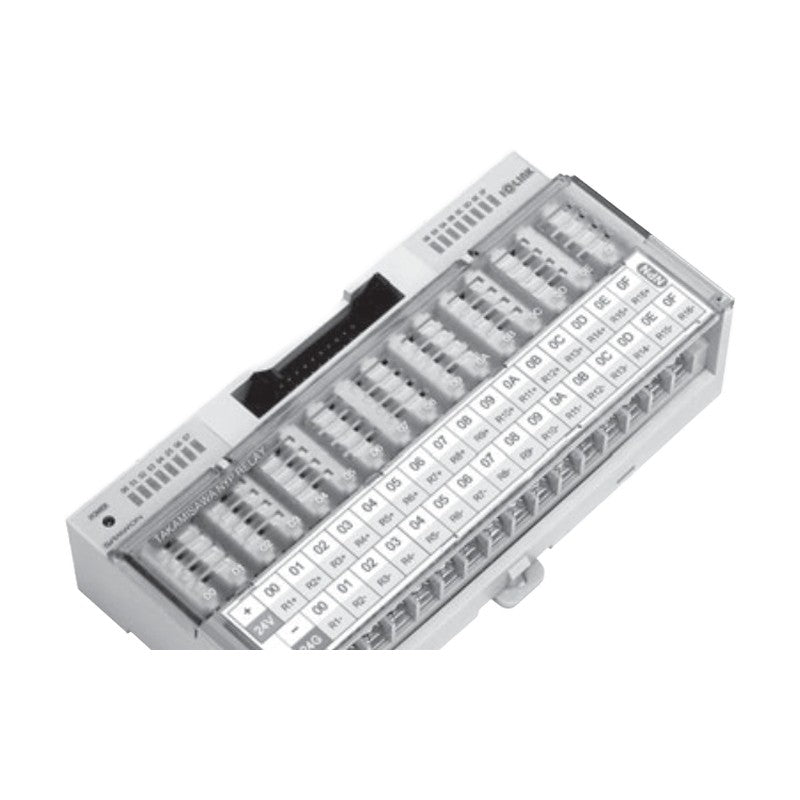

16-point relay terminals with a MIL connector input and individual load-side contacts, fitted with Takamisawa NY or Panasonic PA-N relays.

Key features

  • Compact 143.6 (W) x 70.0 (D) x 39.0 (H) mm with individual load commons
  • Long-life (Takamisawa NYP) or economy (Panasonic PA-N) relay versions
  • Relay operation LEDs and channel mounting
  • Coil-side surge absorption circuit protects the controller
  • Enclosed PCB case for safety
  • Standard cables available for PLCs, machine tools, DCS and DDC

Specifications

Material Case: Modified PPO; Cover: Polycarbonate; PCB: Epoxy 1.6 t / 2 oz
Terminal Screw M3 x 6L
Screw Torque 7-8 kgf.cm (0.68-0.78 N.m)
Operating Temperature -10 to +50 C (no condensation)
Applicable Wire AWG 22-16 (1.5 mm2 max.)
Points 16 (1a x 16)
Coil Rated Voltage 24 V DC
Contact Common Individual COM (8P shorting bar included)
Coil Interface Connector MIL-C-83503 20-pin
Contact Interface Screw terminal, 7.62 mm pitch, 34 poles
Dimensions 143.6 x 70.0 mm (W x D)
Mounting DIN rail (channel)
R16C-YNC Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM)
R16C-YPC Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM)
R16C-NS5A-34P Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM)
R16C-PS5A-34P Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM)
