Samwon ACT R16G 16-Point Master/Slave Relay Board with OMRON G6B Relay

Samwon ACT R16G 16-Point Master/Slave Relay Board with OMRON G6B Relay

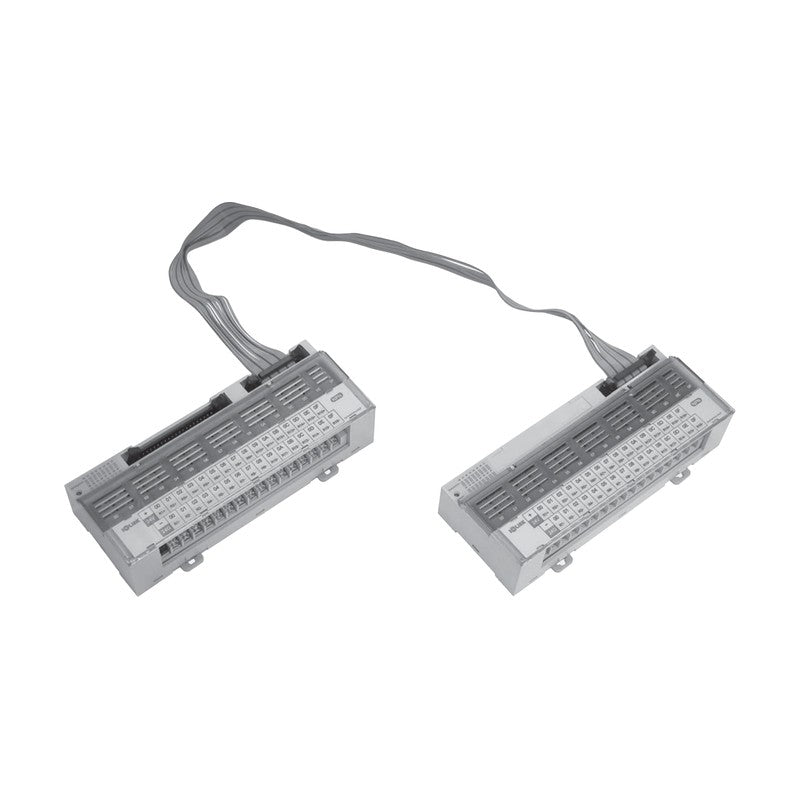

16-point relay board with OMRON G6B-1174P-FD-US relays, supplied as master and slave boards so a 32-point PLC output card can be connected with one cable.

Key features

  • Master and slave 16-point boards form a 32-point set linked by a jump cable
  • Master board includes a 50 cm flat jump cable; round jump cable available separately
  • Relay operation LEDs and channel mounting
  • Coil-side surge absorption circuit protects the controller and prevents malfunction
  • Suitable for solenoids, electromagnetic switches and frequently switched surge-prone loads

Specifications

Relay OMRON G6B-1174P-FD-US DC24V (SPST-NO, 1a)
Contact Rating 5 A 250 V AC / 5 A 30 V DC (resistive)
Coil Voltage 24 V DC
Points 16 (1a x 16)
Contact Common Individual common (8P short bar included)
Contact-Side Interface Screw terminal block, 7.62 mm pitch, 34 poles
Terminal Screw M3 x 6L
Dimensions (W x D) 174.0 x 70.0 mm
Mounting DIN rail (channel)
Accessories Short bar (2 pcs)
R16G-NS5A-M Board: Master | Coil Common: NPN (+COM) | Coil-Side Connector: MIL-C-83503 40-pin / 20-pin
R16G-PS5A-M Board: Master | Coil Common: PNP (-COM) | Coil-Side Connector: MIL-C-83503 40-pin / 20-pin
R16G-NS5A-S Board: Slave | Coil Common: NPN (+COM) | Coil-Side Connector: MIL-C-83503 20-pin
R16G-PS5A-S Board: Slave | Coil Common: PNP (-COM) | Coil-Side Connector: MIL-C-83503 20-pin
